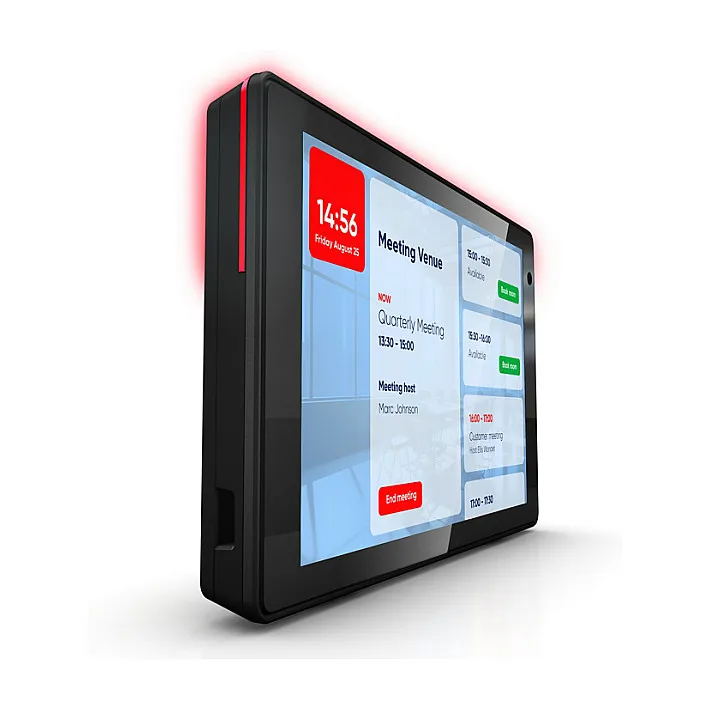

Philips Signage Solutions 10BDL5051T/00. Product design: Digital signage flat panel. Display diagonal: 25.6 cm (10.1"), Display technology: LCD, Display resolution: 1280 x 800 pixels, Display brightness: 350 cd/m², HD type: WXGA, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Your PPDS Wave-ready display enables you to manage and maintain this device remotely, wherever you are, whenever you choose. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing central content needs and setting power schedules — saving you time, energy and environmental impact.
Built-in camera and speakers
The built-in camera and speakers make this small touchscreen a truly versatile smart solution. Use it for retail audience measurement, footfall analytics and more. Harness the power of Android AI apps to show targeted content. Or simply use your display for video conferencing.
Internal memory. Upload content for instant play
Save and play content without the need for a permanent external player. Your Philips Professional Display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.
Plug-and-play 10-point multi-touch display
Android-powered Philips professional displays are flexible and secure, optimised for native Android apps and the easy installation of web apps and software directly on the display. All controlled via an Internet connection.
Android: Run your own app or choose your favourite app to run
With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day. With the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display.
Near-Field Communication (NFC) for security
NFC (Near Field Communication) offers secure authentication and access control, enhancing security with encrypted data transfer. Its contactless operation minimises the risk of unauthorised access or data interception, ensuring reliable security of the displays.
Display diagonal: 25.6 cm (10.1″)
Display technology: LCD
Display resolution: 1280 x 800 pixels
Display brightness: 350 cd/m²
HD type: WXGA
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 16:10
Response time: 35 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Display diagonal (metric): 25.6 cm
Number of displays: 1
Ports & interfaces
HDMI ports quantity: 1
HDMI output ports quantity: 1
Feature: USB port
USB ports quantity: 3
USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 3 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 75 x 75 mm
Bezel width (bottom): 1.4 cm
Bezel width (side): 2.2 cm
Bezel width (top): 2.2 cm
Mounting type: Wall
Performance
Purpose: Commercial
Feature: On Screen Display (OSD)
Number of OSD languages: 18
Operating hours (hours/days): 24/7
Power
Power consumption (typical): 4 W
Power consumption (standby): 0.5 W
Input voltage: 12 V
Power consumption (max): 18 W
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor model: RK3568
Internal memory: 2 GB
Internal storage capacity: 16 GB
Operating system installed: Android
Operating system version: 13
Weight & dimensions
Display width: 262 mm
Display depth: 24.8 mm
Display height: 164 mm
Display weight: 800 g
Packaging content
Feature: Power adapter included
Cables included: HDMI, USB Type-A to USB Type-C
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 30 – 80%
Storage temperature (T-T): -10 – 60 °C
Storage relative humidity (H-H): 10 – 85%
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Technical details
Warranty period: 3 year(s)
Compliance certificates: CB, CE, ETL, Federal Communications Commission (FCC), RoHS
Other features
Feature: Bluetooth
Bluetooth version: 5.0
