Phanteks PH-EC400GA_DBK01. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Rear, Supported power supply form factors: ATX. Front fans installed: 3x 140 mm, Front fans diameters supported: 140 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 495 mm, Depth: 230 mm, Height: 522 mm
Spacious D-RGB Gaming Chassis
The G400A is the upgraded successor to the popular P400A, featuring a completely redesigned and more spacious chassis. It’s perfect for clean, modern hardware setups, easily accommodating even the largest graphics cards while leaving ample room for cable management. With up to 10 fan mounting points, support for 140 mm fans, and dedicated radiator space at the top, cooling performance has been significantly enhanced.
The G400A also supports the latest mainboards, with rear-side connectors hidden to enable a cable-free appearance. Additionally, the graphics card benefits from direct cooling via three 120 mm fan mounts on the mid-plate.
Clean front inlet design
Clean design allows for focused airflow.

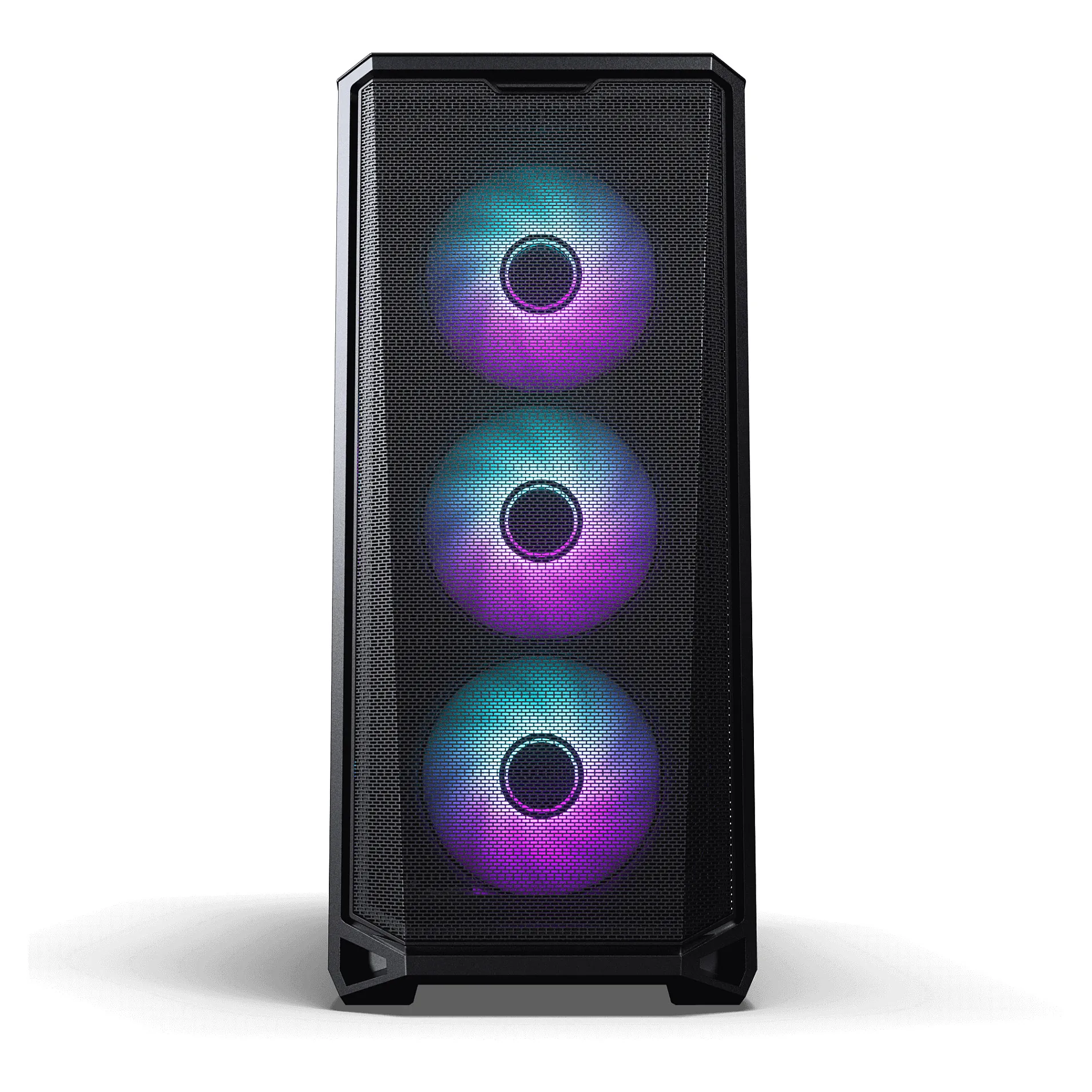

4x M25-140 Gen2 D-RGB fans included.
Dedicated 360 radiator support in the top without restrictions.
Improved Air Intake
45% open surface for more air intake compared to standard mesh which only provides 35%.
Ultra-fine Performance Mesh

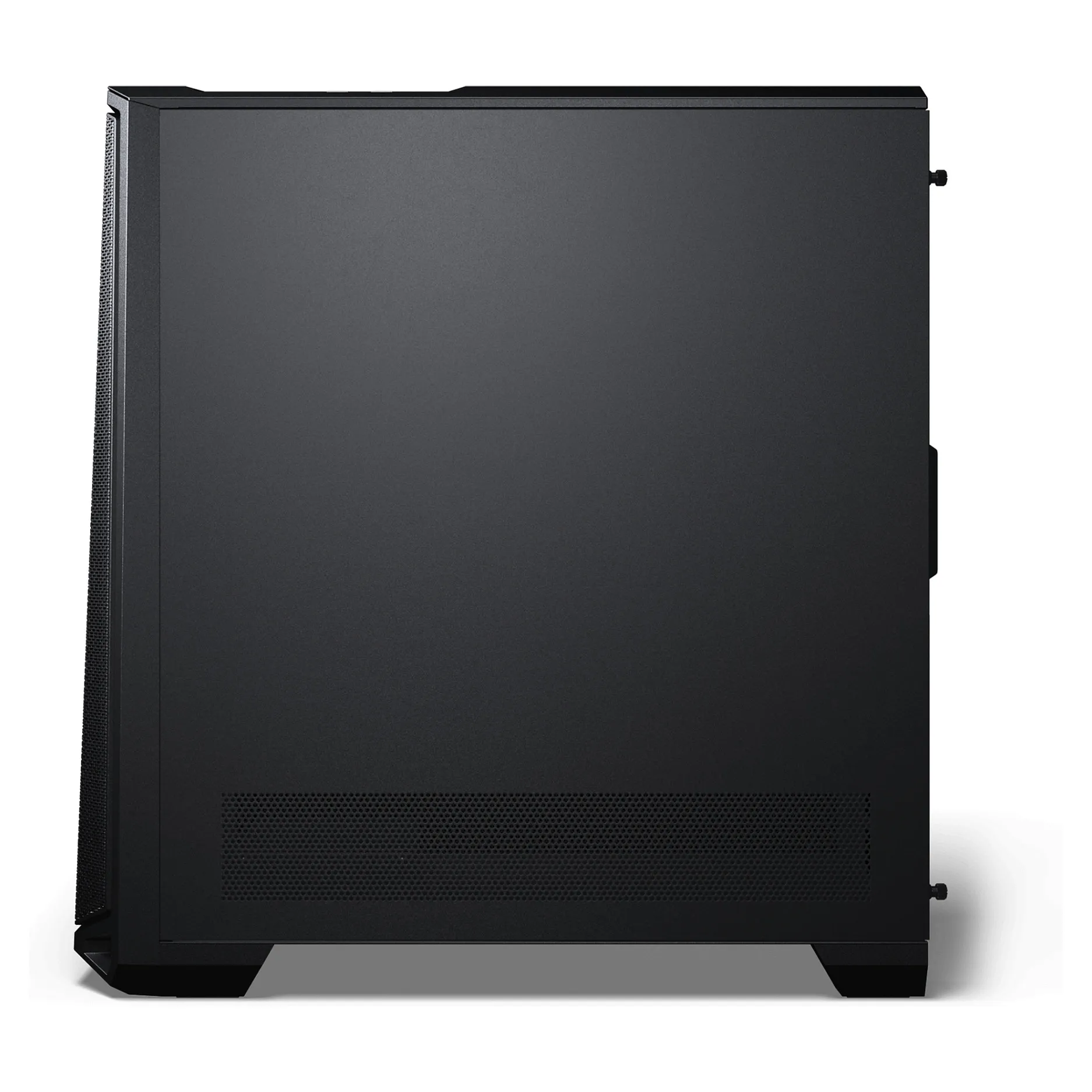

Large mesh intake areas on both side panels for high cooling performance.
Triple mid-plate 120 fan locations for direct GPU cooling.
Support for the largest graphics cards without compromise.
Clean Cable Management
Dedicated cable management tool.
Support for the latest rear-side connector mainboards.
Material: Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX, EATX
Number of 3.5″ bays: 2
Number of 2.5″ bays: 2
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 18.4 cm
Maximum graphics card length: 41.5 cm
Maximum PSU length: 27 cm
Power supply
Power supply location: Rear
Number of power supply units: 1
Supported power supply form factors: ATX
Ports & interfaces
Audio input: No
Audio output: No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 3x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 5
Top fans diameters supported: 120,140 mm
Storage
Supported HDD sizes: 3.5″
SSD form factor: 2.5″
Weight & dimensions
Width: 495 mm
Depth: 230 mm
Height: 522 mm
Weight: 8.63 kg
