Phanteks D30-140. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 250 RPM, Rotational speed (max): 1800 RPM, Maximum air pressure: 3.08 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 5 – 13.2 V. Width: 140 mm, Depth: 30 mm, Height: 140 mm. Product colour: White
The D30-140 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-140 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Regular & Reverse Models
D30 REGULAR
Air moves from front to rear.
D30 REVERSED
Air moves from rear to front.
Clean look in both positions
Clean look with regular and reversed models combined.
Hub spokes blocked view with only regular models.
Link Together as One
Connect up to four D30 fans together with the bridge connectors.
Hide the fan screws with the screw covers for a super-clean look.
Standard PWM fan header to control directly from the motherboard.
30 mm of Performance
Increased thickness improves noise-normalized performance.
Designed to excel on radiators and mesh / dust filters.

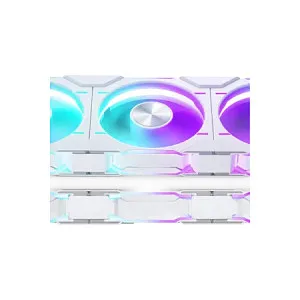

D-RGB All the Way
The integrated D-RGB lighting is visible from all sides of the D30 frame.
The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
Suitable location: Computer case
Type: Fan
Fan diameter: 14 cm
Rotational speed (min): 250 RPM
Rotational speed (max): 1800 RPM
Noise level (high speed): 32.1 dB
Maximum airflow: 71.76 cfm
Maximum air pressure: 3.08 mmH2O
Fan 2 rotational speed (min): 250 RPM
Fan 2 rotational speed (max): 1800 RPM
Fan 2 noise level (high speed): 32.1 dB
Fan 2 maximum airflow: 71.76 cfm
Fan 2 maximum air pressure: 3.08 mmH2O
Bearing type: Fluid Dynamic Bearing (FDB)
Fan noise level (max): 32.1 dB
Quantity per pack: 3 pc(s)
Fan speed (min): 250 RPM
Fan speed (max): 1800 RPM
Fan static pressure: 3.08 mmH2O
Mean time between failures (MTBF): 50000 h
Design
Product colour: White
Number of fans: 3 fan(s)
Number of fan blades: 7
Feature: Illumination LED
Number of LEDs: 30
Fan connector: 4-pin
Power
Power consumption (typical): 1.8 W
Voltage: 5 – 13.2 V
Fan power consumption: 1.8 W
Maximum current: 0.45 A
LED voltage: 5 V
Fan current: 0.15 A
Weight & dimensions
Width: 140 mm
Depth: 30 mm
Height: 140 mm
Fan dimensions (W x D x H): 140 x 140 x 30 mm
Fan thickness: 3 cm
Fan weight: 350 g
Fan 2 dimensions (W x D x H): 140 x 140 x 30 mm
Fan 2 weight: 350 g
Cable length: 0.7 m
Package weight: 1.03 kg
Technical details
Warranty period: 3 year(s)
Packaging content
Package type: Box
Cables included: 4-pin
