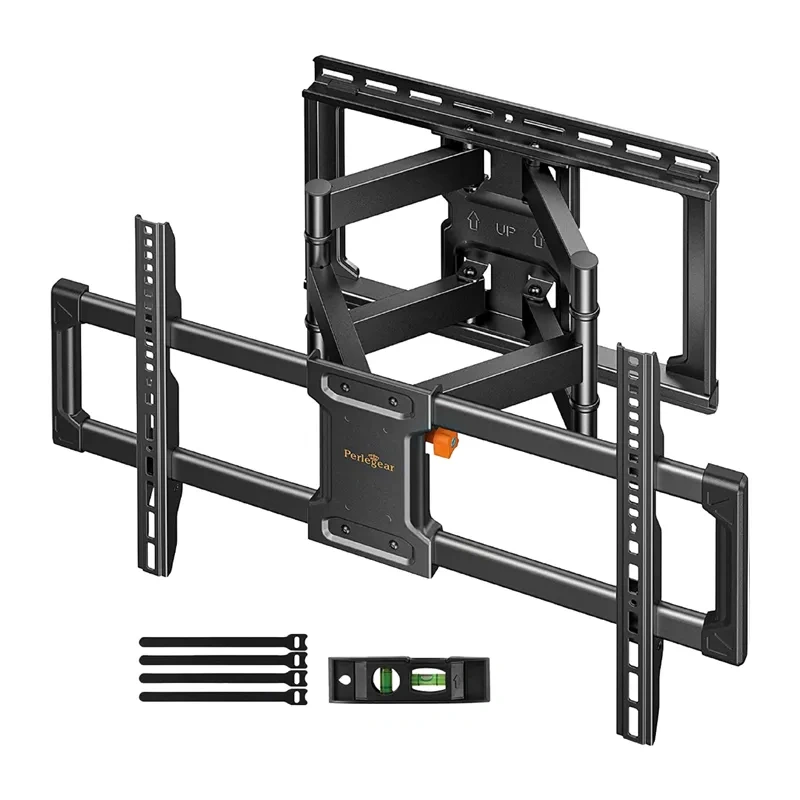

Perlgear PGLF8B-N1 TV Mount
The Perlgear PGLF8B-N1 TV mount is a fully articulating model designed for flat and curved TVs with screen sizes ranging from 42 to 90 inches and weighing up to 68 kg. It supports VESA standards ranging from 200 × 100 to 600 × 400 mm, and the dual-jointed arms allow the screen to rotate ±50°, tilt from +5° to -15°, and adjust the distance from the wall within a range of 76.2 to 421.6 mm. The mount is designed for installation on solid concrete and brick walls, as well as on stud walls with studs spaced at a standard 16-inch (approx. 40.6 cm) interval.
Adjust the screen’s position to your viewing spot
The movable design allows you to angle the TV toward the couch, armchair, or another part of the room without having to change the mounting location. The ±50° swivel range makes it easy to position the screen to the left or right, while the tilt range of +5° to -15° helps adjust the viewing angle and reduce distracting light reflections. After installation, you can further adjust the screen’s level within a range of ±3°, allowing you to precisely position the TV.
Extendable design – from 76.2 to 421.6 mm
The Perlgear PGLF8B-N1 can be extended up to 421.6 mm from the wall, making it easier to utilize the available swivel range and access the connectors on the back of the TV. When retracted, the mount is 76.2 mm from the wall, minimizing the space it takes up. The included cable ties help keep the wiring behind the screen organized.
Reinforced Double Arms
The design features two steel arms, which, according to the manufacturer, are 30% thicker, resulting in greater rigidity when supporting a large screen. The mount’s maximum load capacity is 68 kg, and additional safety features include a locking mechanism and end caps that prevent the mounting hardware from accidentally slipping off.
Easier Setup and Installation
The kit includes a wall template, a level, instructions, and the necessary mounting hardware, which makes it easier to correctly mark the installation location. The simplified design of the front support beams uses fewer screws, making the assembly of individual components more efficient. The mount should not be installed solely in the drywall itself—the substrate and mounting method must be appropriate for the TV’s weight and the wall’s construction.
Included in the set
- Mount with arms and wall plate
- TV mounting rails
- Front support beams
- Cover caps
- TV mounting hardware set
- Wall mounting hardware set
- Spirit level
- Wall mounting template
- Cable management straps
- User manual
- Quick installation guide
| Manufacturer | Perlgear |
|---|---|
| Model | PGLF8B-N1 |
| Type | Full-motion TV wall mount |
| Compatible TVs | flat and curved |
| TV screen size | 42–90" |
| Maximum load | 68 kg |
| VESA | 200 × 100 to 600 × 400 mm |
| Supported VESA sizes | 200 × 100, 200 × 200, 200 × 300, 200 × 400, 300 × 200, 300 × 300, 300 × 400, 400 × 200, 400 × 300, 400 × 400, 500 × 400, 600 × 400 mm |
| Horizontal rotation | ±50° |
| Tilt | +5° / -15° |
| Post-installation level adjustment | ±3° |
| Maximum projection from the wall | 421.6 mm |
| Minimum distance from the wall | 76.2 mm |
| Construction | double steel arms |
| Arms | 30% thicker according to the manufacturer’s specifications |
| Installation | solid concrete, brick, and stud walls with studs spaced 16" (approx. 40.6 cm) apart |
