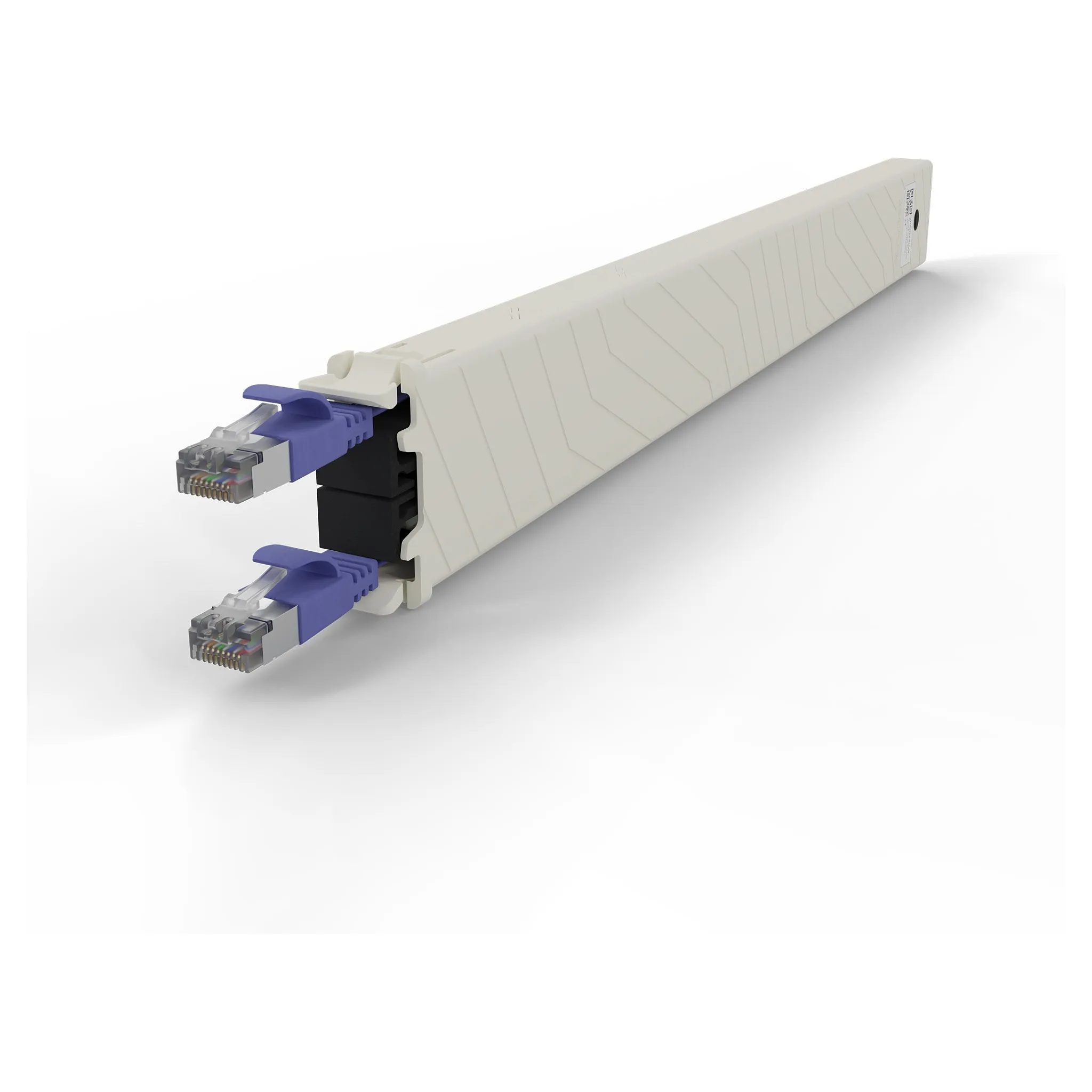

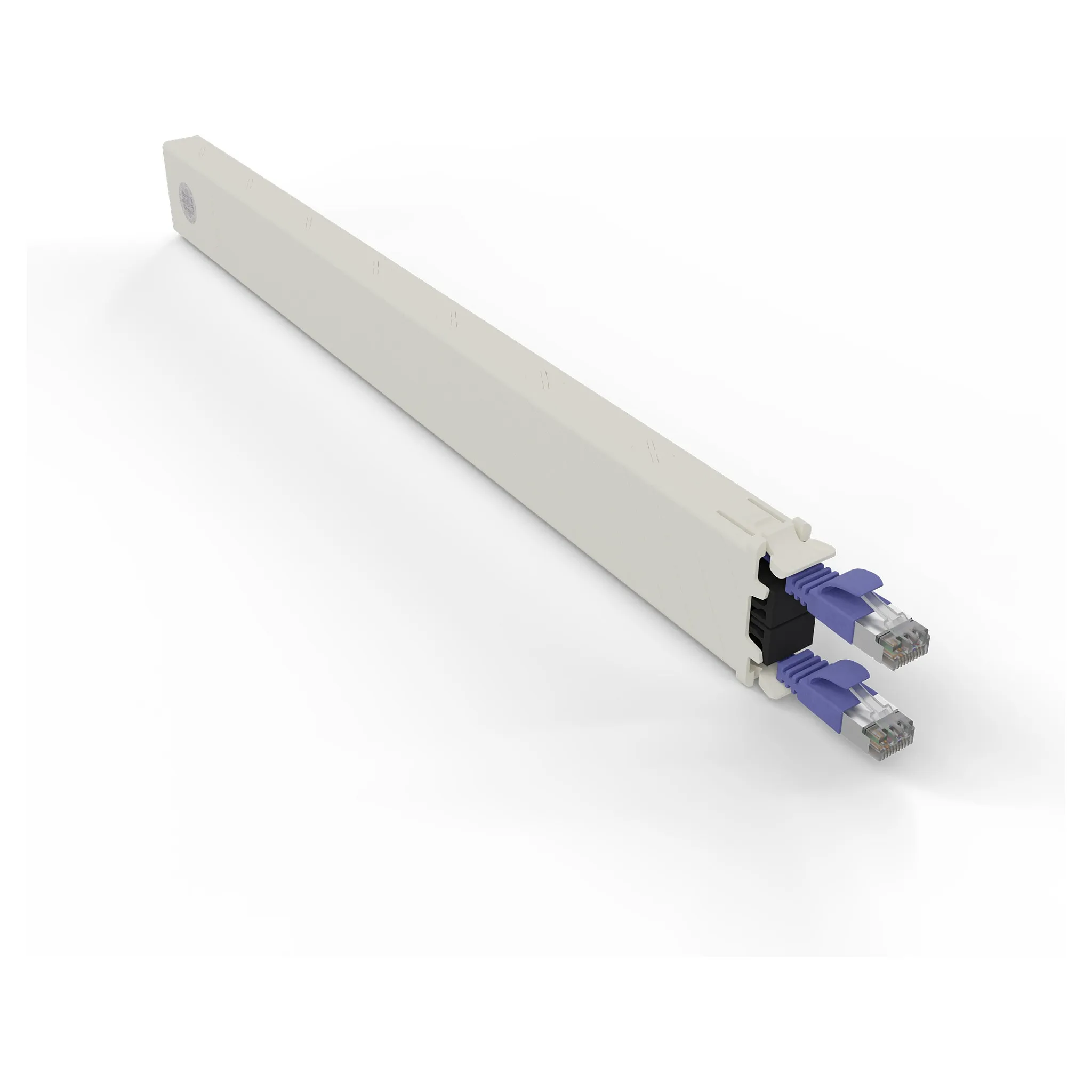

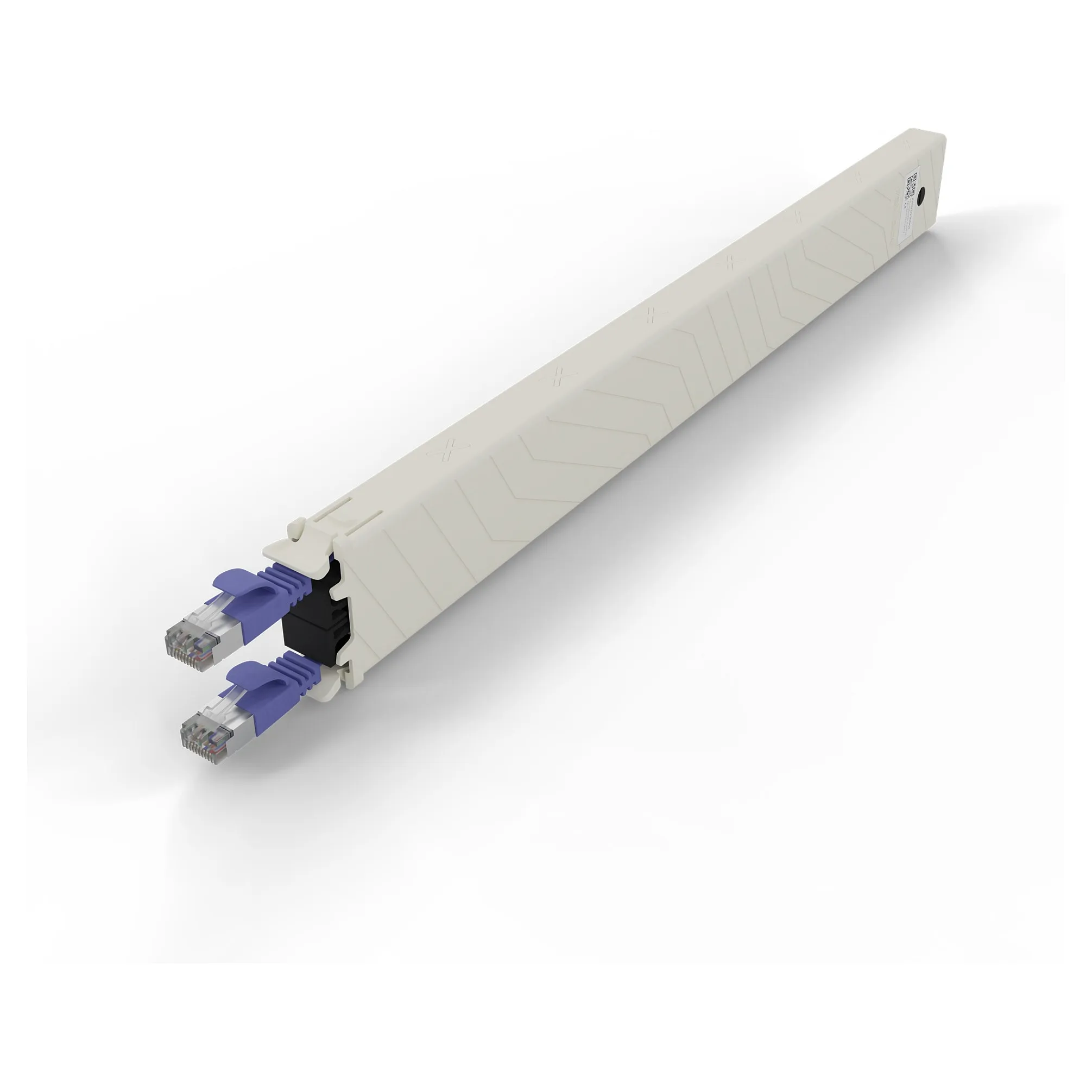

PATCHBOX .one / Cassette / 8RU / STP / Violet. Cable length: 0.8 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Violet
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.

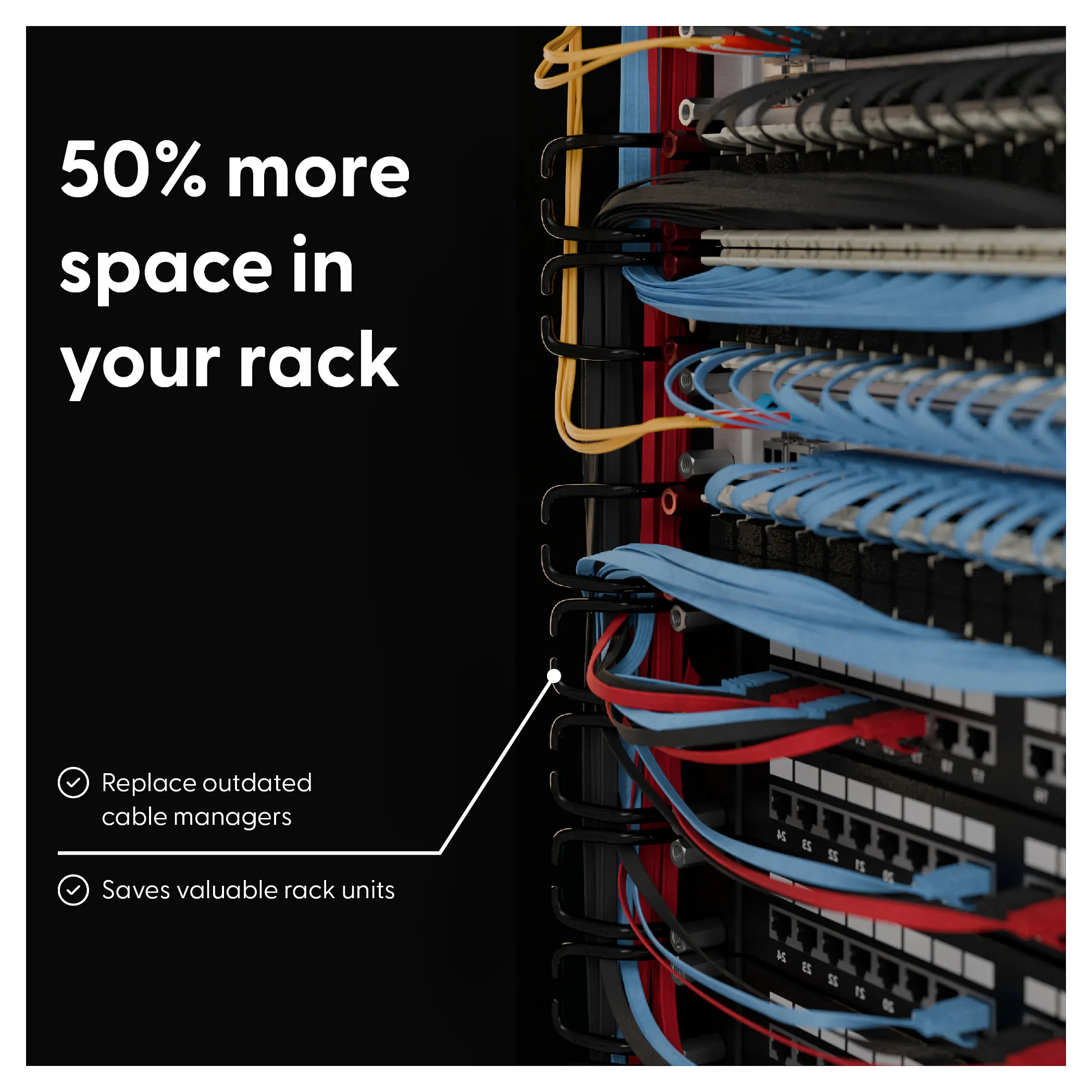

Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.

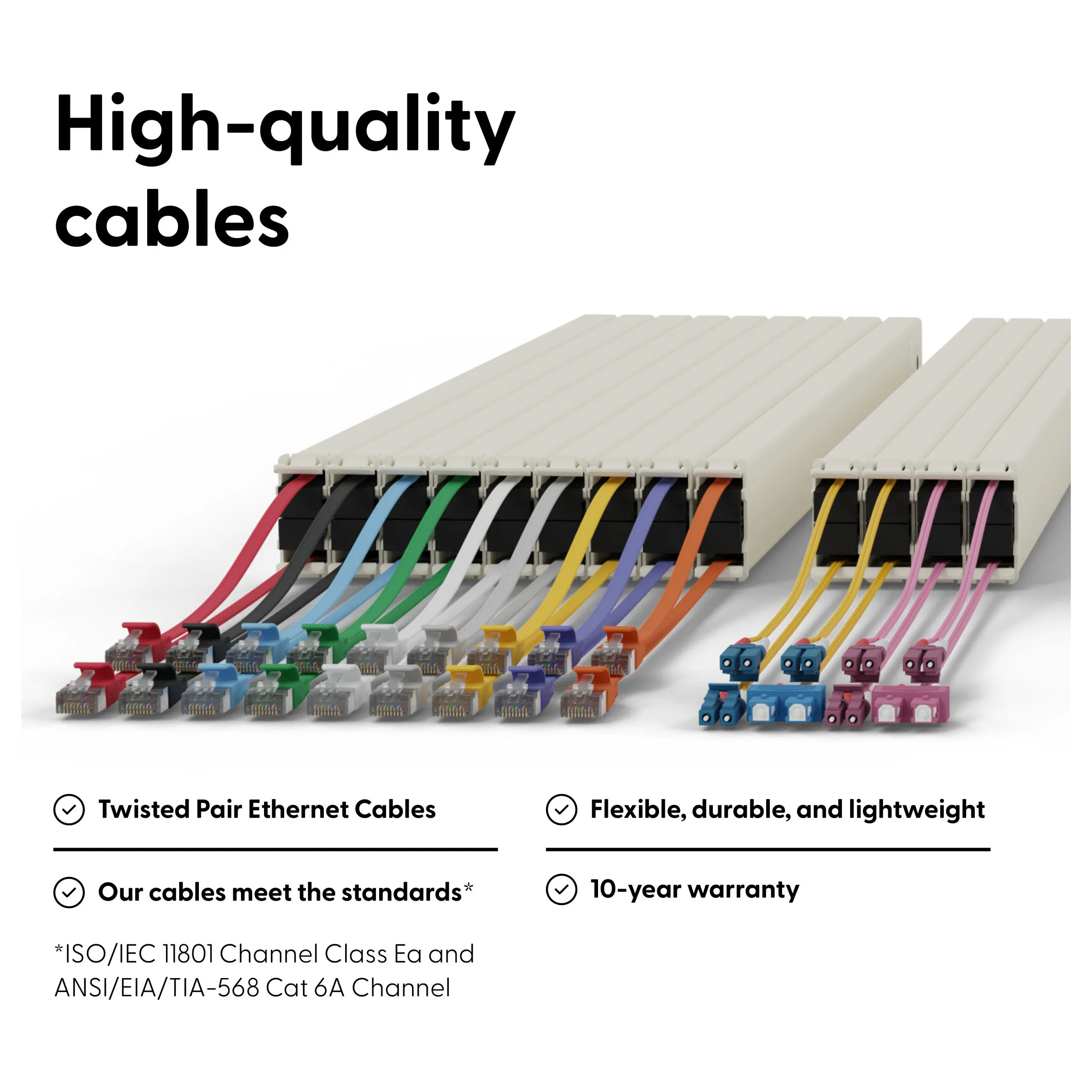

High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
Product colour: Violet
Cable length: 0.8 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Cable shape: Flat
Conductor material: Copper
AWG wire size: 36
Data transfer rate: 10000 Mbit/s
Bend radius (min): 1.2 cm
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE
Country of origin: Hungary
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 90%
Certificates
Certification: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
Weight & dimensions
Width: 18 mm
Depth: 365 mm
Height: 40 mm
Weight: 150 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging content: 1 x patchbox.one / Cassette / 8RU / STP / Violet
Packaging data
Package width: 433 mm
Package depth: 28 mm
Package height: 50 mm
Package weight: 200 g
Other features
Cables included: LAN (RJ-45)
