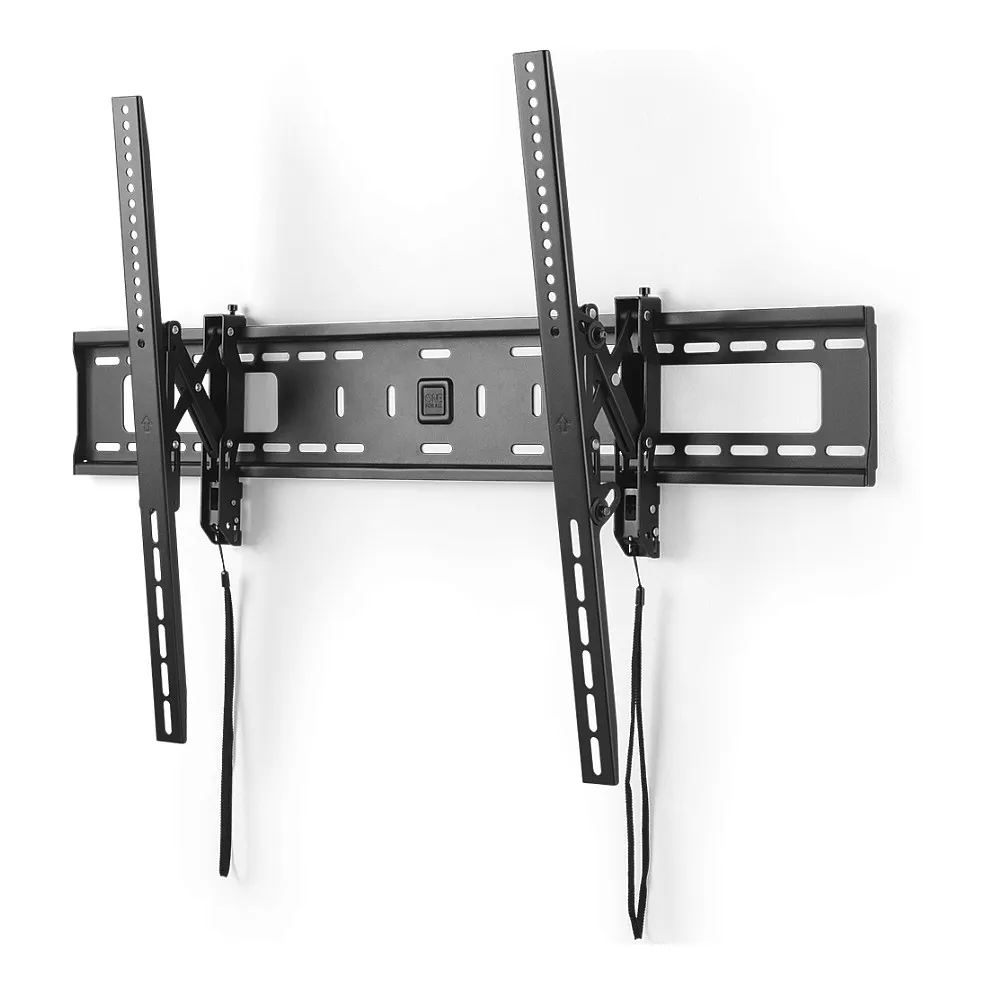

One For All WM 4920. Maximum weight capacity: 75 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 3.05 m (120"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 900 x 600 mm. Distance to the wall (min): 7.5 cm, Distance to the wall (max): 13.6 cm. Product colour: Black
Enjoy the JUMBO experience, bigger, stronger and sturdier this SOLID line JUMBO wall mount will bring a new level of safety to your home entertainment setup. Hang your TV easily with hassle free installation while ensuring the safety and security of your TV.
Designed for BIG TVs
This wall mount is specifically designed for big and heavy televisions. It supports a weight up to 75kg and a maximum VESA width of 900!
Robust design for optimal support
The SOLID line of wall mounts features a robust design that ensures optimal support of your valuable TV at all times. Cast from high-grade material, this sturdy wall mount will hold any TV up to 75kg.
Easy cable access
Trouble accessing your cables after mounting the TV? Tilt your TV upwards, giving easy access to your TV connections.
Easy leveling after installation
The level of the bracket can easily be adjusted after installation. You can always be sure your TV is straight.
Auto lock & Easy release
Click your TV easily into the mount with the integrated lock and release mechanism. Should you have to remove your TV from the wall, just unlock and release.
Perfect for mounting on stud walls
No matter if your wall is made of wood or metal studs, you can mount this wall mount onto studs up to dual 16″ / 800mm.
Mounting materials included
No need to search for the most suitable screws to mount this wall mount. All mounting materials such as screws, concrete anchors and spacers are delivered with the wall mount for a quick and straightforward setup.
Don’t know exactly how high you should mount your TV bracket?
Download the free One For All Assistant app offering step by step instructions on how to install you wall mount. It features augment reality helping you to find the desired height for your TV before drilling any holes. This handy app includes tools such as a spirit level and flashlight and all product manuals and videos, enabling an easy installation.
Maximum weight capacity: 75 kg
Minimum screen size: 106.7 cm (42″)
Number of displays supported: 1
Maximum weight capacity (per display): 75 kg
Maximum screen size: 3.05 m (120″)
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 900 x 600 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,600 x 600,800 x 400,800 x 600,900 x 600
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Turn angle: 10°
Type: Fixed
Tilt angle: 15°
Distance to the wall (max): 13.6 cm
Distance to the wall (min): 7.5 cm
Design
Product colour: Black
Technical details
Feature: Post-installation leveling roll
Warranty period: 10 year(s)
Lockable: Lock included
Packaging content
Feature: Mounting kit
Packaging content: Fischer plugs
Weight & dimensions
Width: 137 mm
Height: 630 mm
Length: 954 mm
Packaging data
Quantity per pack: 1 pair(s)
Package width: 985 mm
Package depth: 166 mm
Package height: 70 mm
Package weight: 5.14 kg
Other features
Feature: VESA mounting
