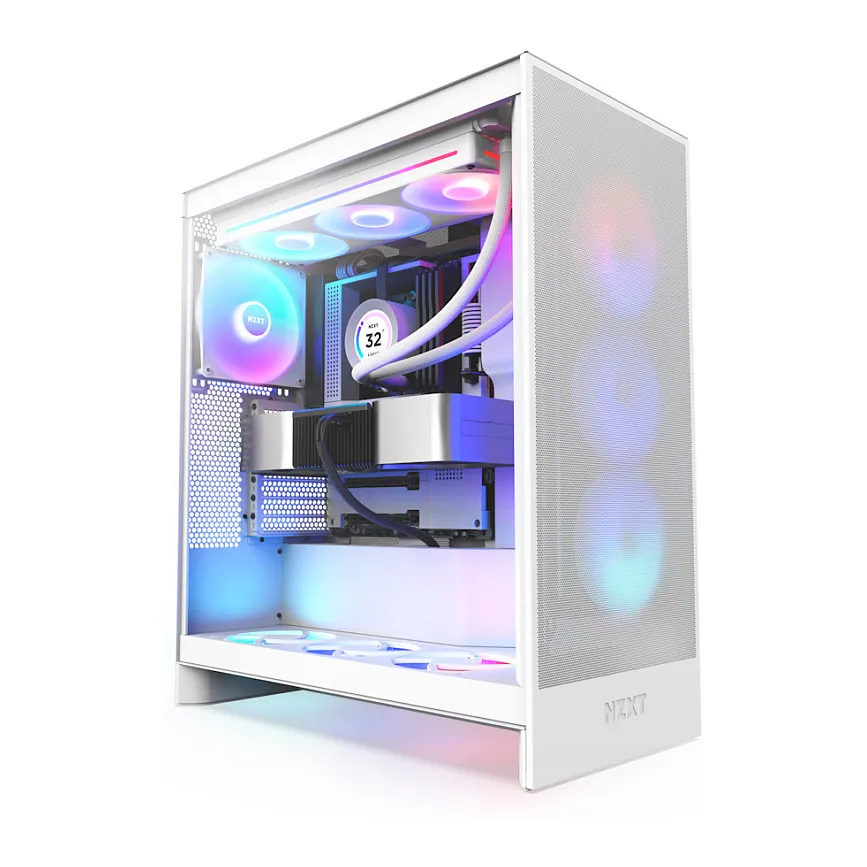

NZXT H7 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

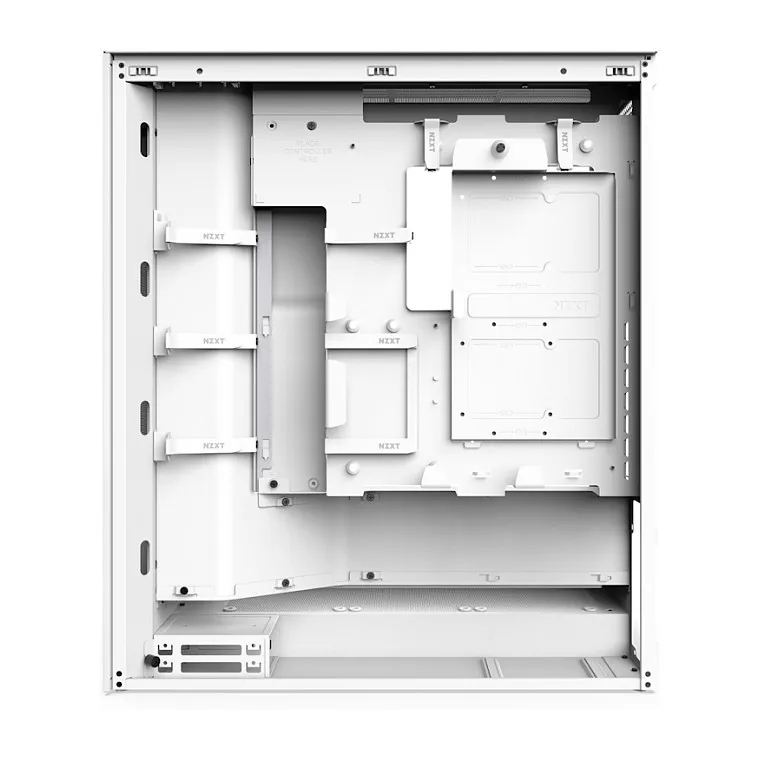

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

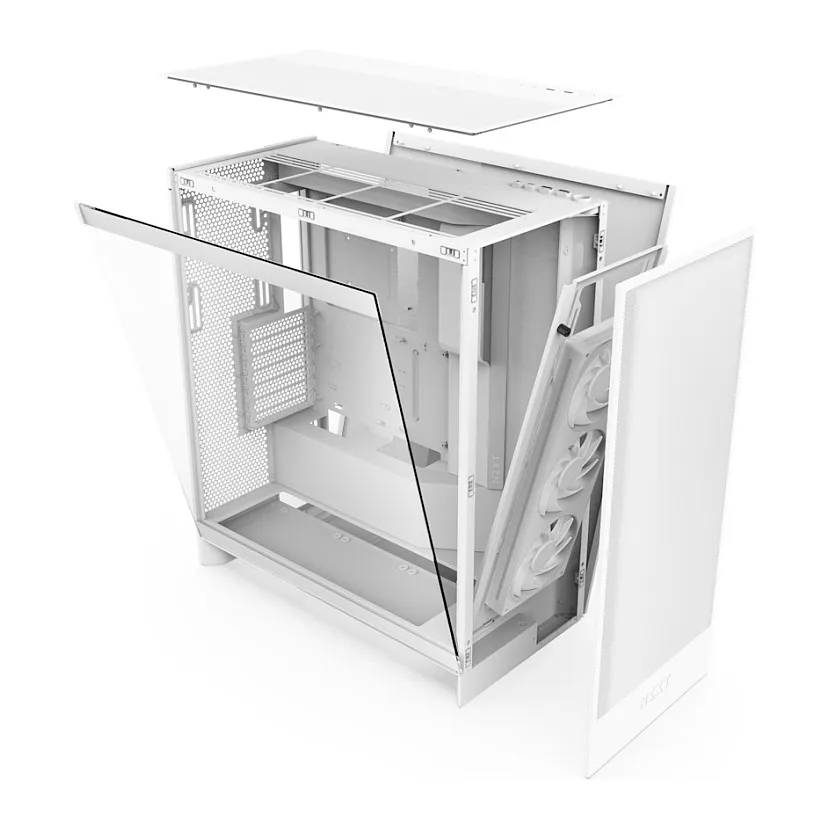

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Material: SGCC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5″ bays: 2
Number of 2.5″ bays: 4
Feature: Side window
Feature: Illumination
Feature: Tempered glass panel(s)
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 20 cm
Ports & interfaces
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Fan speed: 1200 – 1500 RPM
Maximum airflow: 50.1 cfm
Fan 2 maximum airflow: 50.1 cfm
Maximum air pressure: 1.27 mmH2O
Fan 2 maximum air pressure: 1.27 mmH2O
Front radiator sizes supported: 360,420 mm
Rear radiator sizes supported: 140 mm
Top radiator sizes supported: 360 mm
Storage
Supported HDD sizes: 2.5,3.5″
Technical details
Warranty period: 2 year(s)
Weight & dimensions
Width: 244 mm
Depth: 468 mm
Height: 544 mm
Weight: 11.1 kg
