NZXT H5 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 1x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 430 mm, Height: 465 mm. Noise level: 24.1 dB, Fan connector: 3-pin
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
H5 Flow PC showing radiator fan size capabilityH5 Flow PC showing radiator fan size capability

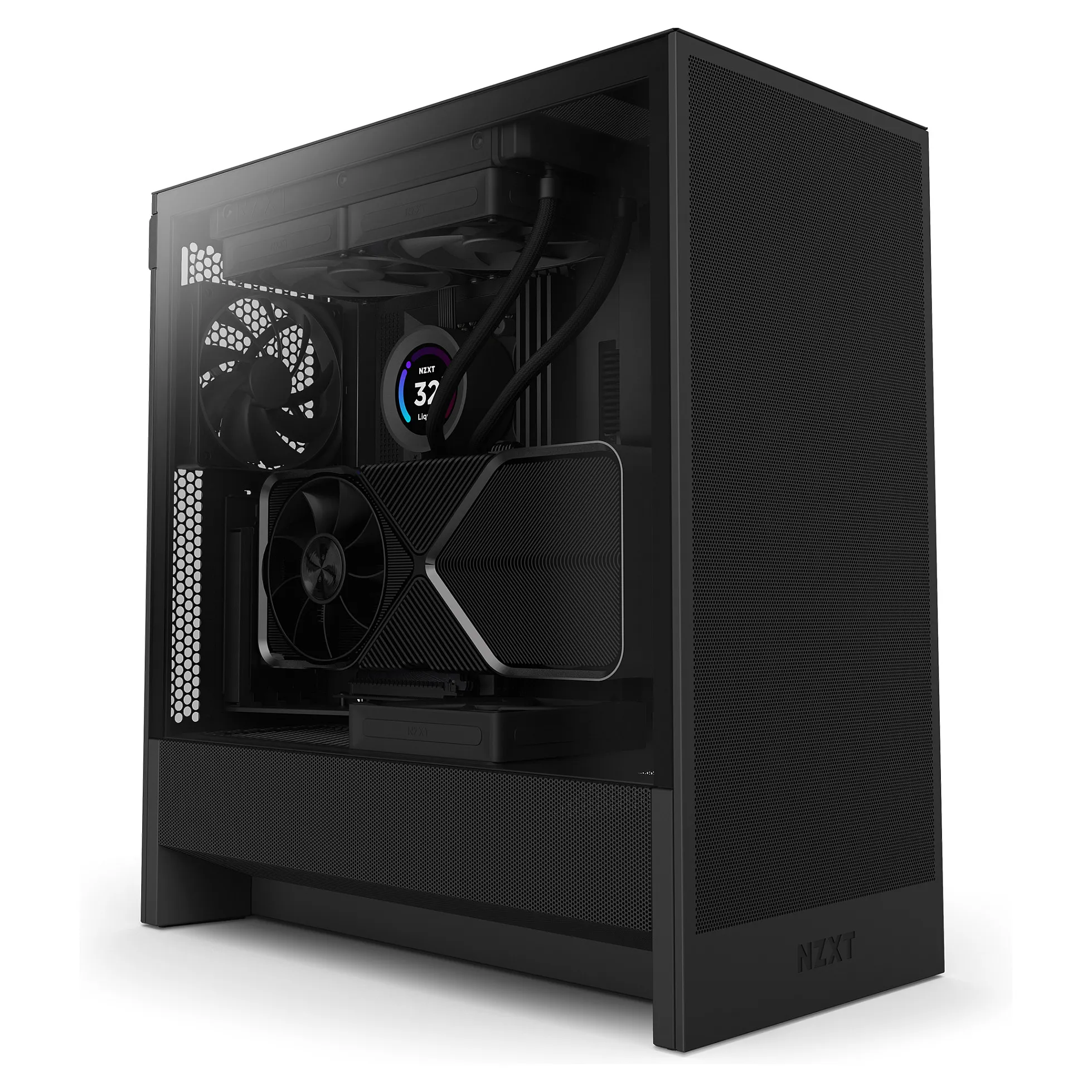

Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
H5 Flow PC highlighting the F120Q fan included with the caseH5 Flow PC highlighting the F120Q fan included with the case

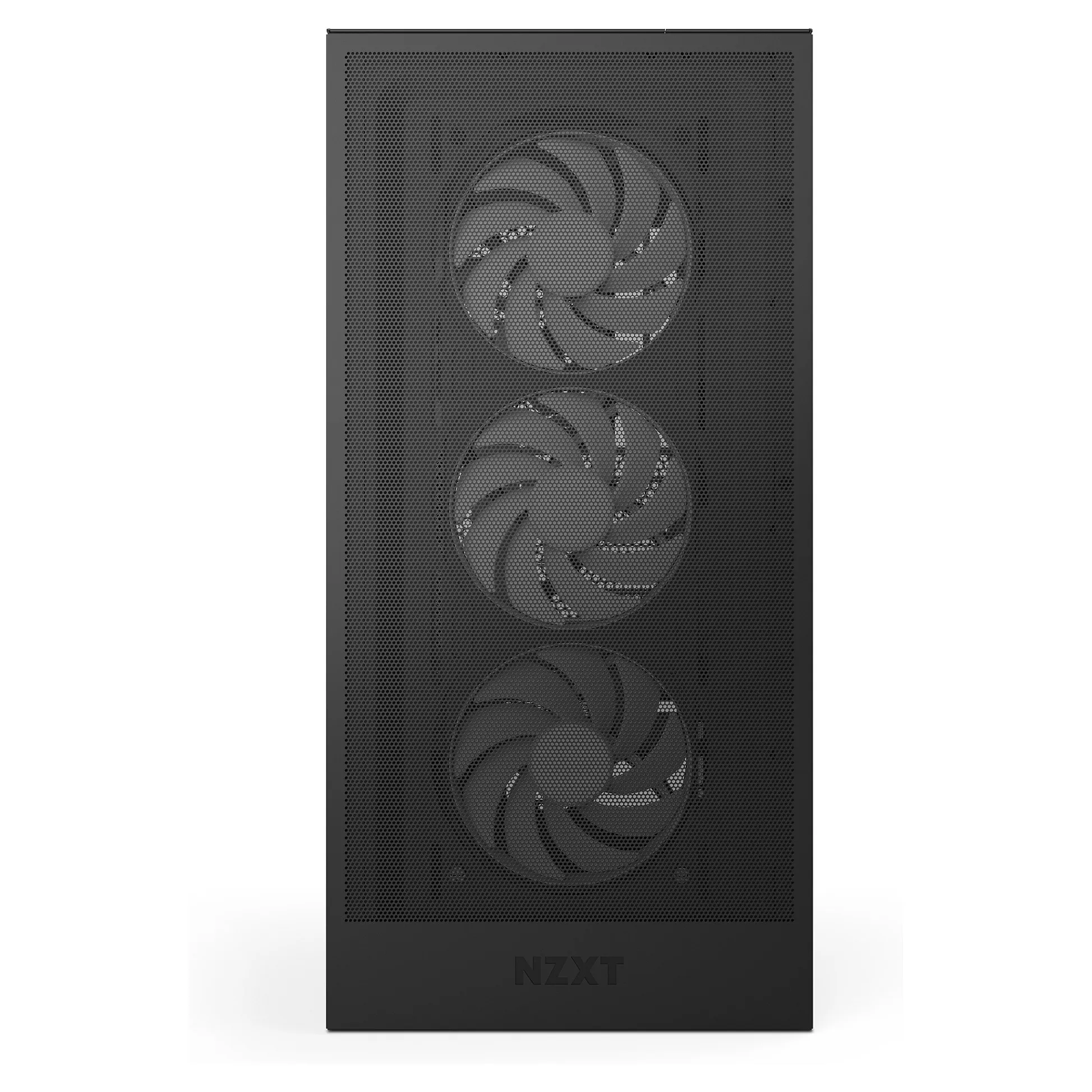

Pre-Installed Fans*
Equipped with two 120mm Quiet Airflow fans (CV)—one in front, one in rear—for out-of-the-box cooling. *Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

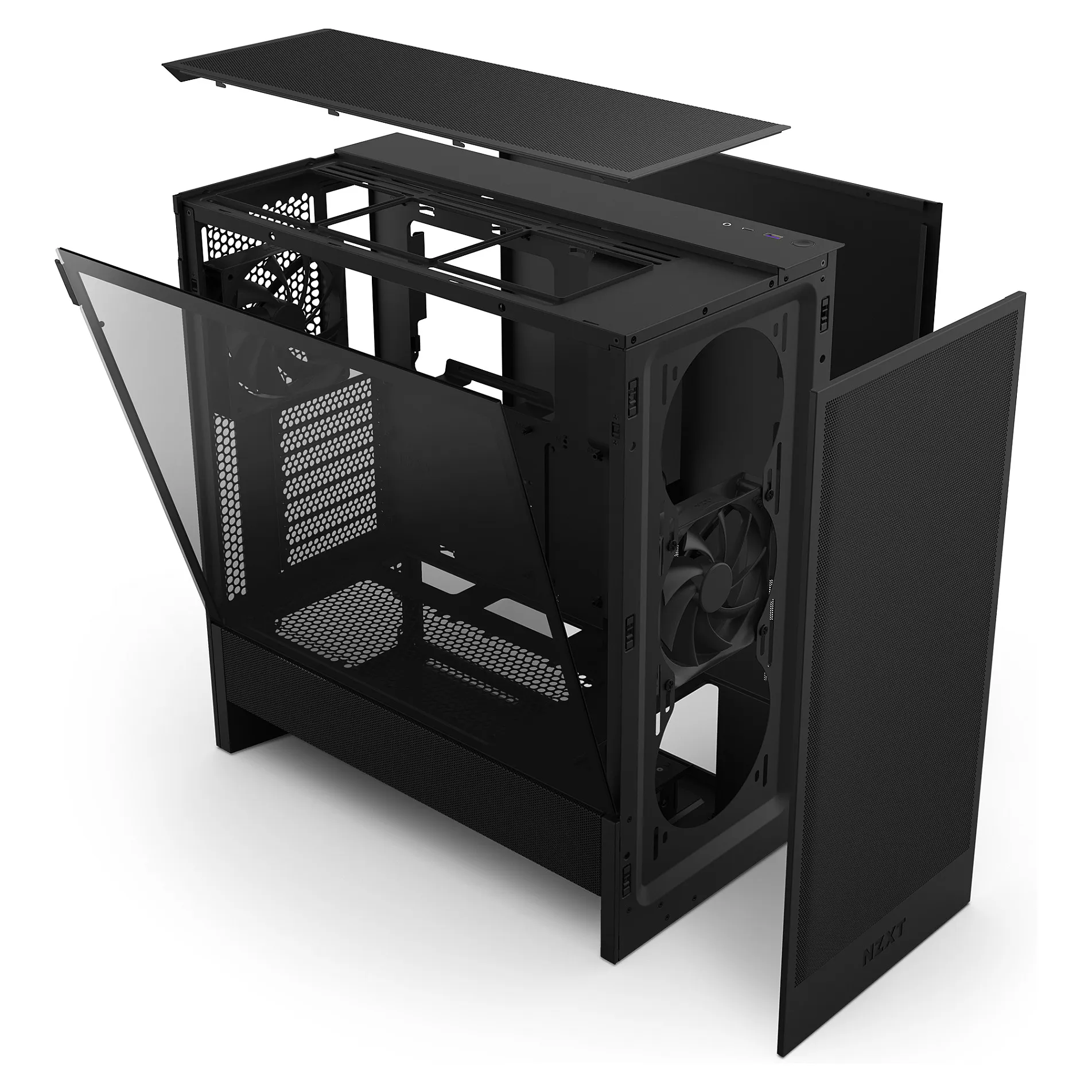

Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Material: SGCC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5″ bays: 1
Number of 2.5″ bays: 2
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 17 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 20 cm
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 1x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Fan speed: 1200 – 1500 RPM
Maximum airflow: 60.2 cfm
Fan 2 maximum air pressure: 1.05 mmH2O
Feature: Liquid cooling capability
Front radiator sizes supported: 360 mm
Top radiator sizes supported: 240 mm
Storage
Supported HDD sizes: 2.5,3.5″
Packaging content
Feature: Manual
Weight & dimensions
Width: 225 mm
Depth: 430 mm
Height: 465 mm
Weight: 7.28 kg
Other features
Feature: Screws included
Noise level: 24.1 dB
Fan connector: 3-pin
