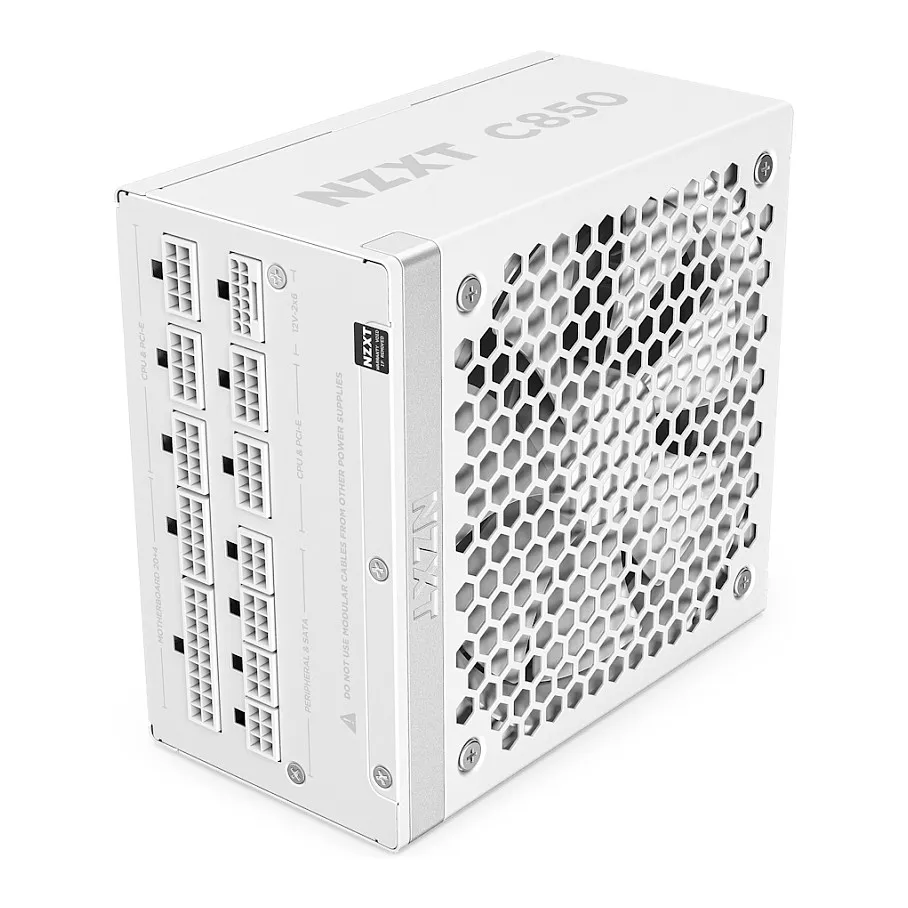

NZXT C850 Gold ATX 3.1. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: BIS, BSMI, CCC, CE, Federal Communications Commission (FCC), KC, RCM, UKCA, cTUVus
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.
ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.
40 Series Ready
12V-2×6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.
Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.
Silence is Golden

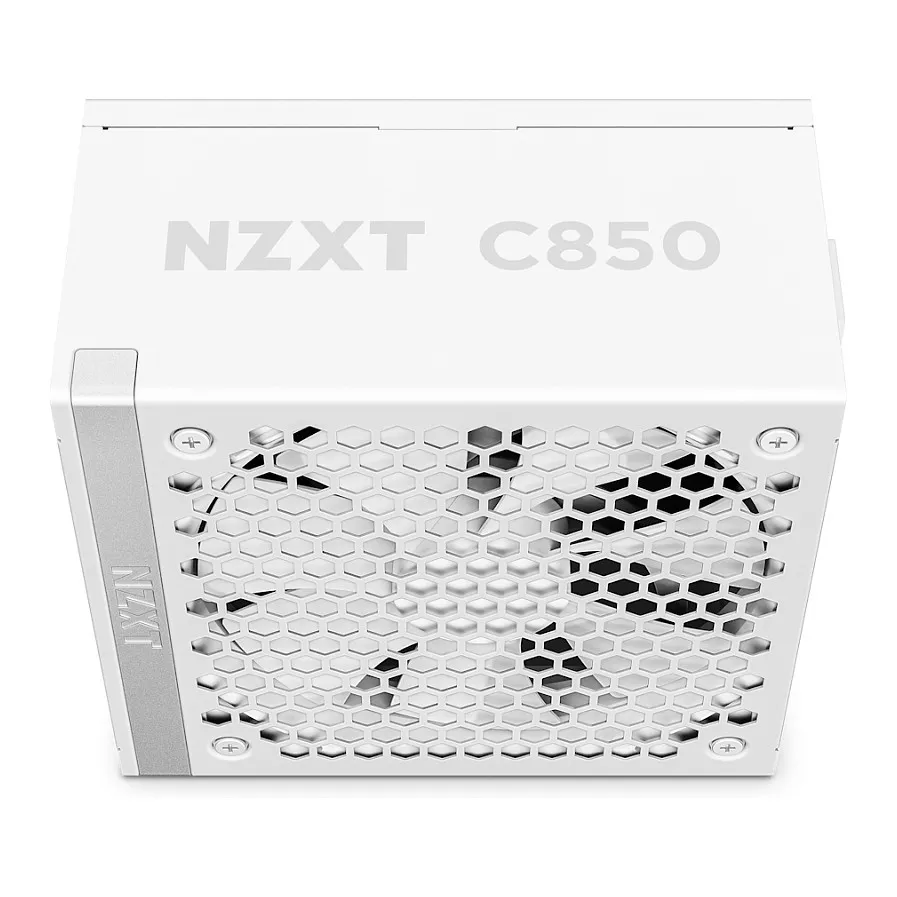

135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.
100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

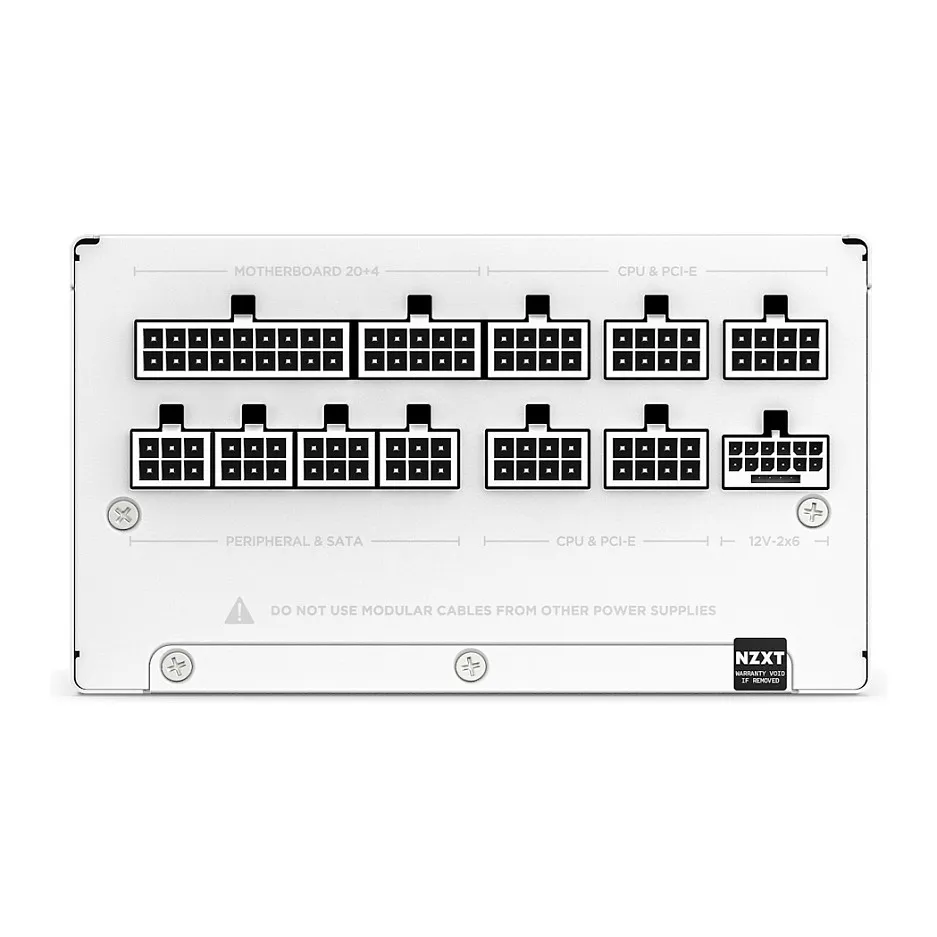

Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.

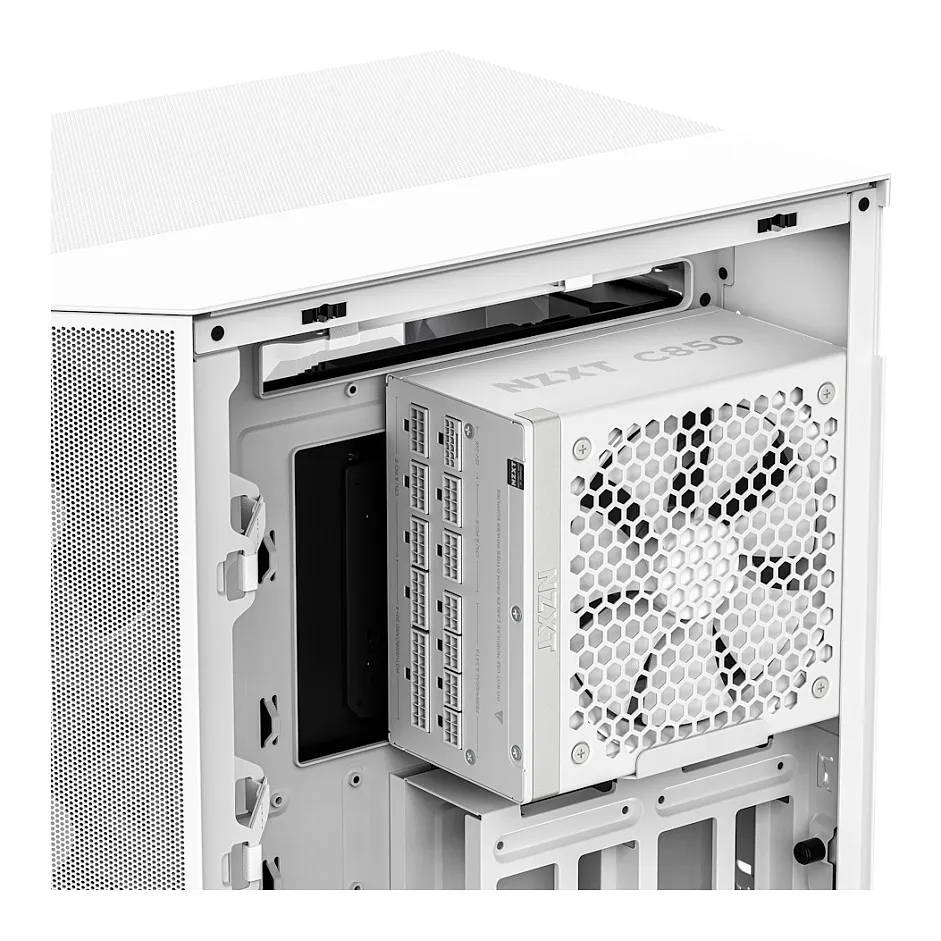

Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 10 – 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 15 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 70.83 A
Max output current (+5Vsb): 3 A
Efficiency: 91.7%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,500 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12+4 pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX Power connector (24-pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 44.5 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 – 2300 RPM
Fan location: Top
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Certificates
Compliance certificates: BIS, BSMI, CCC, CE, Federal Communications Commission (FCC), KC, RCM, UKCA, cTUVus
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Logistics data
Warranty period: 10 year(s)
