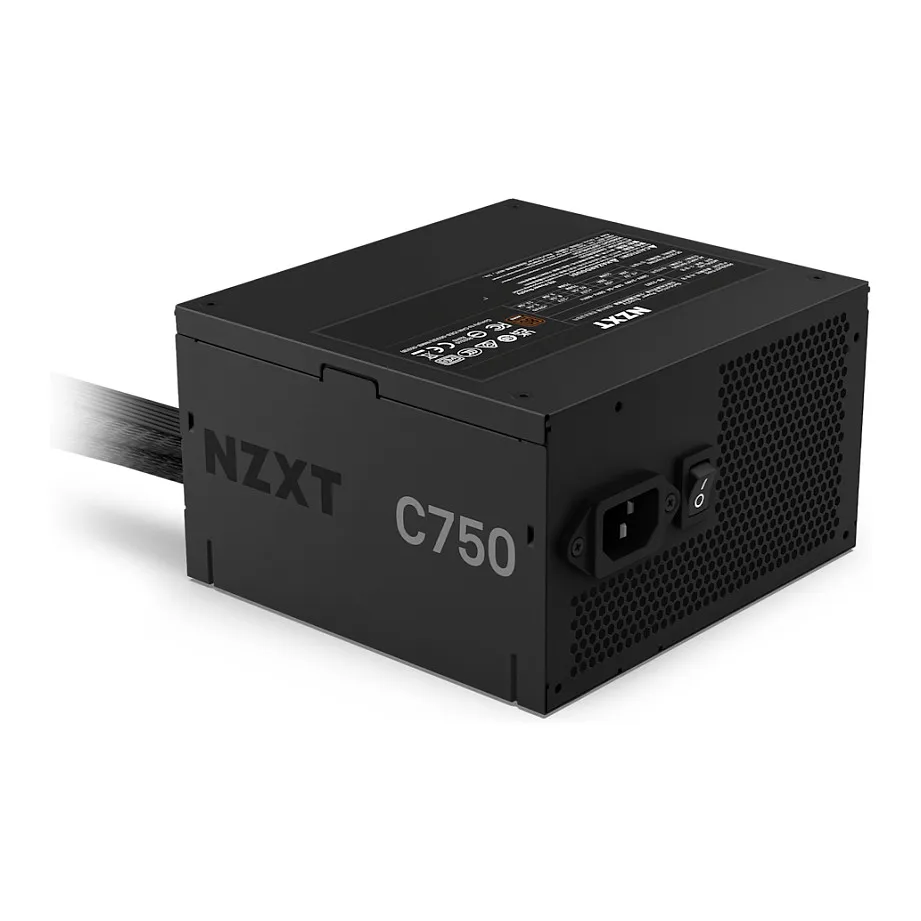

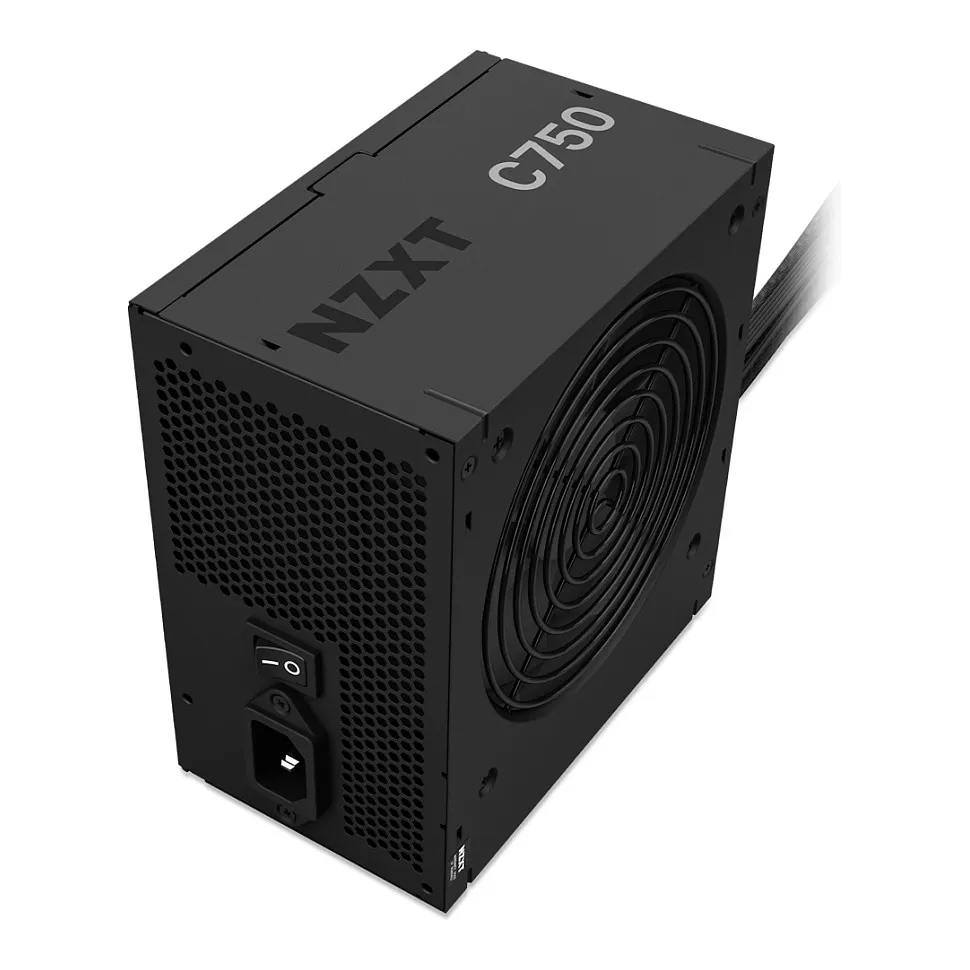

NZXT C750. Total power: 750 W, AC input voltage: 115 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE
The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.
Reliable Power
DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Highly Efficient
Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
Quiet Cooling

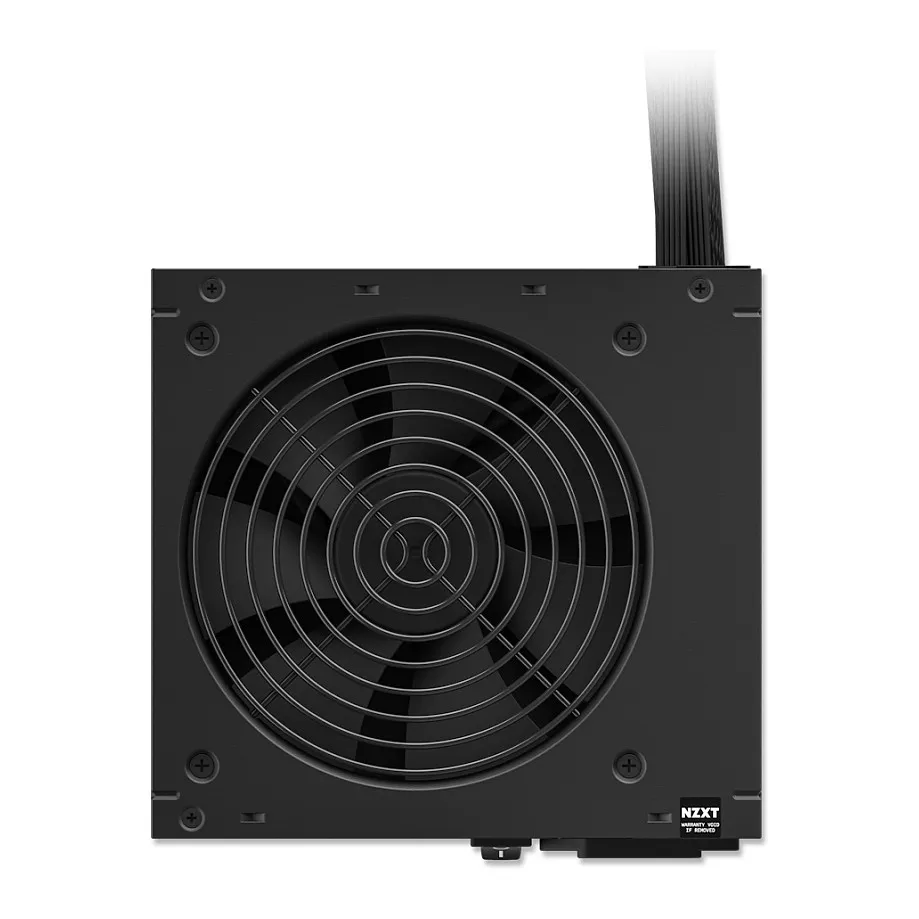

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
Enhanced Safety
Tested for safety at up to 40°C, and features over-temperature and over-current protections.
Durable & Sleek
Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.
Total power: 750 W
AC input voltage: 115 – 240 V
AC input frequency: 50/60 Hz
Input current: 10 – 5 A
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 12.5 A
Efficiency: 88.97%
Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (4+4 pin)
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.53
EPS version: 2.92
Noise level: 39.92 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 2160 – 2640 RPM
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE
Weight & dimensions
Width: 150 mm
Depth: 180 mm
Height: 86 mm
Technical details
Sustainable technologies and materials: Steel, PCB, plastic
Logistics data
Warranty period: 3 year(s)
