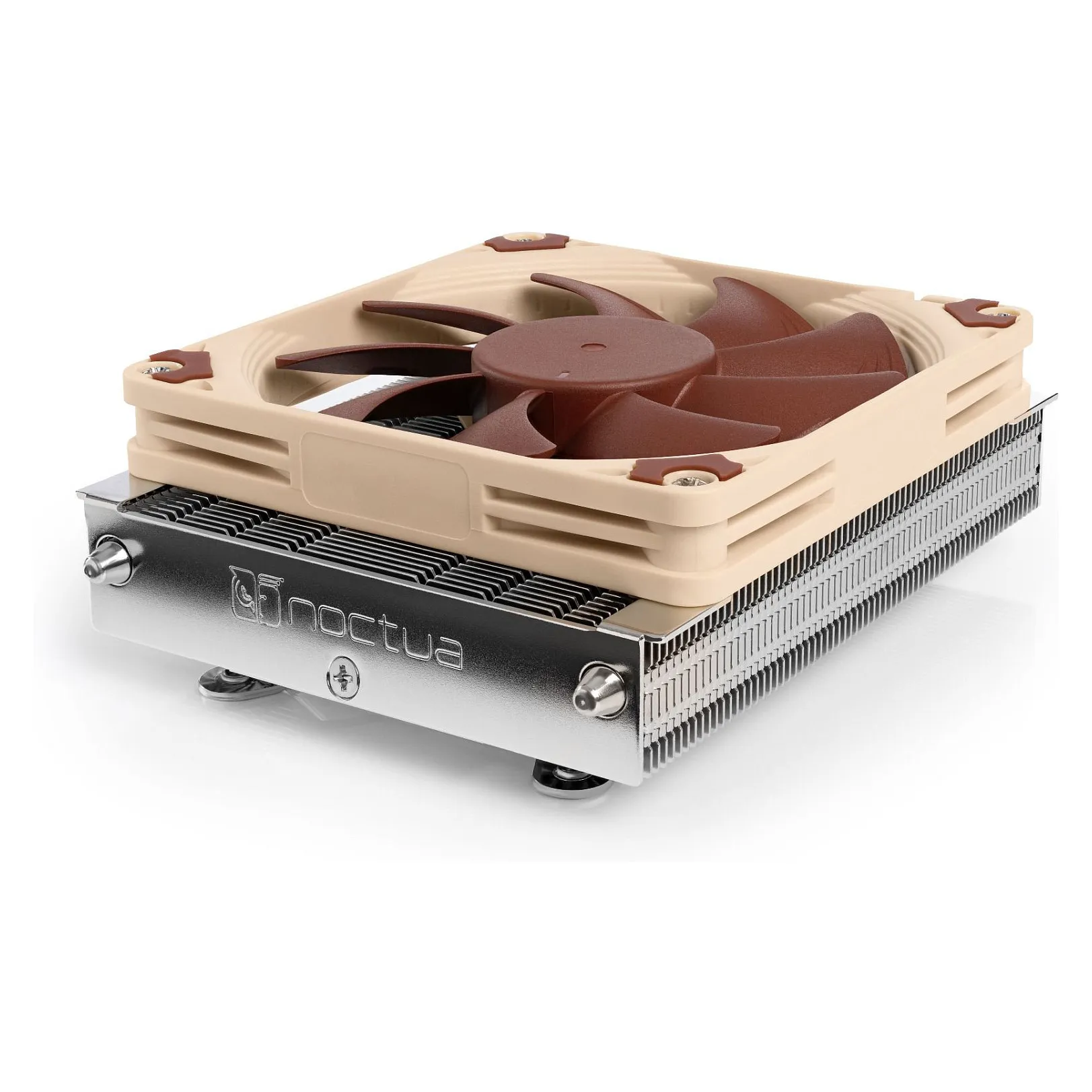

Noctua NH-L9a-AM5. Type: Air cooler, Fan diameter: 9.2 cm, Number of speeds: 3, Rotational speed (min): 600 RPM, Rotational speed (max): 2500 RPM, Airflow: 40.8 m³/h. Voltage: 12 V. Width: 114 mm, Depth: 92 mm, Height: 37 mm. Product colour: Beige, Brown
The NH-L9a-AM5 is the latest, AM5-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 9.2 cm
Supported processor sockets: Socket AM5
Compatible processor series: AMD A
Number of speeds: 3
Rotational speed (min): 600 RPM
Rotational speed (max): 2500 RPM
Noise level (low speed): 14.8 dB
Noise level (high speed): 23.6 dB
Airflow: 40.8 m³/h
Mean time between failures (MTBF): 150000 h
Design
Product colour: Beige, Brown
Material: Aluminium, Copper
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 1 fan(s)
Number of fan blades: 9
Power
Power supply: 2.52 W
Voltage: 12 V
Weight & dimensions
Width: 114 mm
Radiator width: 11.4 cm
Radiator depth: 9.2 cm
Radiator height: 2.3 cm
Depth: 92 mm
Height: 37 mm
Weight: 465 g
Fan dimensions (W x D x H): 92 x 92 x 25 mm
Fan weight: 75 g
Technical details
Warranty period: 6 year(s)

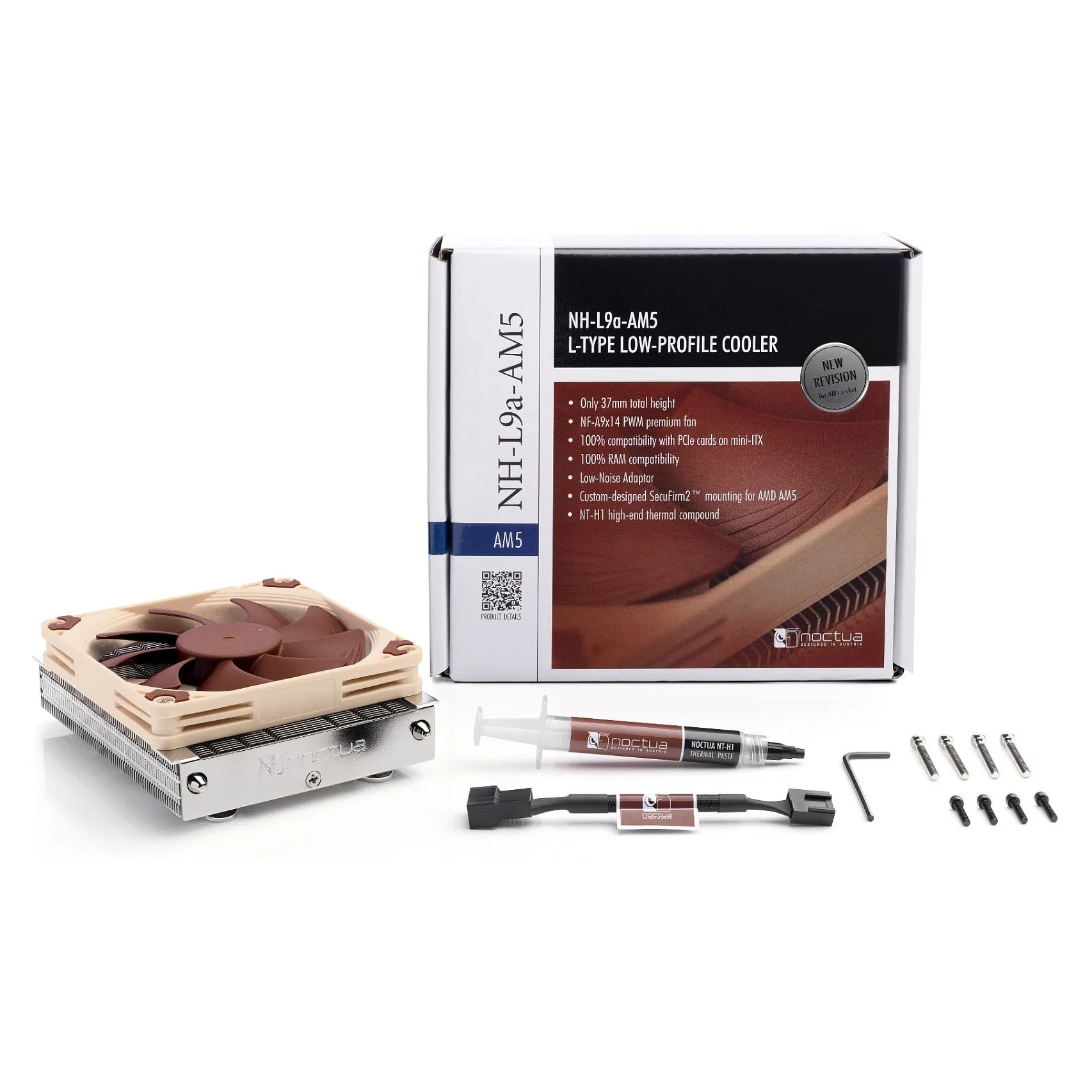

Packaging content
Package type: Box
Feature: Mounting kit
Feature: Screws included
Number of screws: 4
Suitable location: Processor
Type: Air cooler
Fan diameter: 9.2 cm
Supported processor sockets: Socket AM5
Compatible processor series: AMD A
Number of speeds: 3
Rotational speed (min): 600 RPM
Rotational speed (max): 2500 RPM
Noise level (low speed): 14.8 dB
Noise level (high speed): 23.6 dB
Airflow: 40.8 m³/h
Mean time between failures (MTBF): 150000 h
Design
Product colour: Beige, Brown
Material: Aluminium, Copper
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 1 fan(s)
Number of fan blades: 9
Power
Power supply: 2.52 W
Voltage: 12 V
Weight & dimensions
Width: 114 mm
Radiator width: 11.4 cm
Radiator depth: 9.2 cm
Radiator height: 2.3 cm
Depth: 92 mm
Height: 37 mm
Weight: 465 g
Fan dimensions (W x D x H): 92 x 92 x 25 mm
Fan weight: 75 g
Technical details
Warranty period: 6 year(s)
Packaging content
Package type: Box
Feature: Mounting kit
Feature: Screws included
Number of screws: 4
