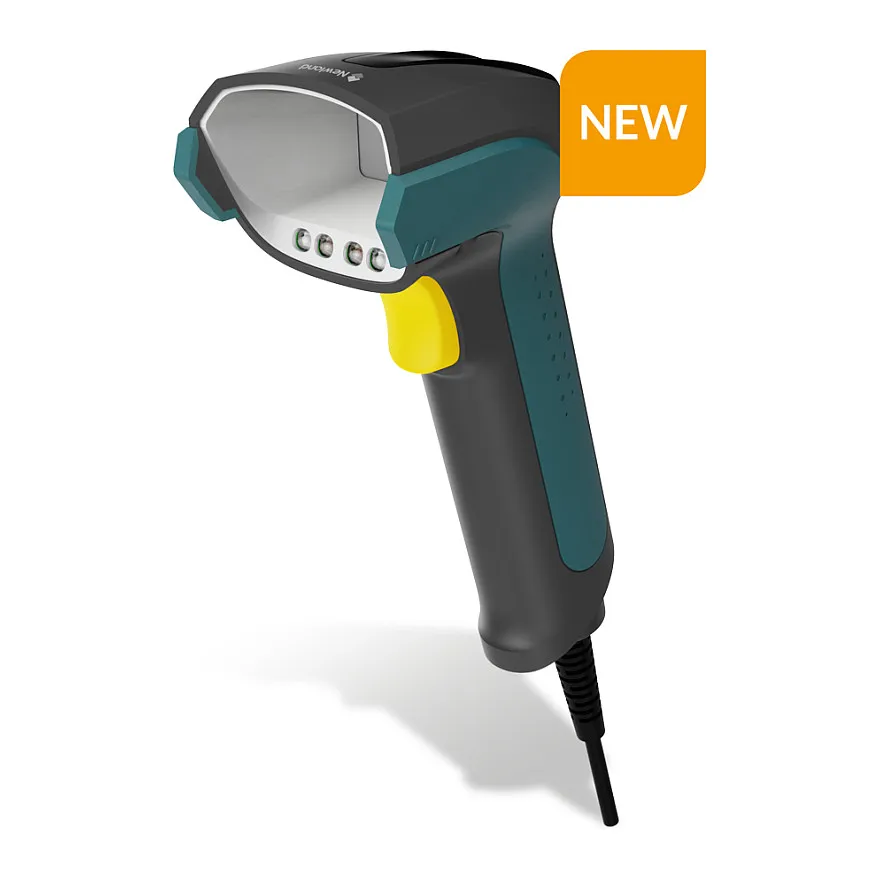

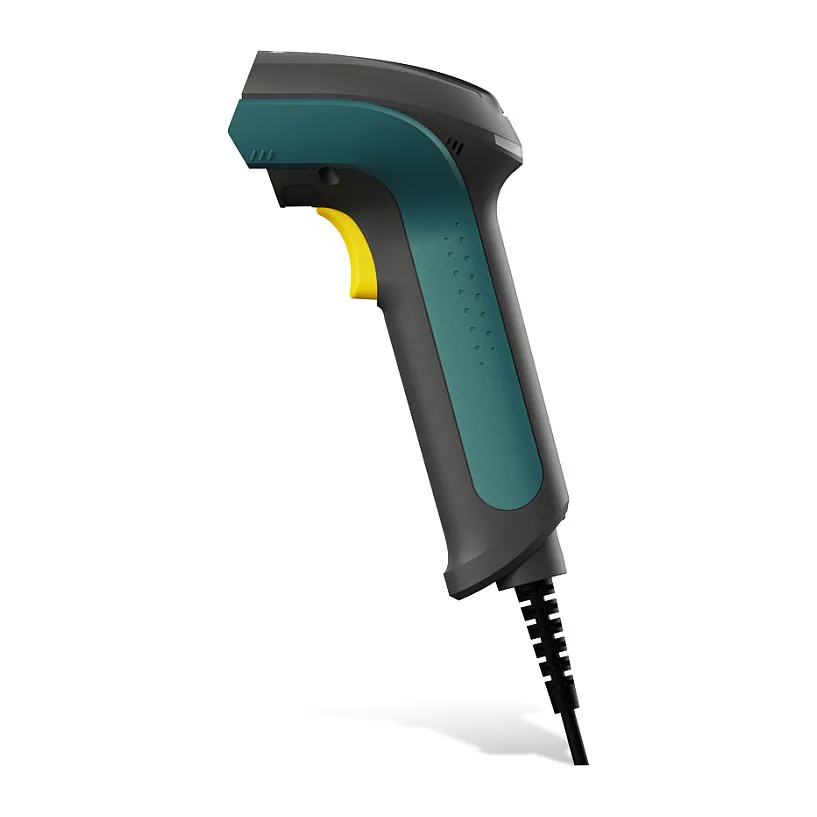

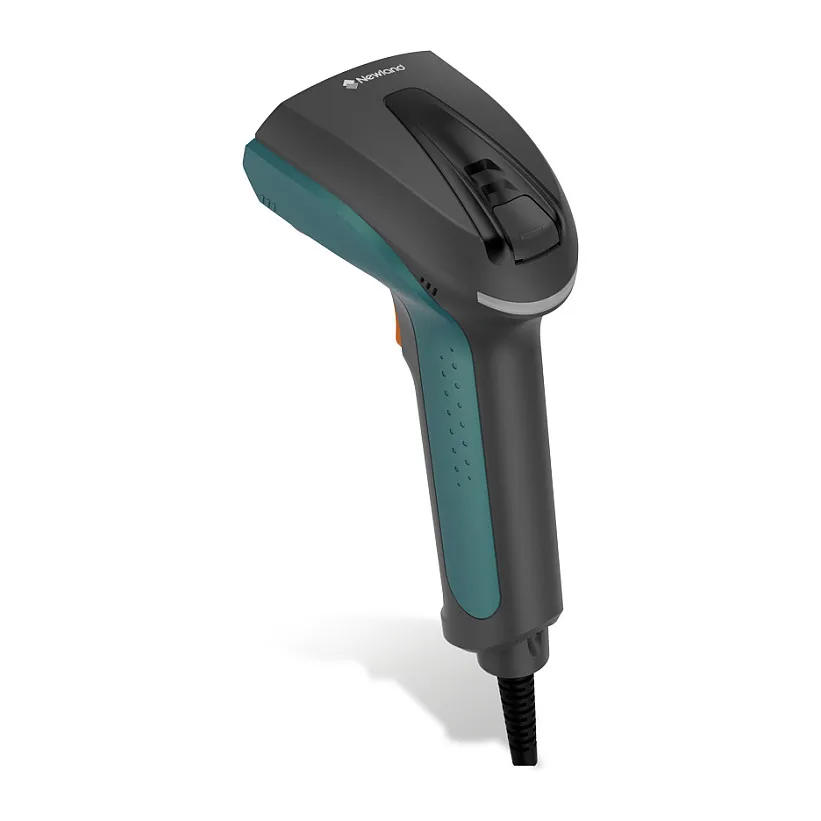

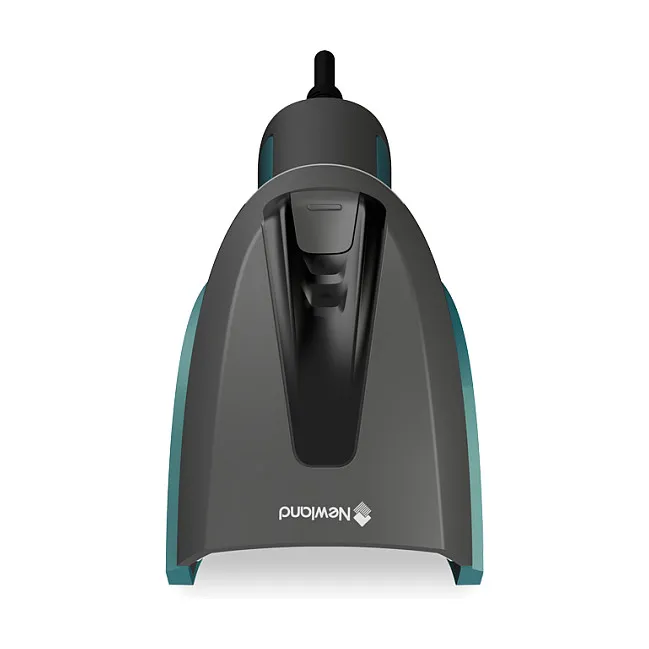

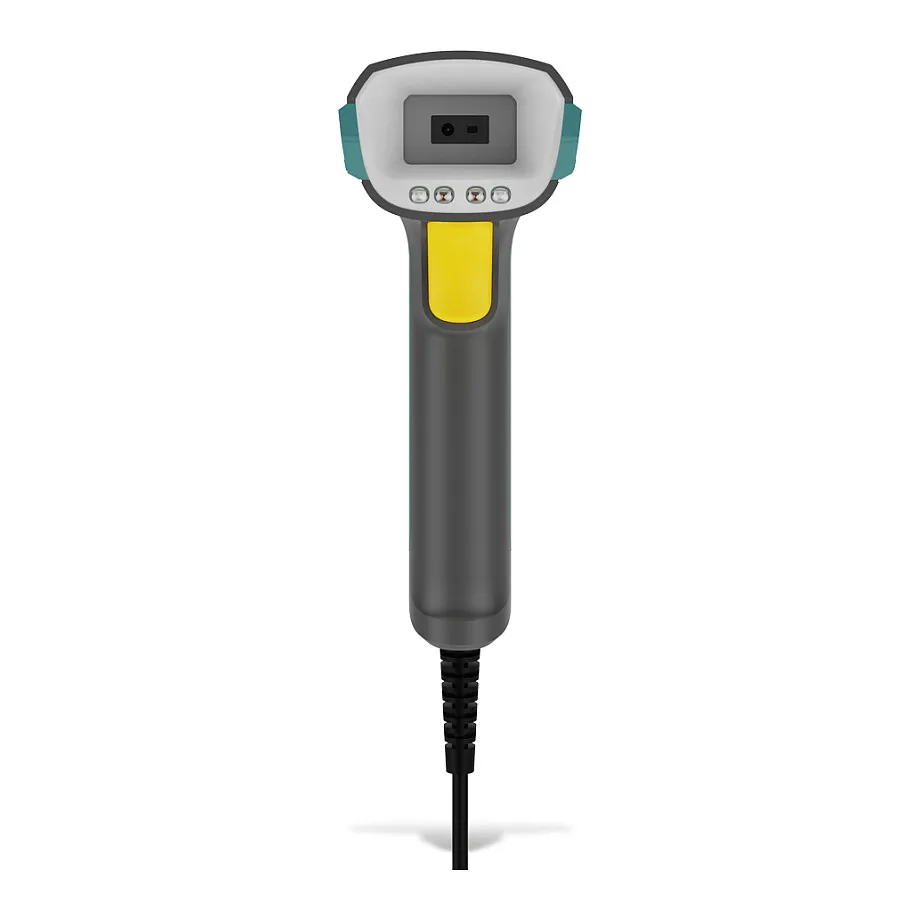

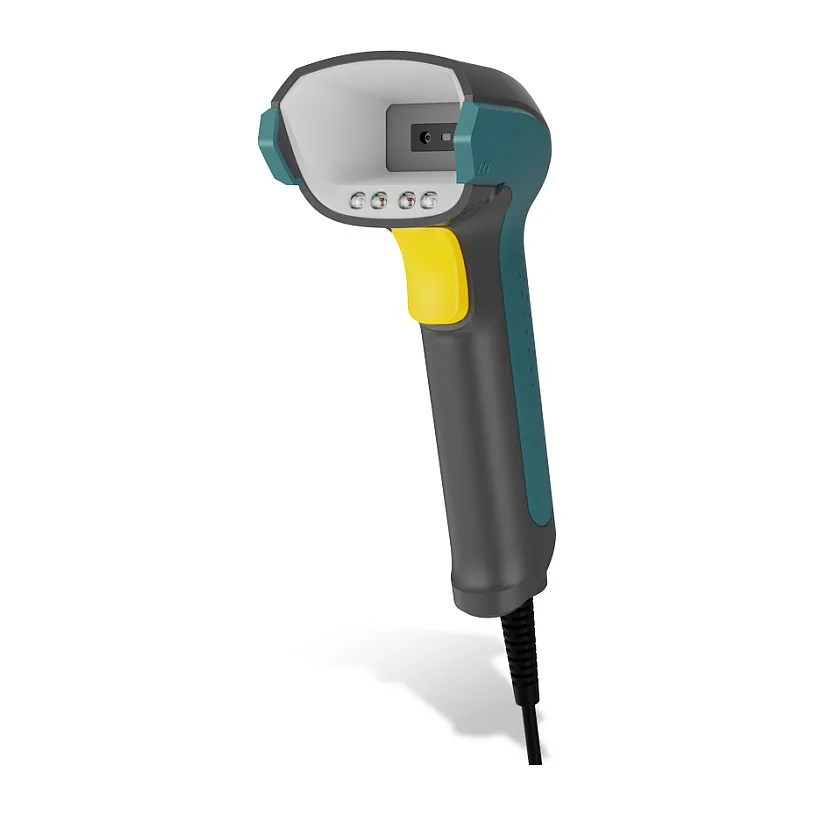

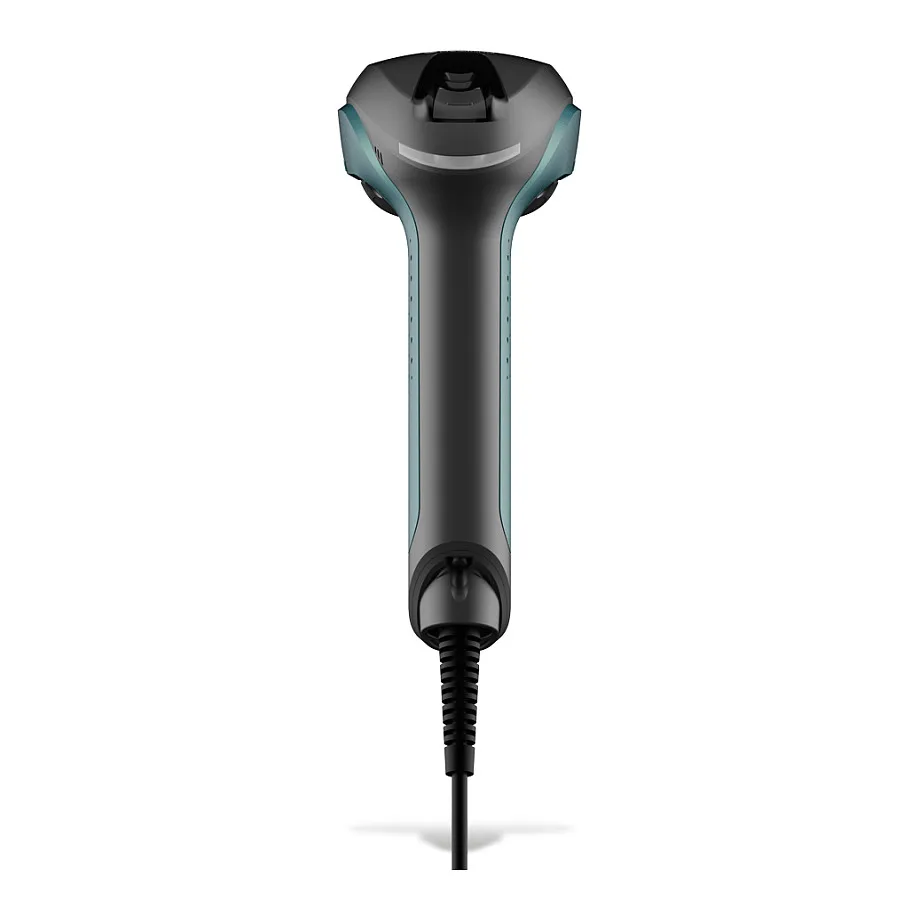

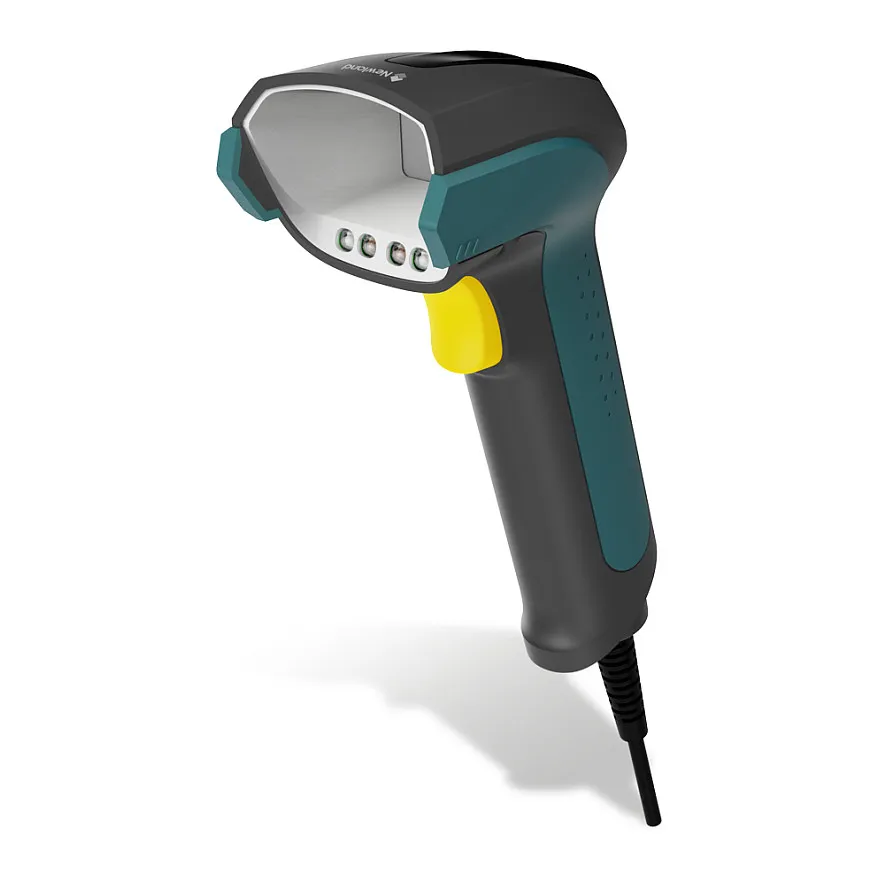

Newland NVH220. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Cable length: 2 m. Product colour: Black, International Protection (IP) code: IP64, Protection features: Dust resistant, Water resistant. Power source type: DC, Power consumption (typical): 1.5 W, Input voltage: 5 V. Weight: 160 g, Width: 68 mm, Depth: 86 mm
AI-Powered Scanning Technology.
The NVH220 Lophius AI Corded is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The NVH220 Lophius AI Corded excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
High-Performance DPM Scanning
The NVH220 Lophius AI Corded is distinguished by its outstanding ability to decode DPM barcodes, including those created using laser part marking and dotting techniques. Equipped with an upgraded dual-core processing platform, the NVH220 offers enhanced performance while consuming less power. This results in faster and more stable decoding, as well as improved image capture
Advanced Illumination.
The NVH220 Lophius AI Corded features both red and blue direct illumination and white diffuse lighting. These lighting options can be easily activated using the auto-learning function button located on the top of the device. With this feature, the NVH220 automatically adjusts brightness and light source to optimize barcode decoding, even on challenging materials. This includes reflective surfaces, curved shapes, varied backgrounds (ranging from low to high contrast), and different barcode colors.
Robust by Design.
The NVH220 Lophius AI Corded is built for durability, featuring a robust design that can endure challenging conditions. Its high-protection construction and IP64-sealed housing ensure reliable performance, even in environments with dust and water exposure, as well as after repeated drops from heights of up to 1.8 meters.
Configure To Your Needs.
The NVH220 Lophius AI Corded can be easily configured to meet the specific needs of any application using the free configuration software, EasySet.
Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Scanner resolution: 0.0508 mm
Horizontal field of view: 33°
Vertical field of view: 22°
Wavelength: 650 nm
Tilt reading angle: 0 – 360°
Pitch reading angle: -50 – 50°
Yaw reading angle: -50 – 50°
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: RS-232, USB
Cable length: 2 m
Performance
International Protection (IP) code: IP64
Protection features: Dust resistant, Water resistant
LED indicators: Yes
Feature: Buzzer
Print contrast: 20%
Feature: Built-in processor
Processor cores: 2
Product colour: Black
Feature: Programming function
Feature: Vibration function
Certification: FCC; IEC 62471; RoHS; CE
Power
Power source type: DC
Power consumption (typical): 1.5 W
Input voltage: 5 V
AC adapter output voltage: 5 V
Power consumption: 300 mA
Weight & dimensions
Width: 68 mm
Depth: 86 mm
Height: 180 mm
Weight: 160 g
Packaging data
Feature: External power adapter
Cables included: USB
Operational conditions
Operating temperature (T-T): -20 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Drop resistance: 1.8 m
Technical details
Warranty period: 5 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
