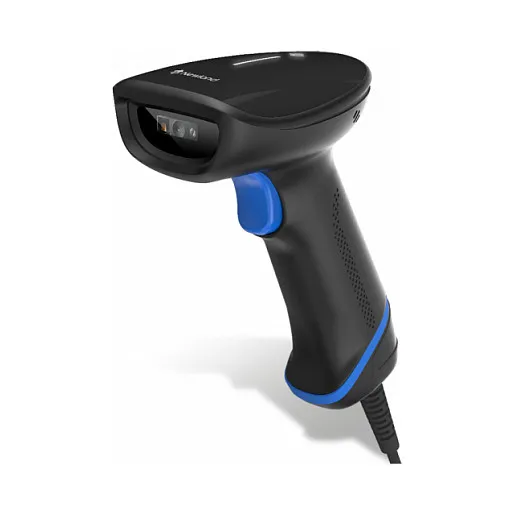

Newland HR23 Dorada Corded. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Print contrast: 20%. Power source type: USB, Battery voltage: 5 V, Input voltage: 5 V. Weight: 137 g, Width: 95 mm, Depth: 68 mm
Outstanding Performance.
This new version of the Dorada scanner delivers exceptional scanning performance at an entry-level price. Improved decoding technology makes it the best scanner in terms of performance and value.
Comfortable and Balanced Design.
The HR23 Dorada is a modern and appealing scanner that is ergonomically designed to fit comfortably in the hand. Although lightweight to reduce user fatigue, the scanner feels sturdy and looks nice, making it an excellent all-round user experience.
Easyset
The Dorada series can be easily configured using Newland Easyset software. This tool, exclusively developed for Newland devices, allows users to change settings, clone devices, update firmware, and analyze scanned data.
Durable
Don’t underestimate the robustness of the Dorada scanner. With an IP52 rating and a 1.5m drop spec, it is suitable for most applications that require a cabled barcode scanner.
Hands-free choices.
The HR23 Dorada offers various stands for hands-free scanning. The primary option is the adjustable Smart Stand, which can transition from an upright position to a flat layout. This adaptable stand is suitable for both desktop and wall-mounted options. Alternatively, there is a flexible gooseneck design available, which offers a graceful curve that adjusts effortlessly to your desired scanning distance and angle.
A trustworthy Guarantee.
With a 5-year guarantee, the HR23 Dorada offers added confidence for daily scanning.
Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 640 x 480 pixels
Horizontal field of view: 45°
Vertical field of view: 34°
Tilt reading angle: 0 – 360°
Pitch reading angle: 0 – 60°
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: USB
USB 2.0 ports quantity: 1
Performance
International Protection (IP) code: IP52
LED indicators: Yes
Feature: Buzzer
Print contrast: 20%
Product colour: Black
Feature: Vibration function
Certification: IEC62471
Power
Power source type: USB
Battery voltage: 5 V
Input voltage: 5 V
Power consumption: 190 mA
Weight & dimensions
Width: 95 mm
Depth: 68 mm
Height: 161 mm
Weight: 137 g
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Drop resistance: 1.5 m
Technical details
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
