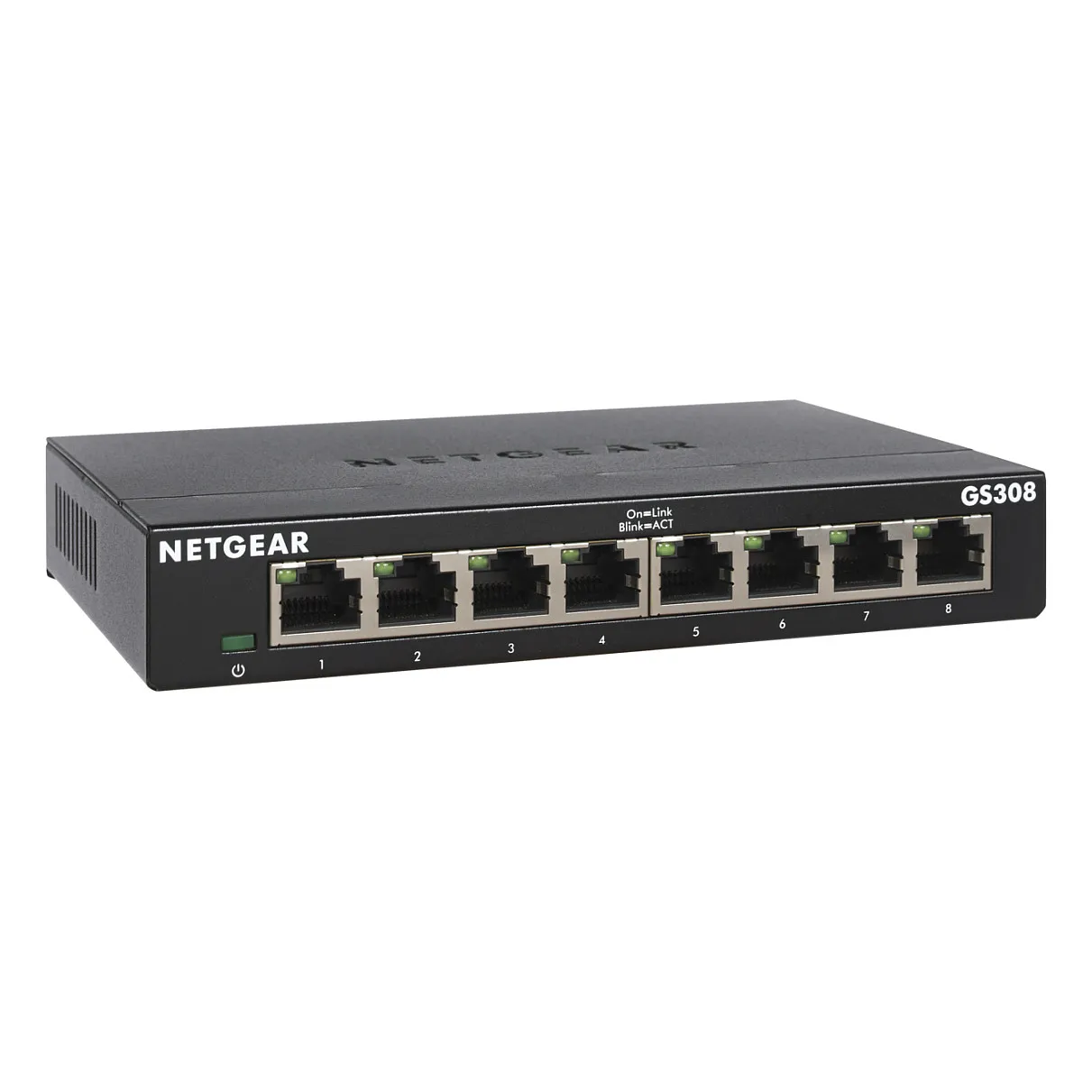

NETGEAR GS308-300PES. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power connector: DC-in jack. Wall mountable
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Management features
Switch type: Unmanaged
Switch layer: L2
Quality of Service (QoS) support: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

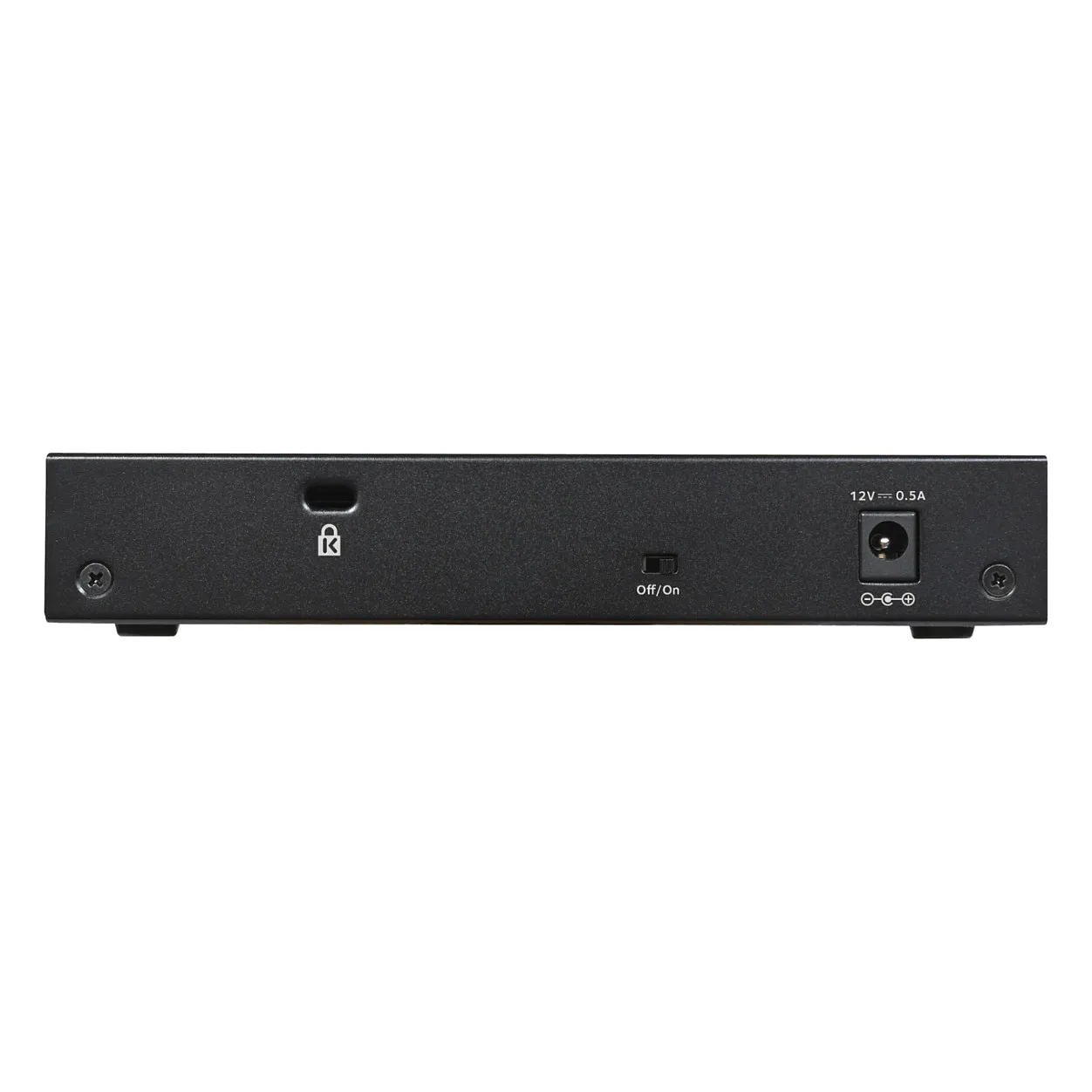

Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-sensing: Yes
Cable length detection: Yes
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 1.448 Mpps
MAC address table: 8000 entries
Latency (1 Gbps): 2.6 µs
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 128 MB
Design
Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power
Wall mountable: Yes
Performance
Mean time between failures (MTBF): 3711898 h
Power
Power consumption (max): 3.04 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Other features
Warranty period: 3 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Heat dissipation: 10.4 BTU/h
Weight & dimensions
Width: 158 mm
Depth: 101 mm
Height: 29 mm
Weight: 390 g
Technical details
Shipping (inner) case height: 43.4 cm
Shipping (inner) case width: 48.6 cm
Shipping (inner) case length: 32.9 cm
Shipping (inner) case net weight: 14.6 kg
Products per shipping (inner) case: 20 pc(s)
Certificates
Certification: CE MarkFCC Part 15 Class BIC Class BRCMCCCVCCIKC
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Switch layer: L2
Quality of Service (QoS) support: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-sensing: Yes
Cable length detection: Yes
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 1.448 Mpps
MAC address table: 8000 entries
Latency (1 Gbps): 2.6 µs
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 128 MB
Design
Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power
Wall mountable: Yes
Performance
Mean time between failures (MTBF): 3711898 h
Power
Power consumption (max): 3.04 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Other features
Warranty period: 3 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Heat dissipation: 10.4 BTU/h
Weight & dimensions
Width: 158 mm
Depth: 101 mm
Height: 29 mm
Weight: 390 g
Technical details
Shipping (inner) case height: 43.4 cm
Shipping (inner) case width: 48.6 cm
Shipping (inner) case length: 32.9 cm
Shipping (inner) case net weight: 14.6 kg
Products per shipping (inner) case: 20 pc(s)
Certificates
Certification: CE MarkFCC Part 15 Class BIC Class BRCMCCCVCCIKC
Logistics data
Harmonized System (HS) code: 85176990
