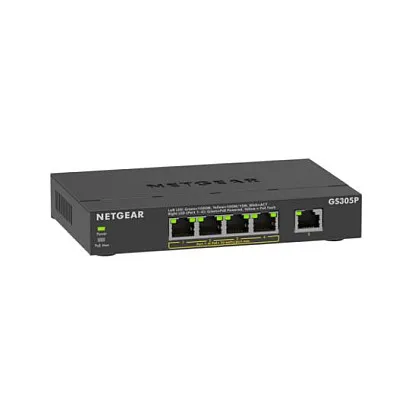

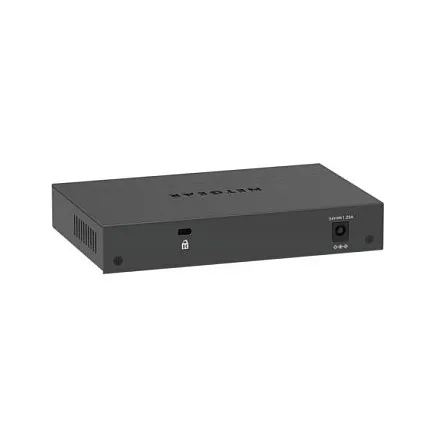

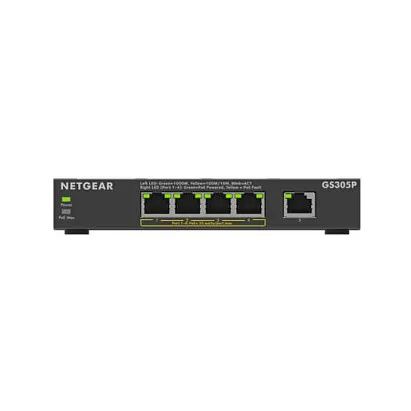

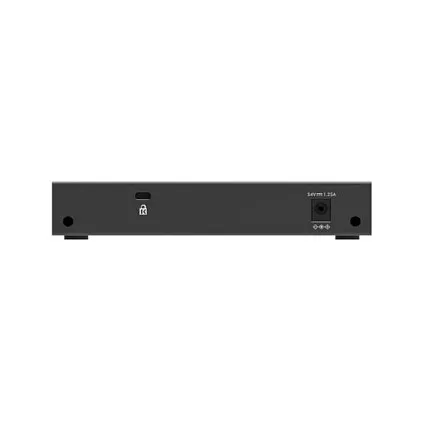

NETGEAR GS305Pv3. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.
Management features
Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-sensing
Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1448000 pps
Packet buffer memory: 0.128 MB
Design
Product colour: Black
LED indicators: Yes
Feature: Wall mountable
Performance
Mean time between failures (MTBF): 4113947 h
Power
Power source: DC
DC input voltage: 54 V
Input current: 1.25 A
Power consumption (max): 66.78 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 63 W
Other features
Warranty period: 3 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 90%
Operating altitude: 0 – 3000 m
Heat dissipation: 228.38 BTU/h
Weight & dimensions
Width: 158 mm
Depth: 101 mm
Height: 27 mm
Weight: 400 g
Technical details
Shipping (inner) case height: 37.5 cm
Shipping (inner) case width: 45.1 cm
Shipping (inner) case length: 25.5 cm
Shipping (inner) case net weight: 14 kg
Products per shipping (inner) case: 10 pc(s)
