NETGEAR GS110TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 54 V. Power over Ethernet (PoE)

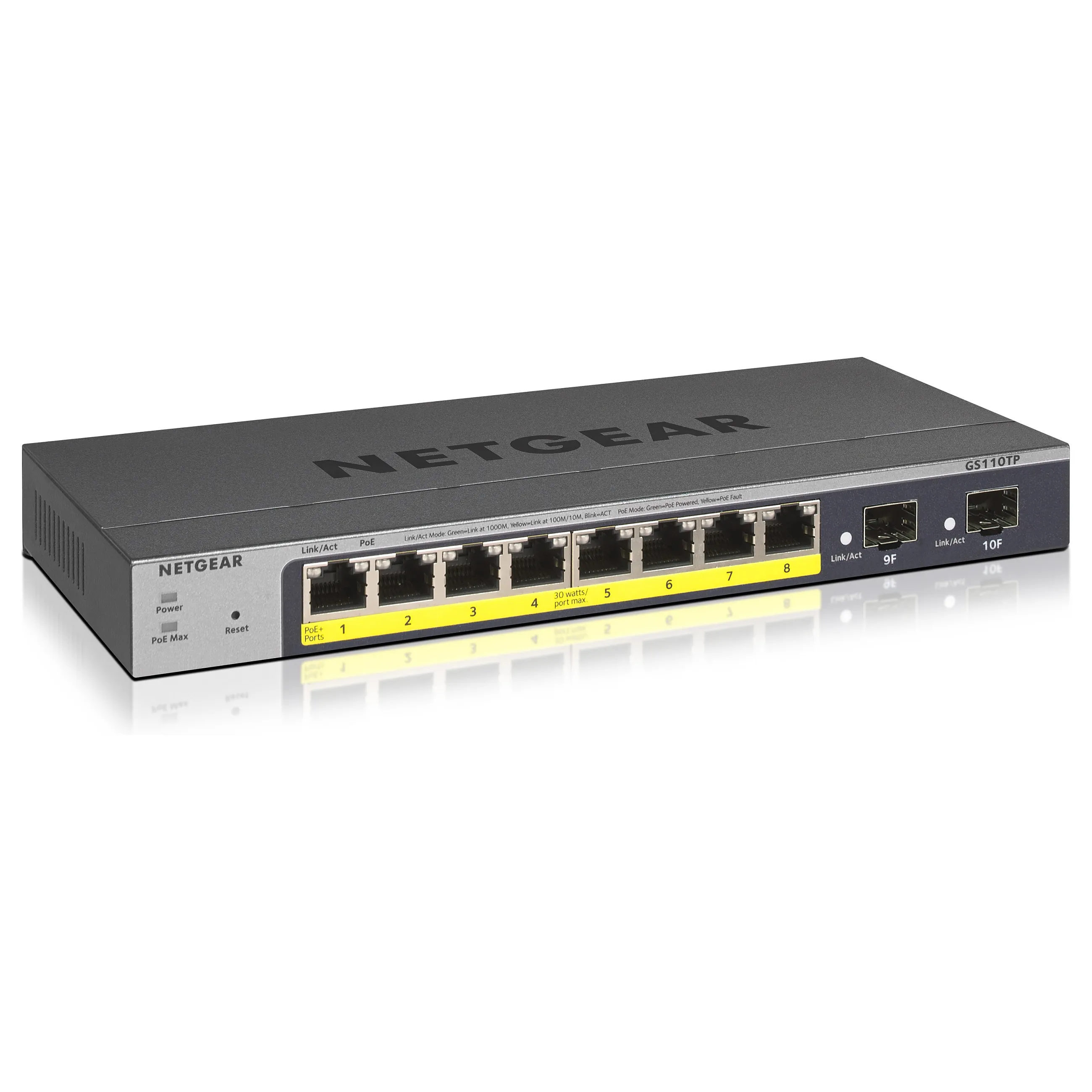

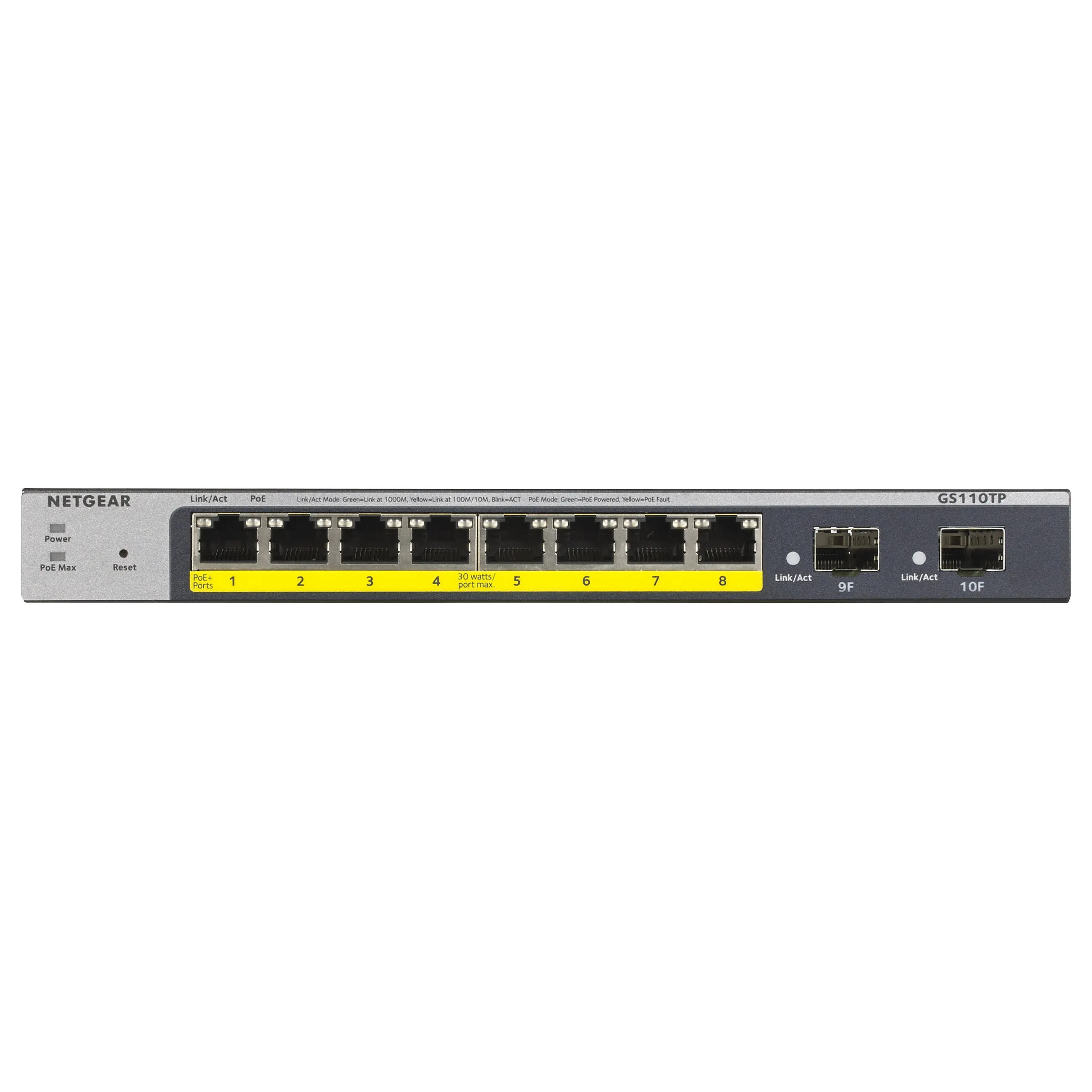

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
Management features
Switch type: Managed
Switch layer: L2/L3/L4
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Network
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: MAC address auto-learning supported
Number of VLANs: 64
Data transmission
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet buffer memory: 0.5 MB
Security
DHCP features: DHCP client
Feature: Access Control List (ACL)
Access Control List (ACL) IPv6 entries: 100
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS
Feature: MAC address filtering
Multicast features
Feature: Multicast support
IPv4 multicast entries: 32
Number of multicast groups filtered: 256
Protocols
Management protocols: SNMP
Switching protocols: SNMP
Data link protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Supported network protocols: HTTP, HTTPS
Design
Product colour: Grey
LED indicators: Activity, LAN, Link, PoE, Power, Speed
Performance
Processor frequency: 500 MHz
Memory type: RAM
Internal memory: 128 MB
Flash memory: 32 MB
Mean time between failures (MTBF): 1200041 h
Power
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
DC input voltage: 54 V
Input current: 1.25 A
Power consumption (max): 15.1 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 55 W
Total Power over Ethernet (PoE) budget: 69.5 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 3000 m
Heat dissipation: 237.38 BTU/h
Weight & dimensions
Width: 236 mm
Depth: 101 mm
Height: 27 mm
Weight: 610 g
Packaging content
Feature: Manual
Packaging data
Package type: Box
Package width: 161 mm
Package depth: 267 mm
Package height: 86 mm
Package weight: 1.49 kg
Certificates
Certification: CE, FCC, VCCI Class B, C-Tick
Logistics data
Master (outer) case width: 274 mm
Master (outer) case length: 350 mm
Master (outer) case height: 309 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 9.73 kg
Products per master (outer) case: 6 pc(s)
