NETGEAR GS108Ev4. Switch type: Unmanaged, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

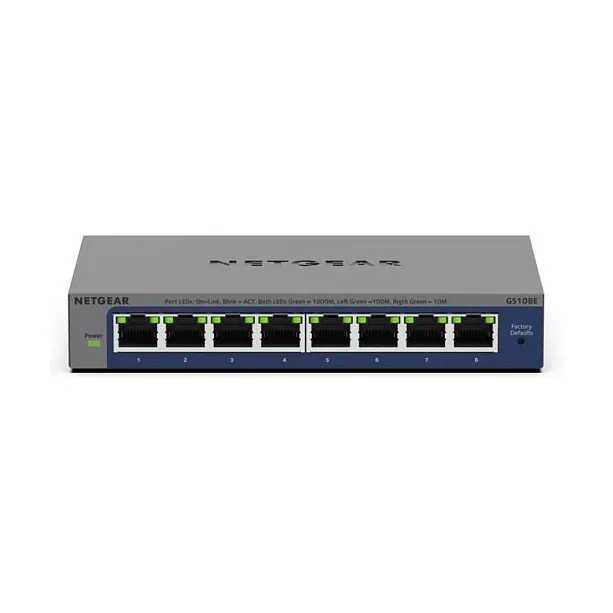

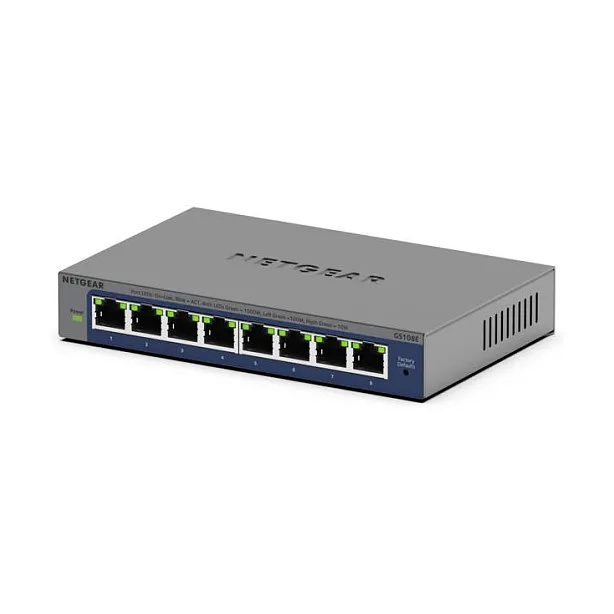

8-Port Gigabit Plus Switch
On top of the plug-n-play Gigabit Ethernet connectivity, the NETGEAR GS108E switch offers essential networking features such as VLAN, QoS, IGMP Snooping, rate limiting, traffic monitoring and more. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
On top of the plug-n-play Gigabit Ethernet connectivity, the NETGEAR GS108E switch offers essential networking features such as VLAN, QoS, IGMP Snooping, rate limiting, traffic monitoring and more. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
Management features
Switch type: Unmanaged
Switch layer: L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Feature: Port mirroring
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 64
Data transmission
Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Security
Feature: Access Control List (ACL)
Multicast features
Feature: Multicast support
Number of multicast groups filtered: 128
Design
Product colour: Grey
LED indicators: Activity, Link, Power, Speed, System
Performance
Feature: Fanless
Mean time between failures (MTBF): 2463431 h
Power
Power source: DC
Feature: Power supply included
DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 3.7 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Operating altitude: 0 – 3000 m
Heat dissipation: 8.9 BTU/h
Weight & dimensions
Width: 158 mm
Depth: 101 mm
Height: 29 mm
Weight: 508 g
Switch type: Unmanaged
Switch layer: L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Feature: Port mirroring
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 64
Data transmission
Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Security
Feature: Access Control List (ACL)
Multicast features
Feature: Multicast support
Number of multicast groups filtered: 128
Design
Product colour: Grey
LED indicators: Activity, Link, Power, Speed, System
Performance
Feature: Fanless
Mean time between failures (MTBF): 2463431 h
Power
Power source: DC
Feature: Power supply included
DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 3.7 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Operating altitude: 0 – 3000 m
Heat dissipation: 8.9 BTU/h
Weight & dimensions
Width: 158 mm
Depth: 101 mm
Height: 29 mm
Weight: 508 g
