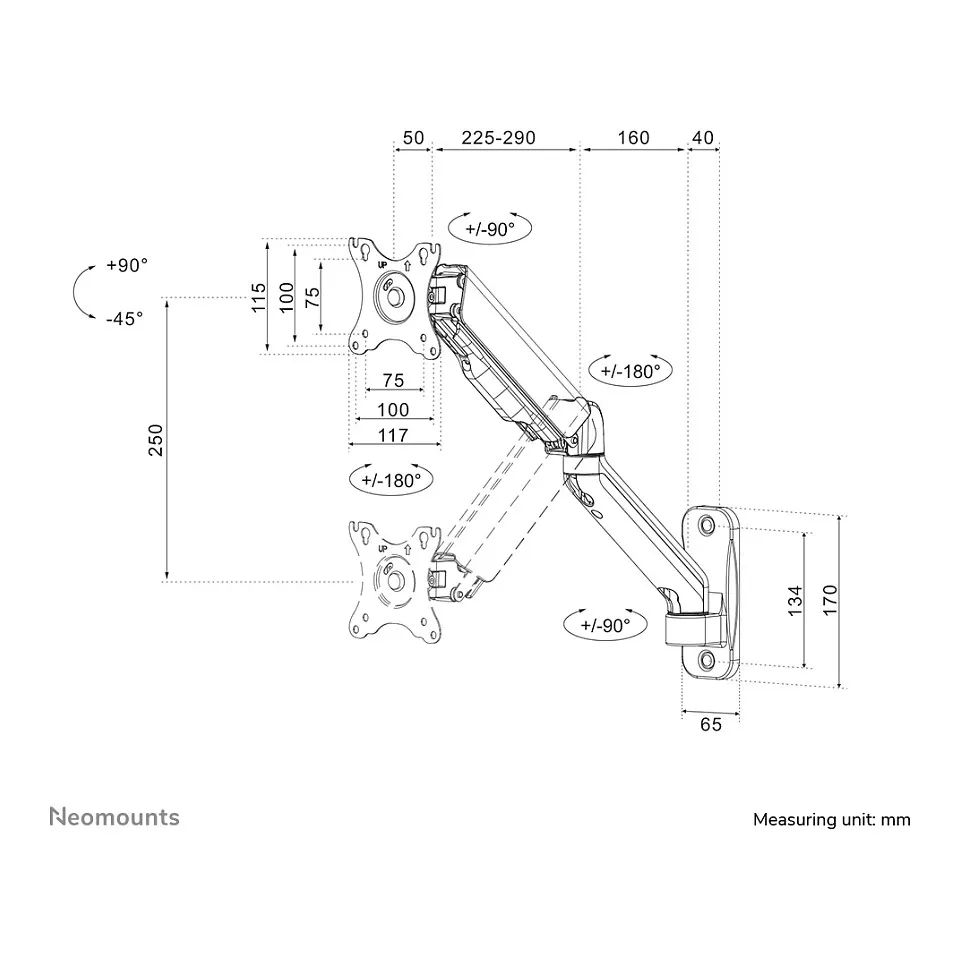

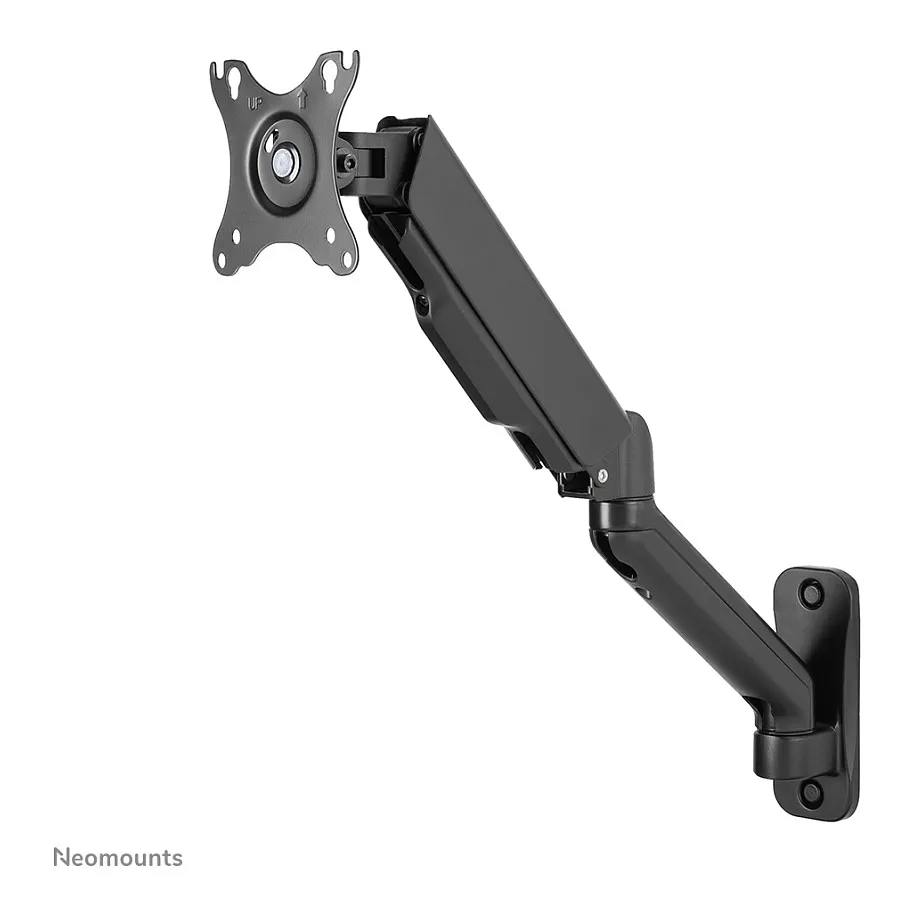

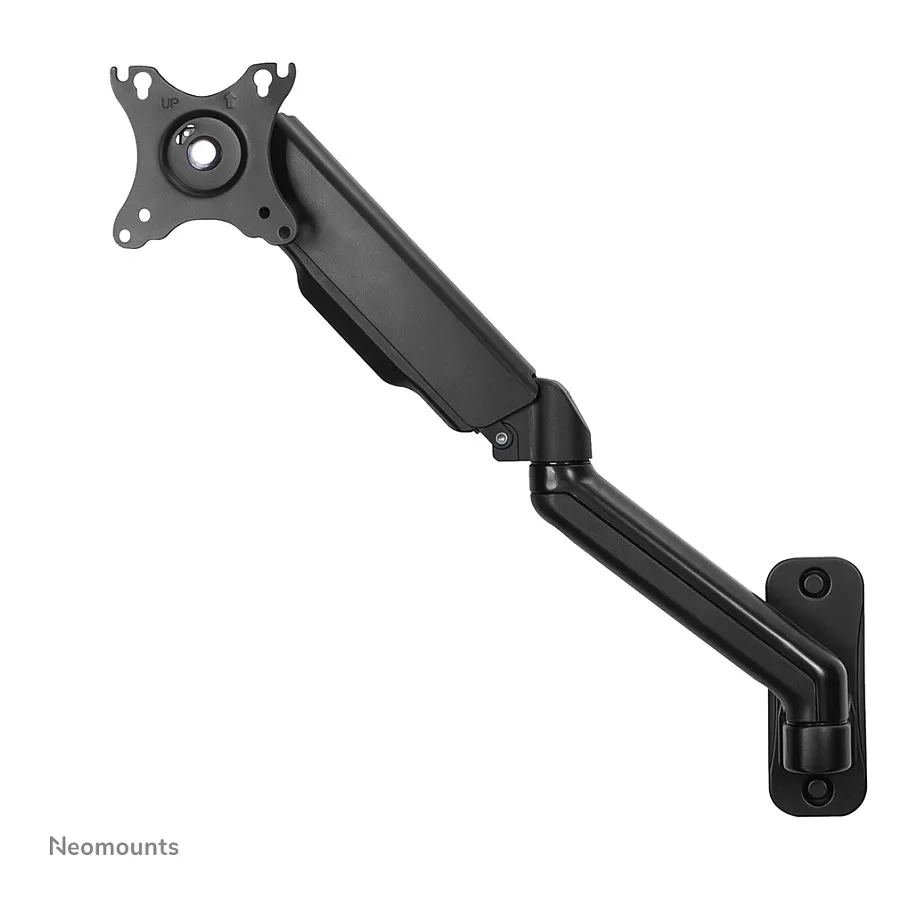

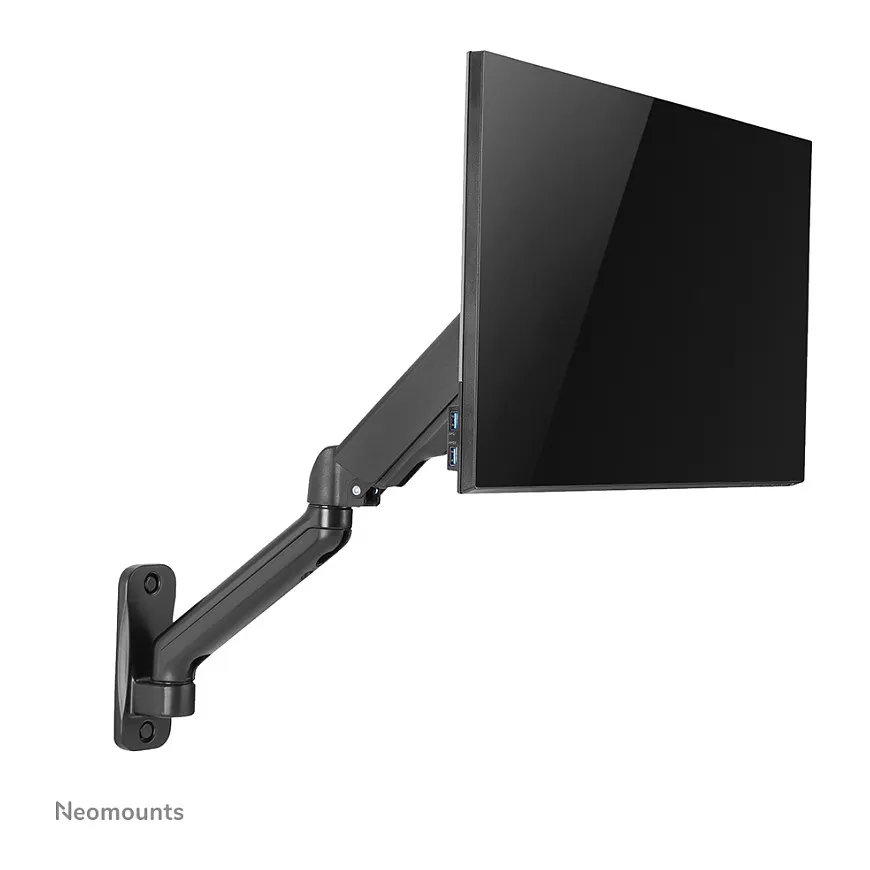

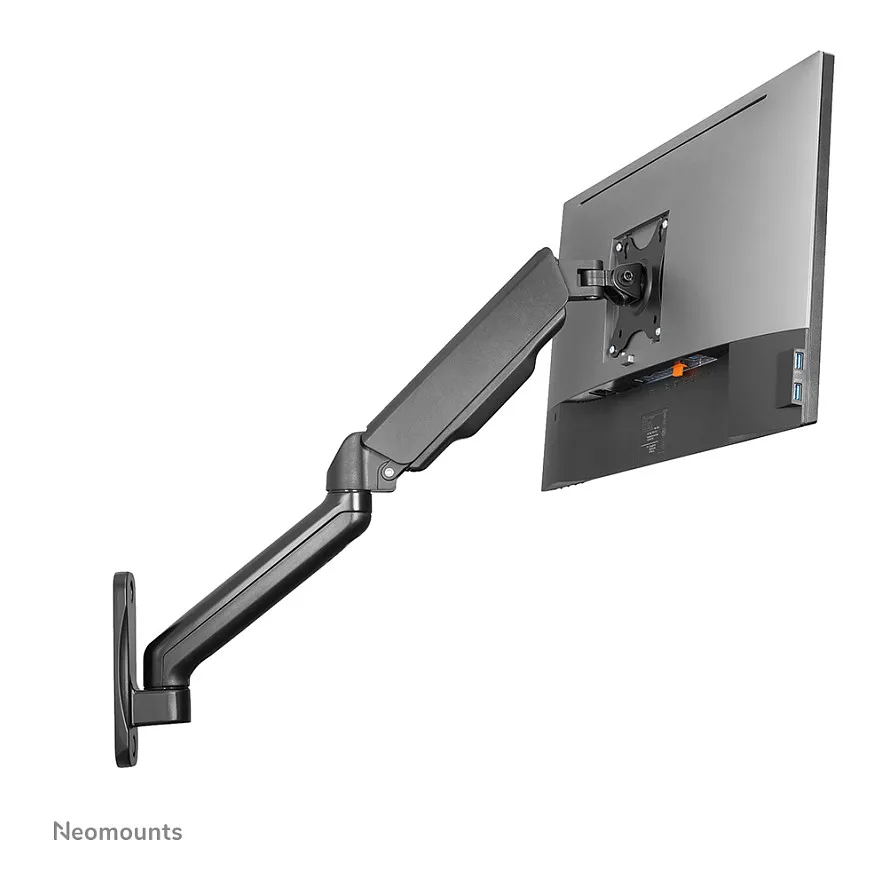

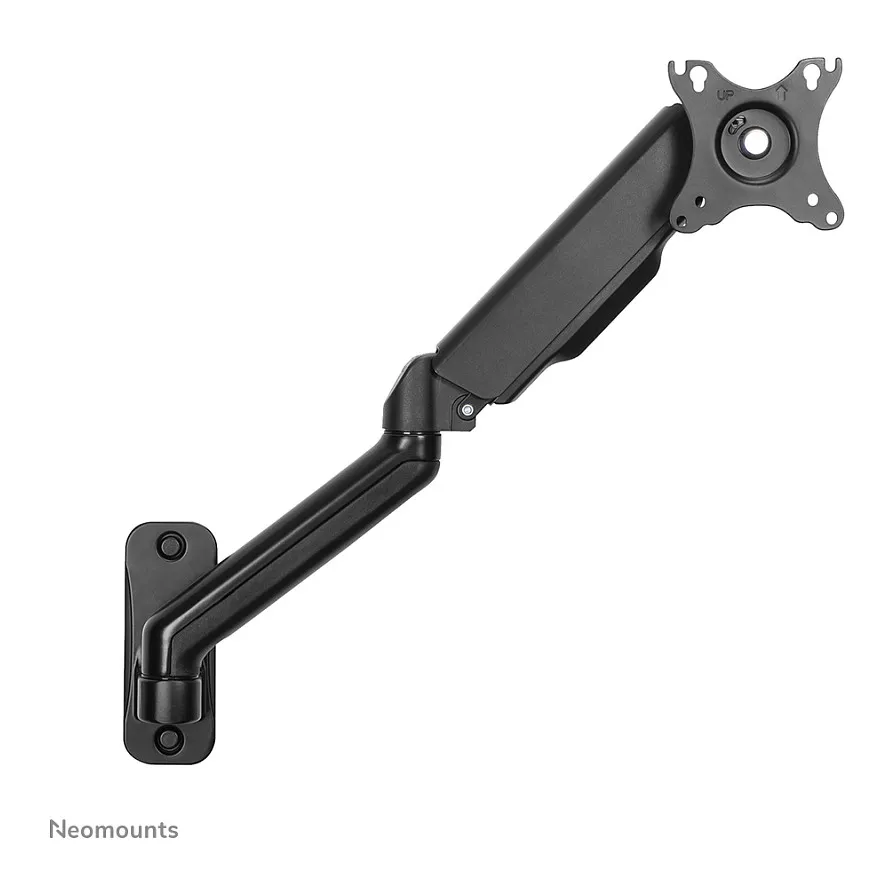

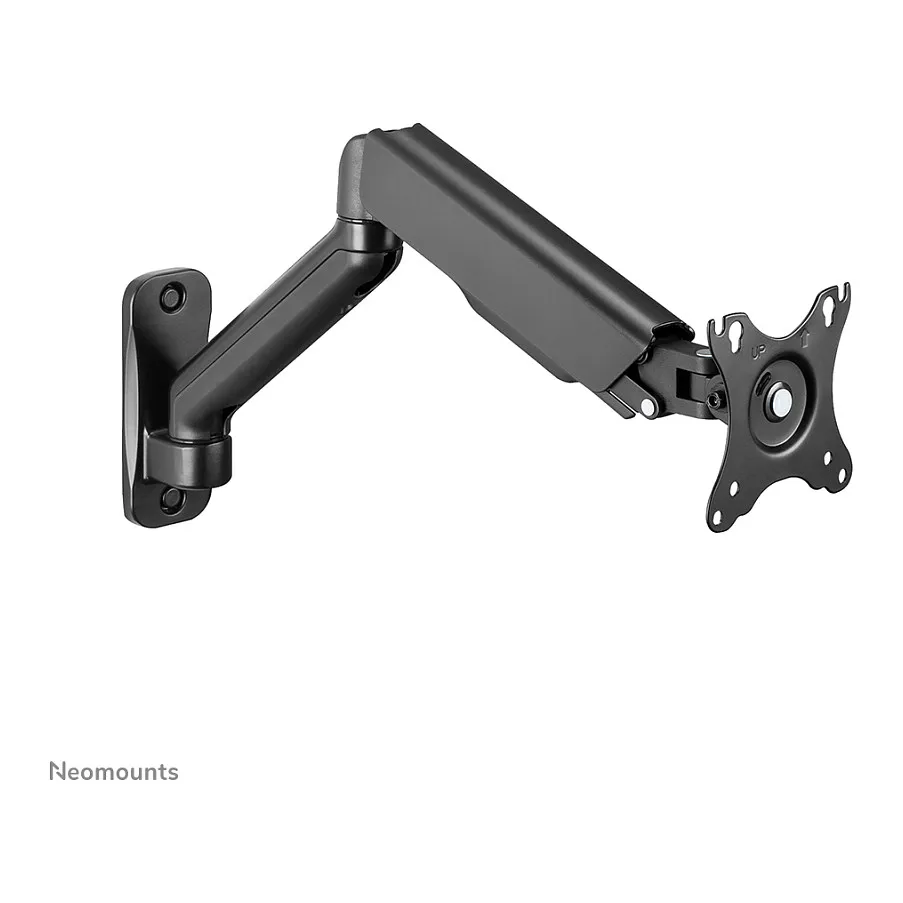

Neomounts WL70-450BL11 Monitor/TV mount wall 17-32" – gas spring – full motion. Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment range: 0 – 250 mm, Tilt angle range: -45 – 90°, Swivel angle range: 0 – 180°, Angle of rotation: 360°, Distance to the wall (min): 9 cm, Distance to the wall (max): 54 cm. Product colour: Black
The WL70-450BL11 has a depth of 9-54 cm and is suitable for screens that meet VESA hole pattern 75×75 to 100×100 mm.

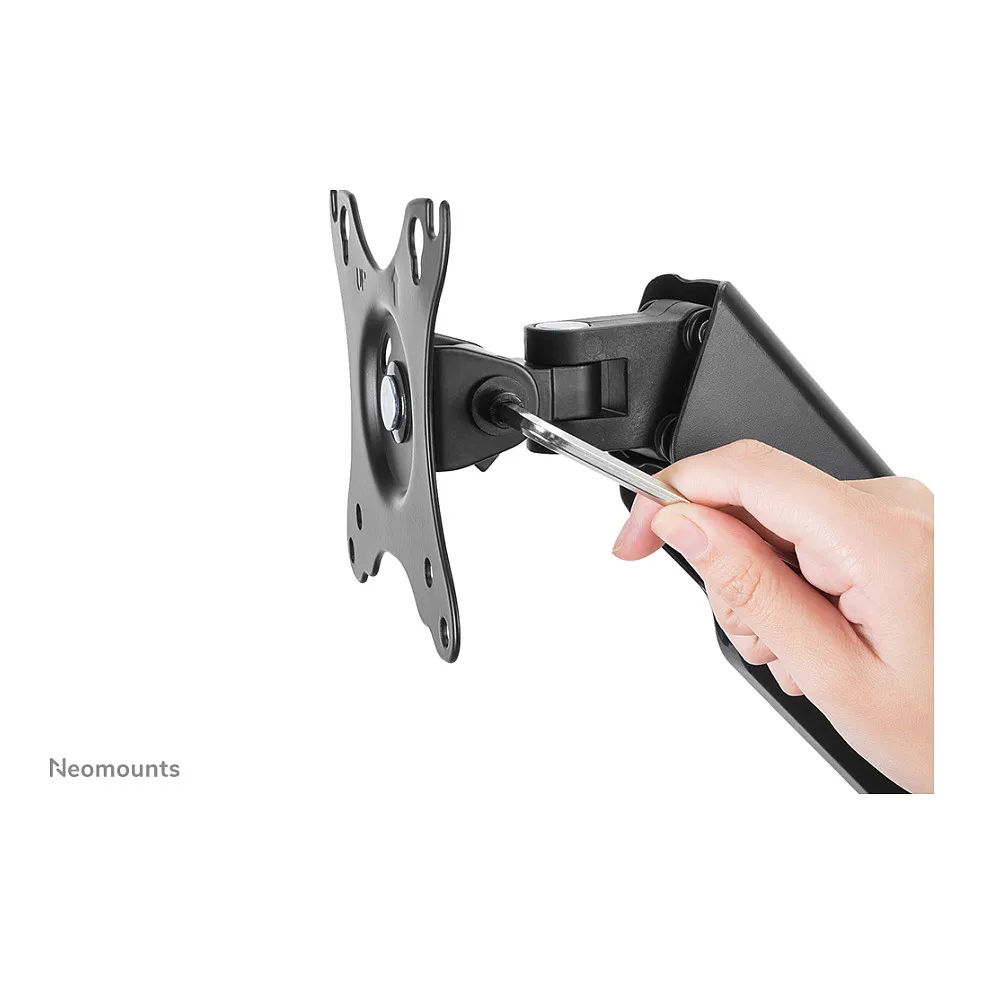

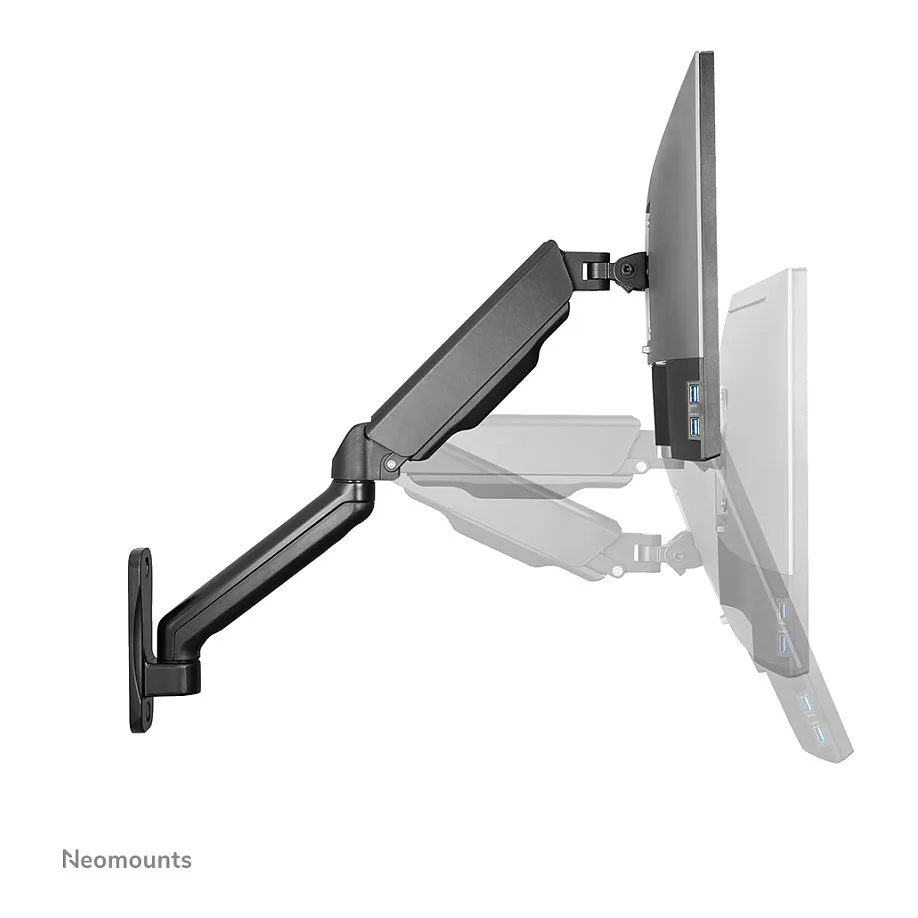

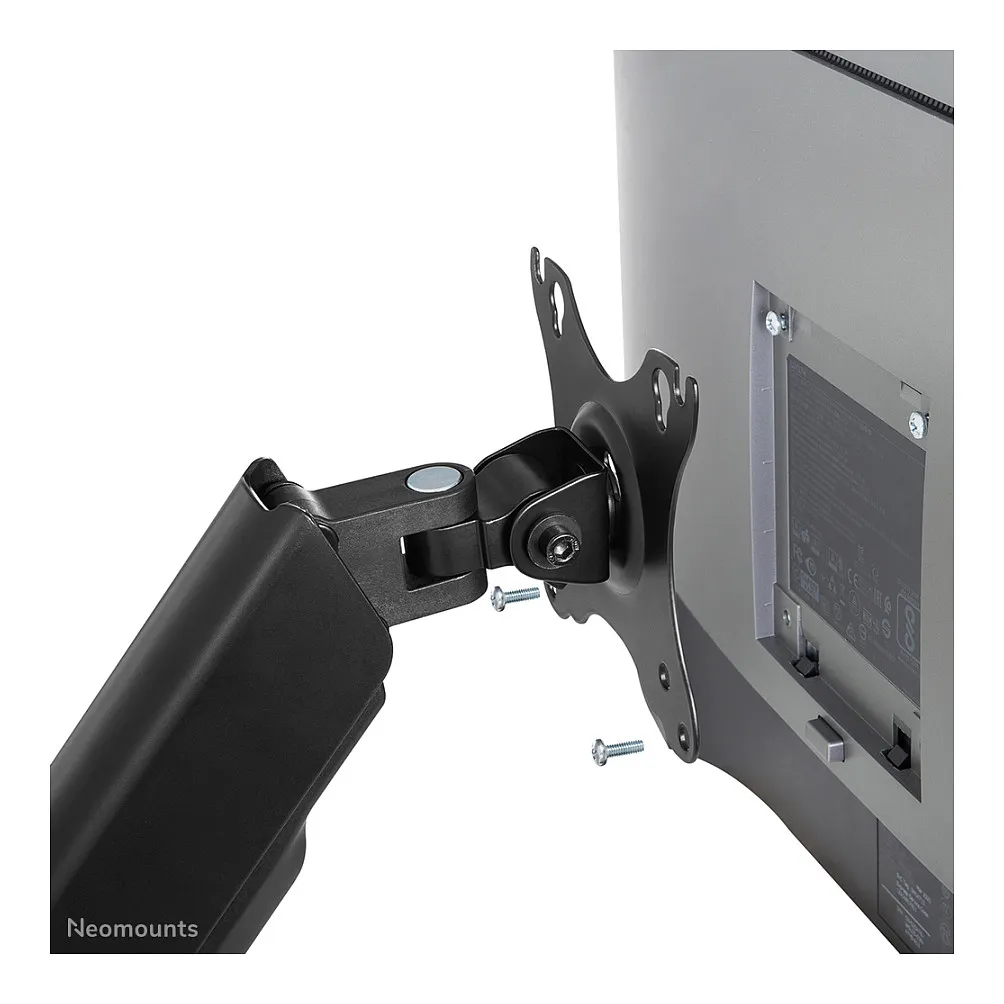

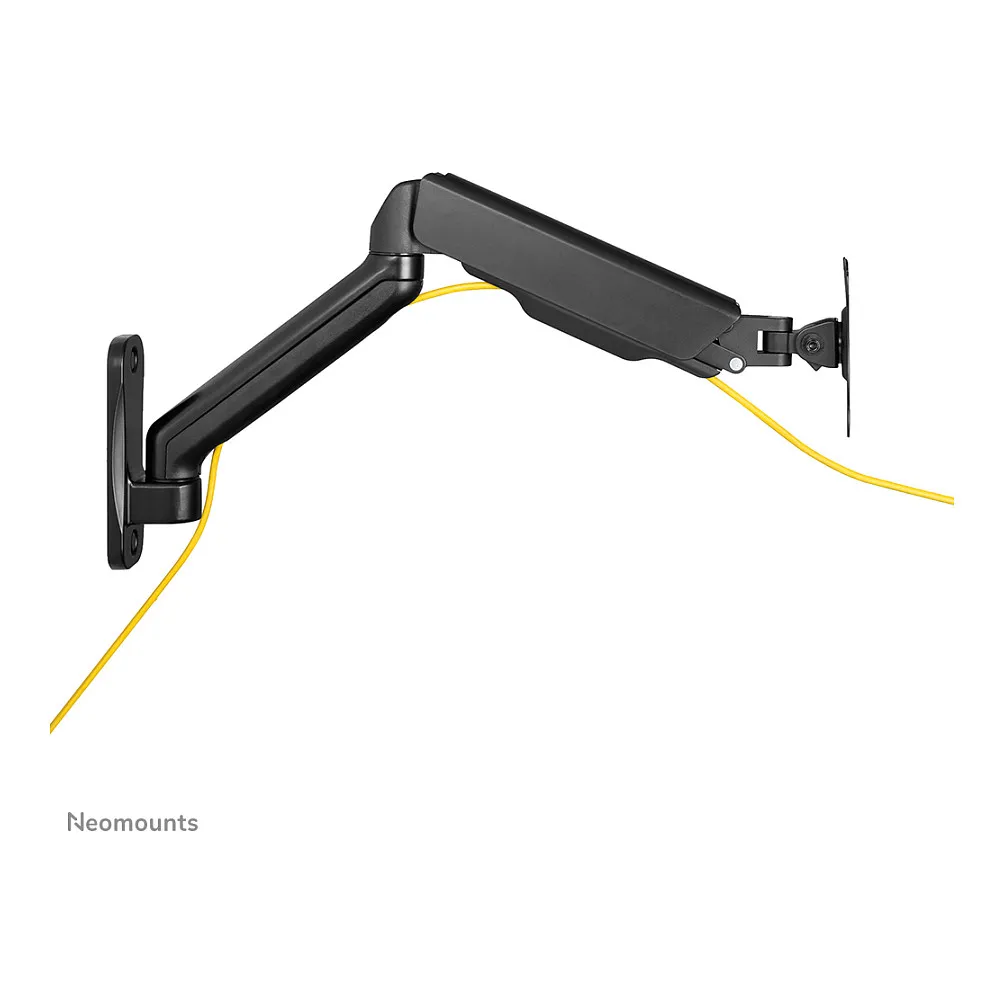

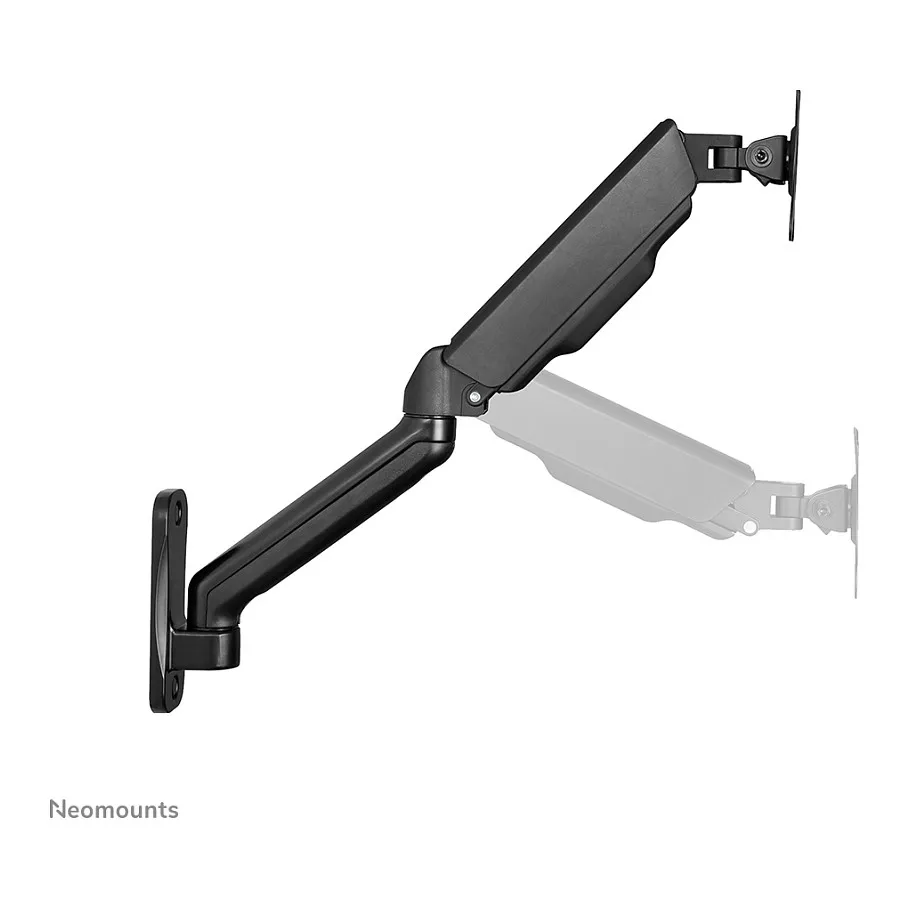

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17″)
Number of displays supported: 1
Maximum weight capacity (per display): 9 kg
Maximum screen size: 81.3 cm (32″)
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Mounting type: Wall
Ergonomics
Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment range: 0 – 250 mm
Feature: Tilt adjustment
Tilt angle range: -45 – 90°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 – 180°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management
Distance to the wall (max): 54 cm
Distance to the wall (min): 9 cm
Design
Product colour: Black
Housing material: Steel
Technical details
Country of origin: China
Package net weight: 2.3 kg
Quantity per pack: 1 pc(s)
Weight & dimensions
Width: 117 mm
Depth: 475 mm
Depth (max): 47.5 cm
Height: 491 mm
Weight: 1.64 kg
Packaging data
Package width: 305 mm
Package depth: 405 mm
Package height: 90 mm
Package weight: 2.3 kg
Logistics data
Master (outer) case width: 305 mm
Master (outer) case length: 405 mm
Master (outer) case height: 90 mm
Master (outer) case gross weight: 2.3 kg
Master (outer) case net weight: 1.6 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 90 pc(s)
Other features
Mounting: Screws
Minimum weight: 2 kg
