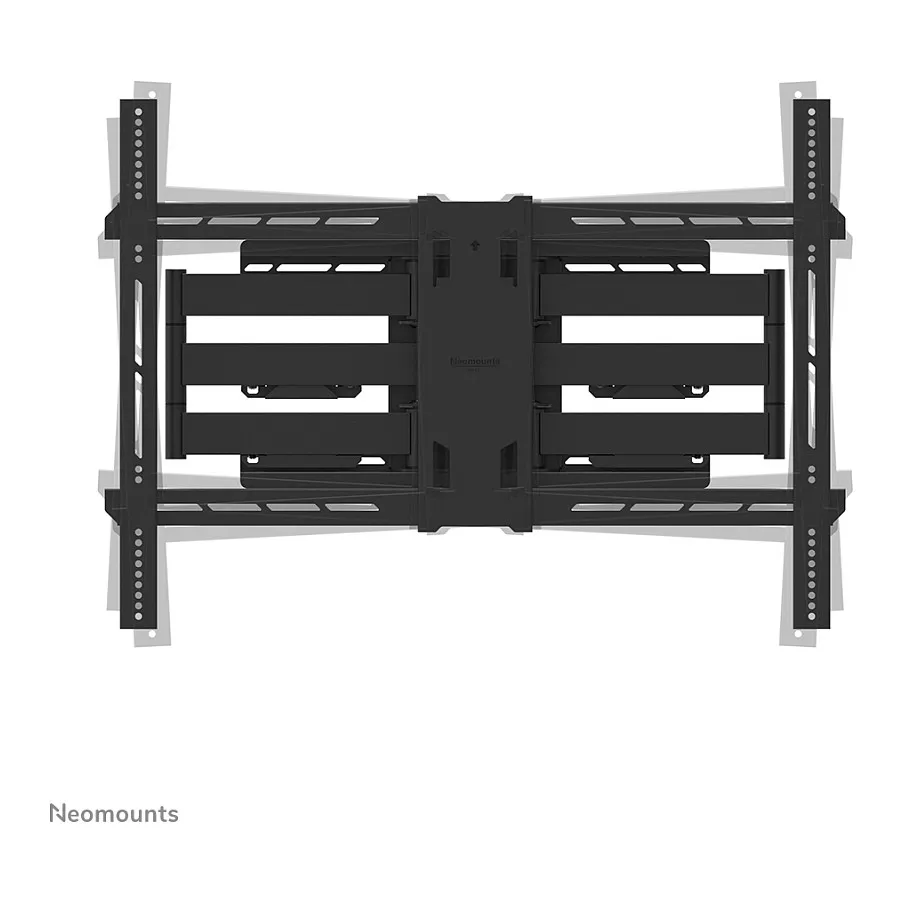

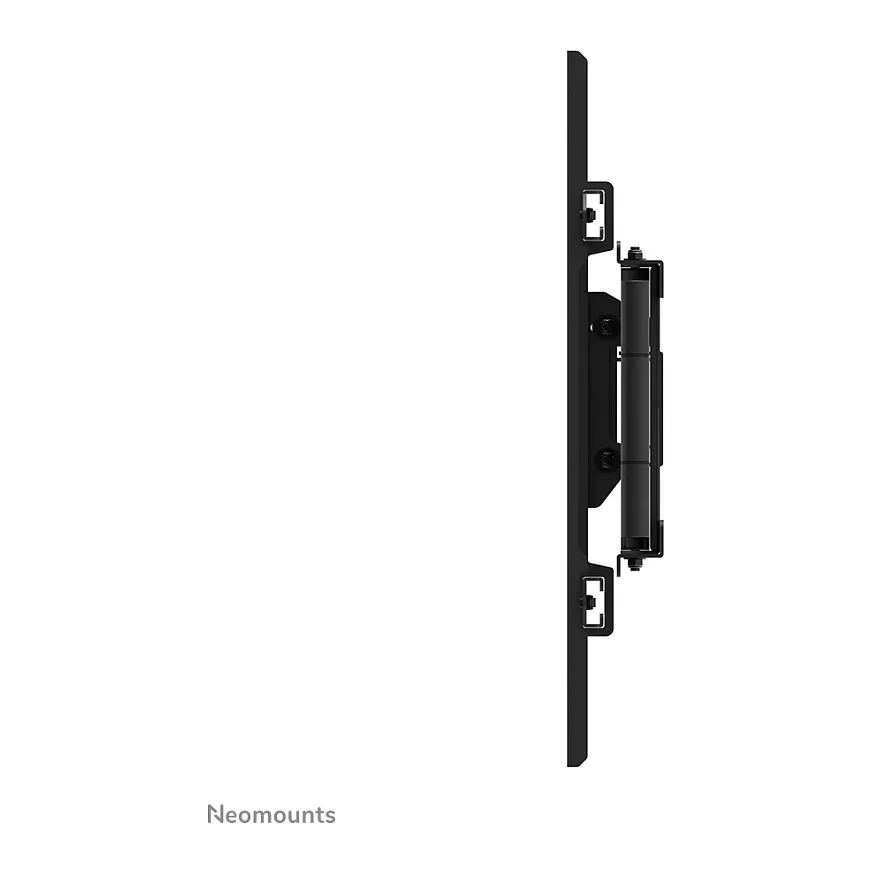

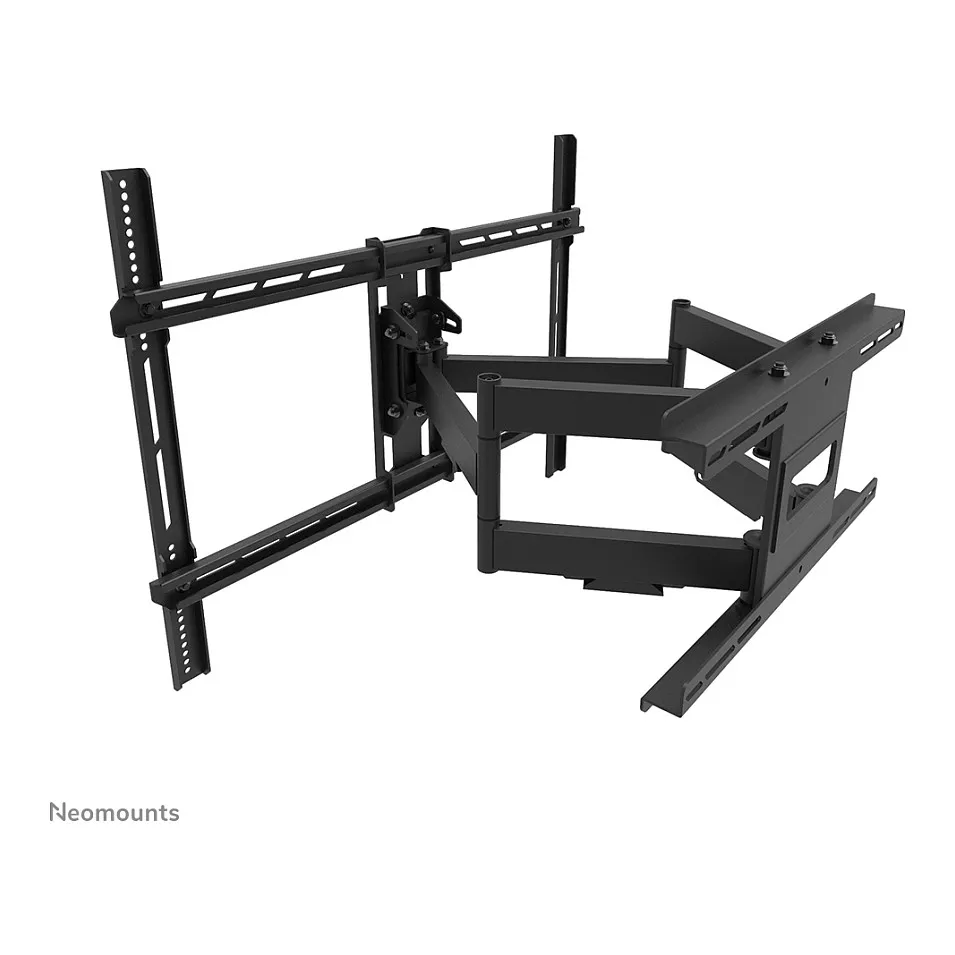

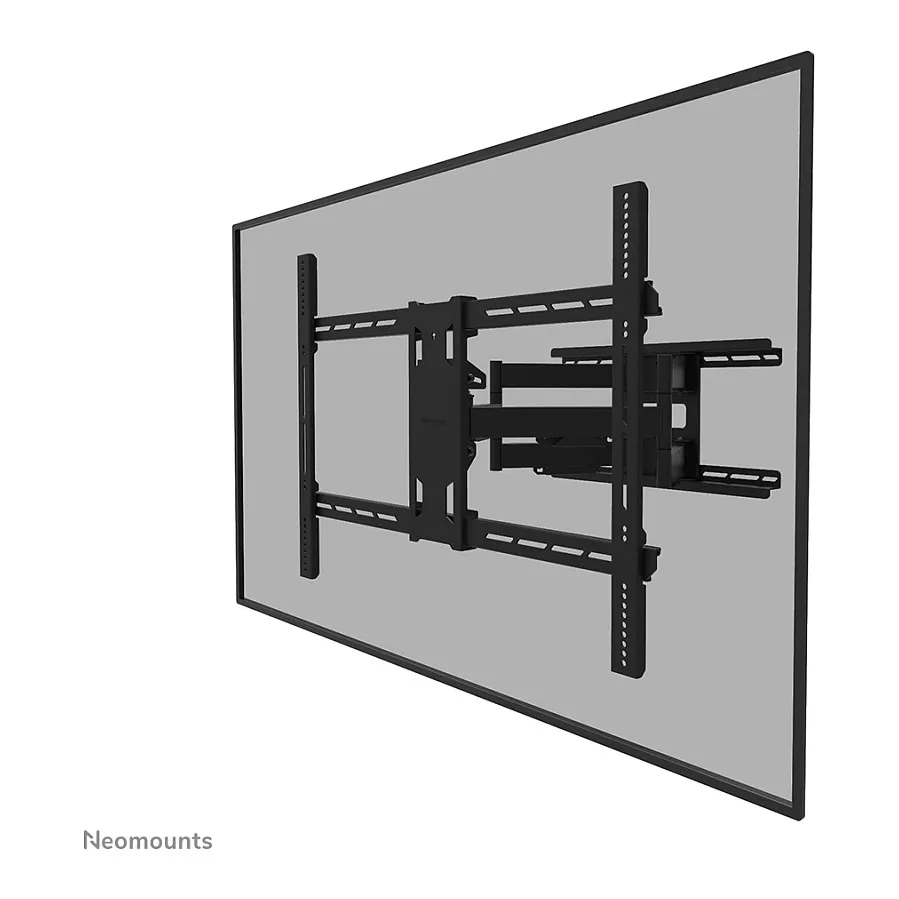

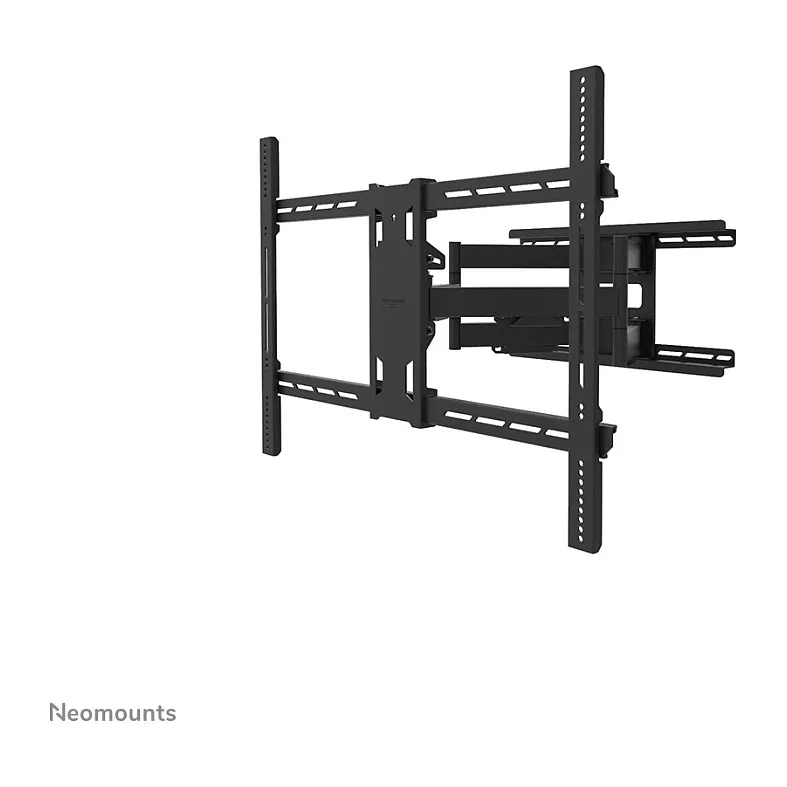

Neomounts WL40S-950BL18 Heavy duty wall mount 55-110" – full motion. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.79 m (110"), Minimum VESA mount: 300 x 200 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 – 10 mm, Tilt angle range: -5 – 15°, Swivel angle range: -45 – 45°, Angle of rotation: 6°, Distance to the wall (min): 8.2 cm, Distance to the wall (max): 70.3 cm. Product colour: Black

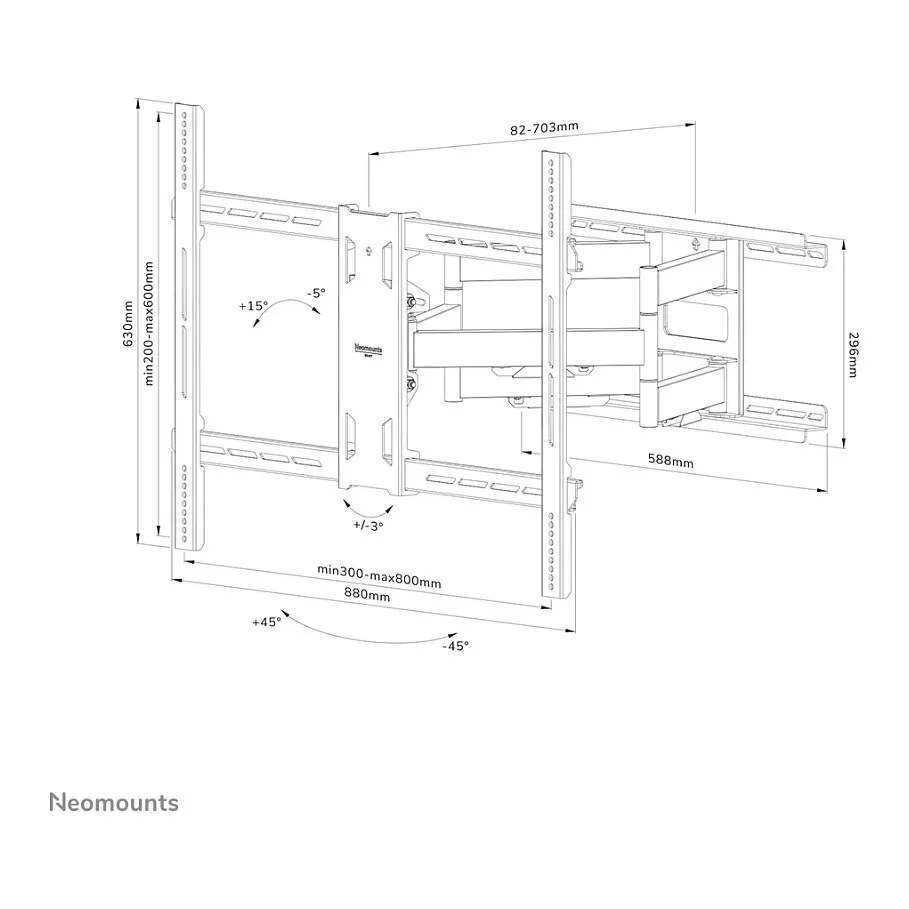

The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300×200 to 800×600 mm. For extra-large VESA patterns (800×600 to 1200×900), the optional VESA adapter set AWLS-950BL1 is available.

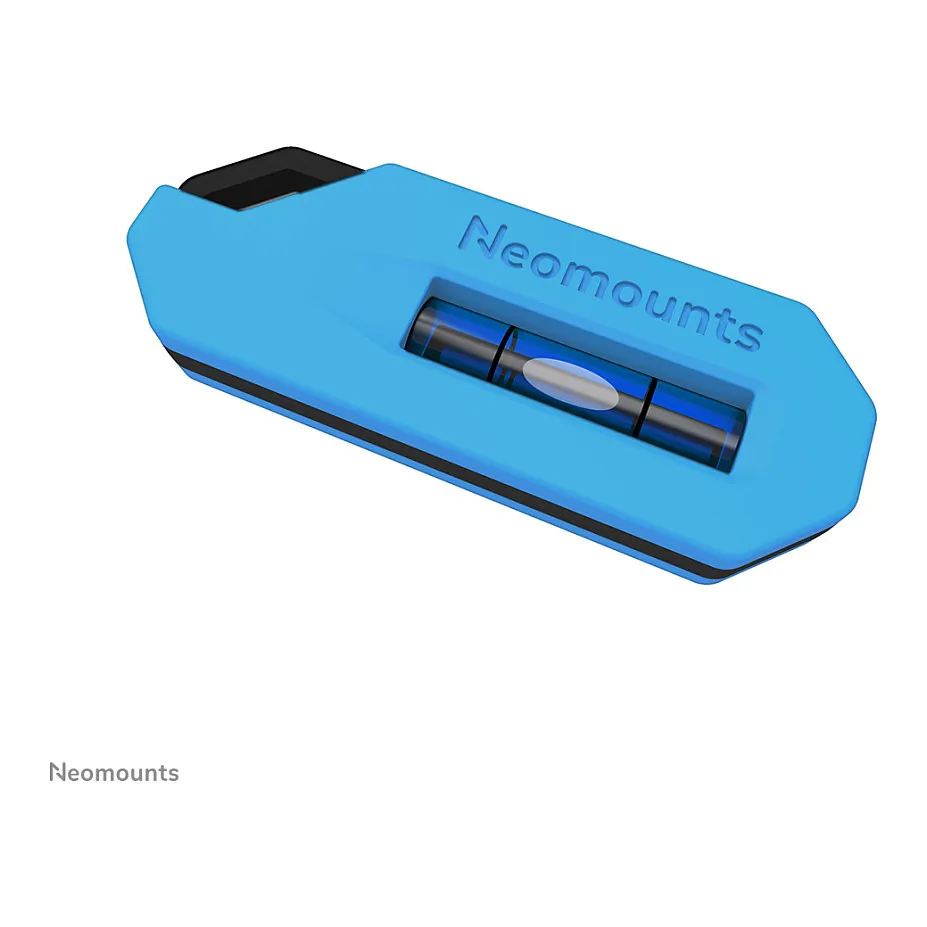

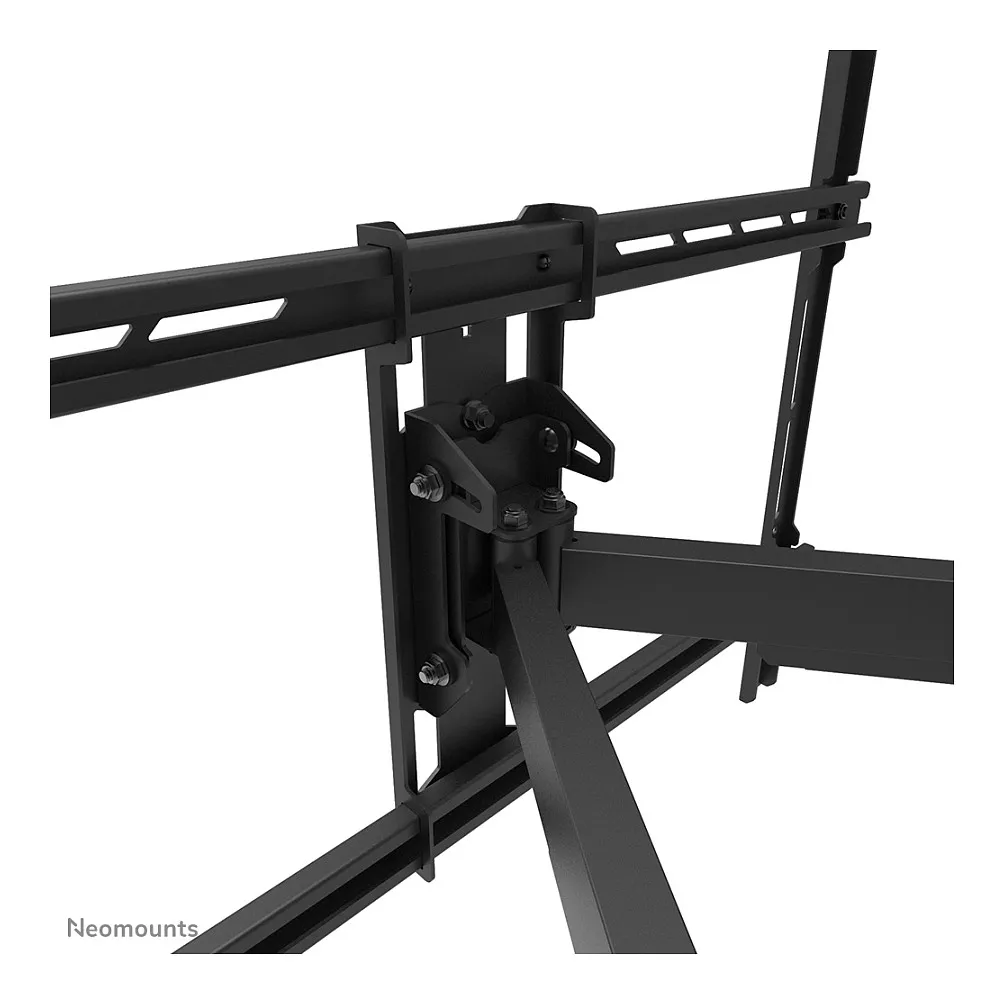

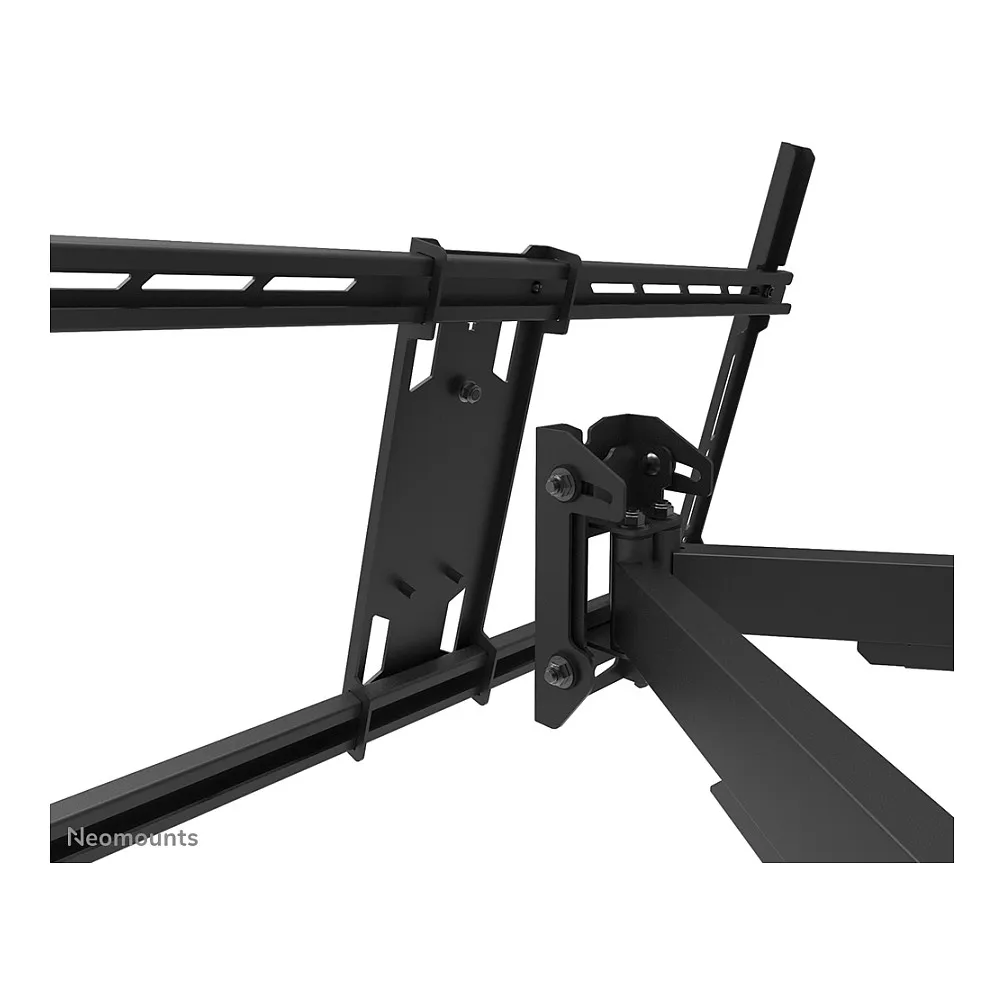

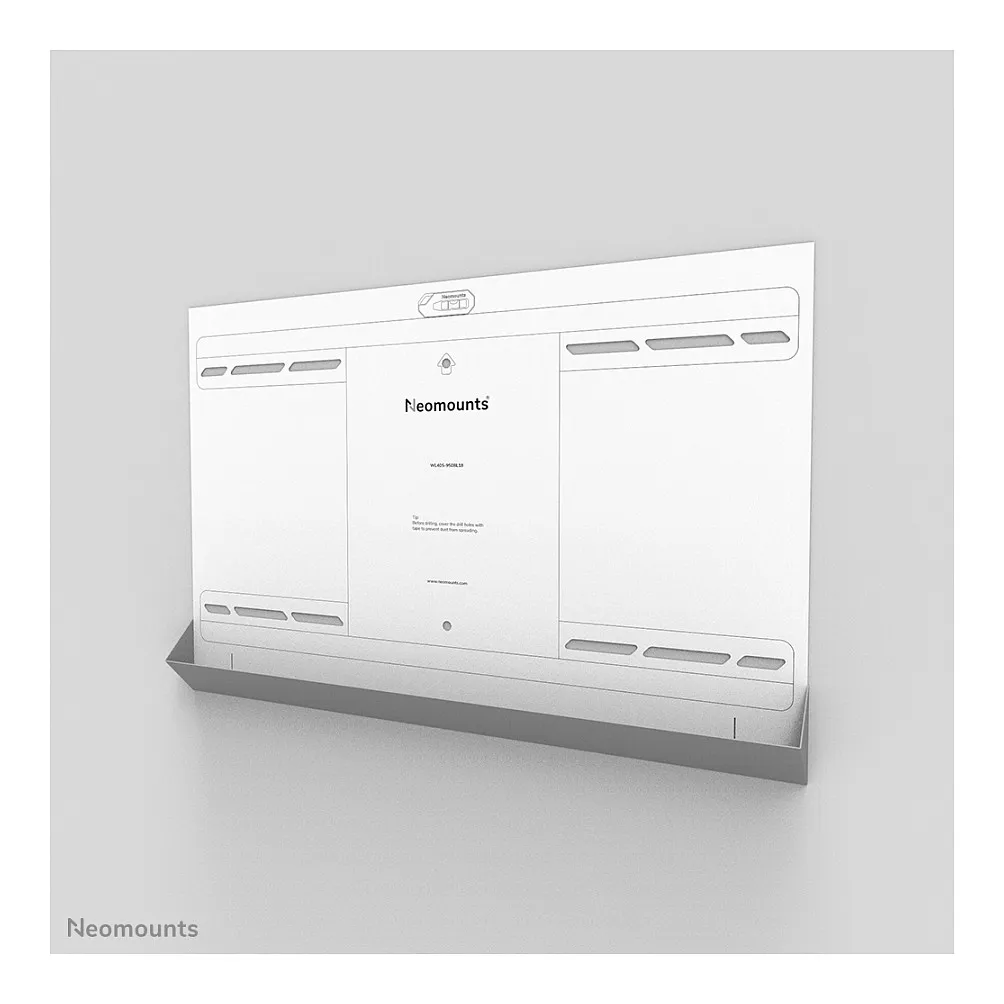

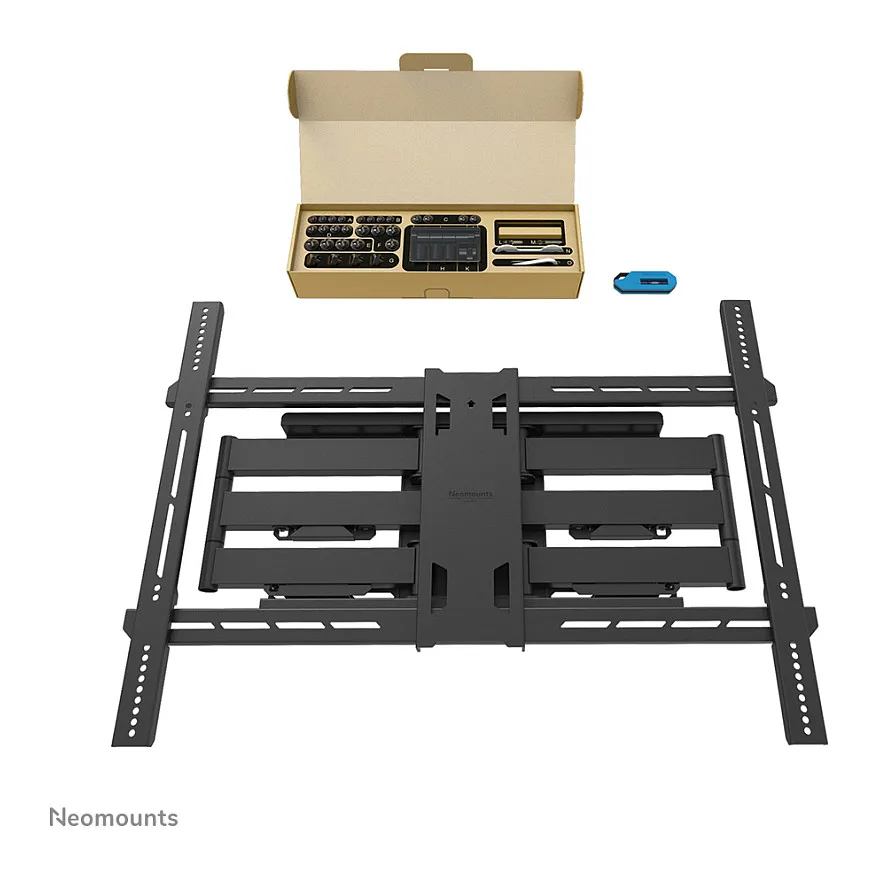

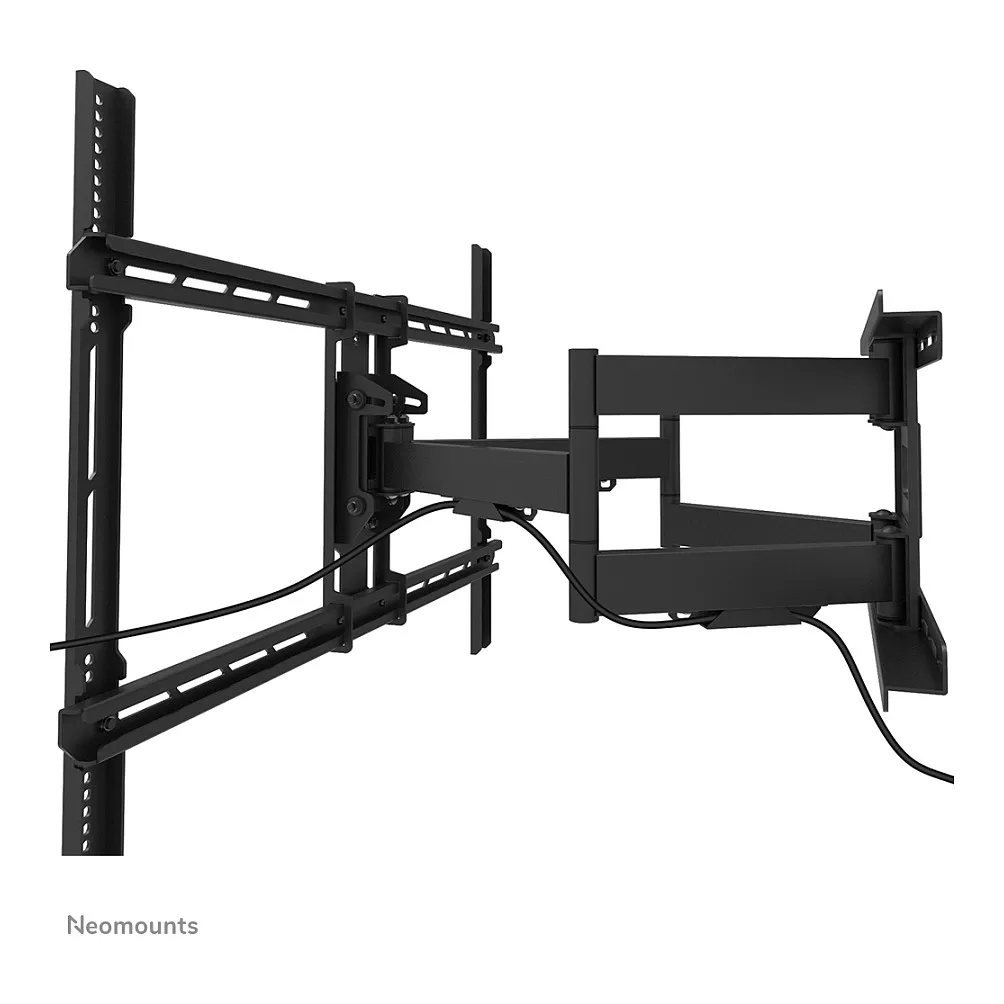

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Maximum weight capacity: 125 kg
Minimum screen size: 139.7 cm (55″)
Number of displays supported: 1
Maximum weight capacity (per display): 125 kg
Maximum screen size: 2.79 m (110″)
Minimum VESA mount: 300 x 200 mm
Maximum VESA mount: 800 x 600 mm
Mounting type: Wall
Ergonomics
Feature: Height adjustment
Height adjustment range: 0 – 10 mm
Feature: Tilt adjustment
Tilt angle range: -5 – 15°
Feature: Swivelling
Swivel angle range: -45 – 45°
Feature: Rotating
Angle of rotation: 6°
Pivot angle: -3 – 3°
Feature: Cable management
Distance to the wall (max): 70.3 cm
Distance to the wall (min): 8.2 cm
Design
Product colour: Black
Housing material: Steel
Technical details
Country of origin: China
Package net weight: 22 kg
Warranty period: 5 year(s)
Lockable: Not lockable
Packaging content

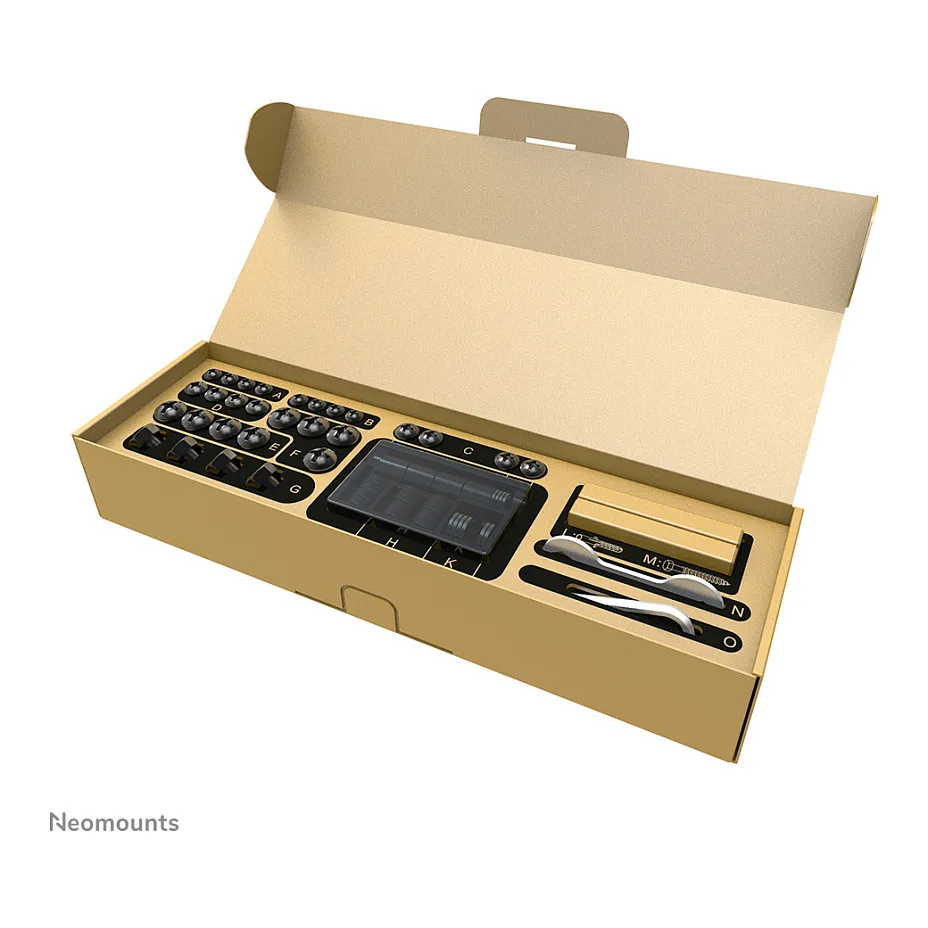

Feature: Mounting kit
Weight & dimensions
Width: 880 mm
Depth: 82 mm
Depth (max): 8.2 cm
Height: 630 mm
Weight: 20.4 kg
Packaging data
Package width: 450 mm
Package depth: 100 mm
Package height: 950 mm
Package weight: 22 kg
Logistics data
Master (outer) case width: 450 mm
Master (outer) case length: 100 mm
Master (outer) case height: 950 mm
Master (outer) case gross weight: 22 kg
Master (outer) case net weight: 20.4 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 20 pc(s)
