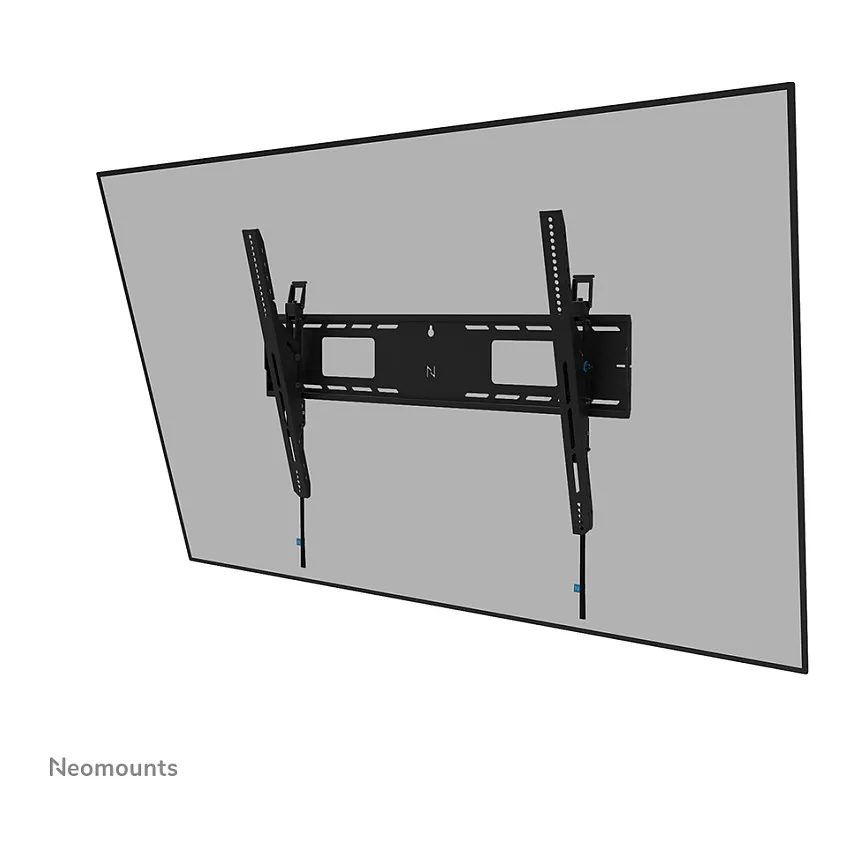

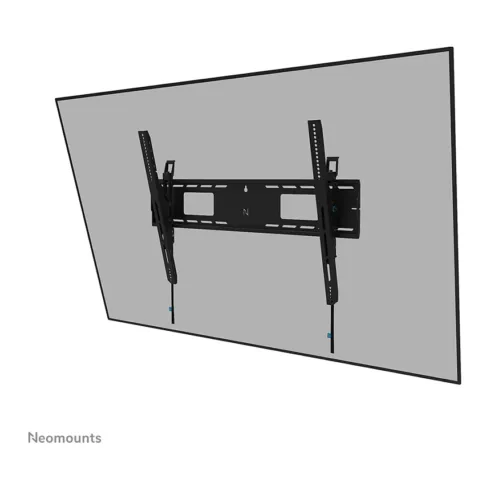

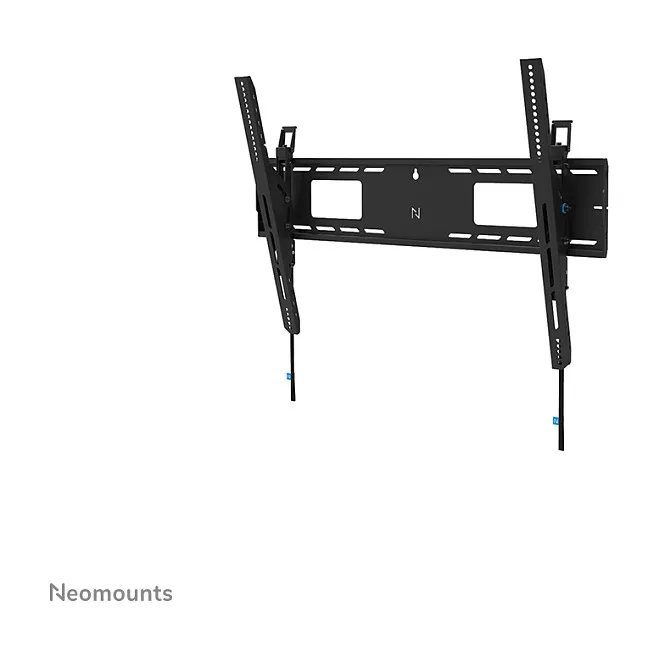

Neomounts WL35-750BL18 Heavy duty wall mount 55-98" – tilt – lockable – fast installation – TÜV. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 – 10 mm, Tilt angle range: -15 – 15°, Distance to the wall (max): 9.3 cm. Product colour: Black

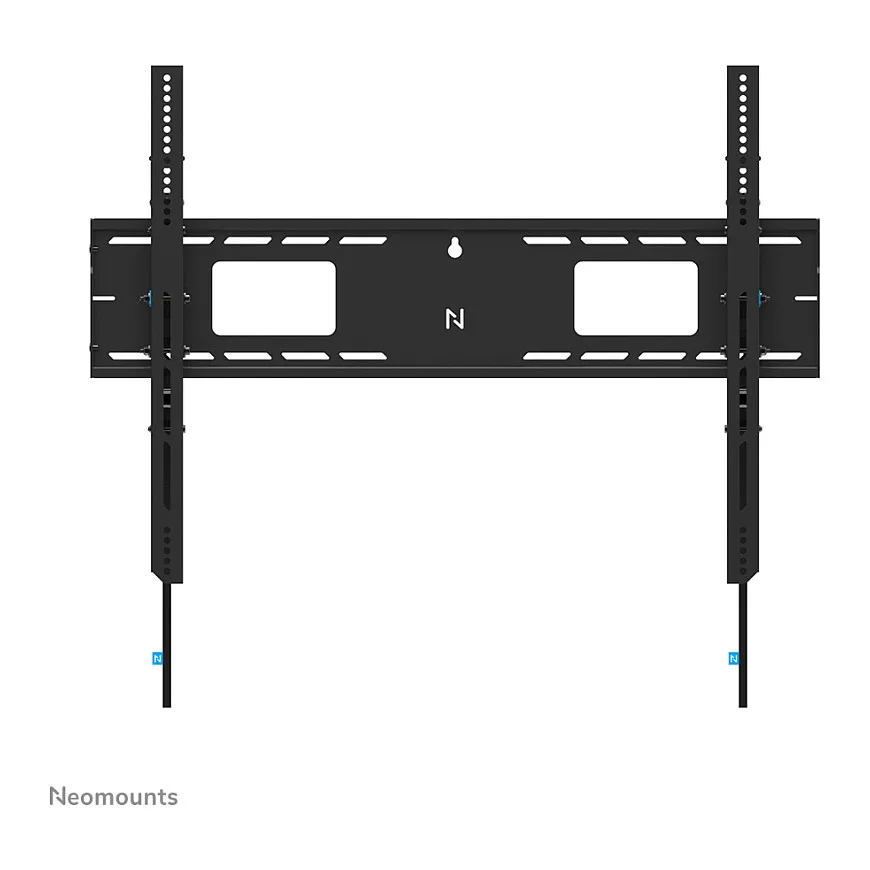

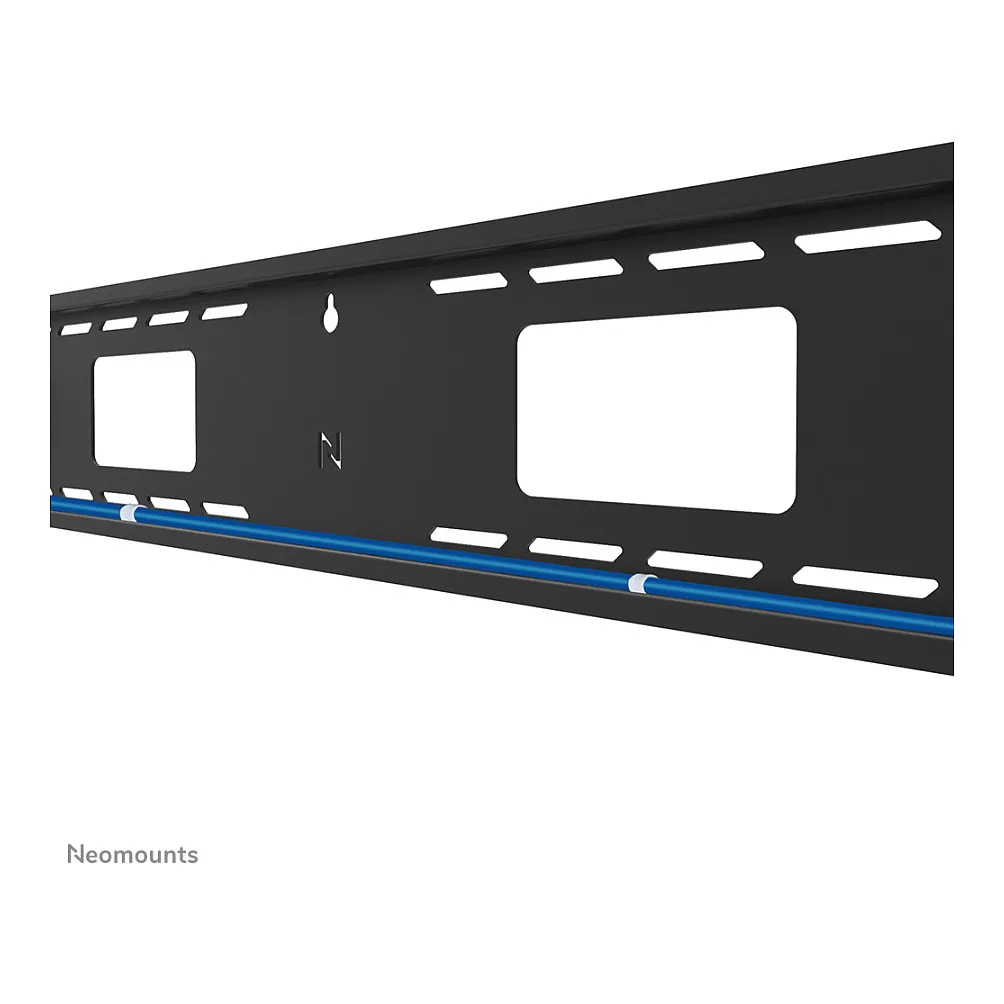

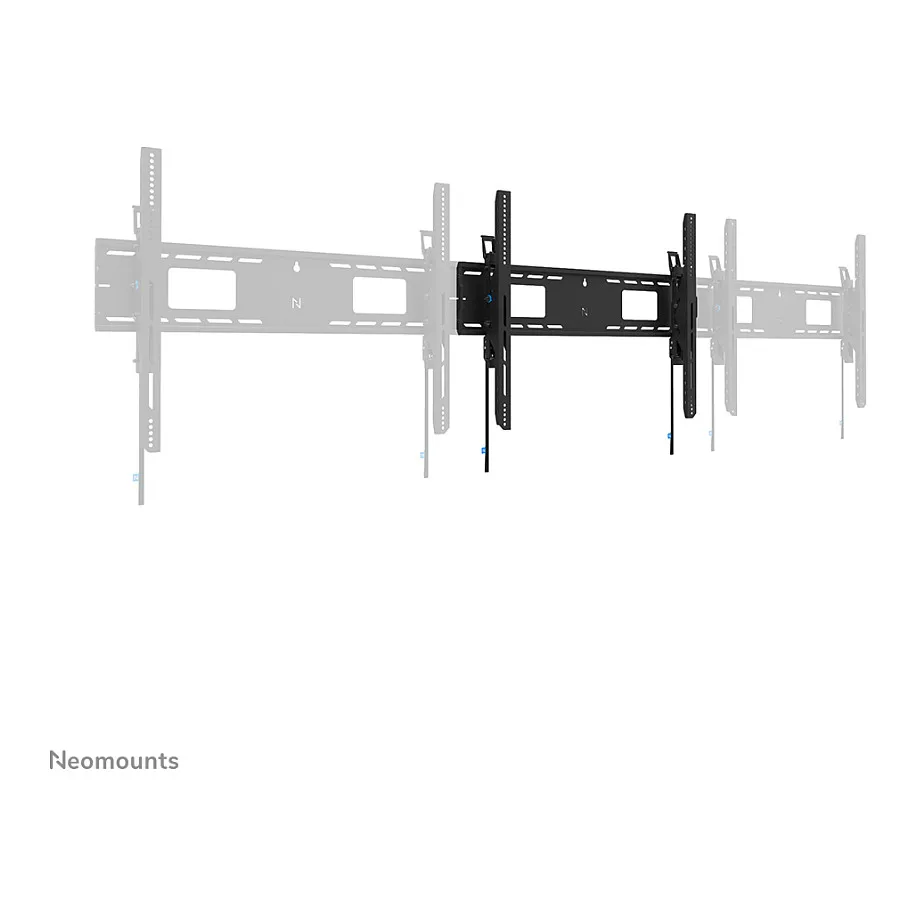

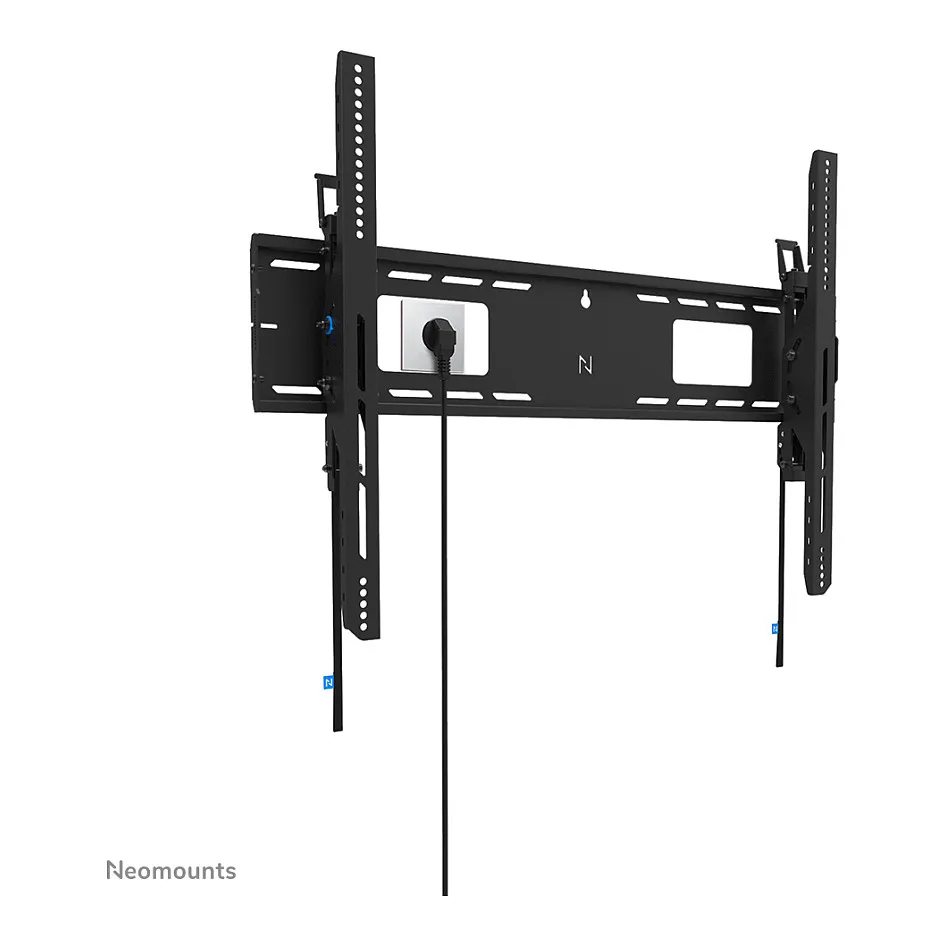

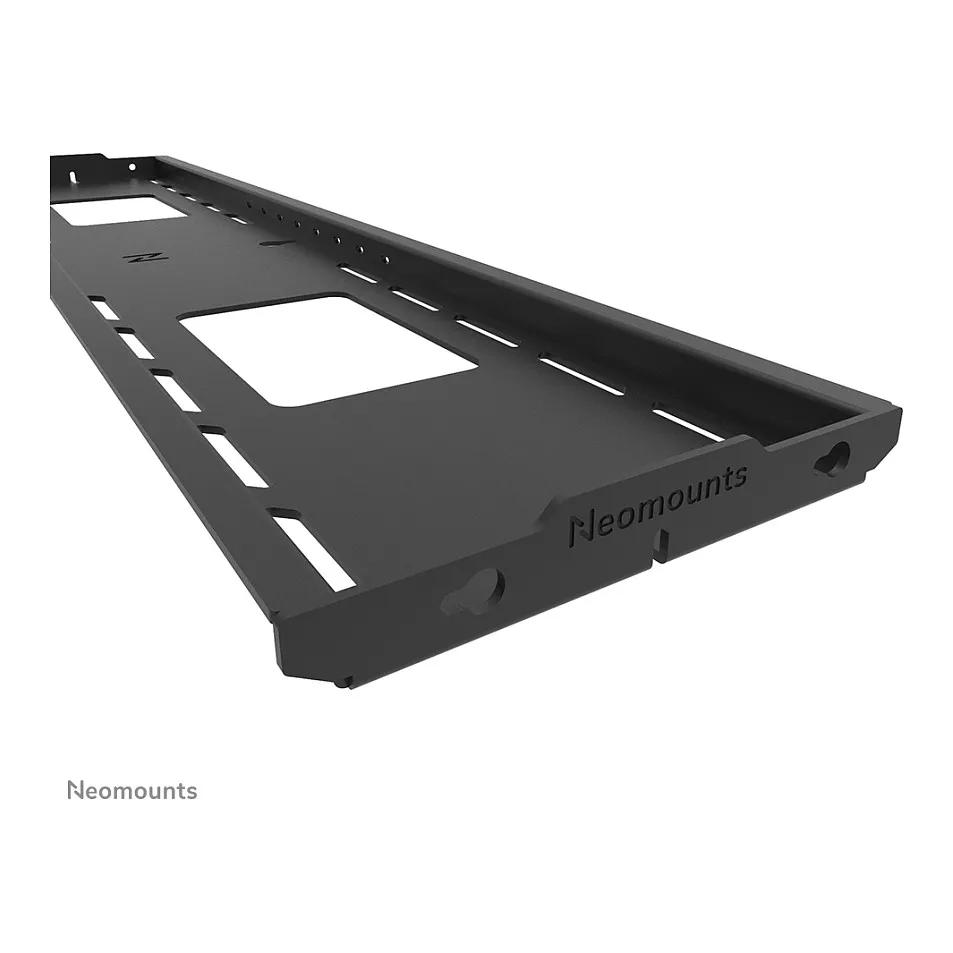

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100×100 to 800×600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

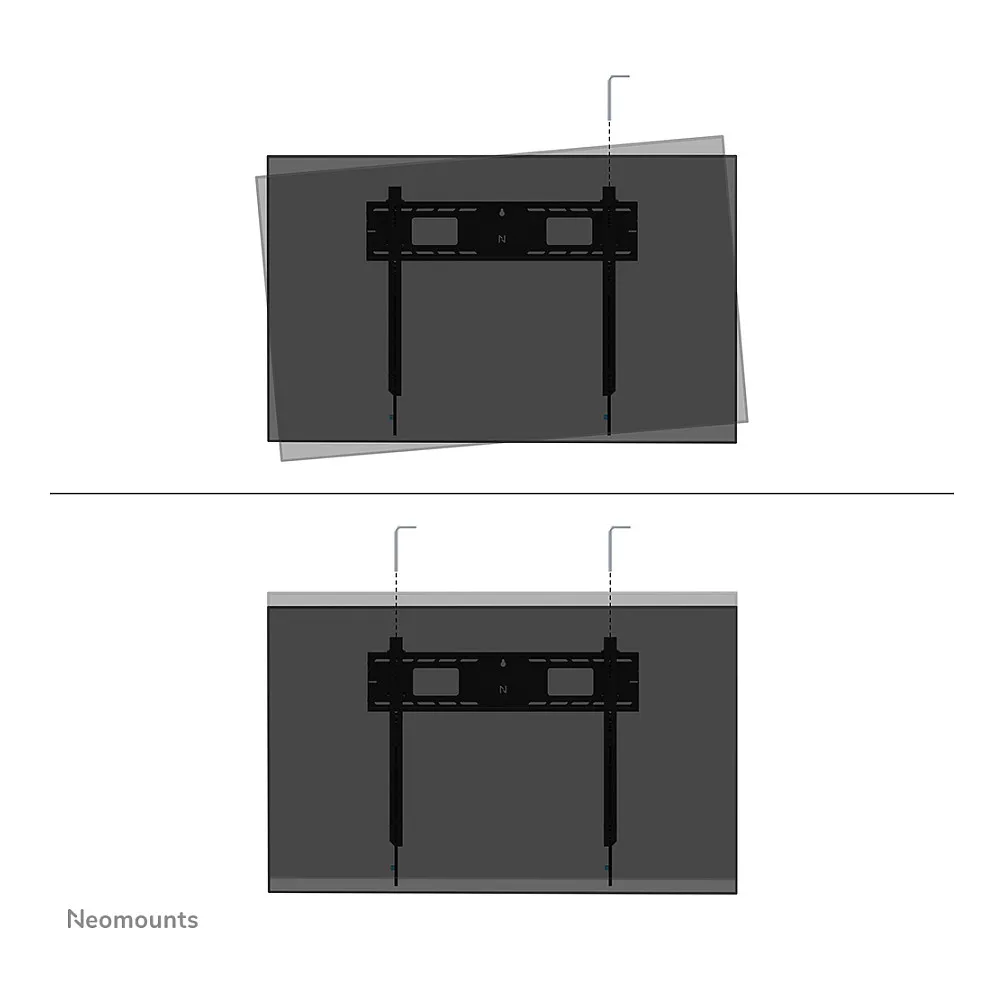

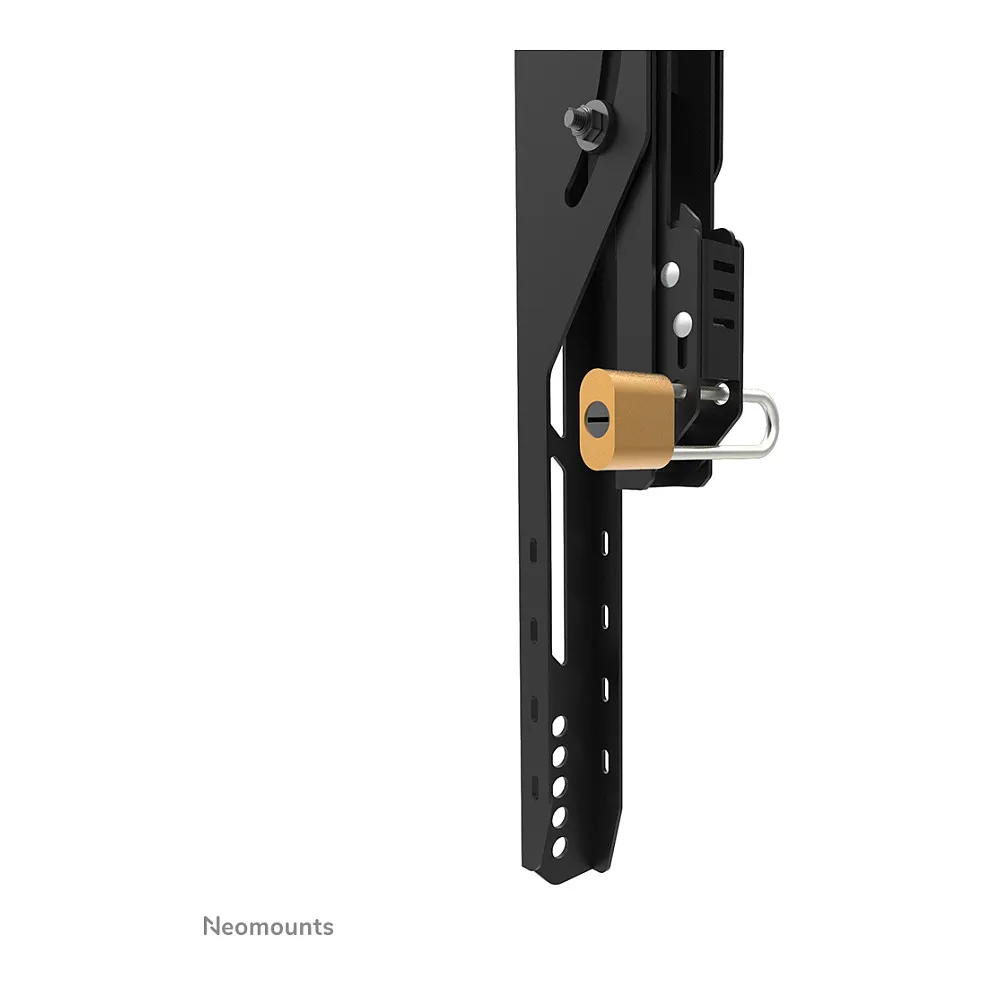

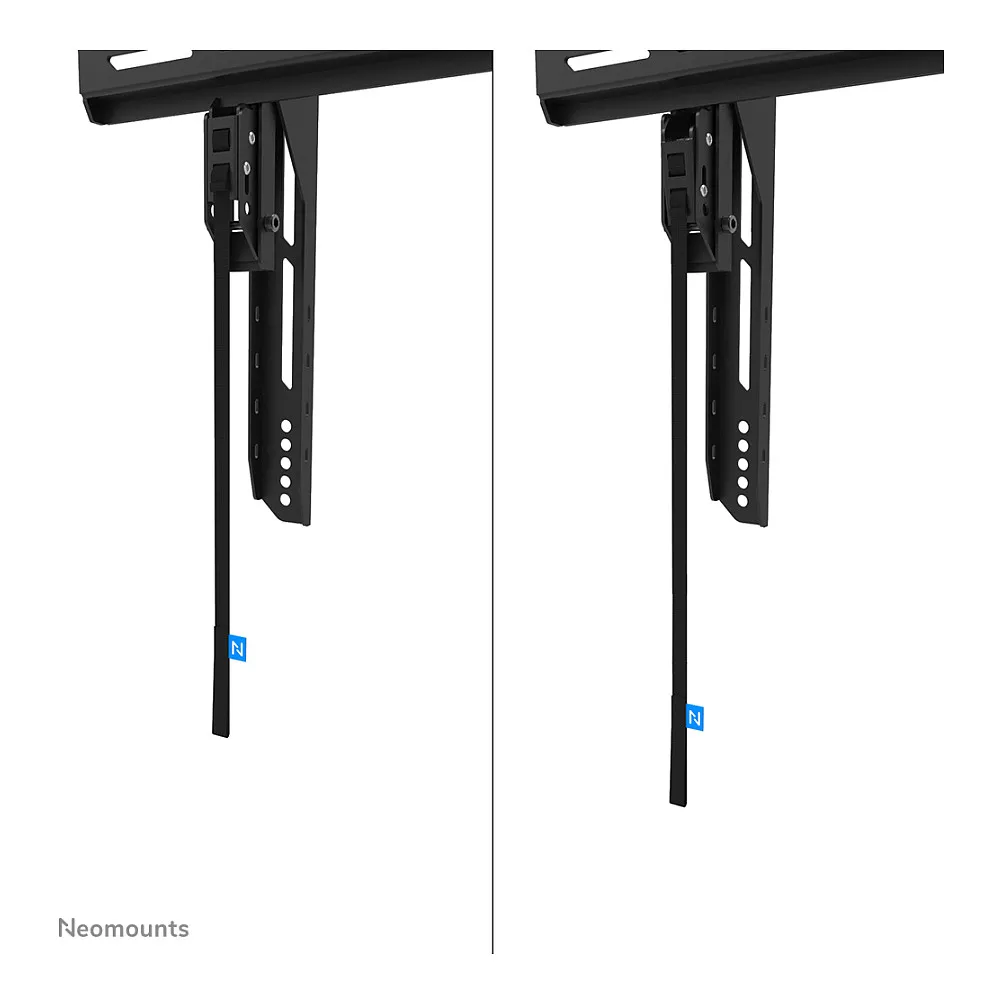

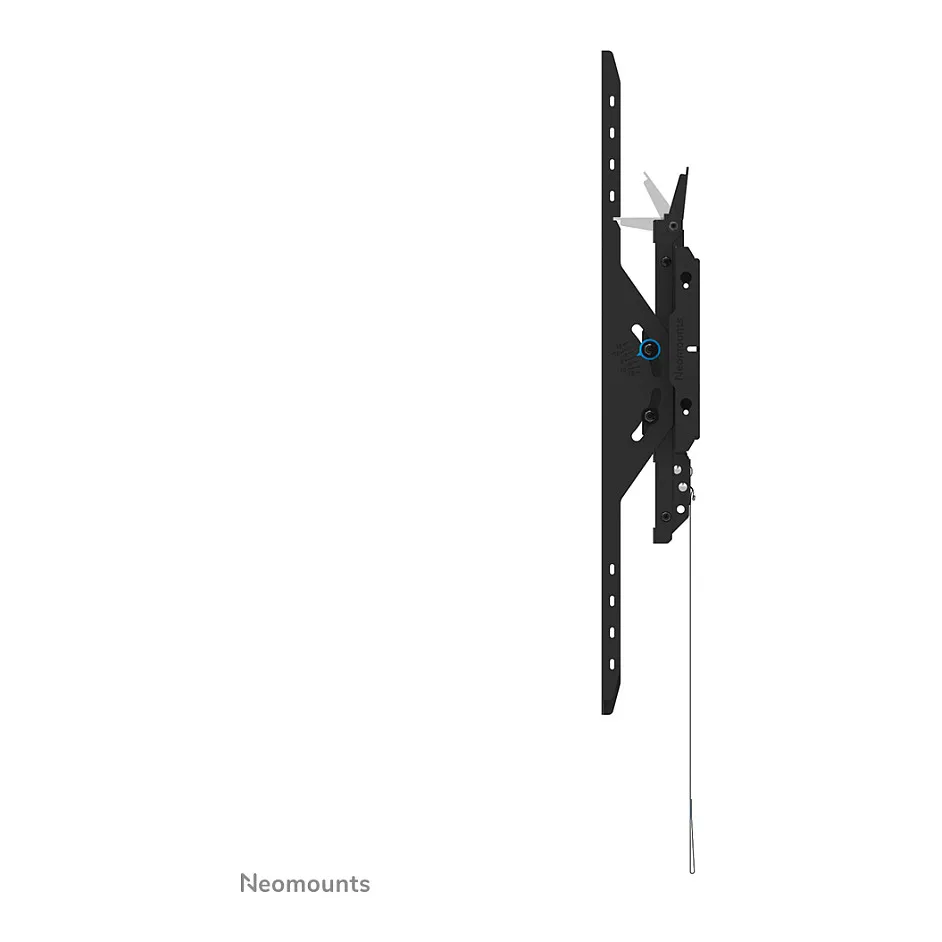

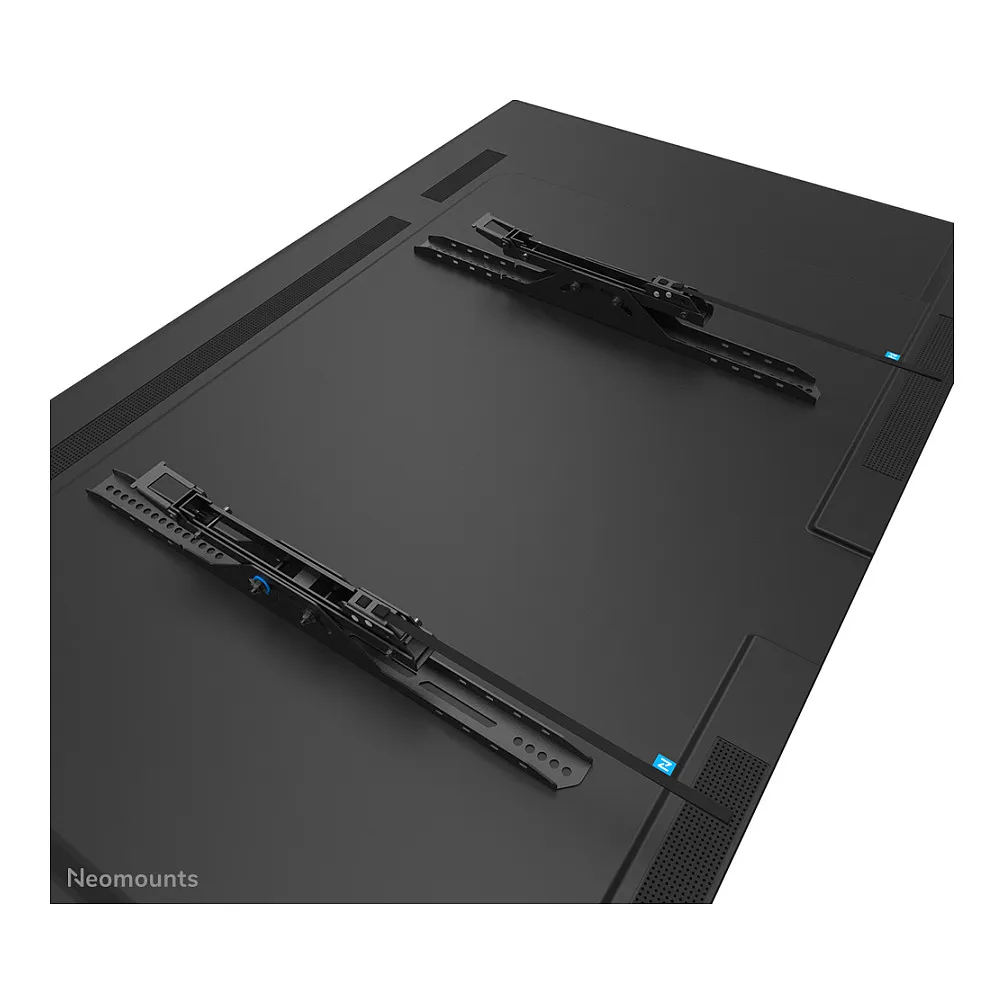

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

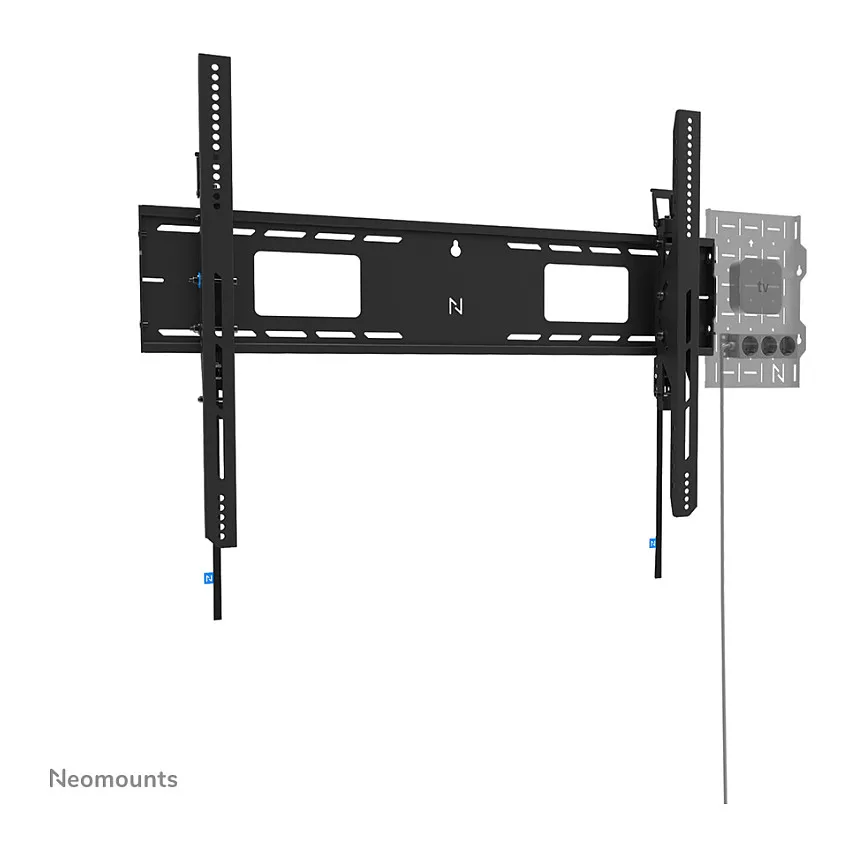

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
Maximum weight capacity: 125 kg
Minimum screen size: 139.7 cm (55″)
Number of displays supported: 1
Maximum weight capacity (per display): 125 kg
Maximum screen size: 2.49 m (98″)
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 800 x 600 mm
Mounting type: Wall
Ergonomics
Feature: Height adjustment
Height adjustment range: 0 – 10 mm
Feature: Tilt adjustment

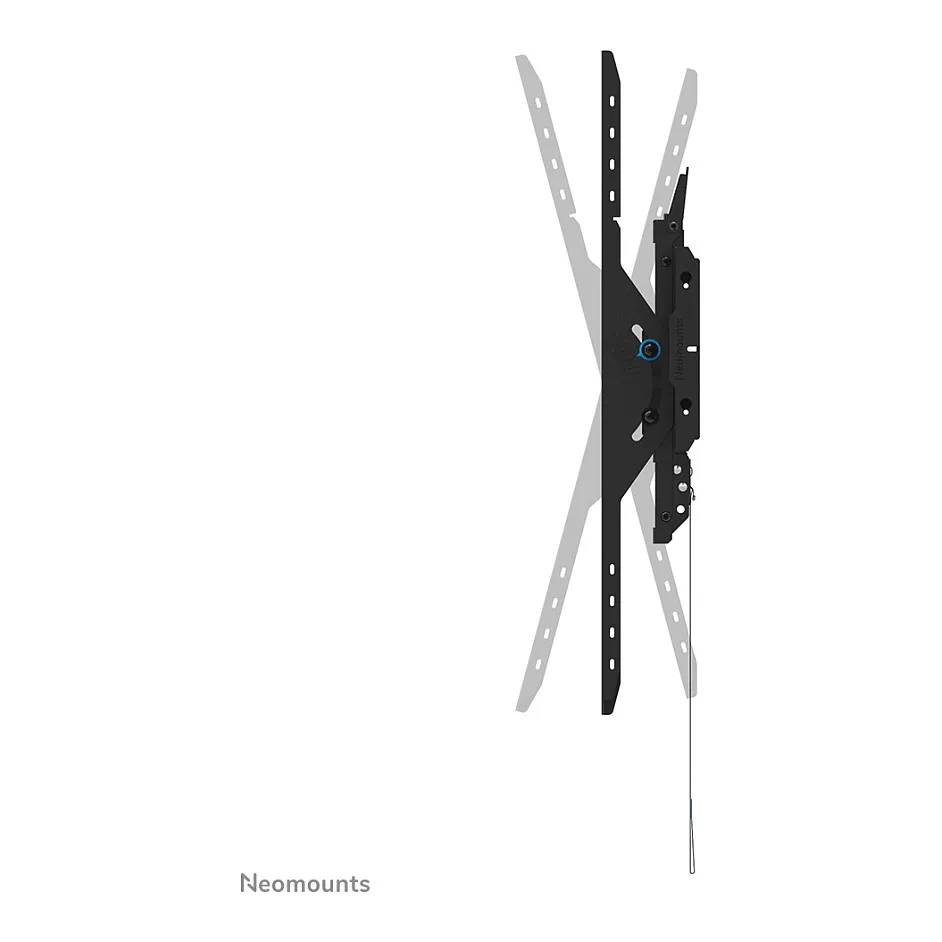

Tilt angle range: -15 – 15°
Feature: Cable management
Distance to the wall (max): 9.3 cm
Design
Product colour: Black
Housing material: Steel
Technical details
Country of origin: China
Lockable: Padlock not included

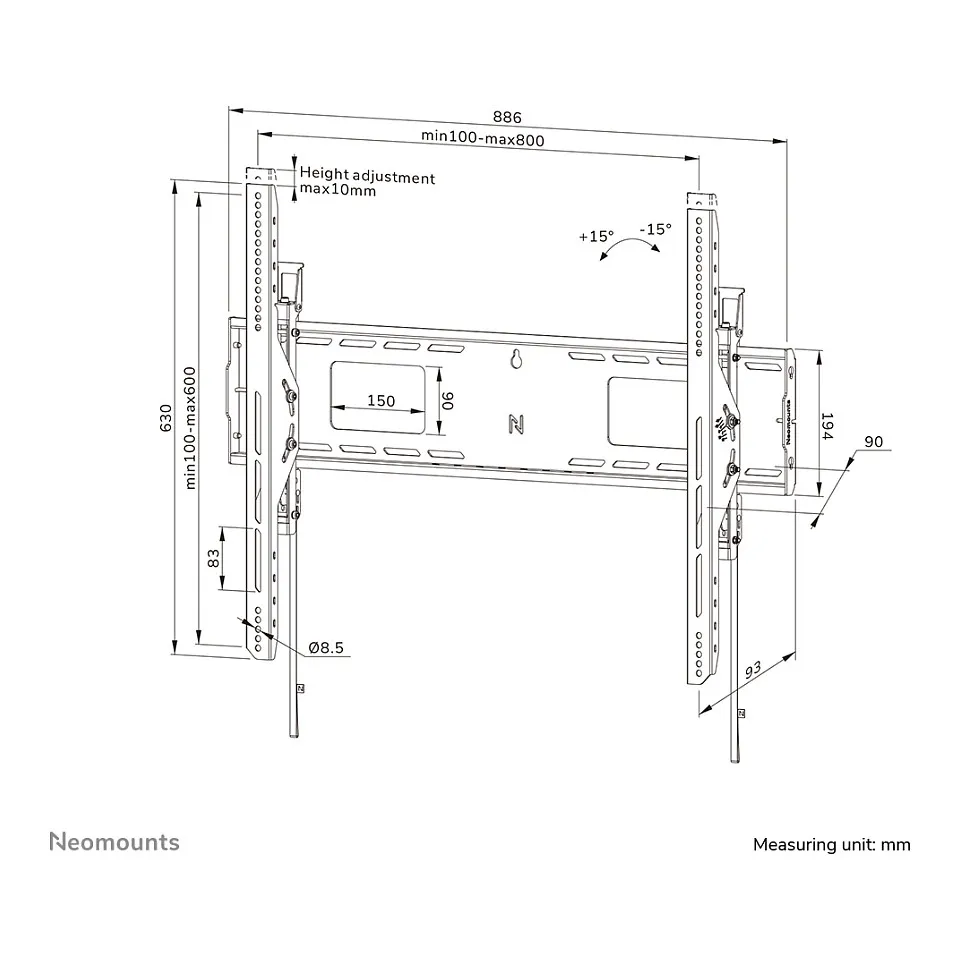

Weight & dimensions
Width: 886 mm
Depth: 93 mm
Depth (max): 9.3 cm
Height: 684 mm
Weight: 6.8 kg
Packaging data
Package width: 928 mm
Package depth: 102 mm
Package height: 209 mm
Package weight: 8.4 kg
Logistics data
Master (outer) case width: 946 mm
Master (outer) case length: 227 mm
Master (outer) case height: 324 mm
Master (outer) case gross weight: 26.3 kg
Master (outer) case net weight: 20.4 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 39 pc(s)
