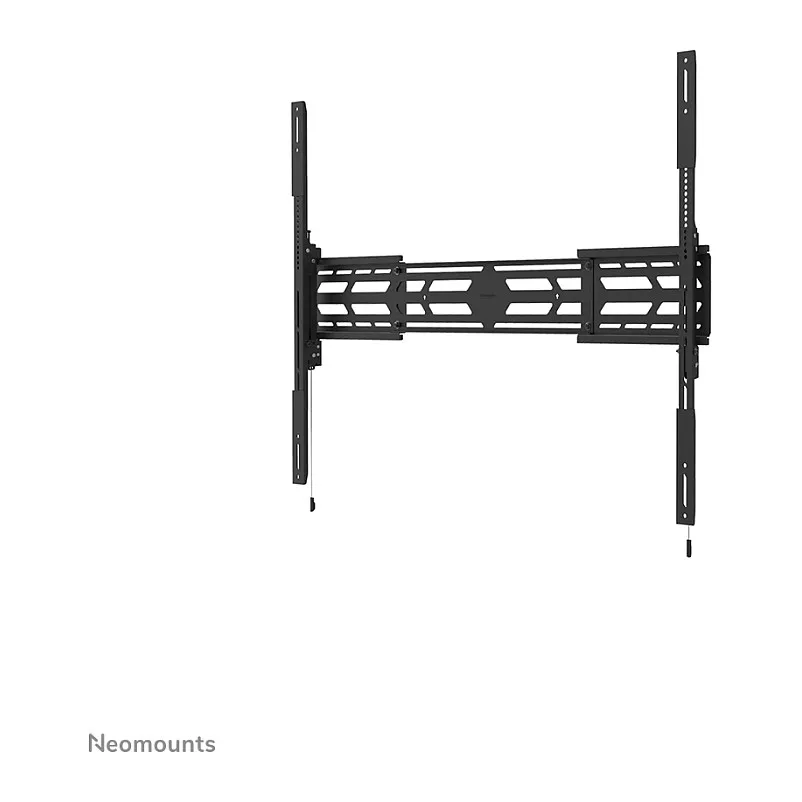

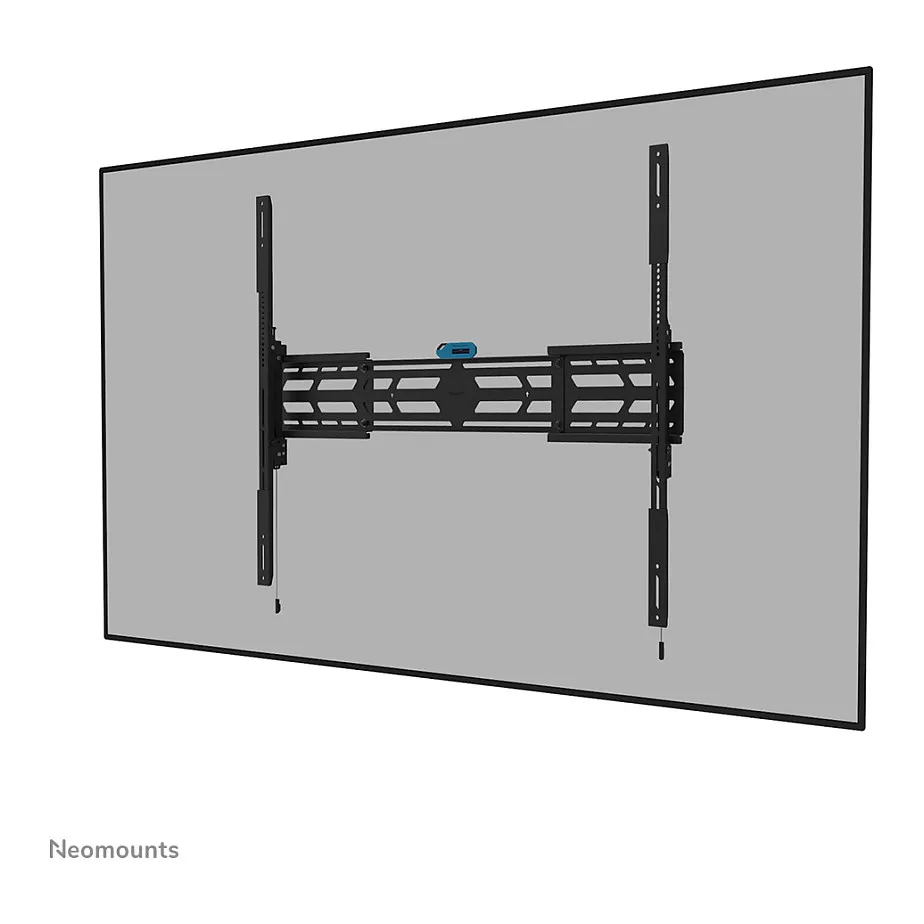

Neomounts WL30S-950BL19 Heavy duty wall mount 55-115" – fixed – lockable – landscape and portrait. Maximum weight capacity: 160 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.92 m (115"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 1500 x 900 mm. Height adjustment range: 0 – 20 mm, Angle of rotation: 6°, Distance to the wall (max): 6.7 cm. Product colour: Black

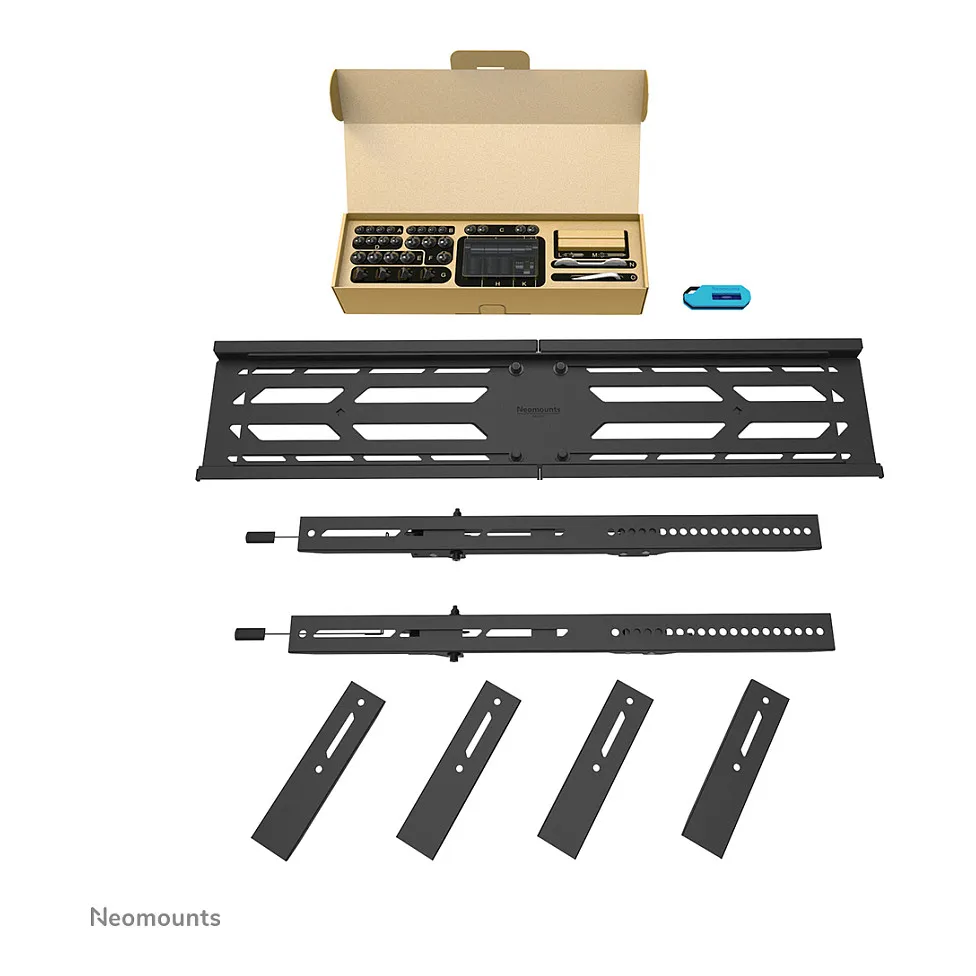

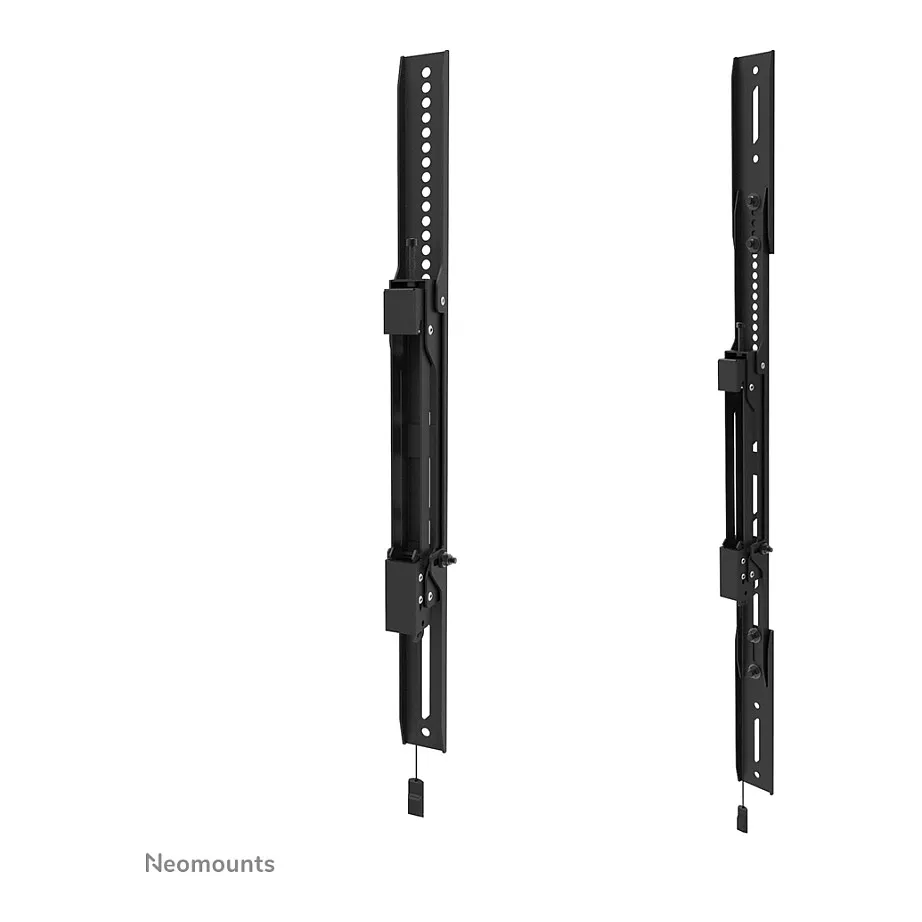

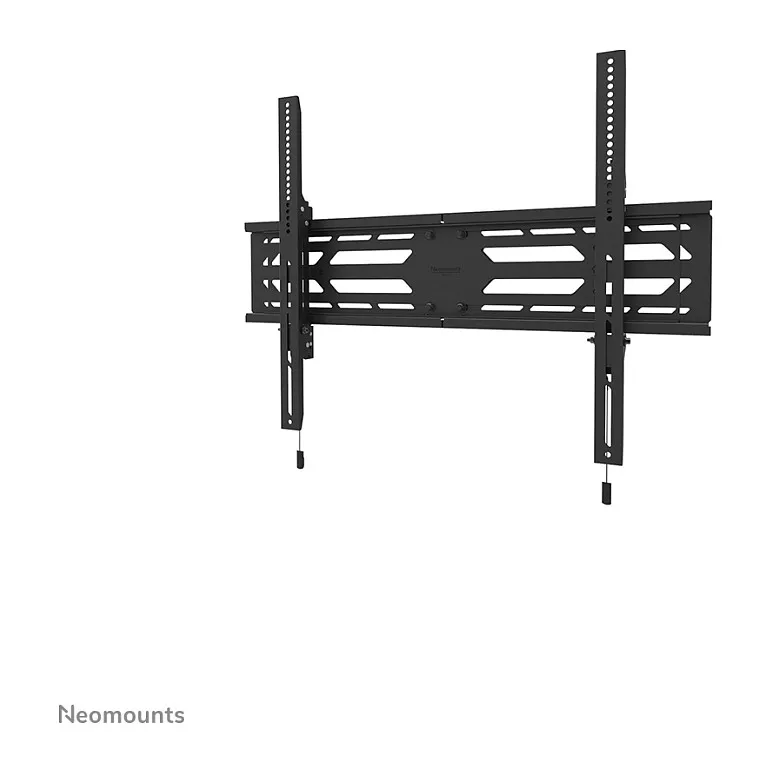

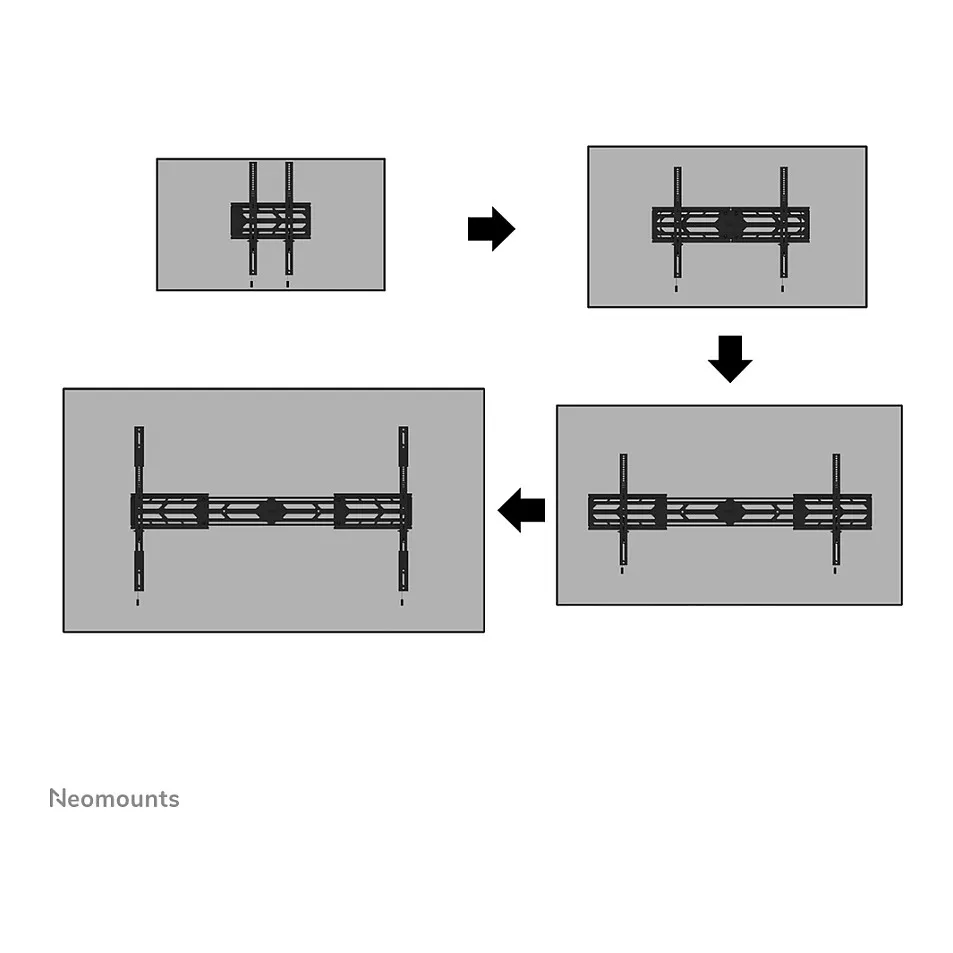

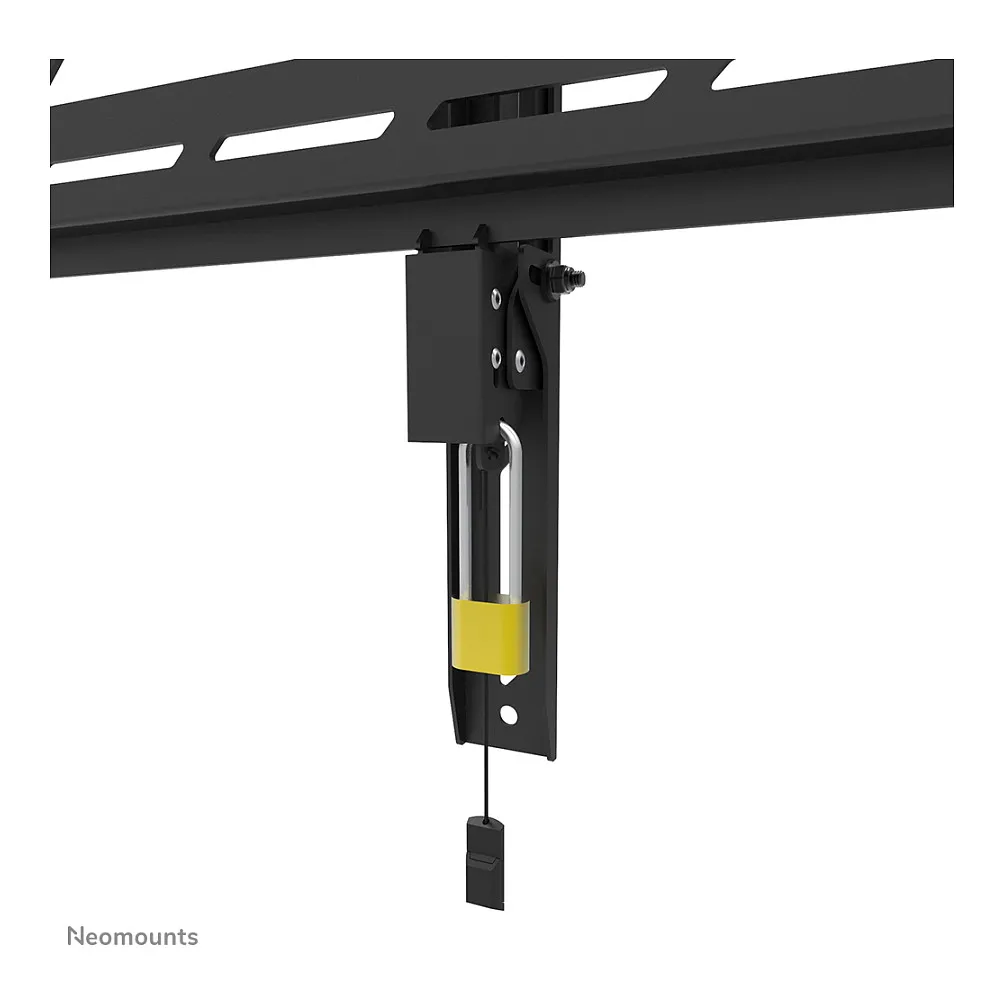

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100×100 to 1500×900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55″ up to 115″. It is possible to lock the mount using a padlock (not included).

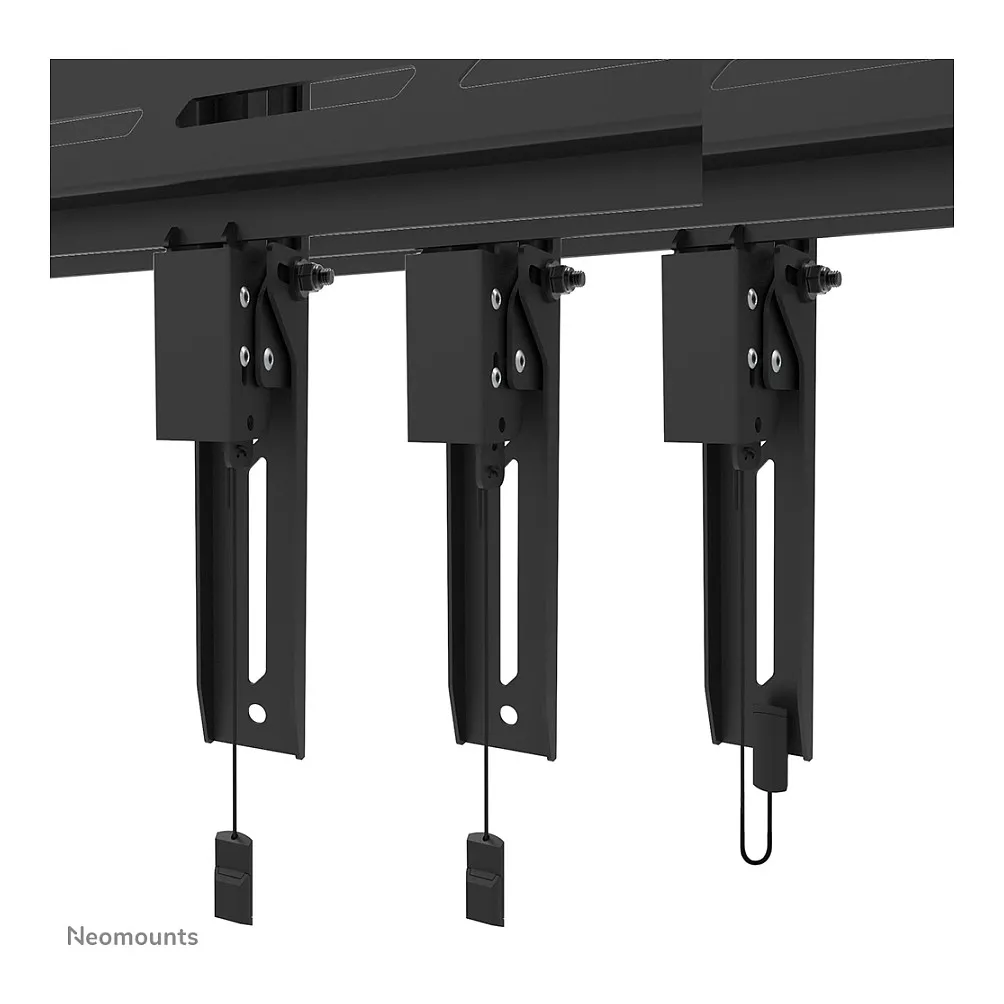

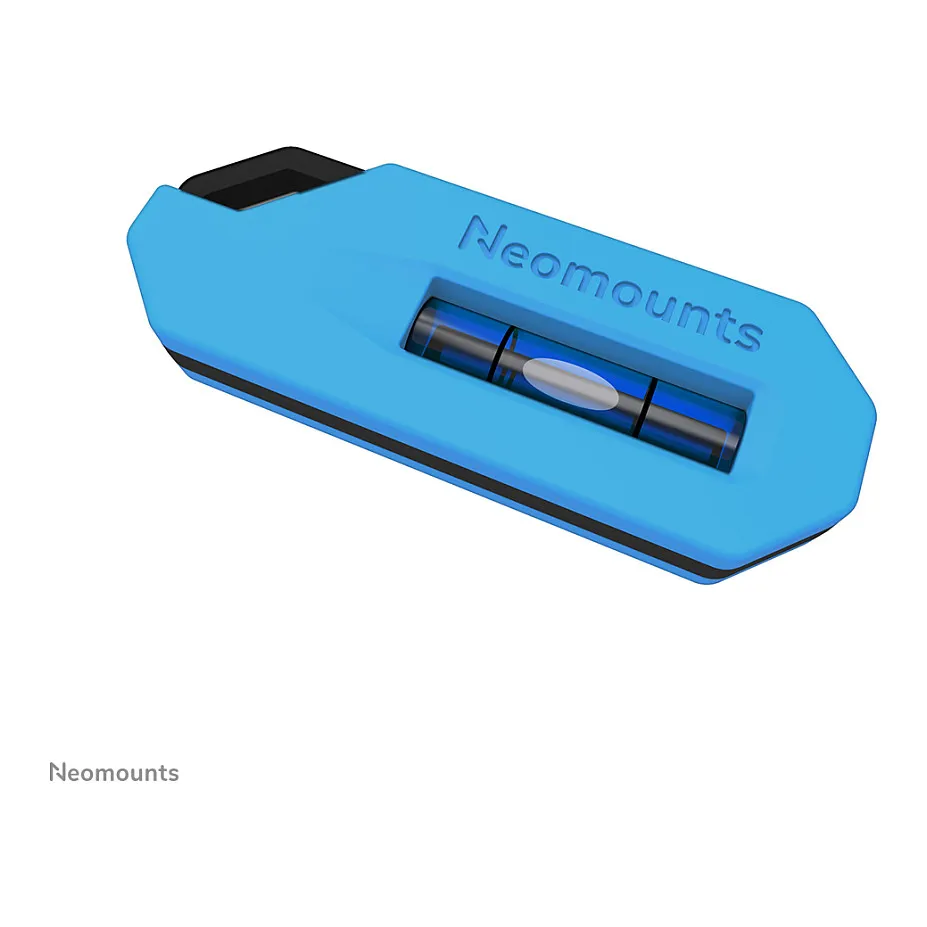

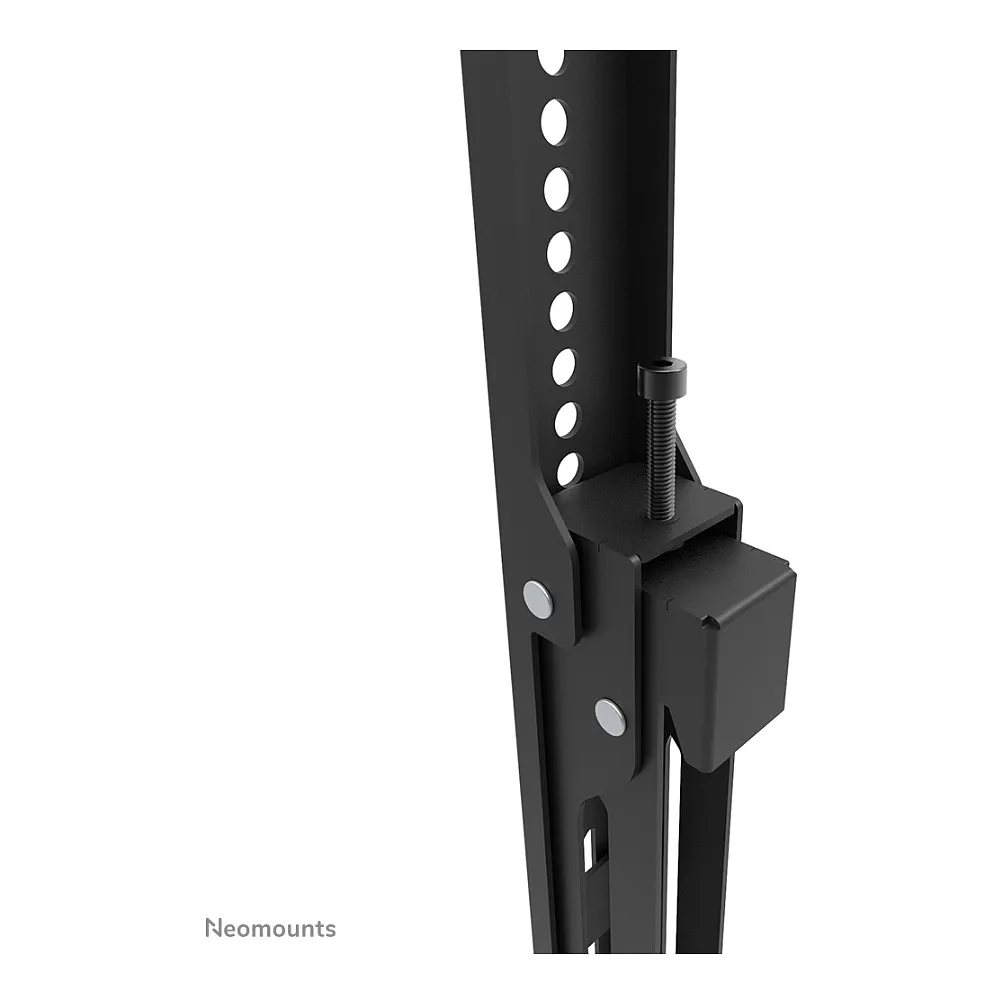

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Maximum weight capacity: 160 kg
Minimum screen size: 139.7 cm (55″)
Number of displays supported: 1
Maximum weight capacity (per display): 160 kg
Maximum screen size: 2.92 m (115″)
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 1500 x 900 mm
Mounting type: Wall
Ergonomics
Feature: Height adjustment
Height adjustment range: 0 – 20 mm
Angle of rotation: 6°

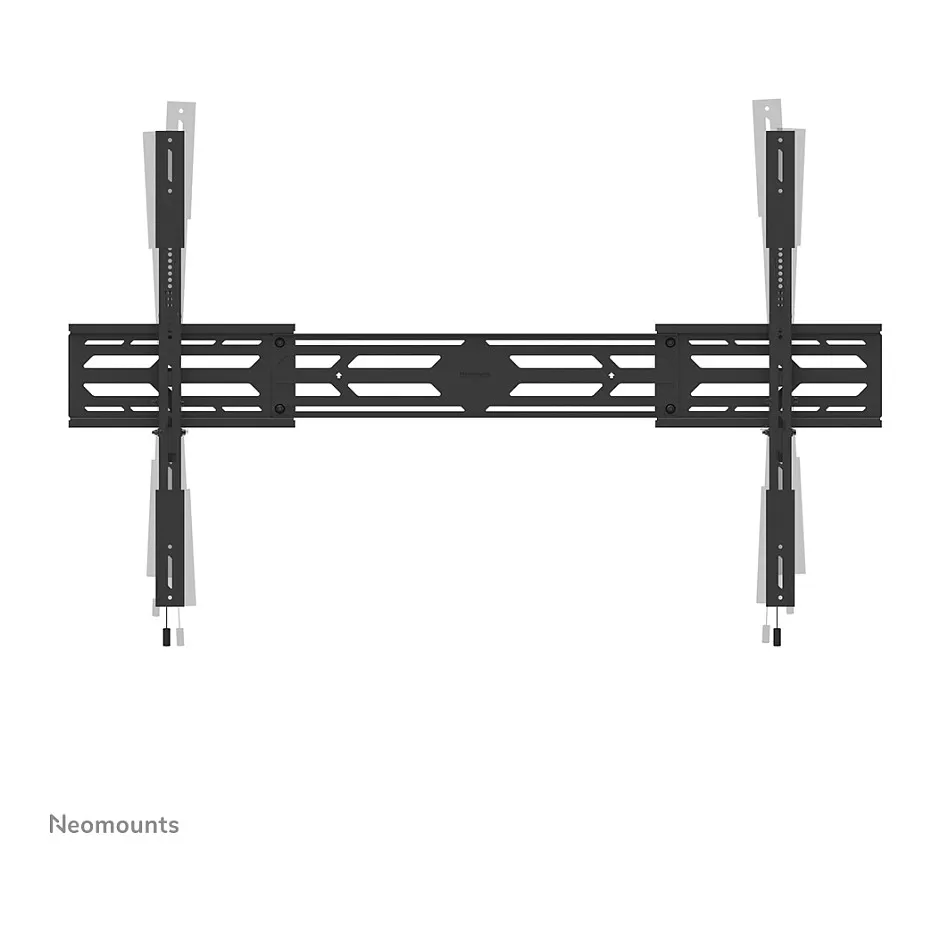

Pivot angle: -3 – 3°
Distance to the wall (max): 6.7 cm
Design
Product colour: Black
Housing material: Steel
Feature: Accepts padlock
Technical details
Country of origin: China
Package net weight: 11.7 kg

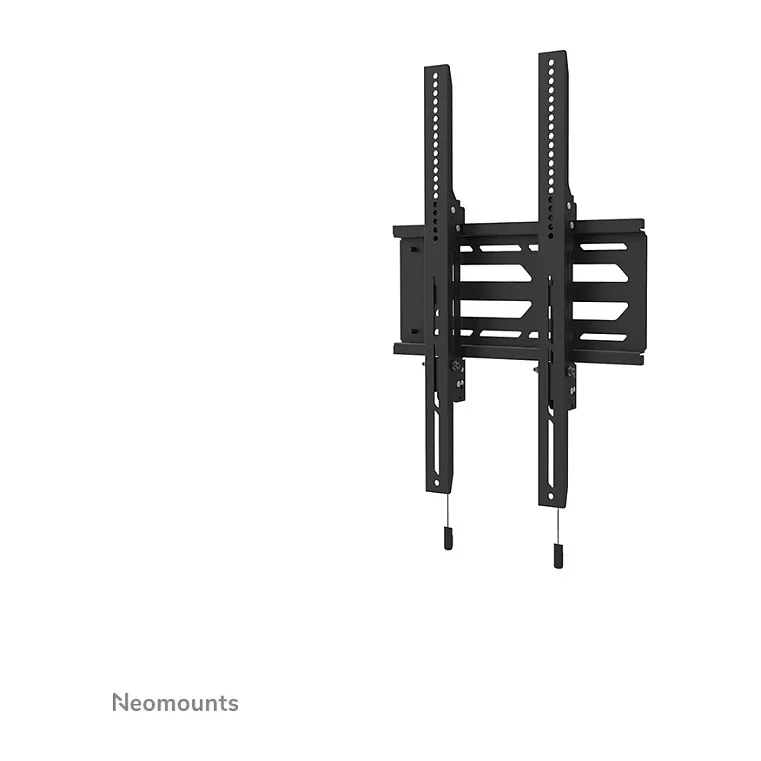

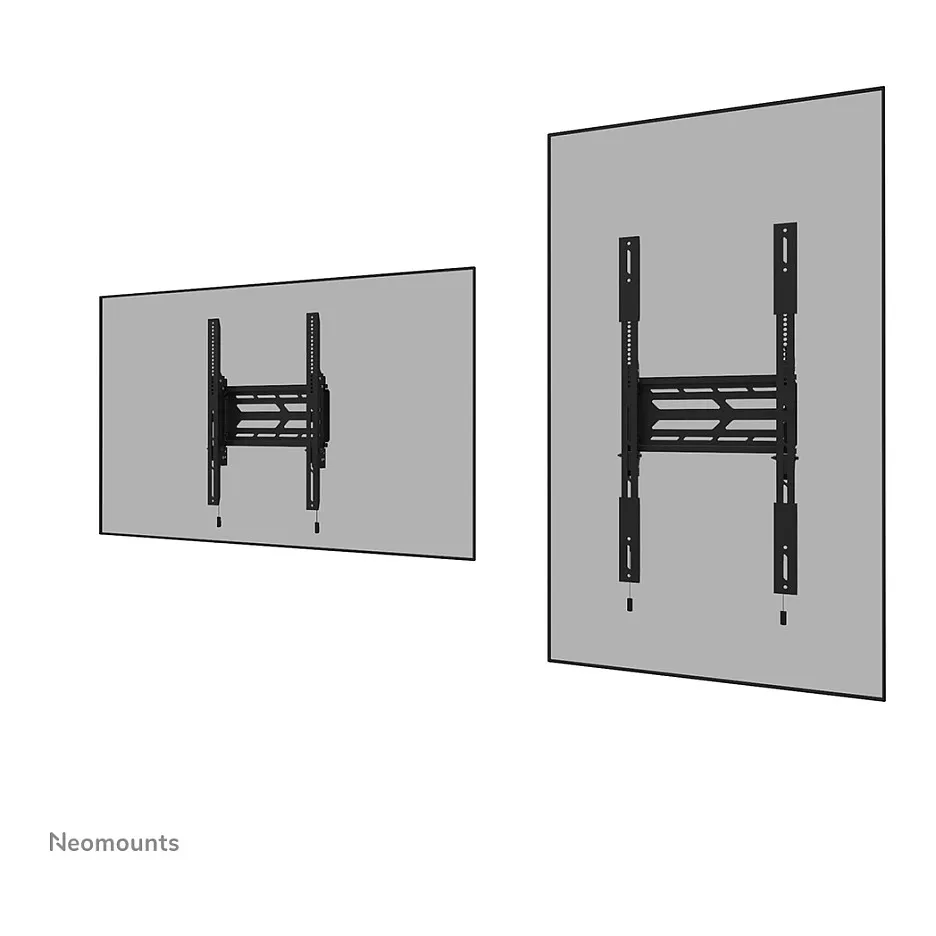

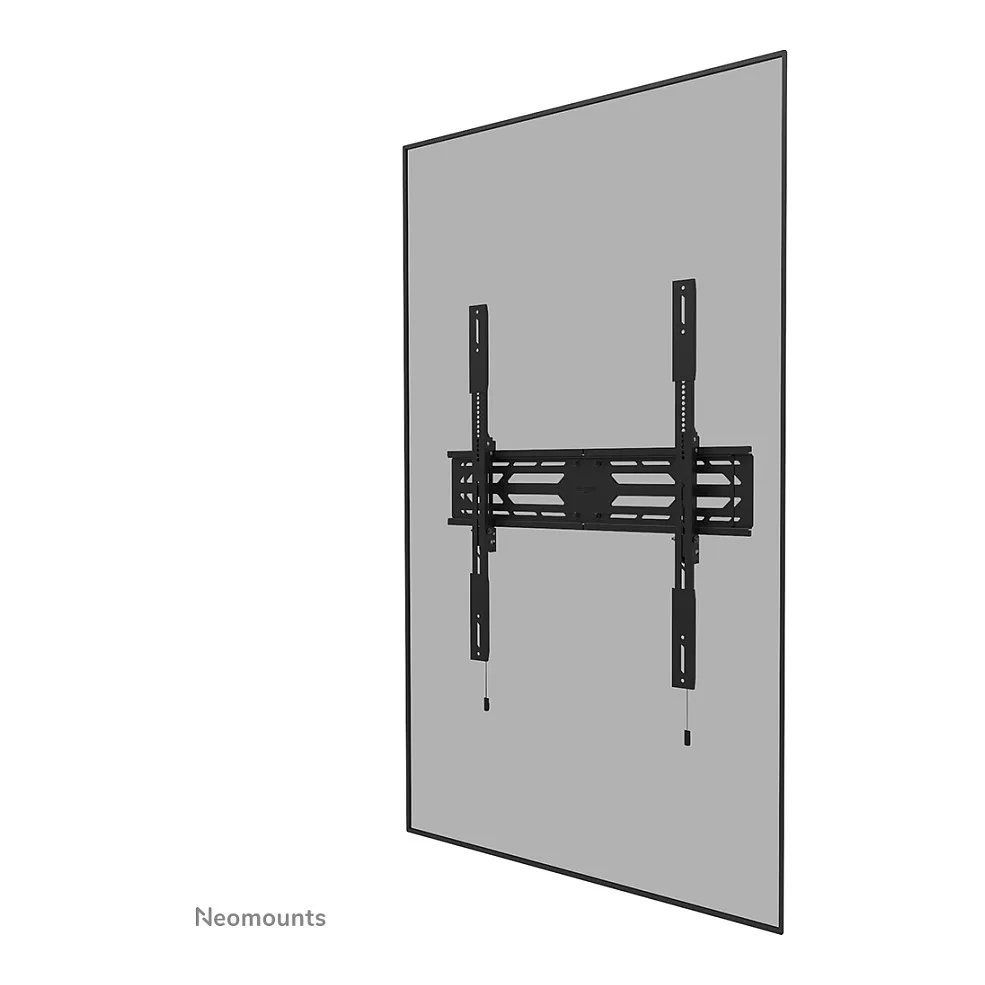

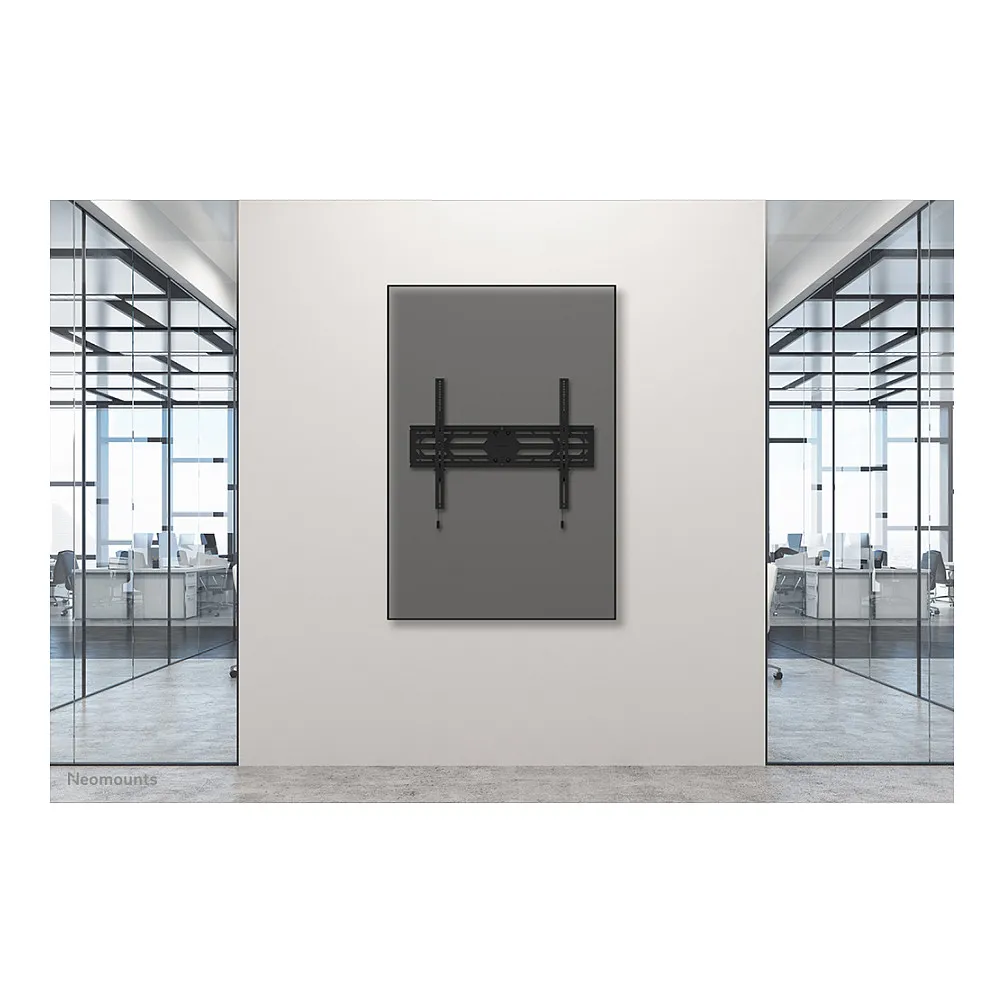

Orientation: Landscape/Portrait
Warranty period: 5 year(s)
Lockable: Security screw included

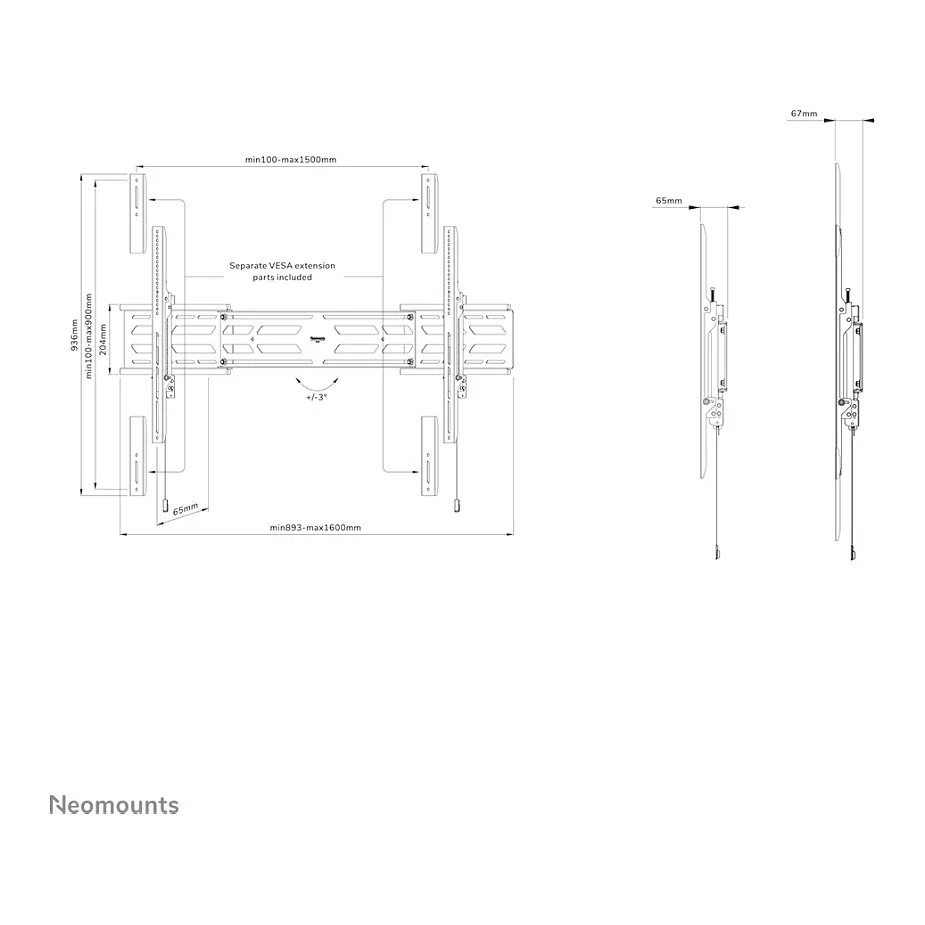

Weight & dimensions
Width: 1600 mm
Depth: 67 mm
Depth (max): 6.7 cm
Height: 936 mm
Weight: 10.2 kg
Packaging data
Package width: 222 mm
Package depth: 98 mm
Package height: 918 mm
Package weight: 11.7 kg
Logistics data
Master (outer) case width: 211 mm
Master (outer) case length: 242 mm
Master (outer) case height: 938 mm
Master (outer) case gross weight: 23.9 kg
Master (outer) case net weight: 20.3 kg
Products per master (outer) case: 2 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 30 pc(s)
Other features
Width adjustment range: 893 – 1600 mm
