Neomounts FPMA-D960NOTEBOOK Monitor arm with laptop holder 10-27". Mounting: Clamp, Maximum weight capacity: 10 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 – 180°, Tilt angle range: 0 – 180°. Product colour: Black

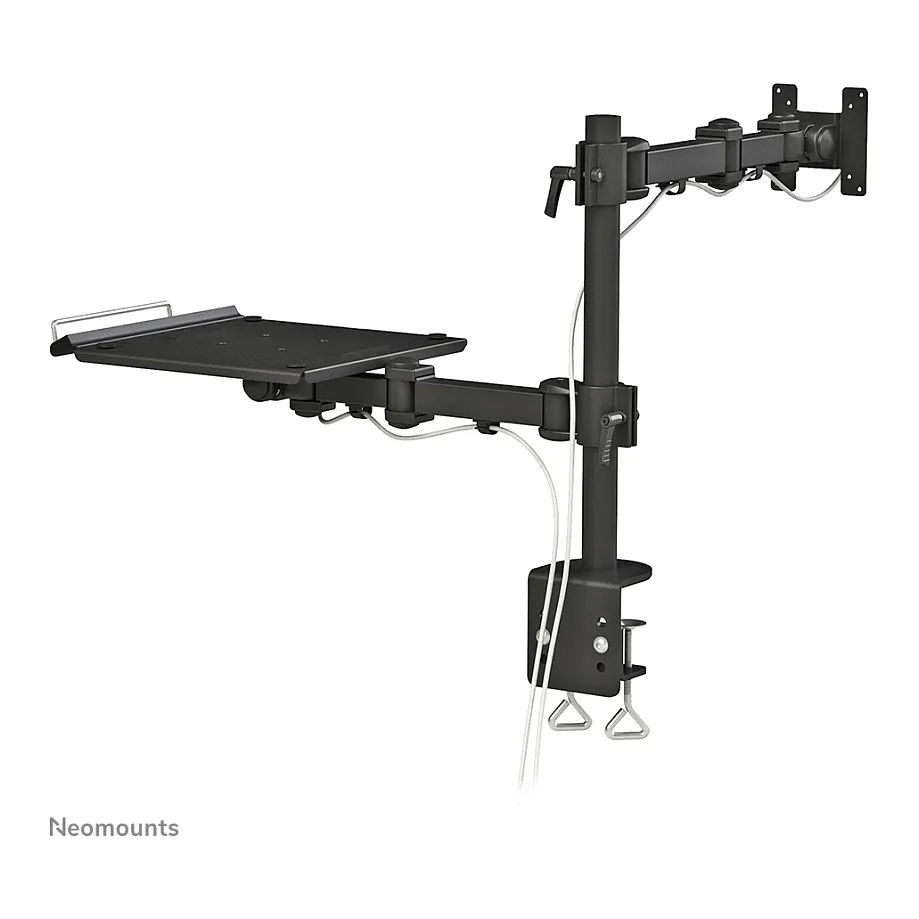

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D960NOTEBOOK has three pivot points and is suitable for screens up to 27″ (69 cm). The weight capacity of this product is 10 kg each screen and 15 kg each notebook. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Maximum weight capacity: 10 kg
Minimum screen size: 25.4 cm (10″)
Number of displays supported: 1
Maximum weight capacity (per display): 10 kg
Maximum screen size: 68.6 cm (27″)

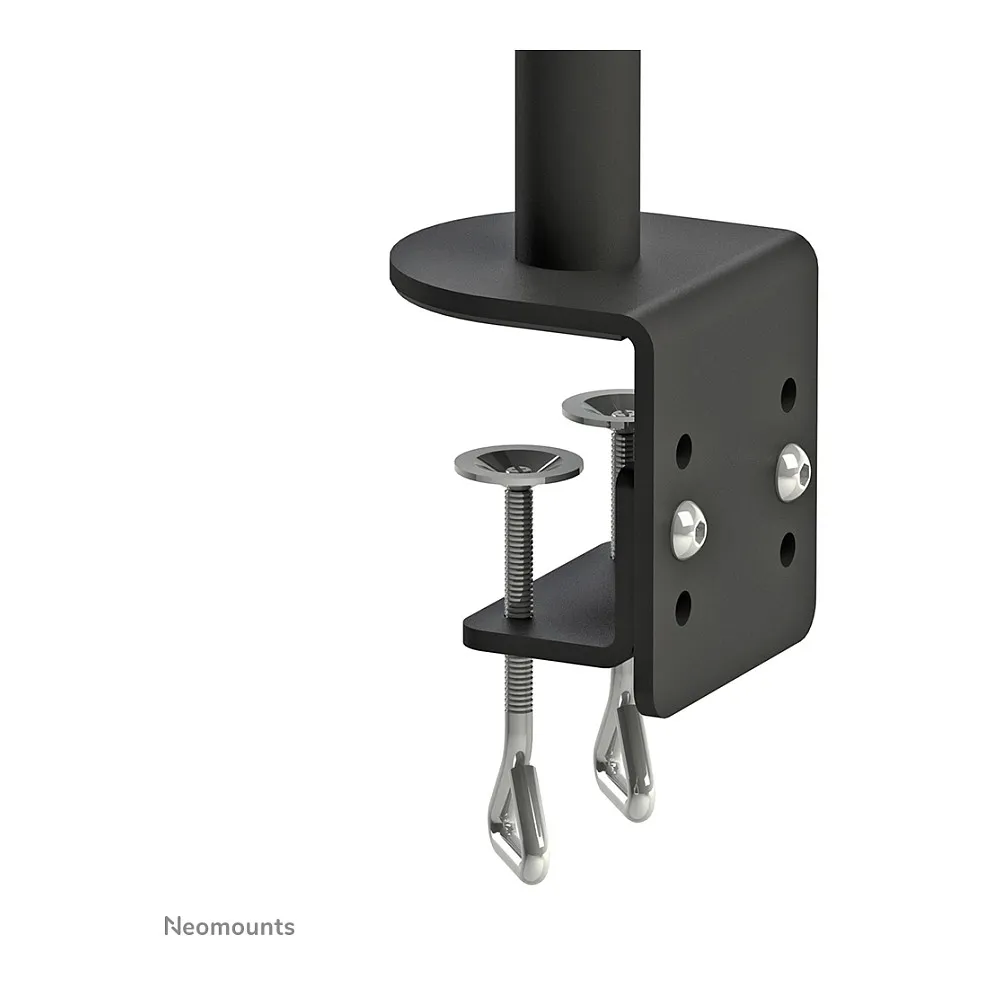

Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 8 mm
Desk thickness (max): 10 cm
Distance to the wall (min): 10 cm
Distance to the wall (max): 43 cm
Ergonomics
Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 0 – 450 mm
Depth adjustment range: 100 – 430 mm
Feature: Tilt adjustment
Tilt angle range: 0 – 180°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 – 180°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management
Design
Housing material: Steel
Product colour: Black
Weight & dimensions
Depth: 1430 mm
Height: 450 mm
Weight: 5.59 kg
Packaging data
Package width: 579 mm
Package depth: 315 mm
Package height: 127 mm
Package weight: 6.2 kg
Logistics data
Master (outer) case width: 610 mm
Master (outer) case length: 350 mm
Master (outer) case height: 320 mm
Master (outer) case gross weight: 15.1 kg
Products per master (outer) case: 2 pc(s)
Country of origin: Taiwan
Master (outer) case net weight: 13.4 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 40 pc(s)
