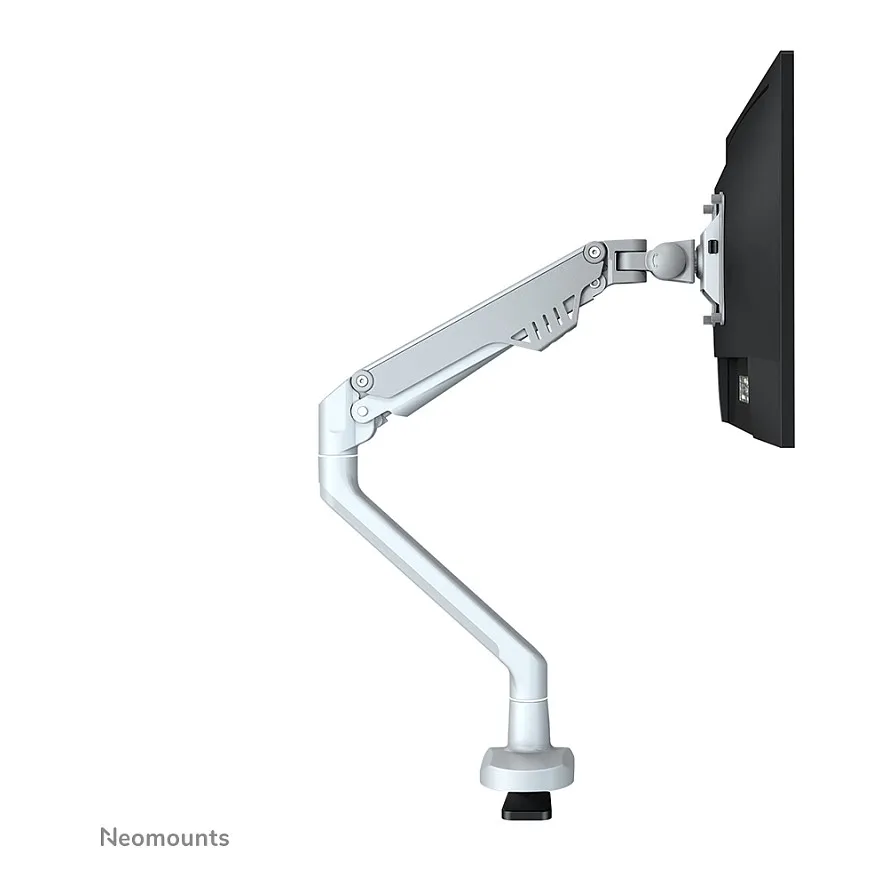

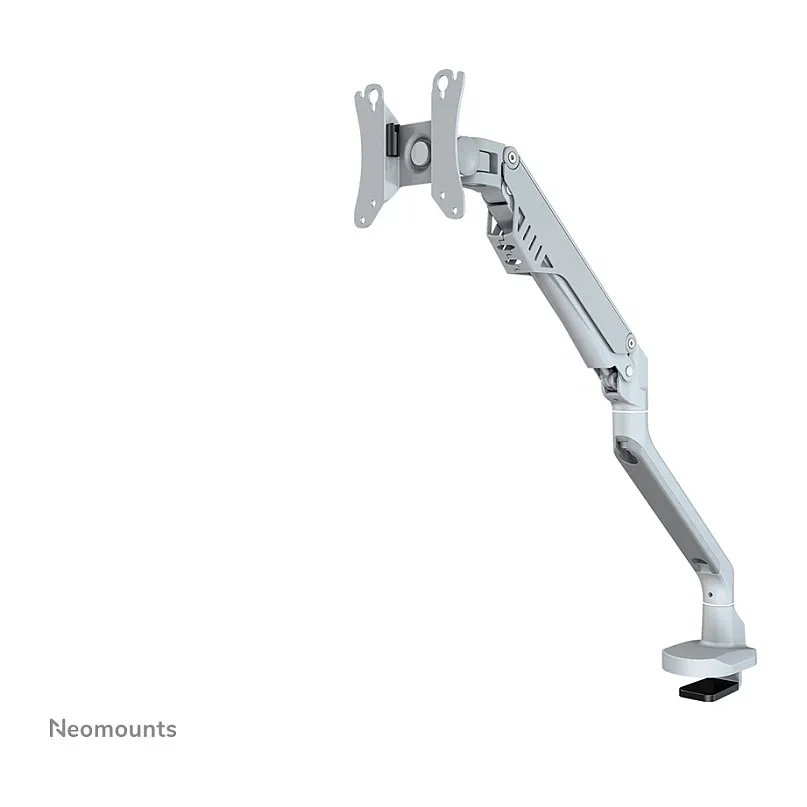

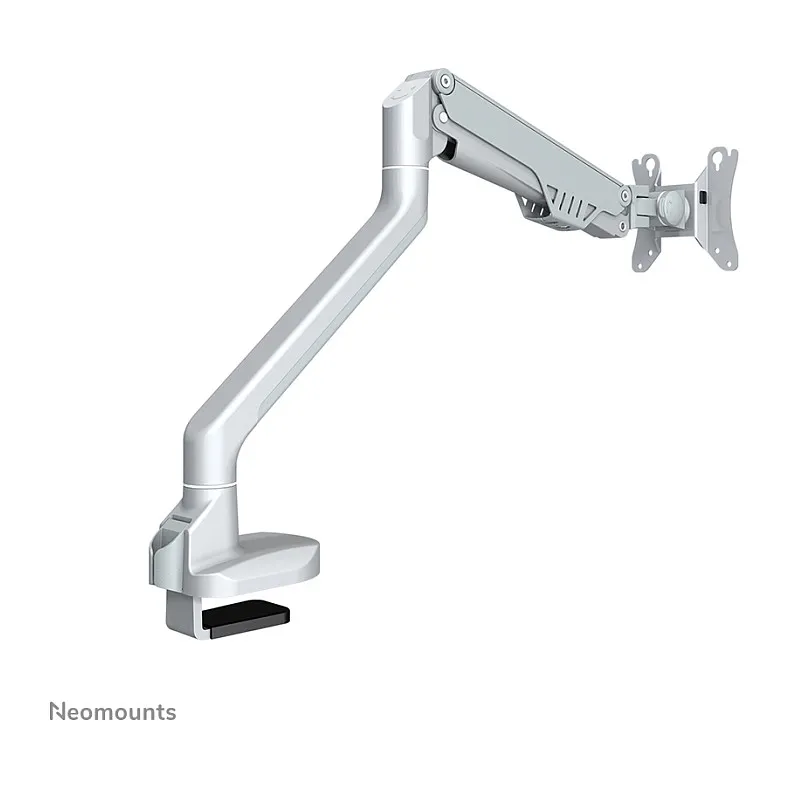

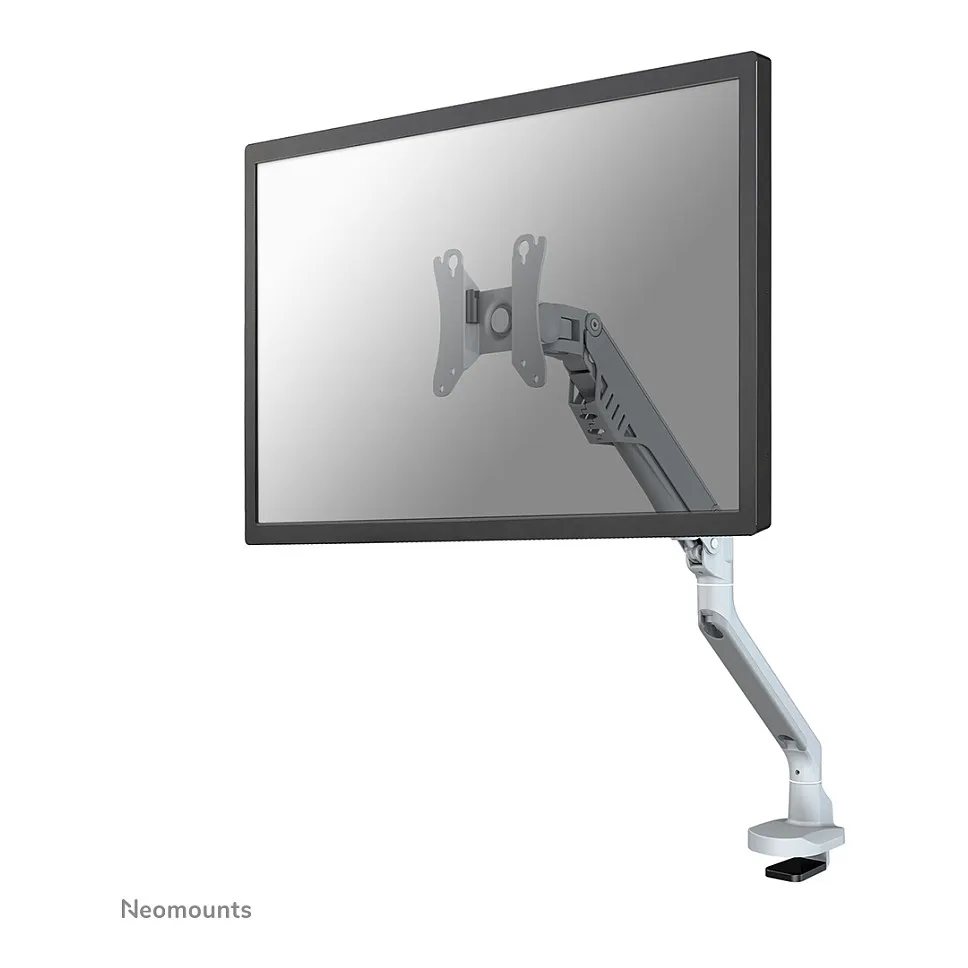

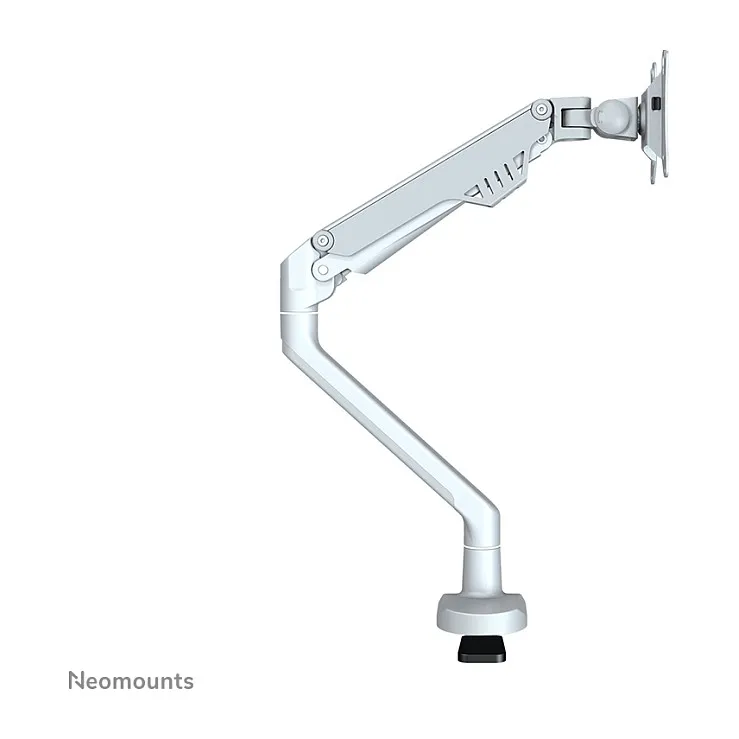

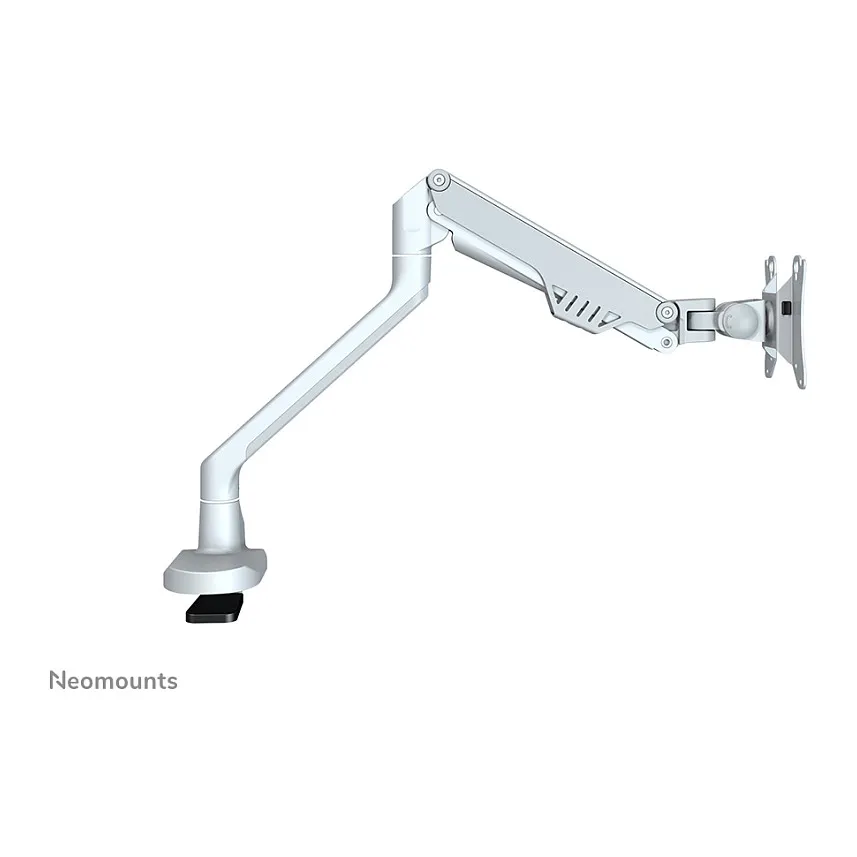

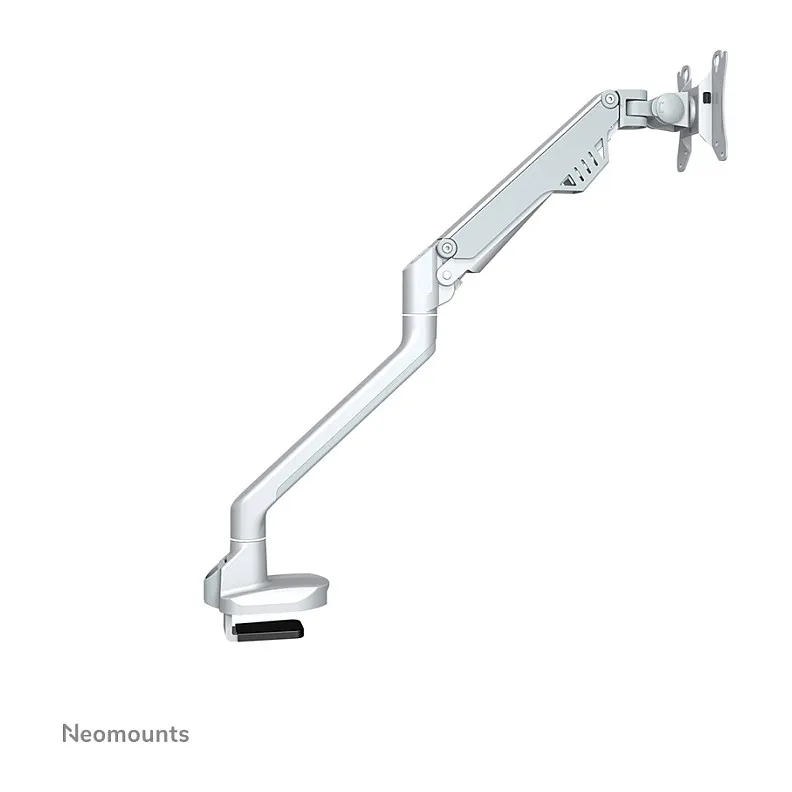

Neomounts FPMA-D750SILVER2 Monitor arm 10-32" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 – 180°, Tilt angle range: -50 – 120°. Product colour: Silver
Neomounts versatile tilt (170°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is equipped with a 180° stop mechanism. The mount is easily height adjustable from 19 to 50 centimetres using a gas spring. Depth adjustable from 0 to 53 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D750SILVER2 has three pivot points and is suitable for screens up to 32″ (81 cm). The weight capacity of this product is 2-8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Maximum weight capacity: 8 kg
Minimum screen size: 25.4 cm (10″)
Number of displays supported: 1
Maximum weight capacity (per display): 8 kg
Maximum screen size: 81.3 cm (32″)

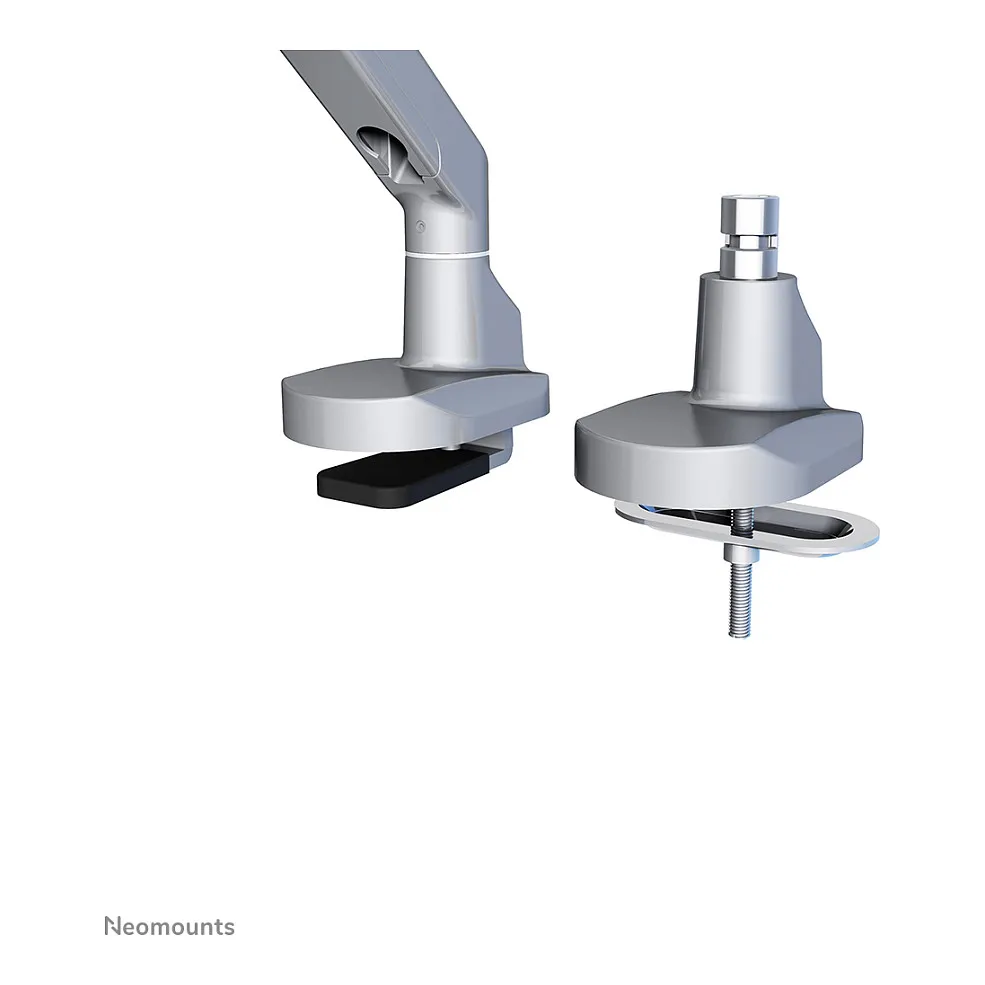

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (max): 5 cm
Ergonomics
Feature: Height adjustment
Height adjustment type: Gas spring

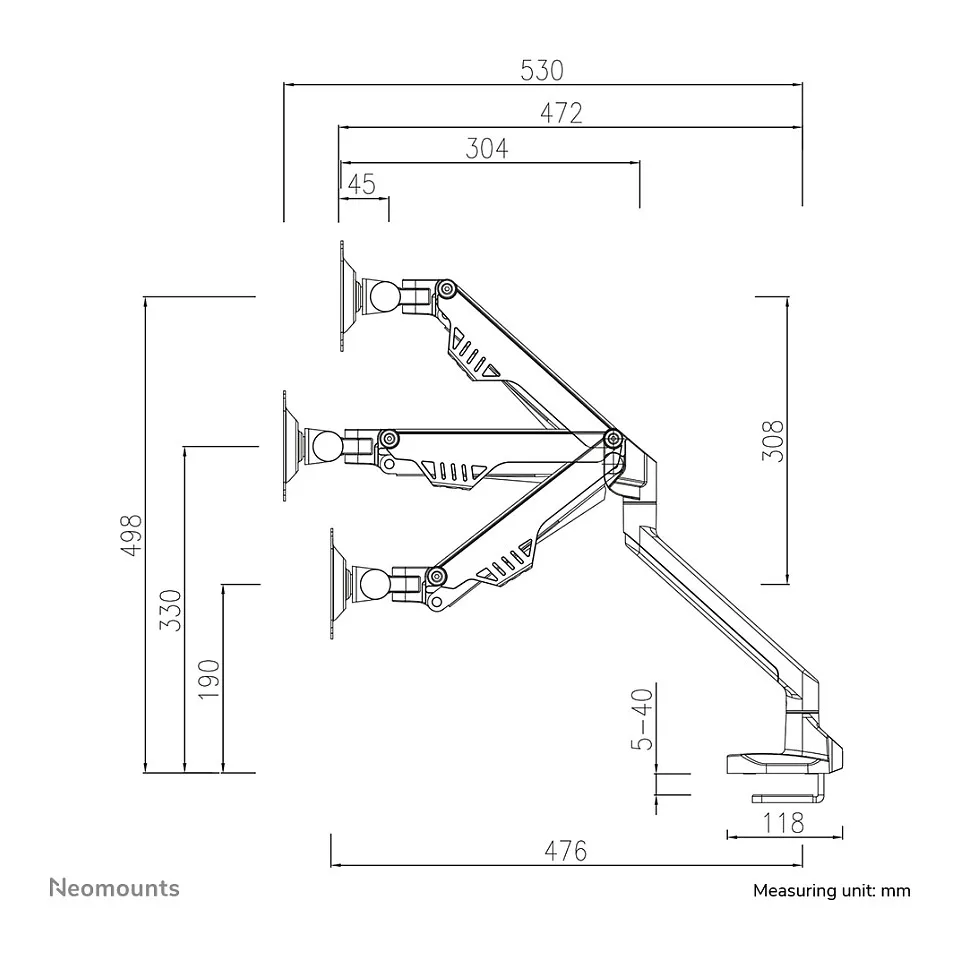

Height adjustment range: 190 – 498 mm
Feature: Adjustable depth
Depth adjustment range: 0 – 530 mm
Feature: Tilt adjustment
Tilt angle range: -50 – 120°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 – 180°
Feature: Rotating
Angle of rotation: 180°
Number of pivot points: 3
Feature: Cable management
Design
Housing material: Steel
Product colour: Silver
Weight & dimensions
Weight: 2.19 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 395 mm
Package depth: 125 mm
Package height: 260 mm
Package net weight: 2.7 kg
Package weight: 2.7 kg
Other features
Minimum weight: 2 kg
Logistics data
Master (outer) case width: 290 mm
Master (outer) case length: 420 mm
Master (outer) case height: 670 mm
Master (outer) case gross weight: 14.7 kg
Products per master (outer) case: 5 pc(s)
Country of origin: China
Master (outer) case net weight: 11.5 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 75 pc(s)
