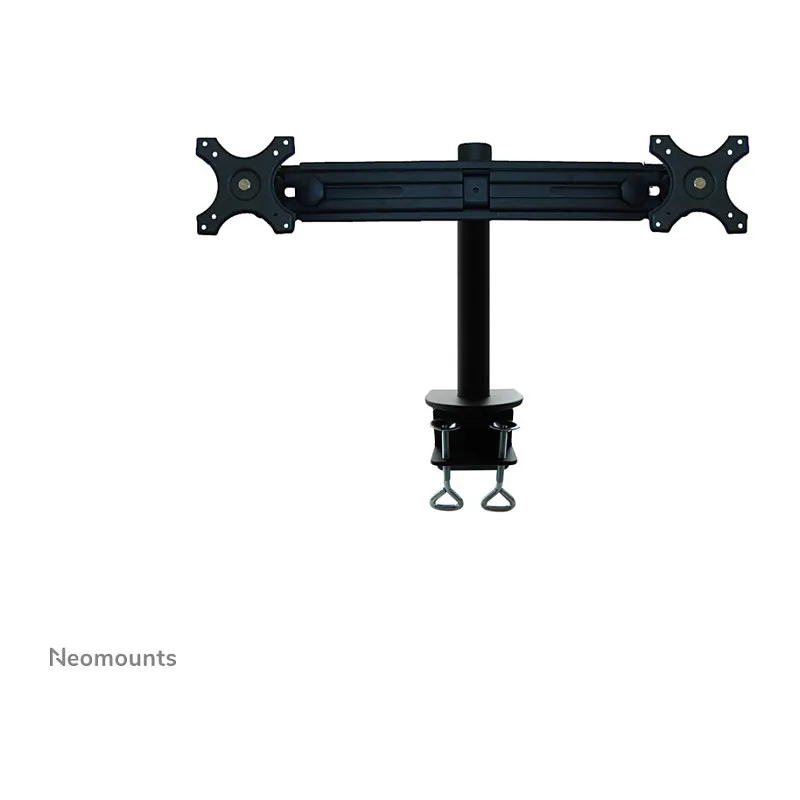

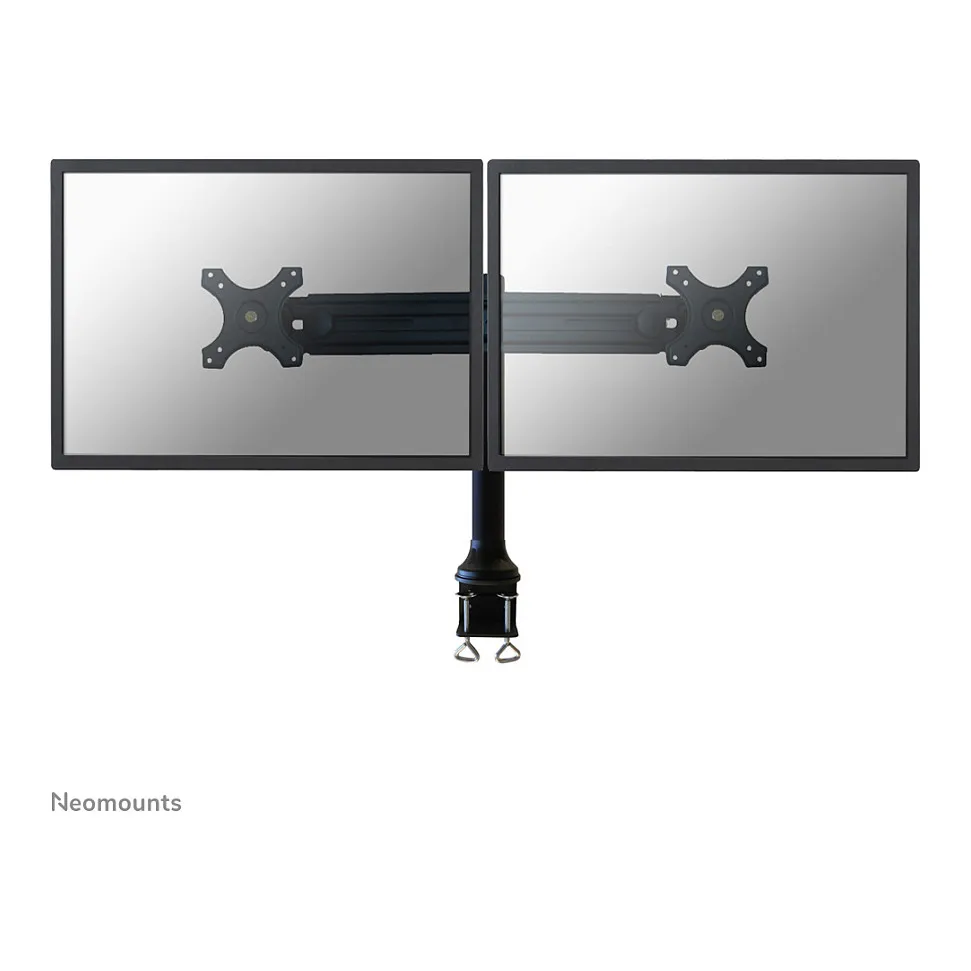

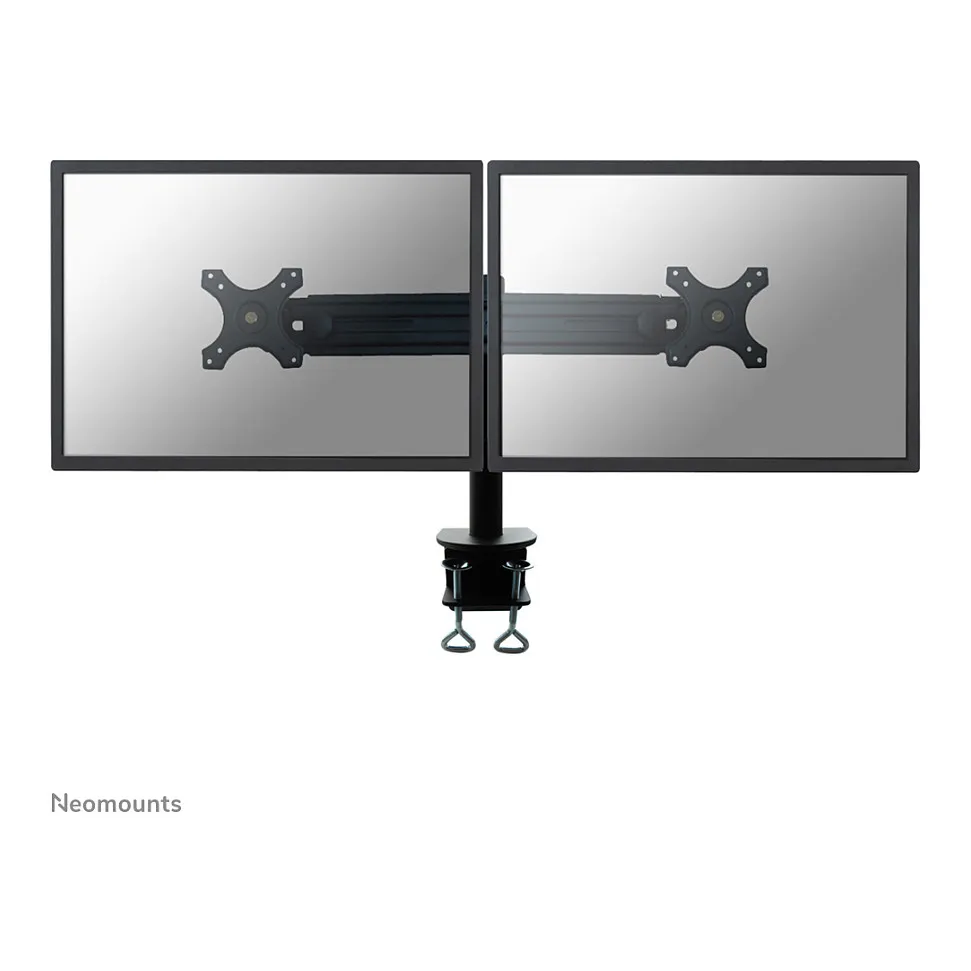

Neomounts FPMA-D700D Monitor arm 19-30". Mounting: Clamp, Maximum weight capacity: 8 kg, Minimum screen size: 48.3 cm (19"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 – 180°, Tilt angle range: 0 – 180°. Product colour: Black
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 52 to 83 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700D has two pivot points and is suitable for screens up to 30″ (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Maximum weight capacity: 8 kg
Minimum screen size: 48.3 cm (19″)
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 76.2 cm (30″)
Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (max): 9 cm
Ergonomics
Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 320 – 420 mm
Depth adjustment range: 0 – 150 mm
Feature: Tilt adjustment
Tilt angle range: 0 – 180°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: 0 – 180°
Feature: Rotating
Angle of rotation: 360°
Design
Housing material: Steel
Product colour: Black
Weight & dimensions
Width: 830 mm
Depth: 150 mm
Height: 420 mm
Weight: 6.57 kg
Packaging data
Package width: 703 mm
Package depth: 345 mm
Package height: 170 mm
Package weight: 7.2 kg
Other features
Width adjustment range: 520 – 830 mm
Logistics data
Master (outer) case width: 703 mm
Master (outer) case length: 345 mm
Master (outer) case height: 170 mm
Master (outer) case gross weight: 8.2 kg
Products per master (outer) case: 1 pc(s)
Country of origin: Taiwan
Master (outer) case net weight: 7.2 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 30 pc(s)
