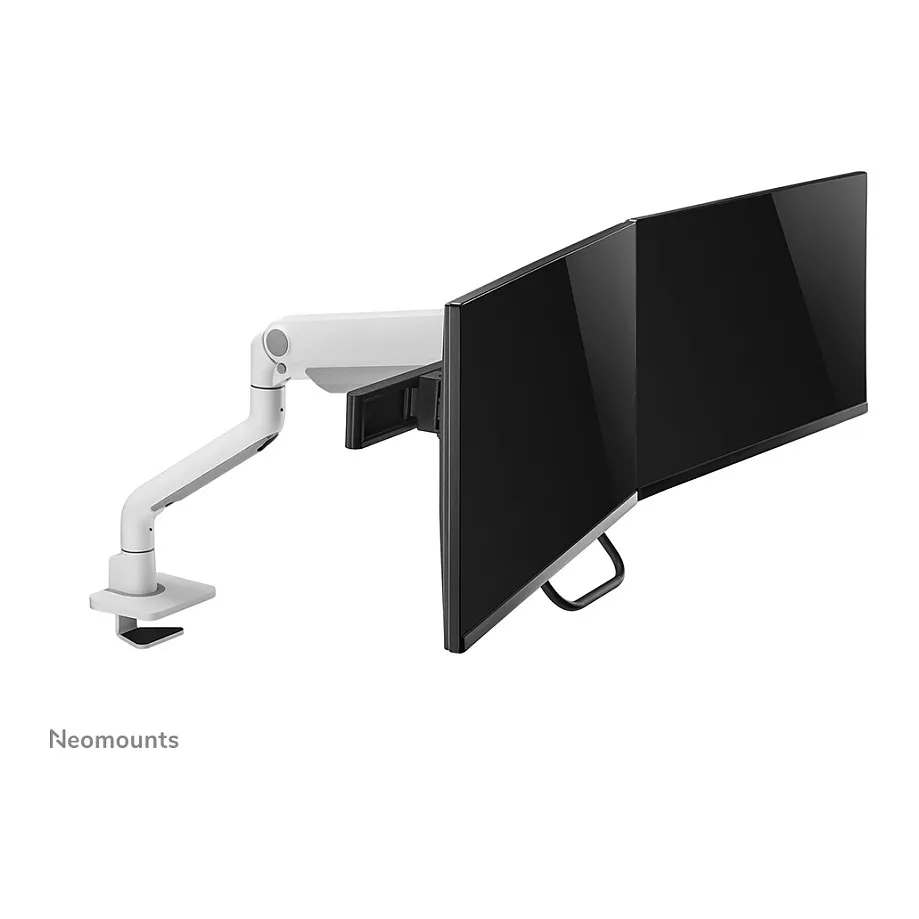

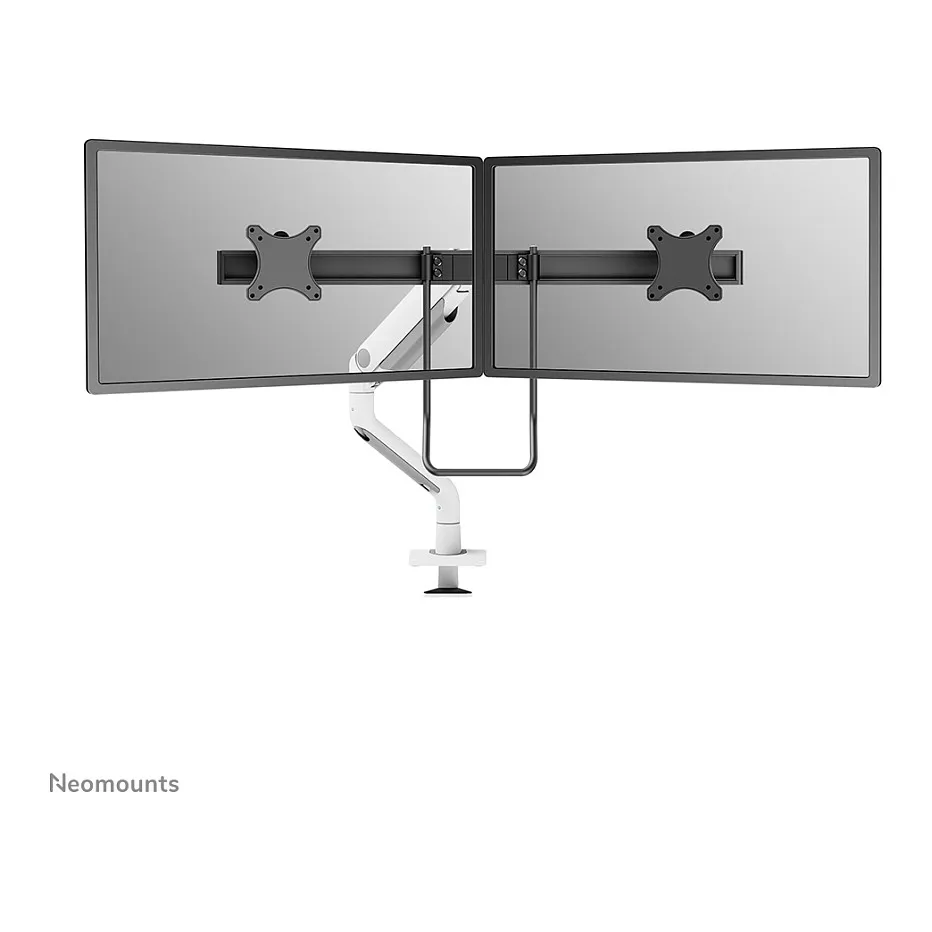

Neomounts DS75S-950WH2 Monitor arm 17-32" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -60 – 60°. Product colour: White

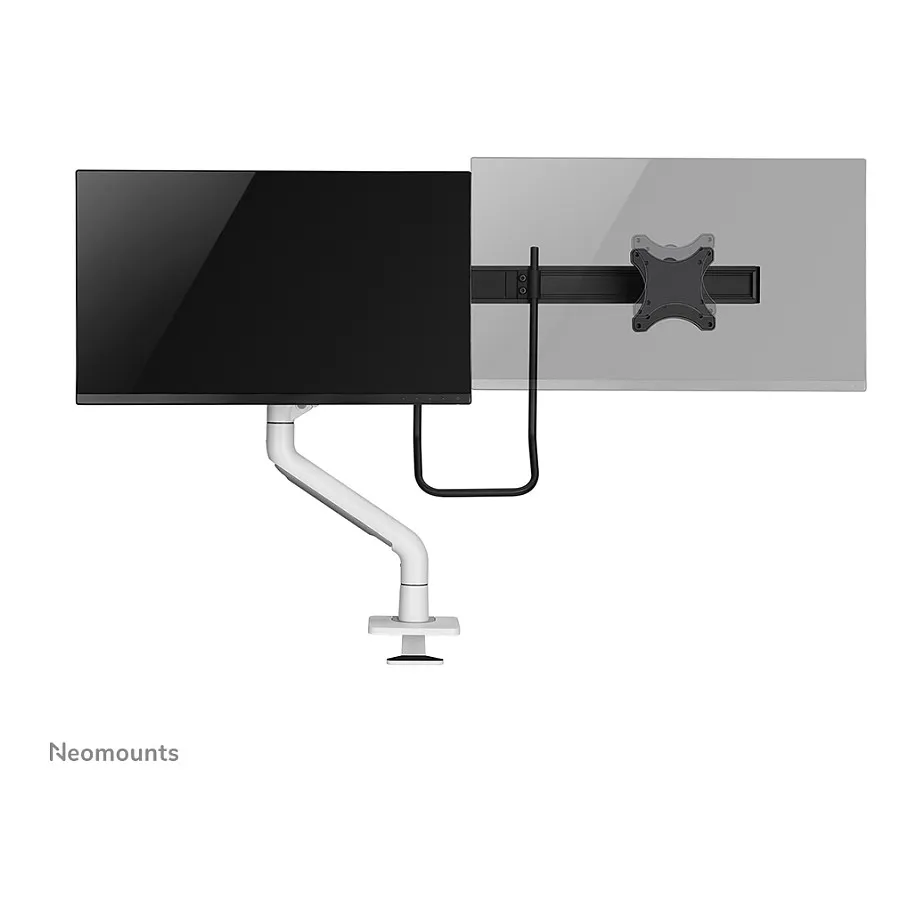

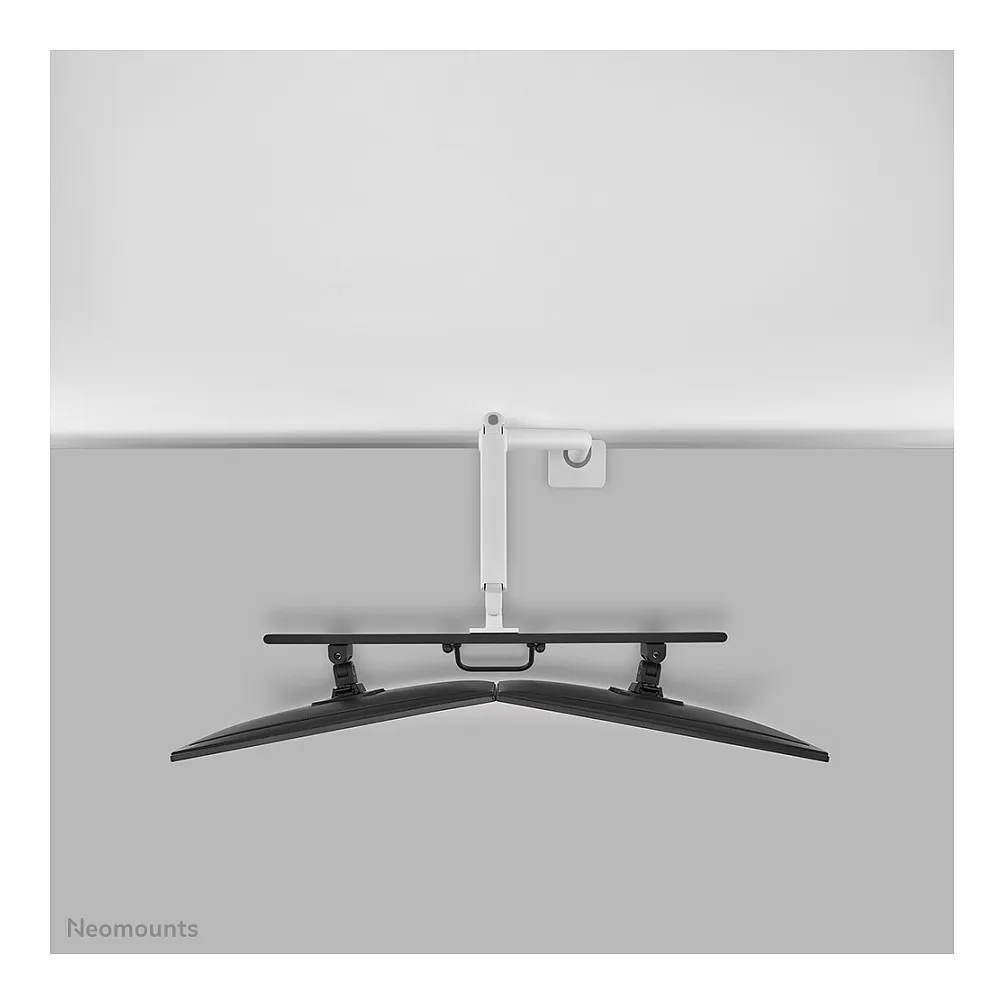

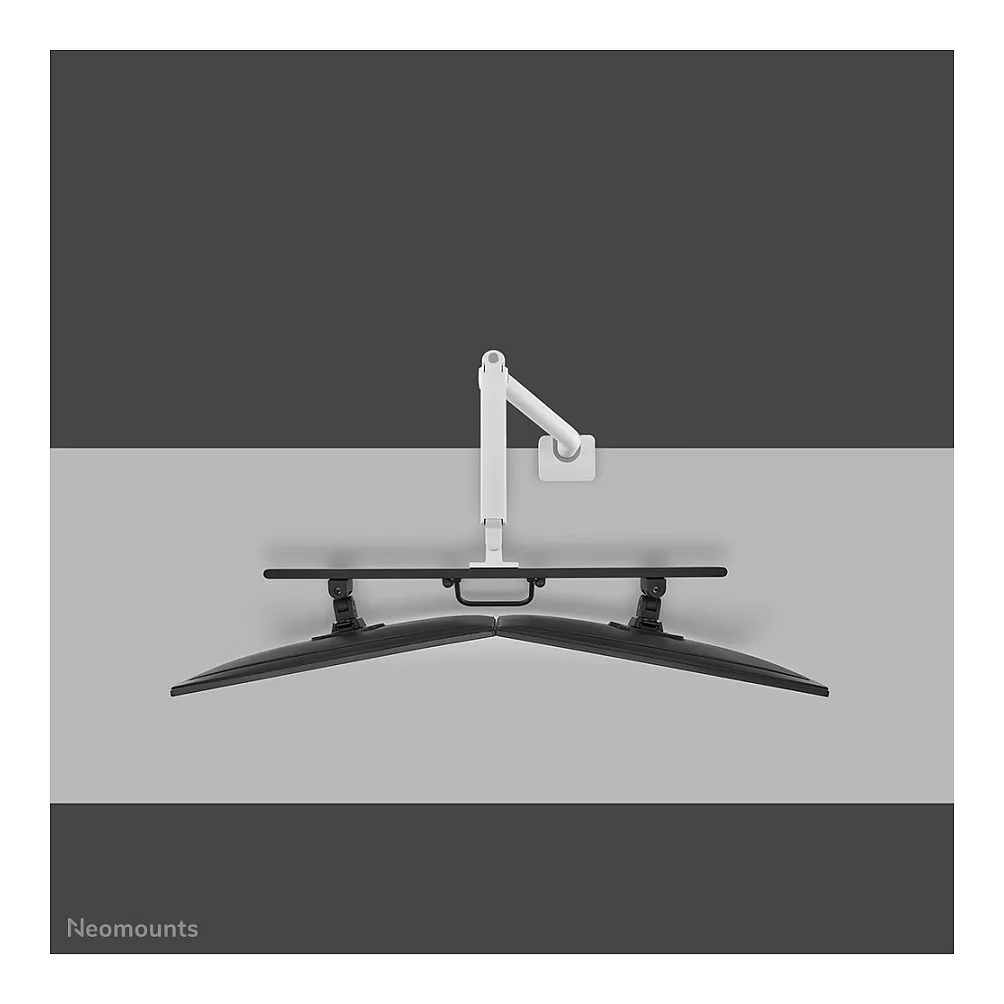

The DS75S-950WH2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it’s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

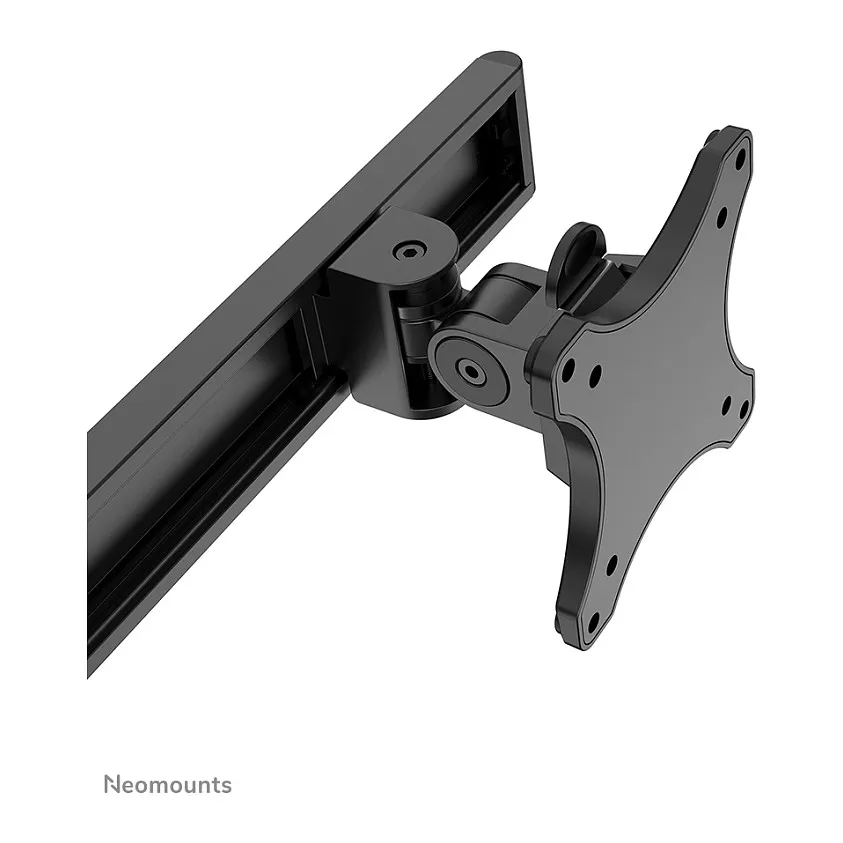

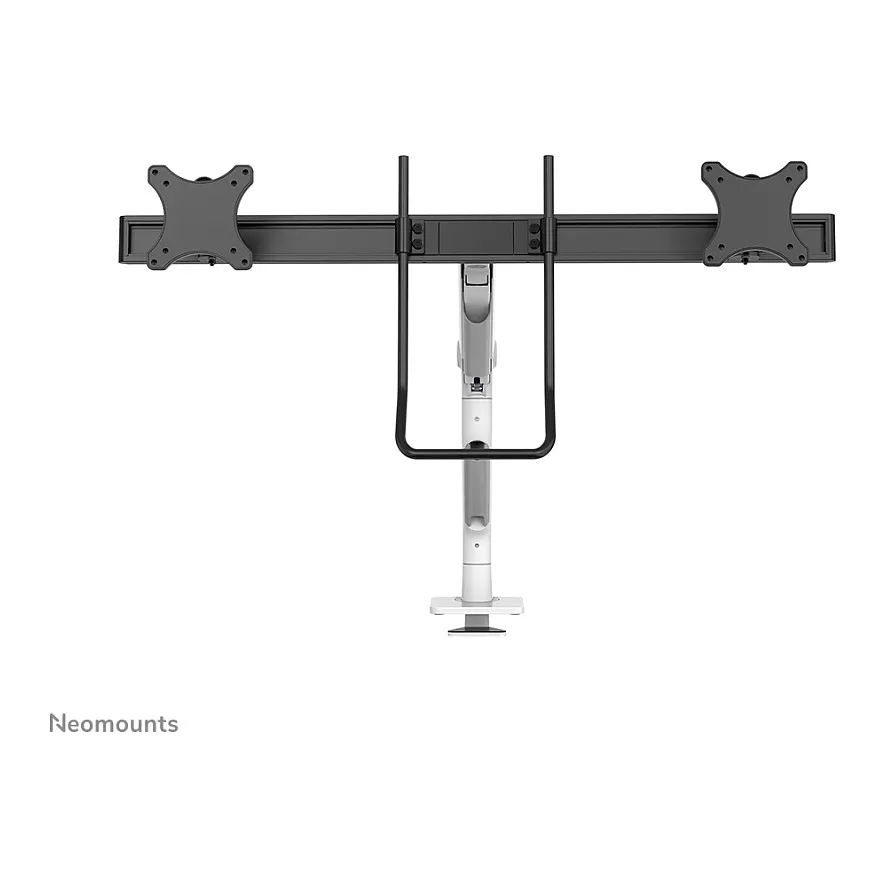

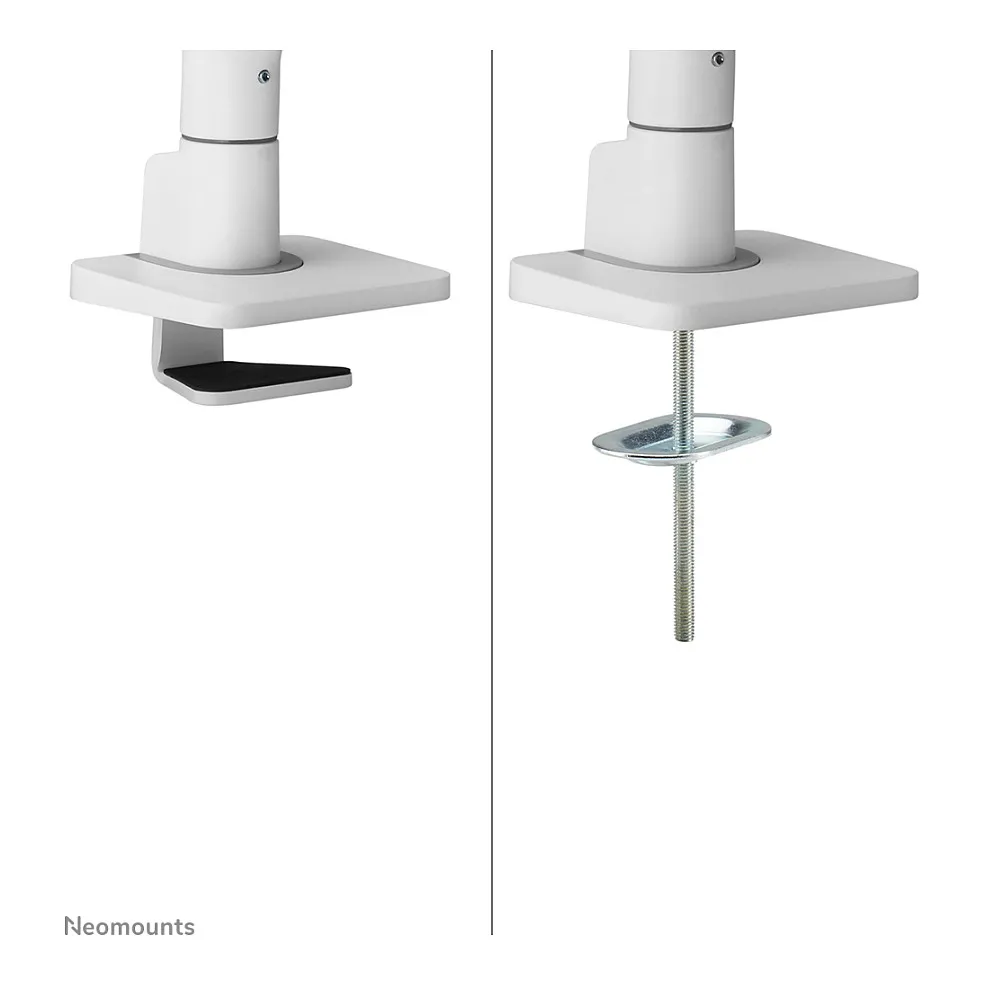

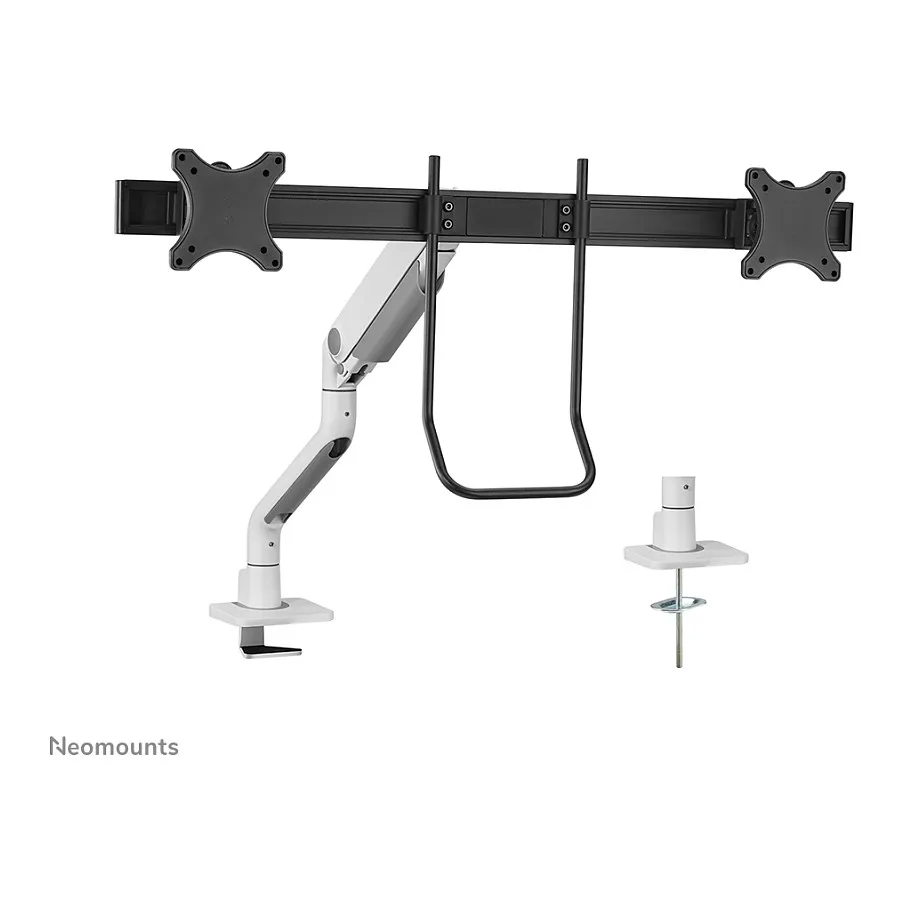

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950WH2 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS75S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Maximum weight capacity: 8 kg
Minimum screen size: 43.2 cm (17″)
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 81.3 cm (32″)
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5.5 cm
Clamp mount desk thickness (max): 5 cm
Grommet mount desk thickness (max): 5.5 cm
Distance to the wall (min): 20.4 cm
Distance to the wall (max): 74.1 cm
Ergonomics
Feature: Height adjustment
Height adjustment type: Gas spring

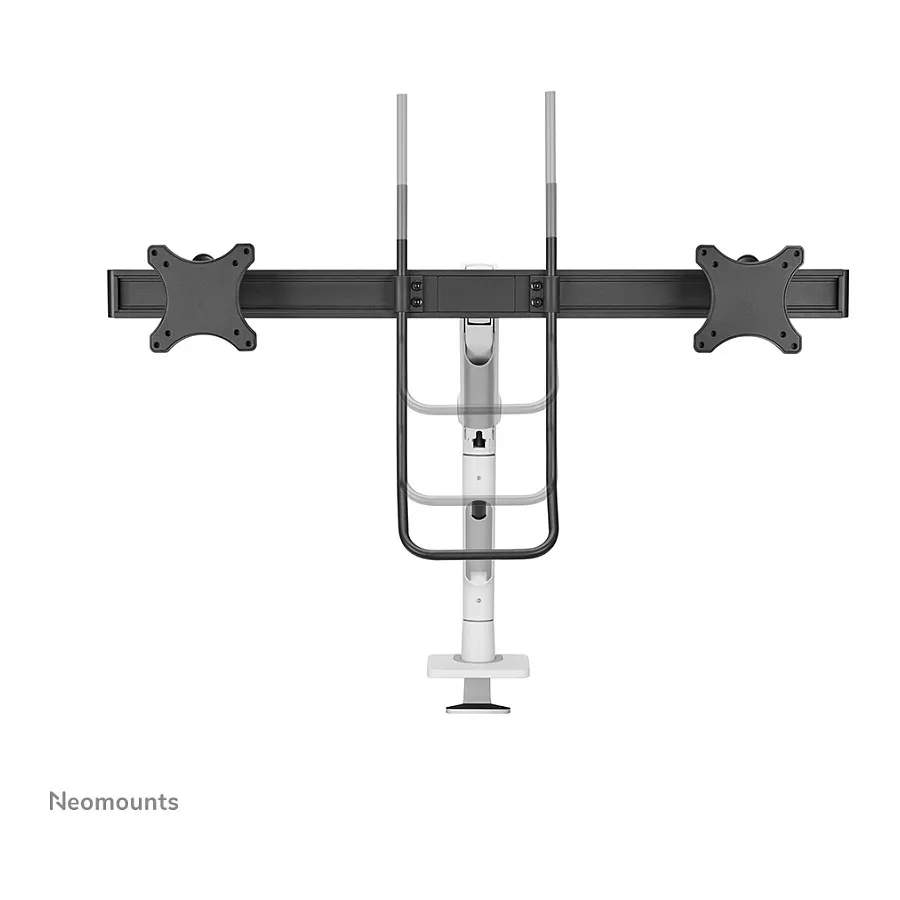

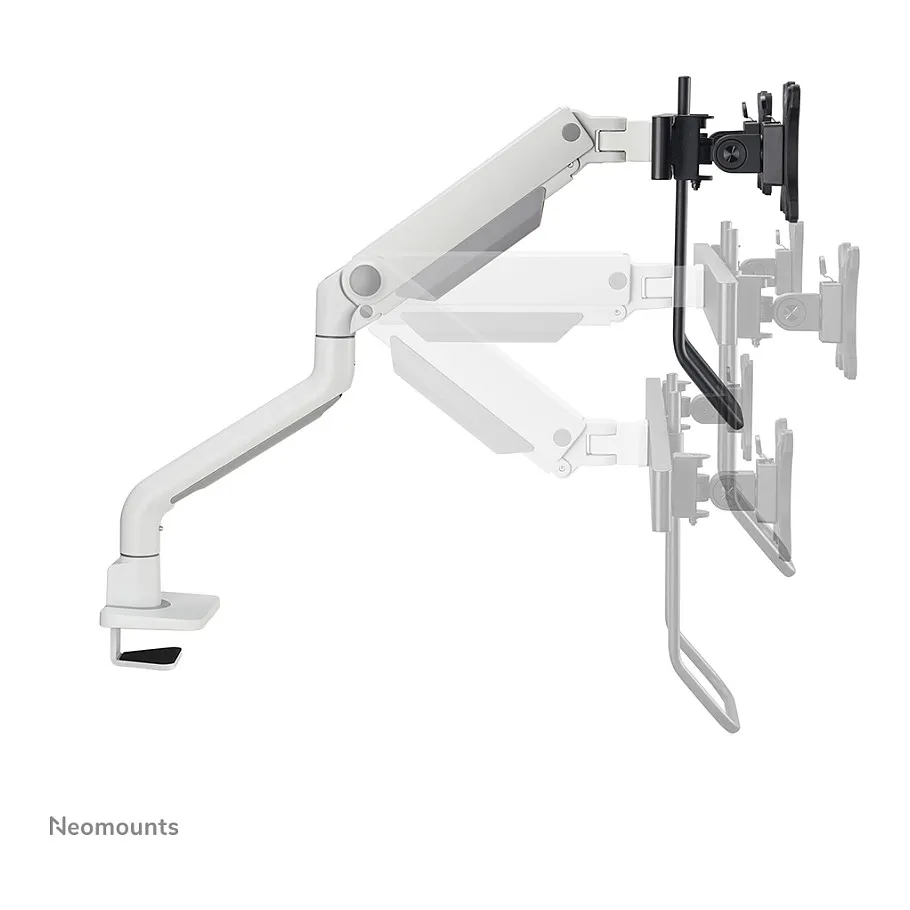

Height adjustment range: 191 – 527 mm
Feature: Adjustable depth
Depth adjustment range: 173 – 710 mm
Width adjustment: 107.4 cm
Feature: Tilt adjustment
Tilt angle range: -60 – 60°
Feature: Swivelling
Swivel angle range: -90 – 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 – 180°
Feature: Cable management
Design
Housing material: Aluminium
Product colour: White
Feature: Easy to install

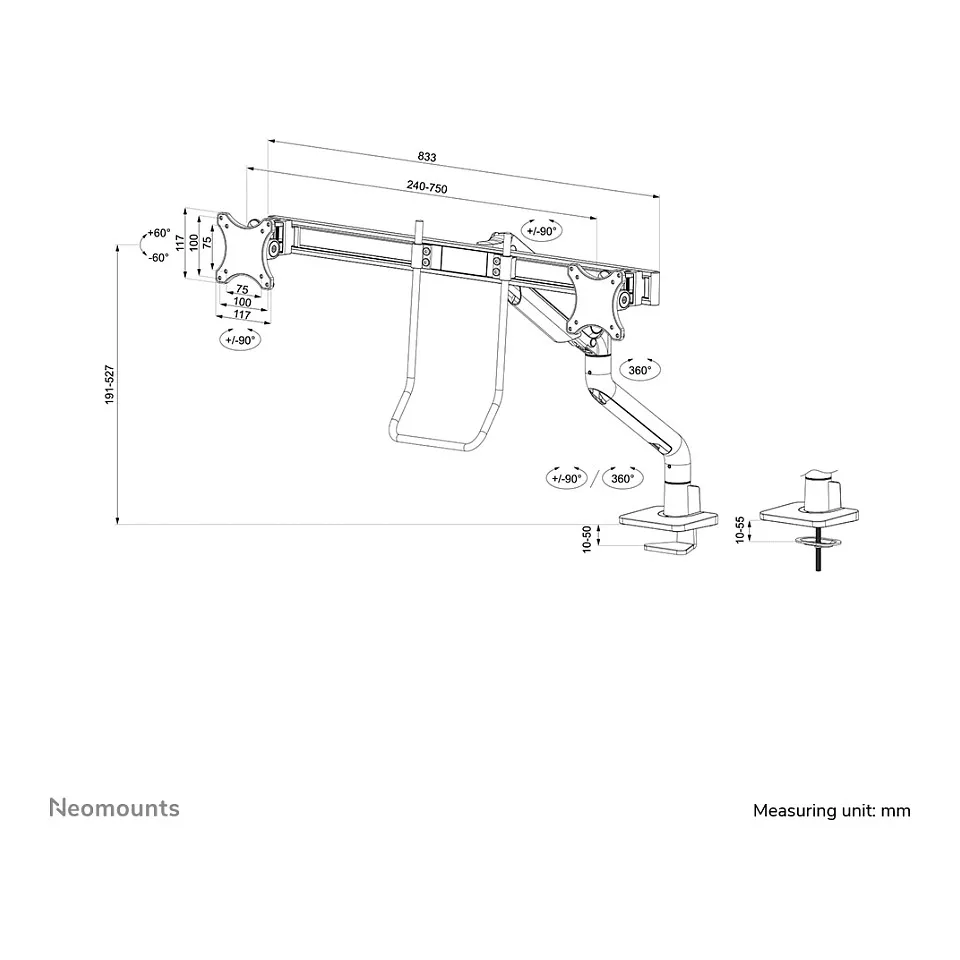

Weight & dimensions
Width: 833 mm
Depth: 739 mm
Height: 1085 mm
Weight: 5.76 kg
Packaging data
Package width: 222 mm
Package depth: 120 mm
Package height: 887 mm
Package net weight: 7.1 kg
Package weight: 7.1 kg
Other features
Minimum weight: 1 kg
Width adjustment range: 0 – 1074 mm
Warranty period: 10 year(s)
Logistics data
Master (outer) case width: 240 mm
Master (outer) case length: 260 mm
Master (outer) case height: 905 mm
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 2 pc(s)
Country of origin: China
Master (outer) case net weight: 11.6 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 36 pc(s)
