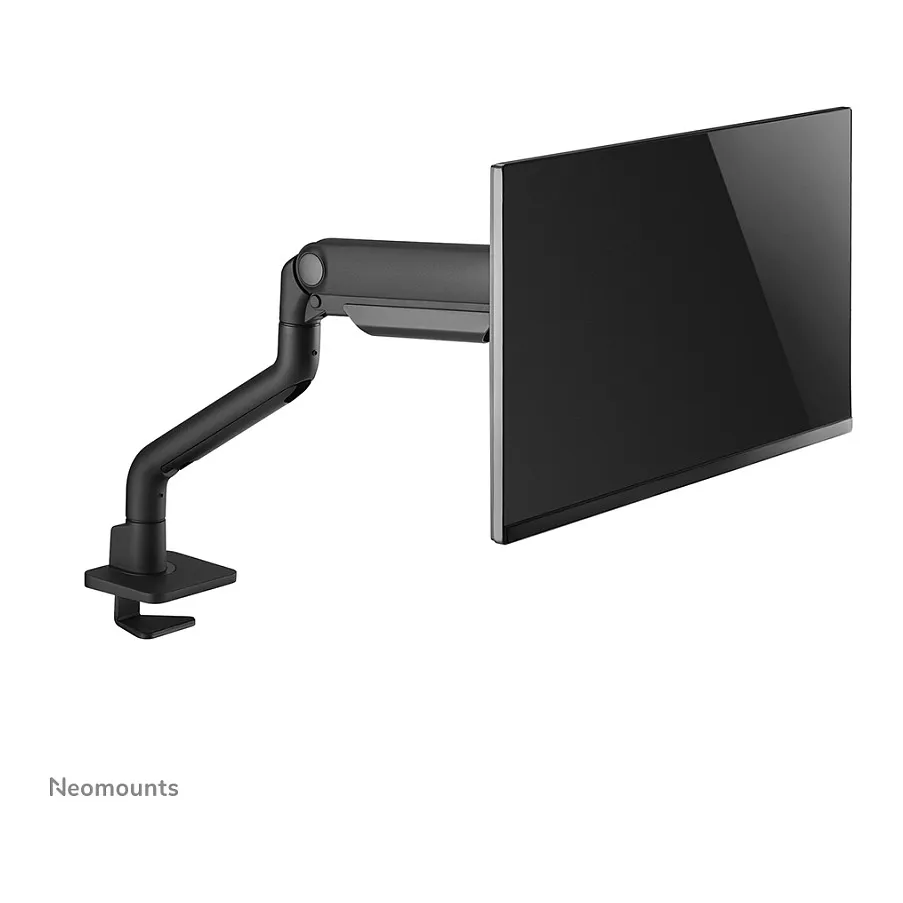

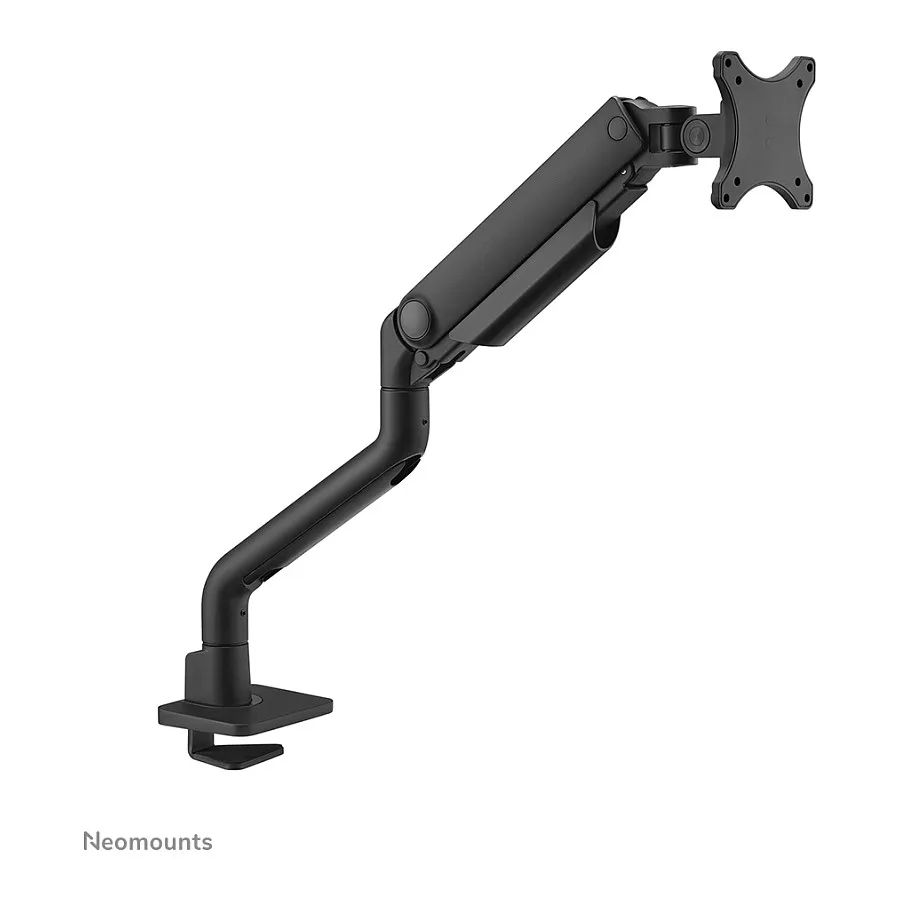

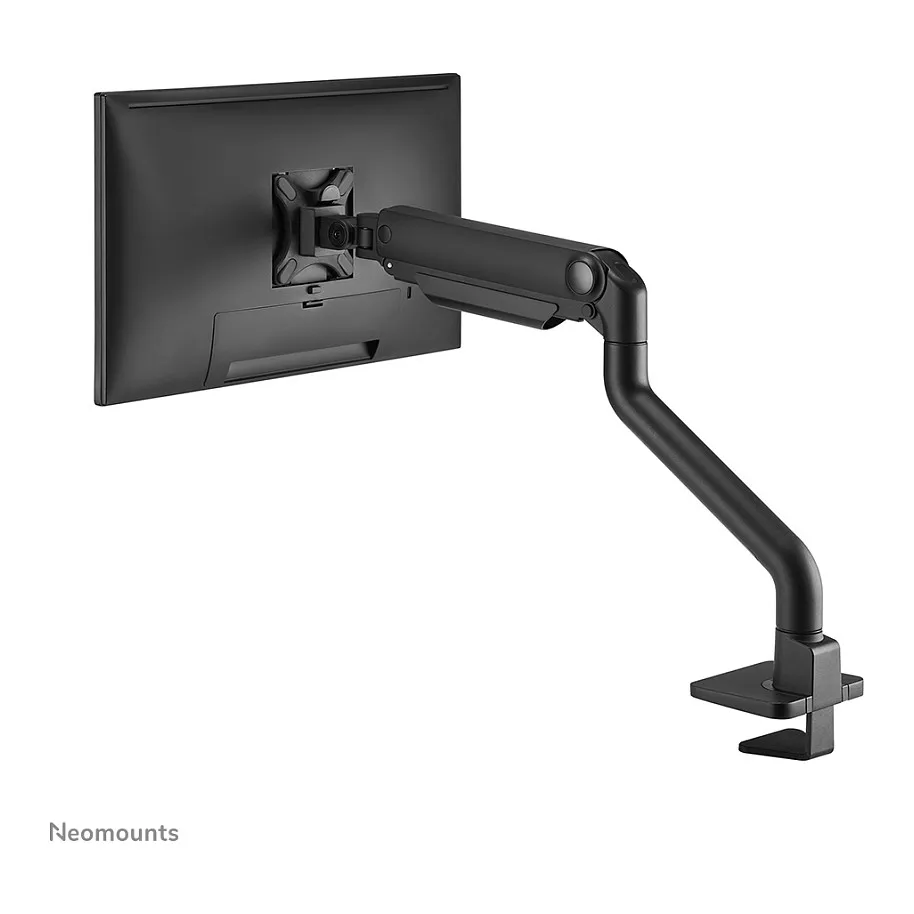

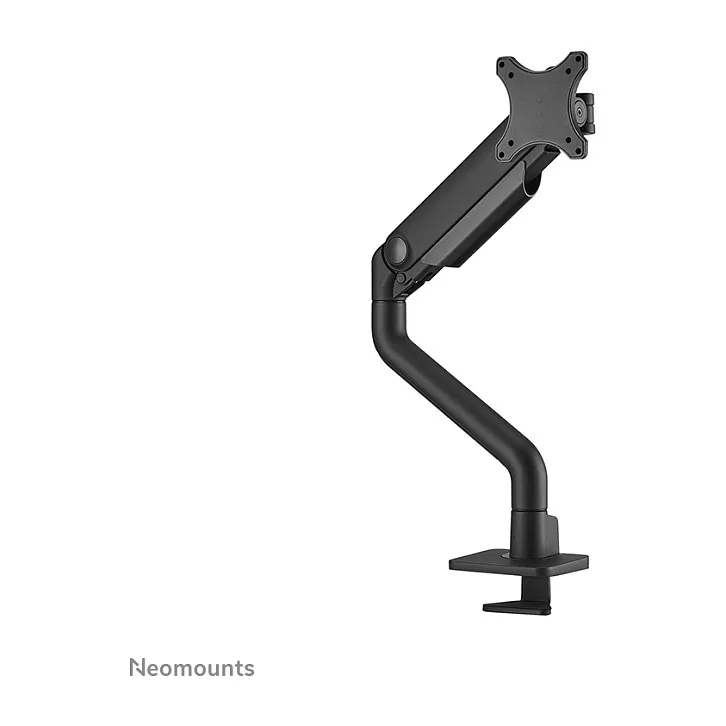

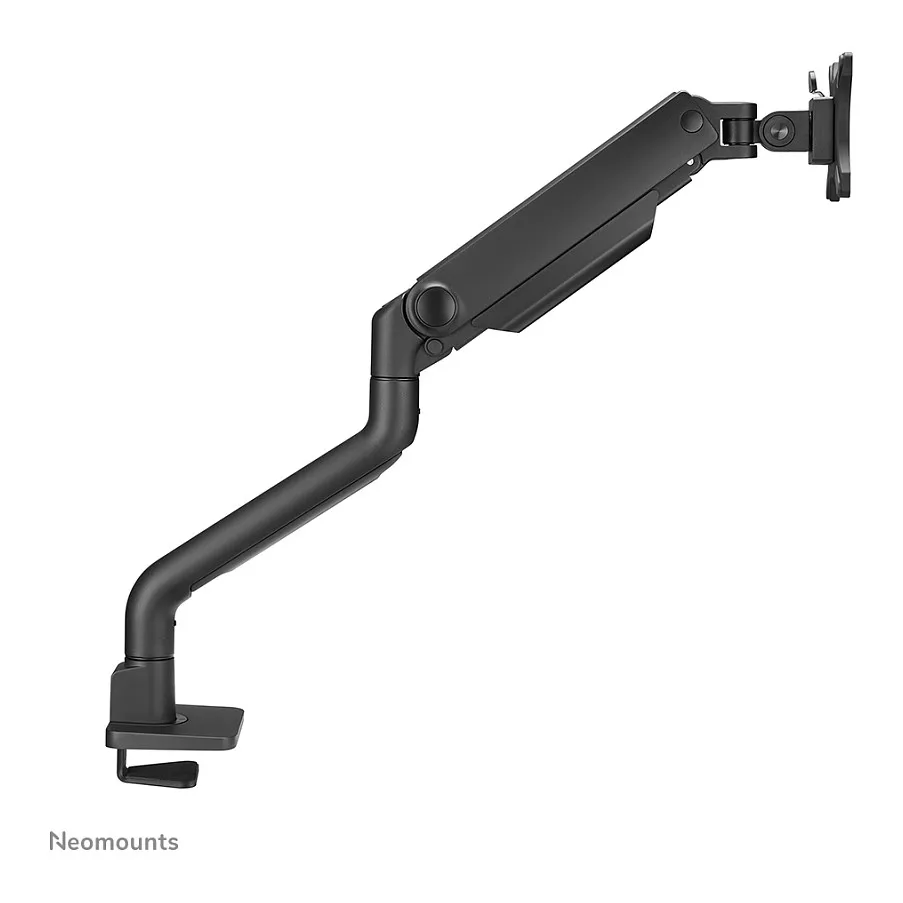

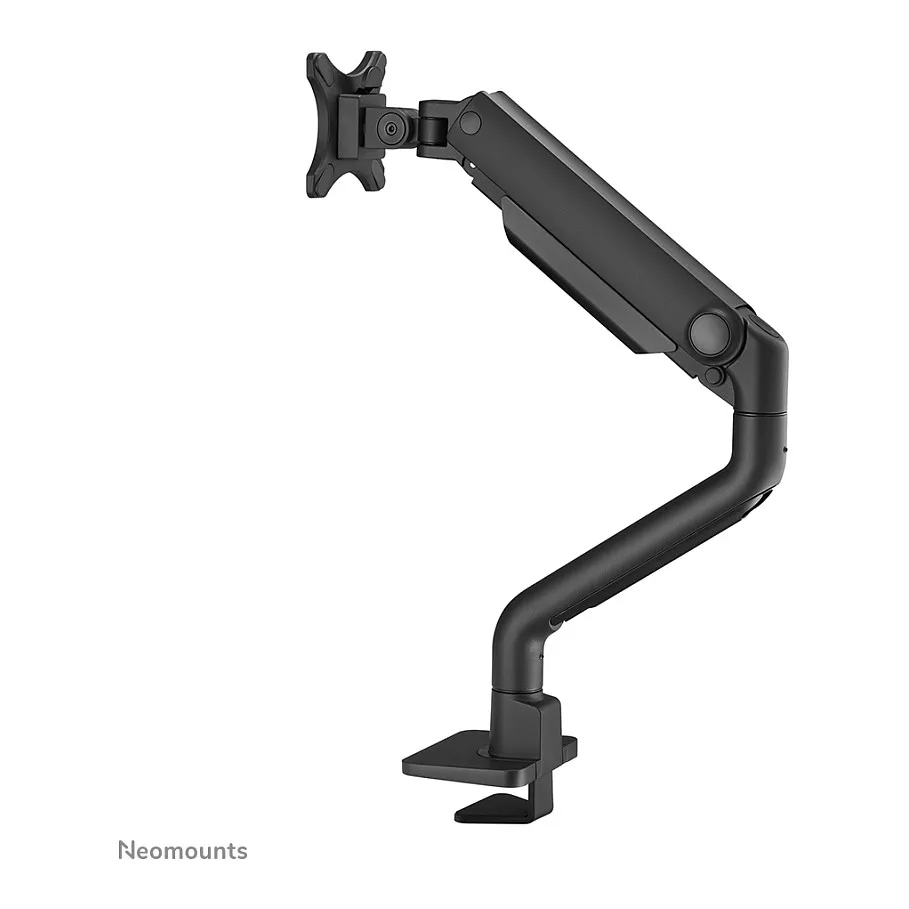

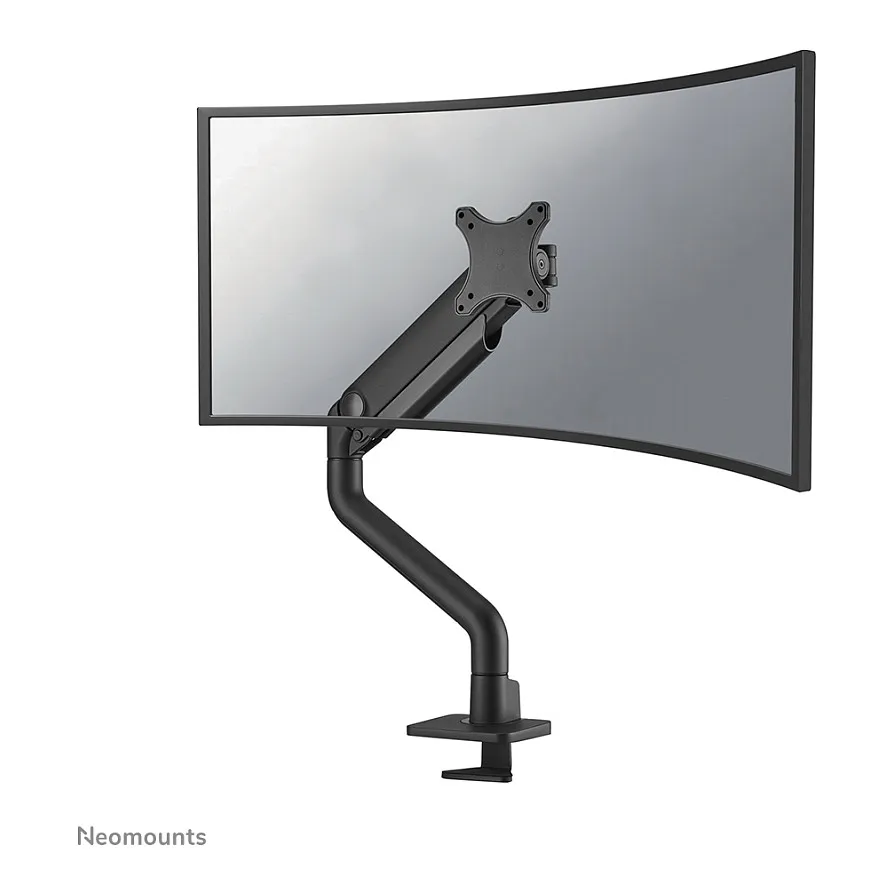

Neomounts DS70S-950BL1 Monitor arm 17-49" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -90 – 90°. Product colour: Black

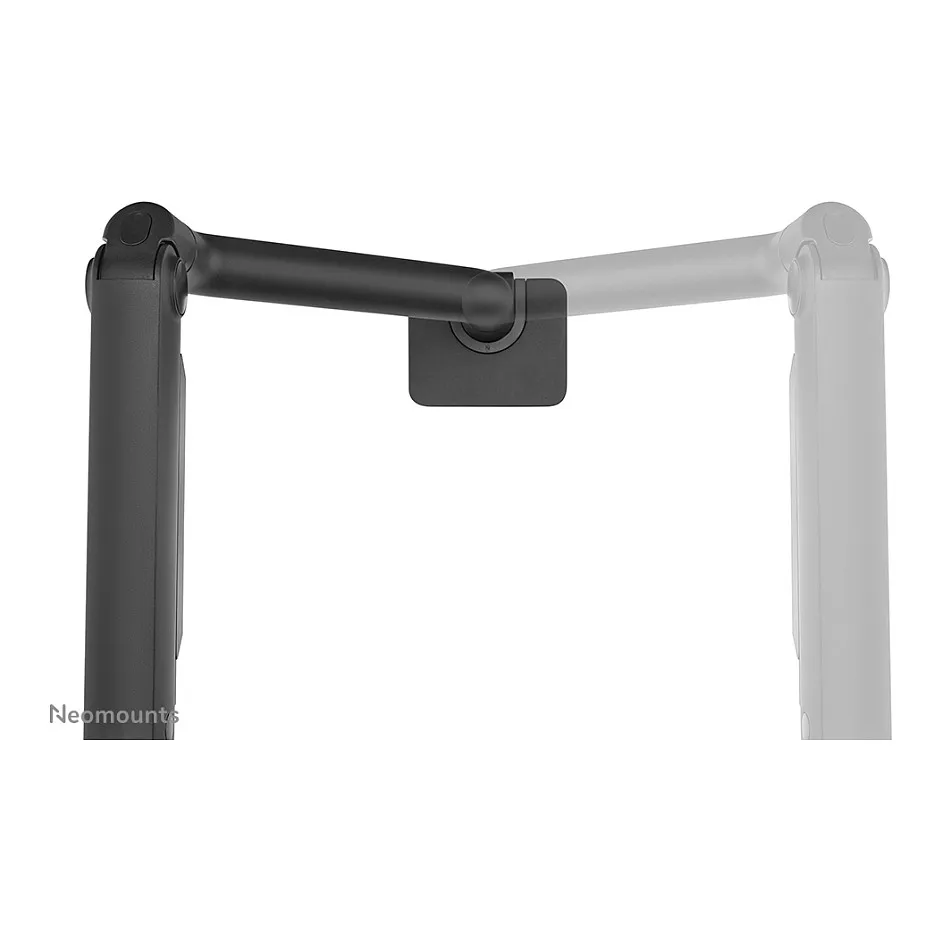

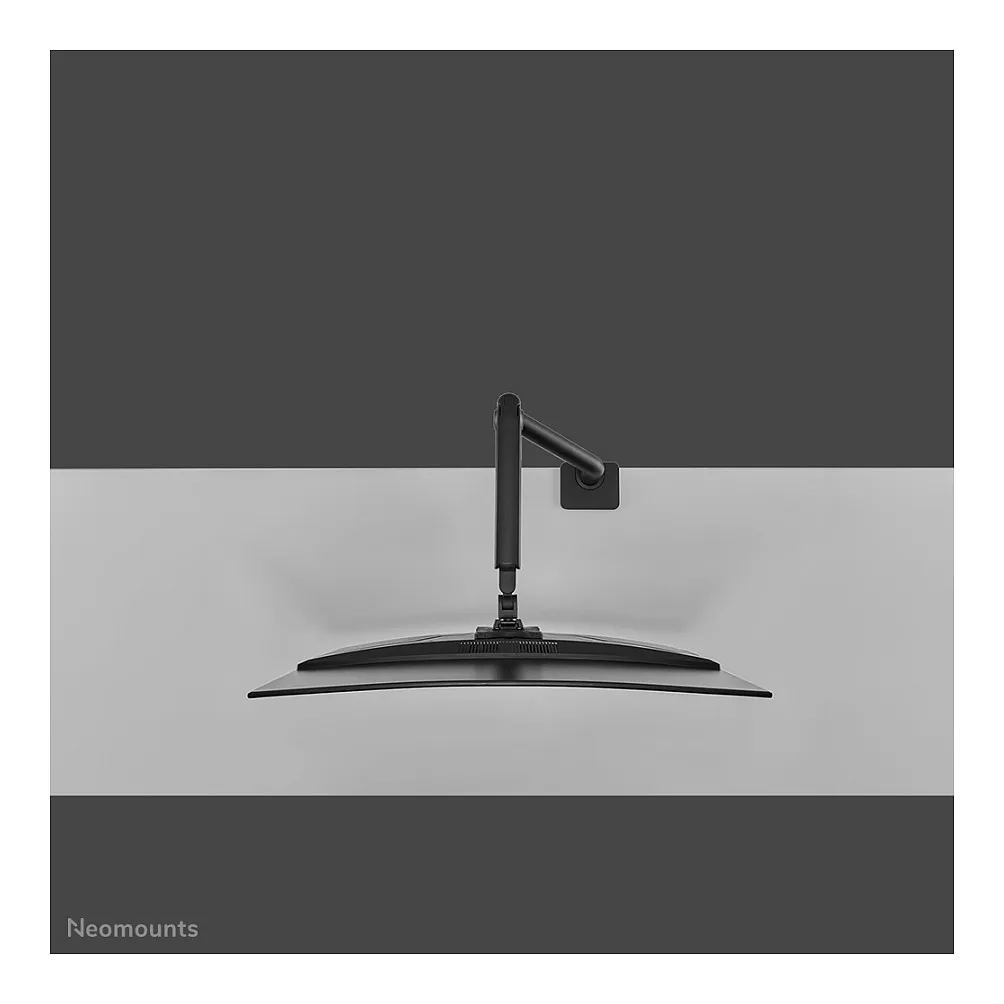

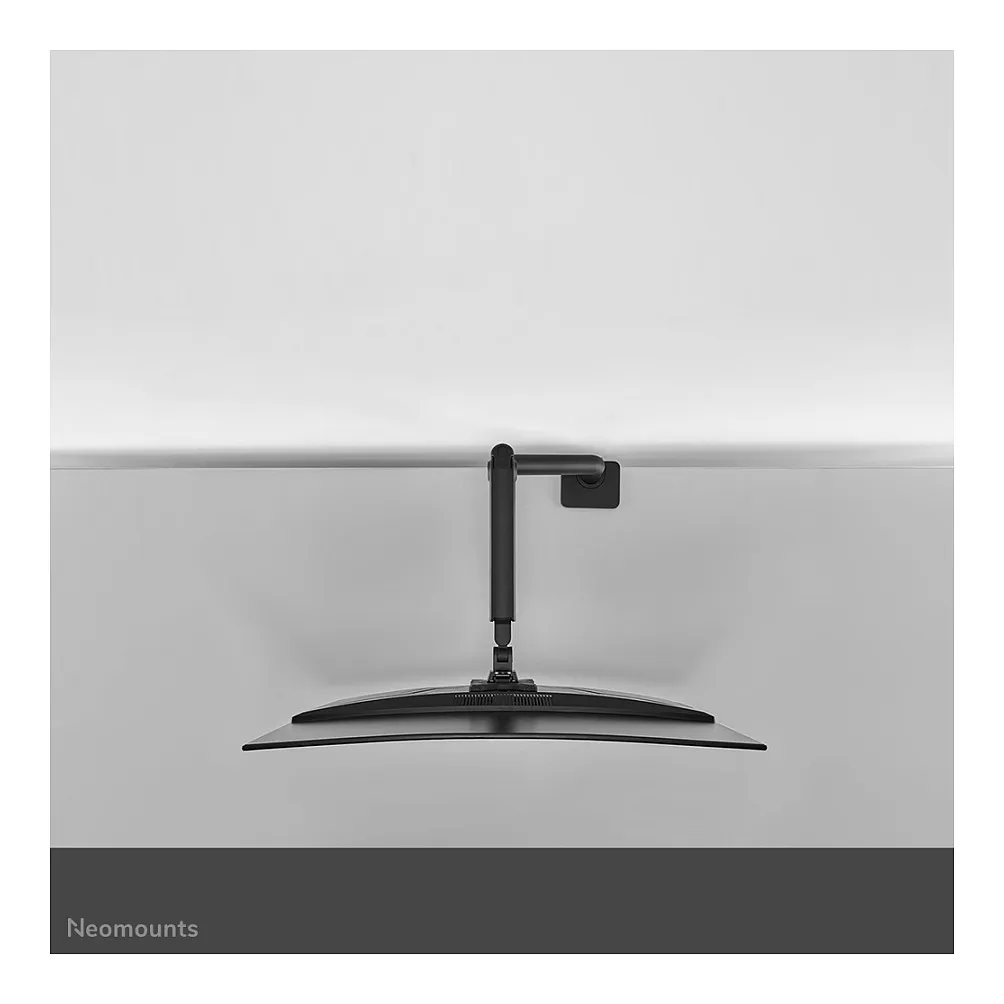

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

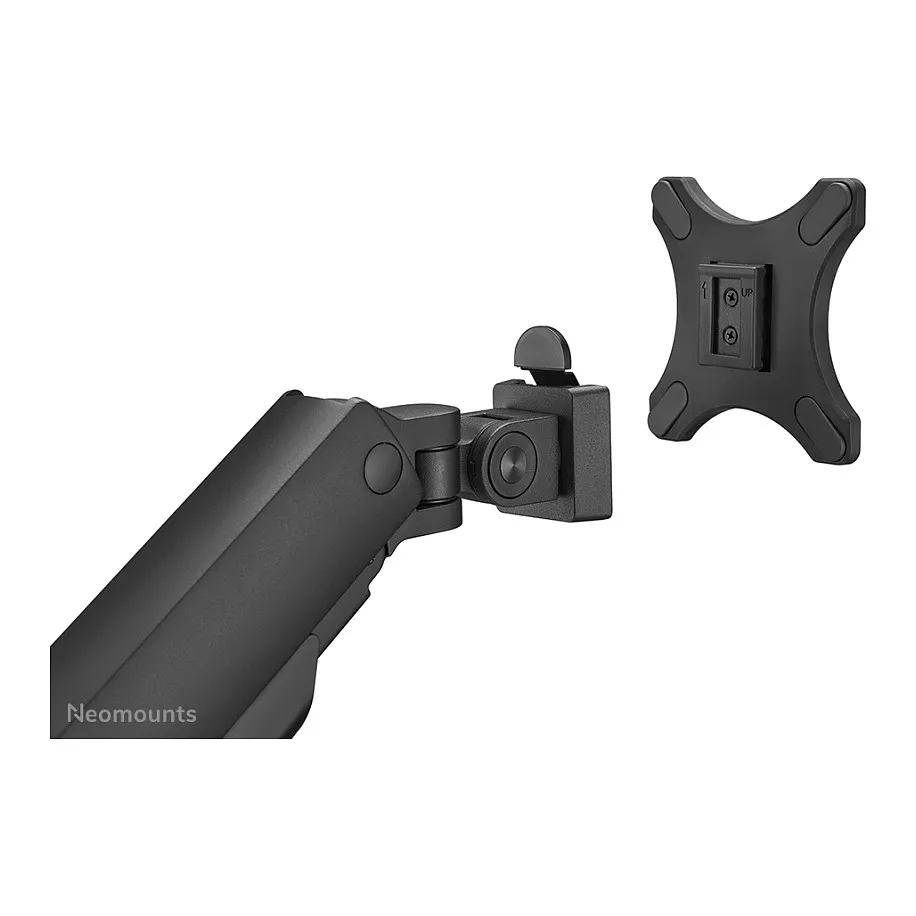

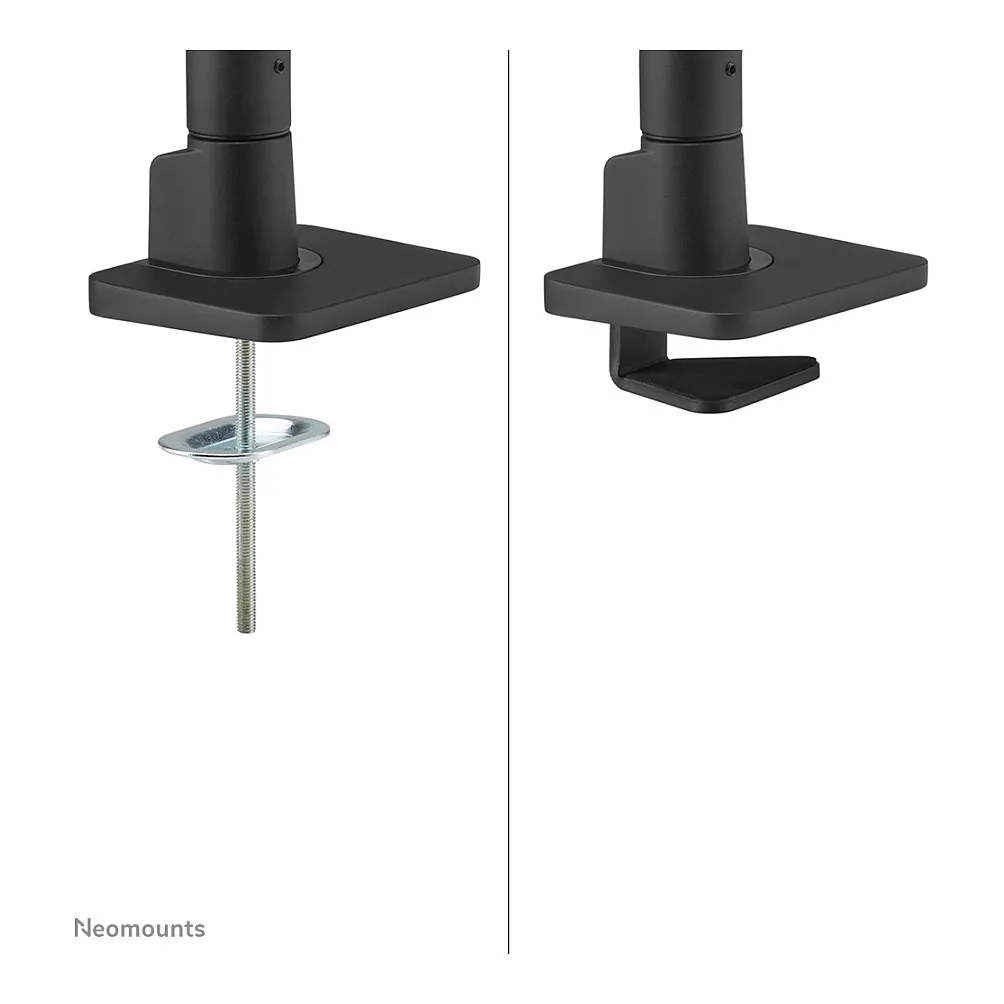

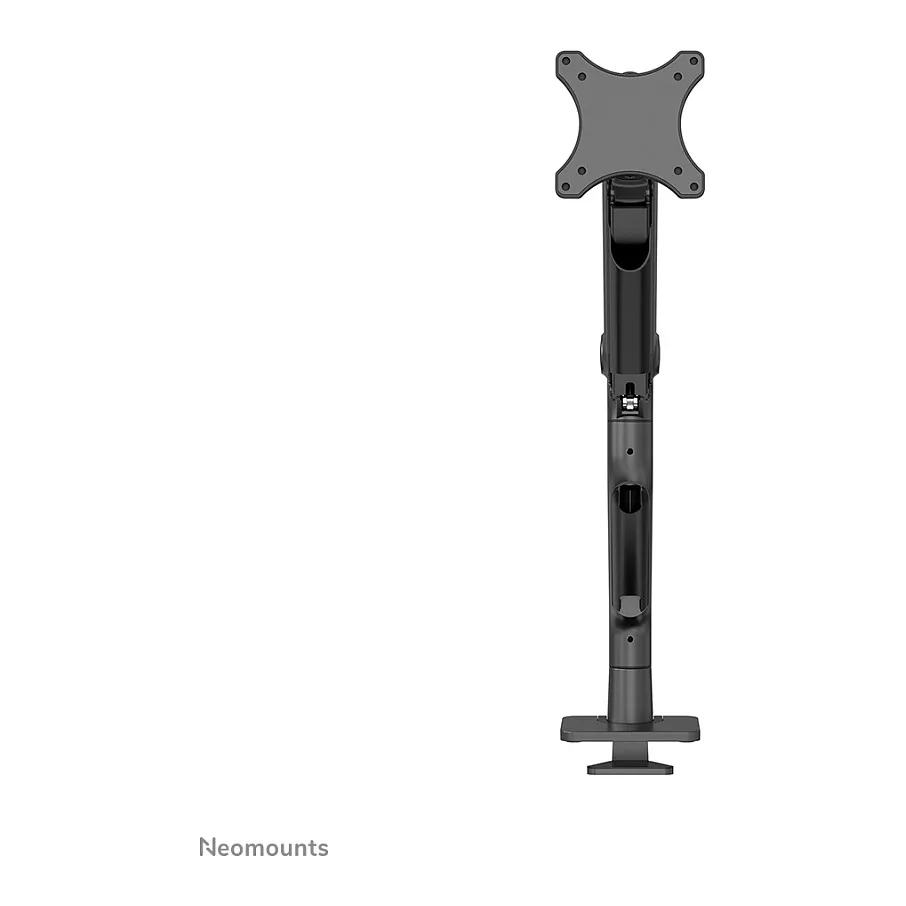

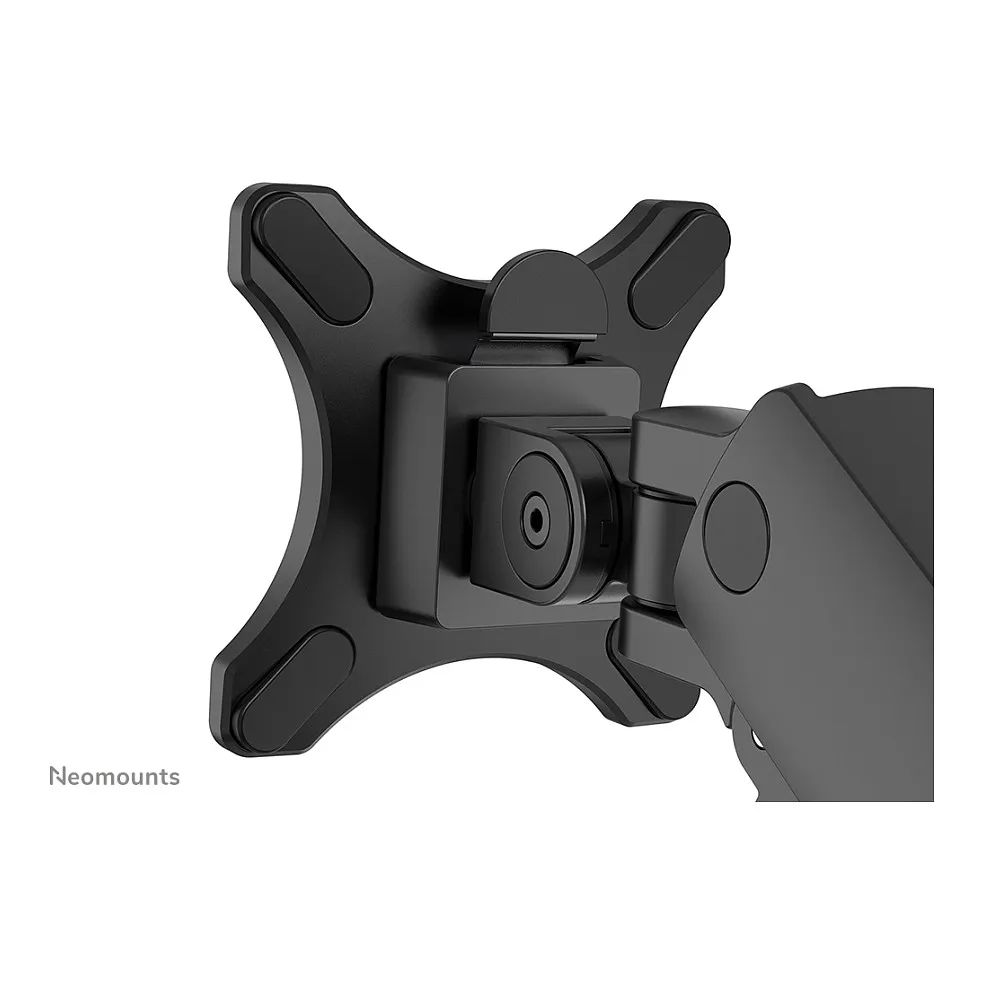

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Maximum weight capacity: 18 kg
Minimum screen size: 43.2 cm (17″)
Number of displays supported: 1
Maximum weight capacity (per display): 18 kg
Maximum weight capacity (per curved/ultra-wide display): 15 kg
Maximum screen size: 124.5 cm (49″)
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm

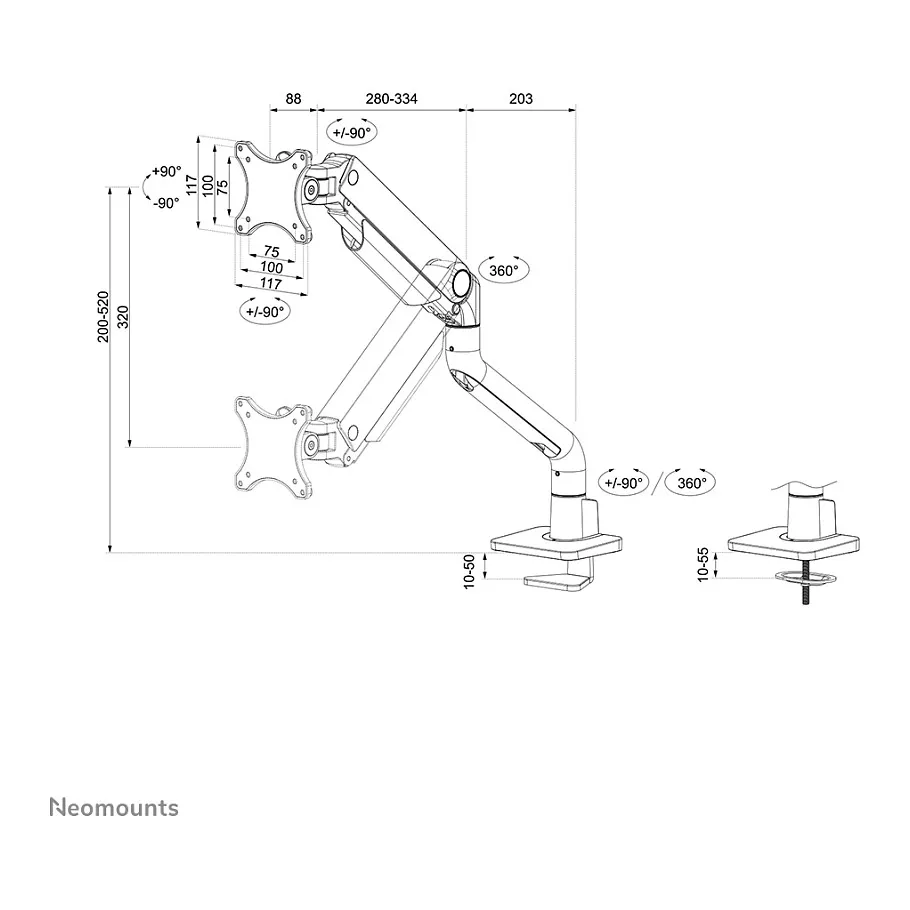

Desk thickness (min): 1 cm
Desk thickness (max): 5.5 cm
Clamp mount desk thickness (max): 5 cm
Grommet mount desk thickness (max): 5.5 cm
Distance to the wall (min): 11.9 cm
Distance to the wall (max): 65.6 cm
Ergonomics
Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment range: 200 – 520 mm
Feature: Adjustable depth
Depth adjustment range: 88 – 625 mm
Width adjustment: 107.4 cm
Feature: Tilt adjustment
Tilt angle range: -90 – 90°
Feature: Swivelling
Swivel angle range: -90 – 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 – 180°
Number of arms: 1
Feature: Cable management
Design
Housing material: Aluminium
Product colour: Black
Feature: Easy to install
Weight & dimensions
Width: 135 mm
Depth: 656 mm
Height: 579 mm
Weight: 3.72 kg
Packaging data
Package width: 333 mm
Package depth: 122 mm
Package height: 423 mm
Package net weight: 4.3 kg
Package weight: 4.3 kg
Package type: Box
Other features
Minimum weight: 1 kg
Width adjustment range: 0 – 1074 mm
Warranty period: 10 year(s)
Logistics data
Master (outer) case width: 355 mm
Master (outer) case length: 290 mm
Master (outer) case height: 490 mm
Master (outer) case gross weight: 17.9 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 14.9 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 80 pc(s)
