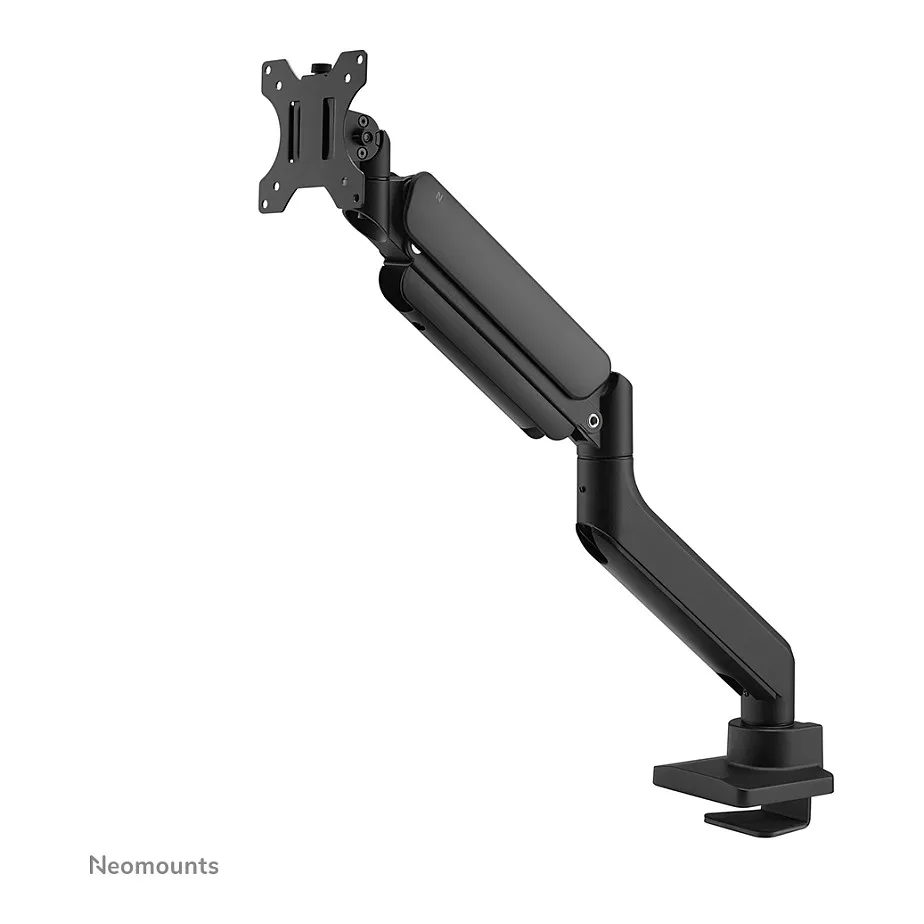

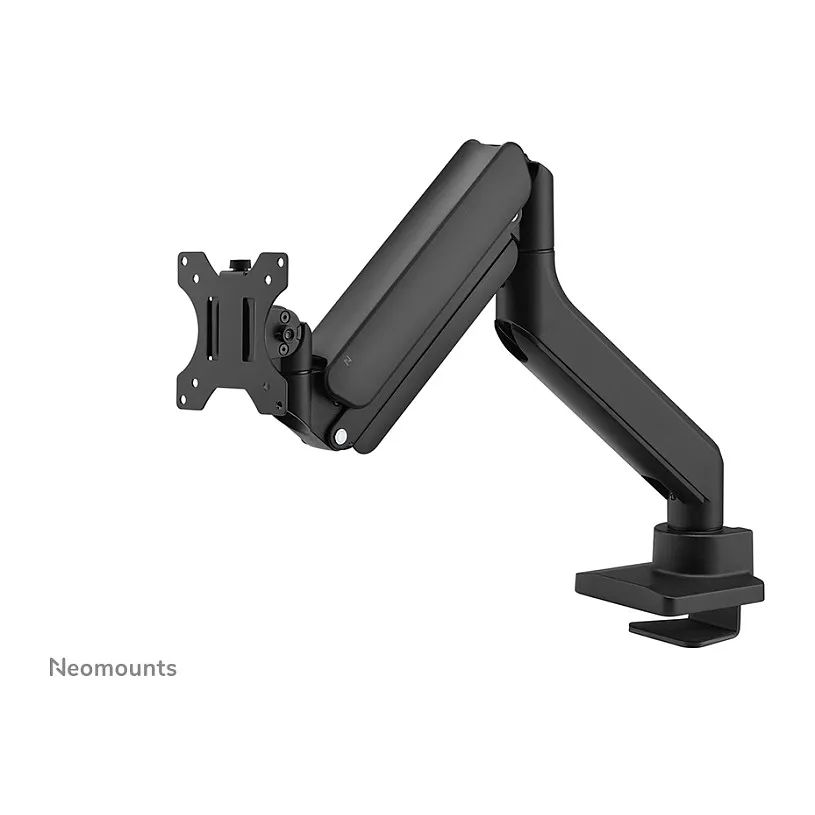

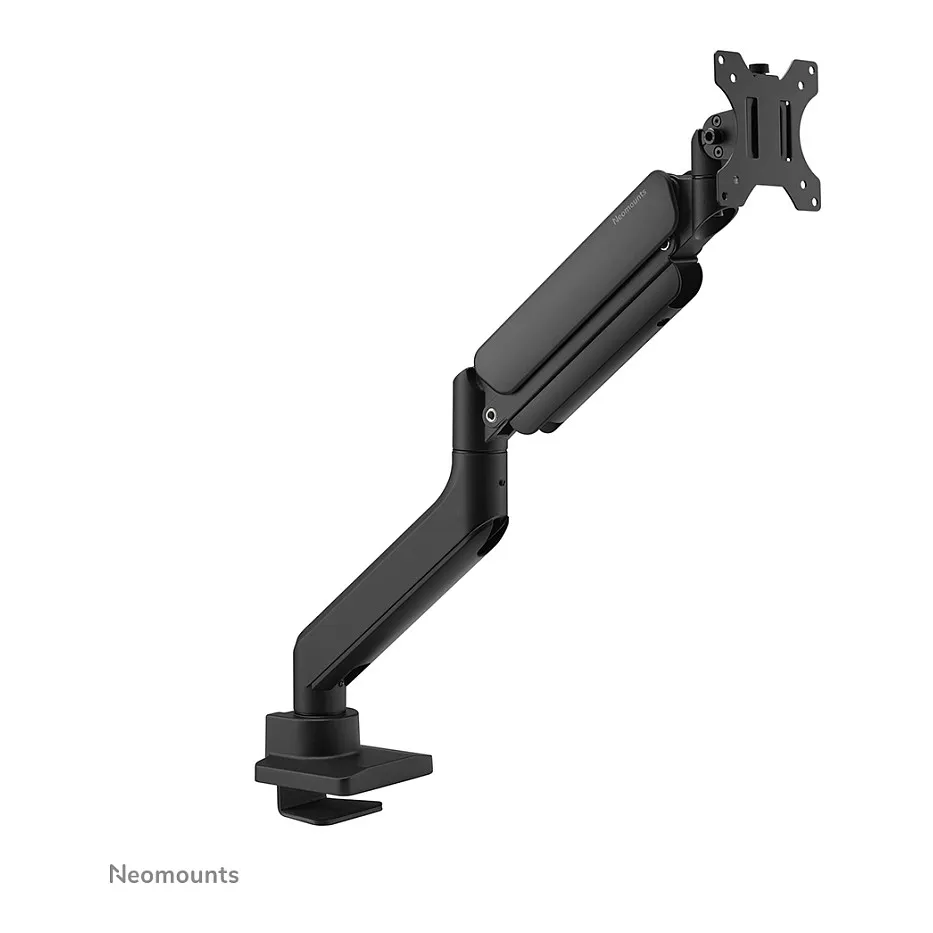

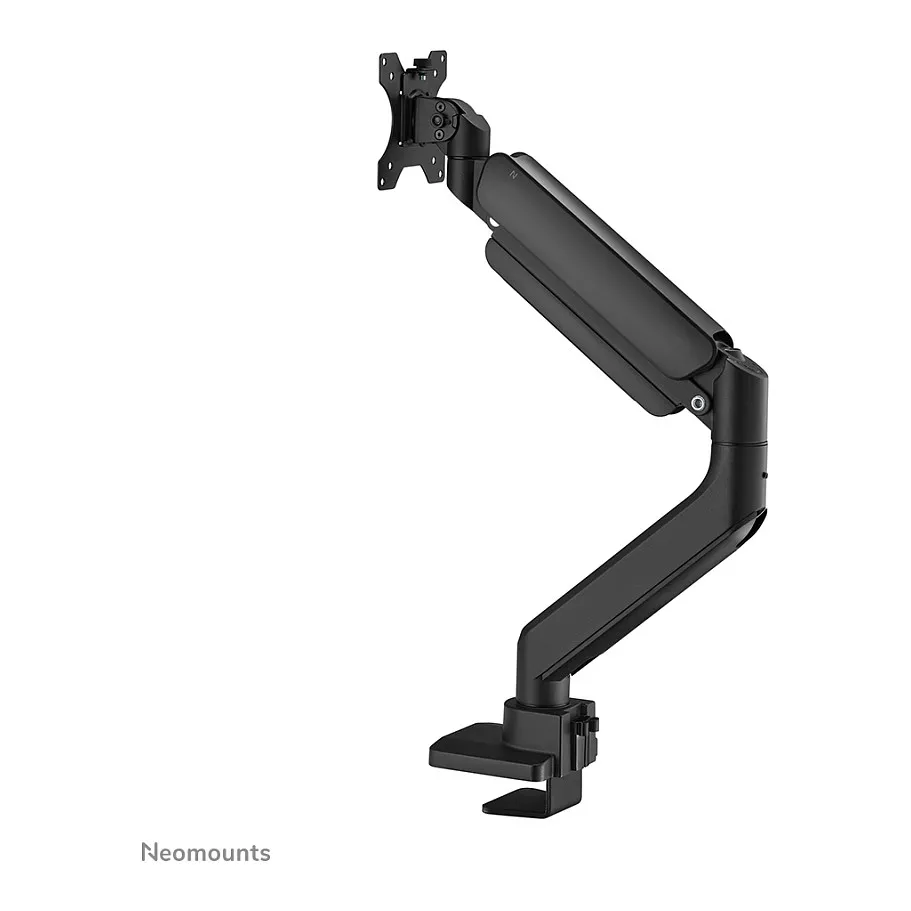

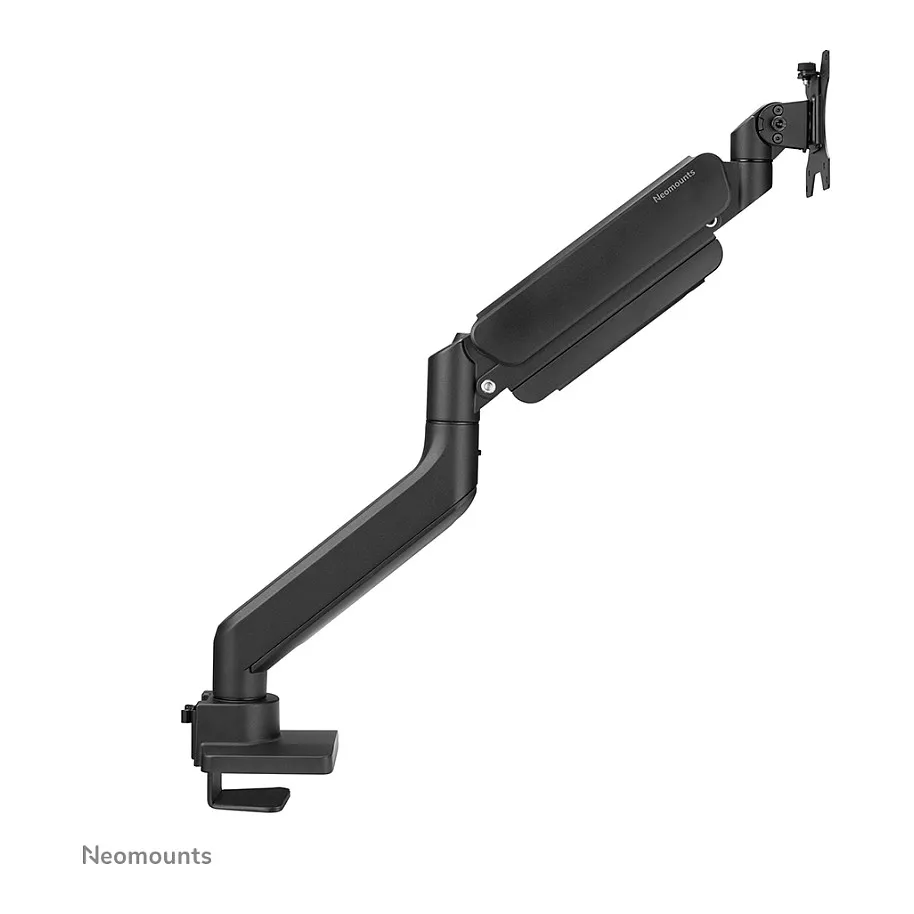

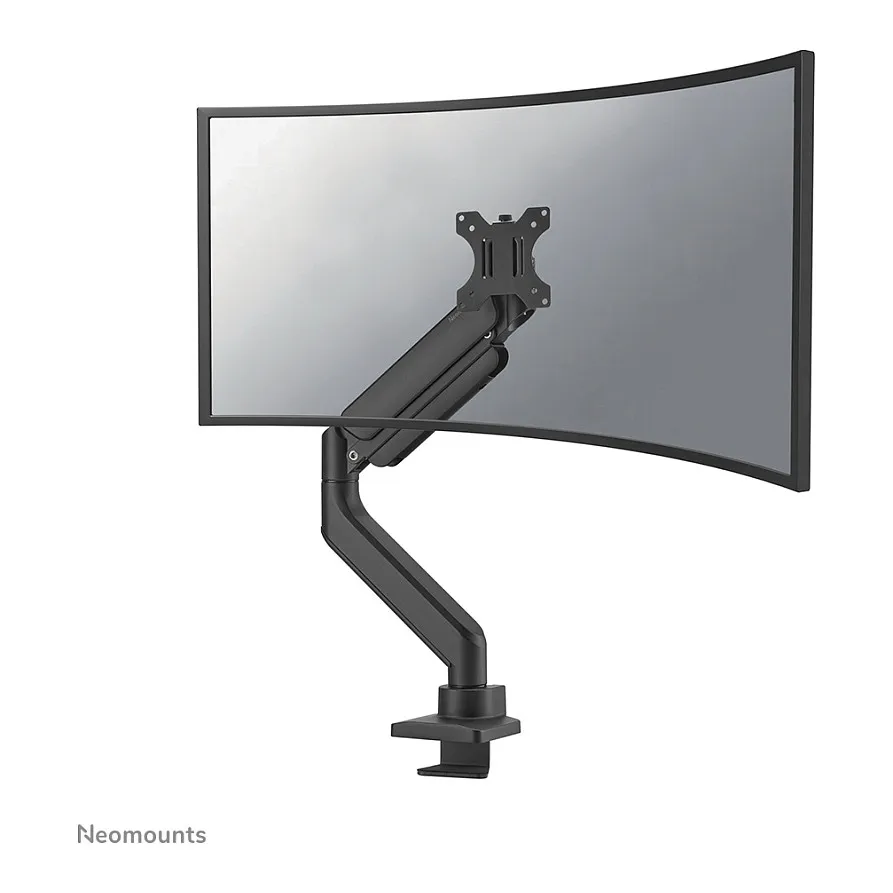

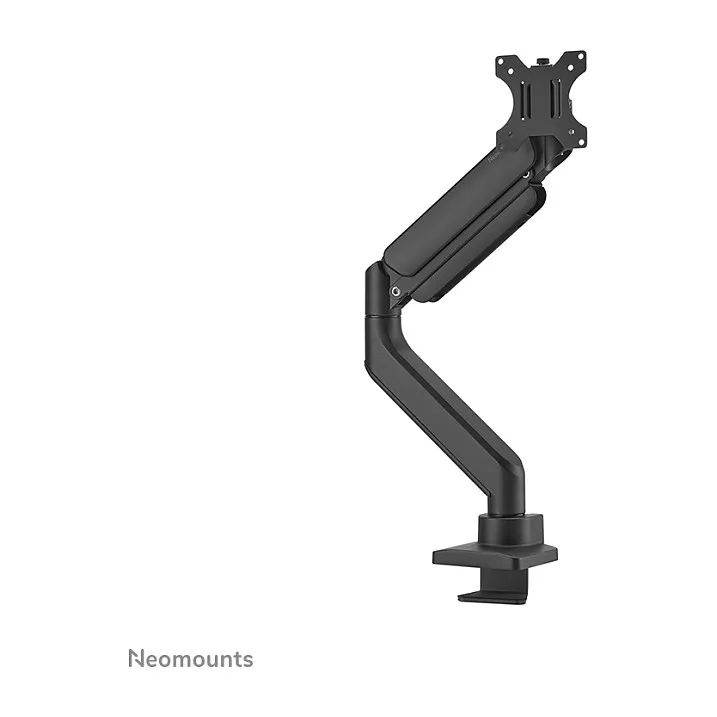

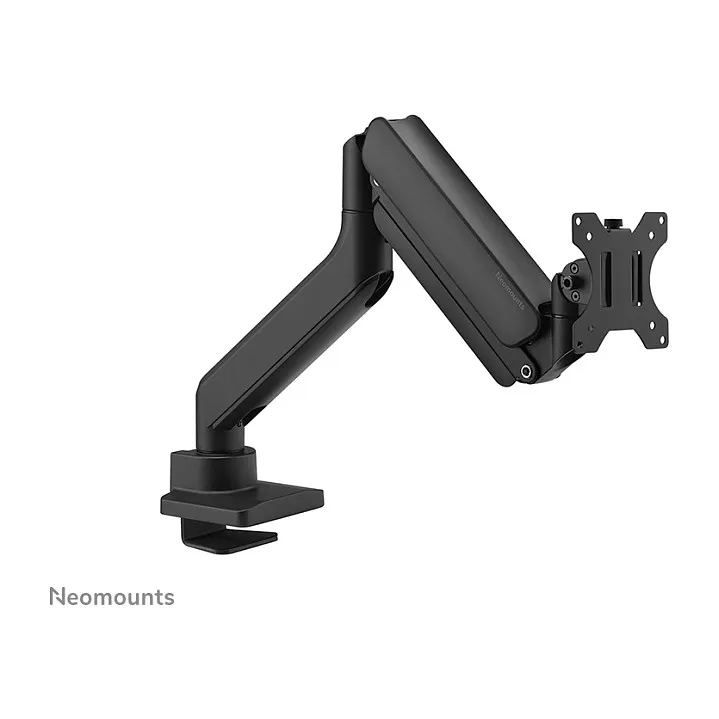

Neomounts DS70PLUS-450BL1 Monitor arm 17-49" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -45 – 45°. Product colour: Black

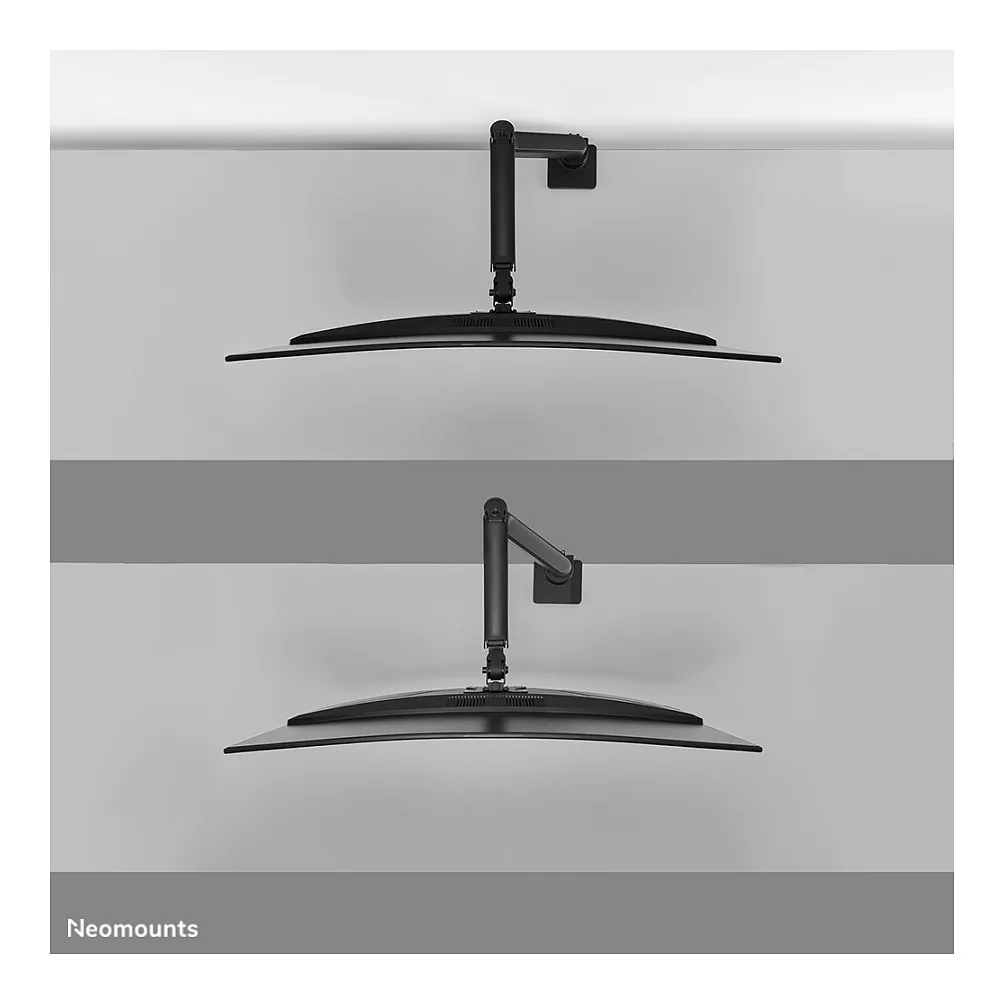

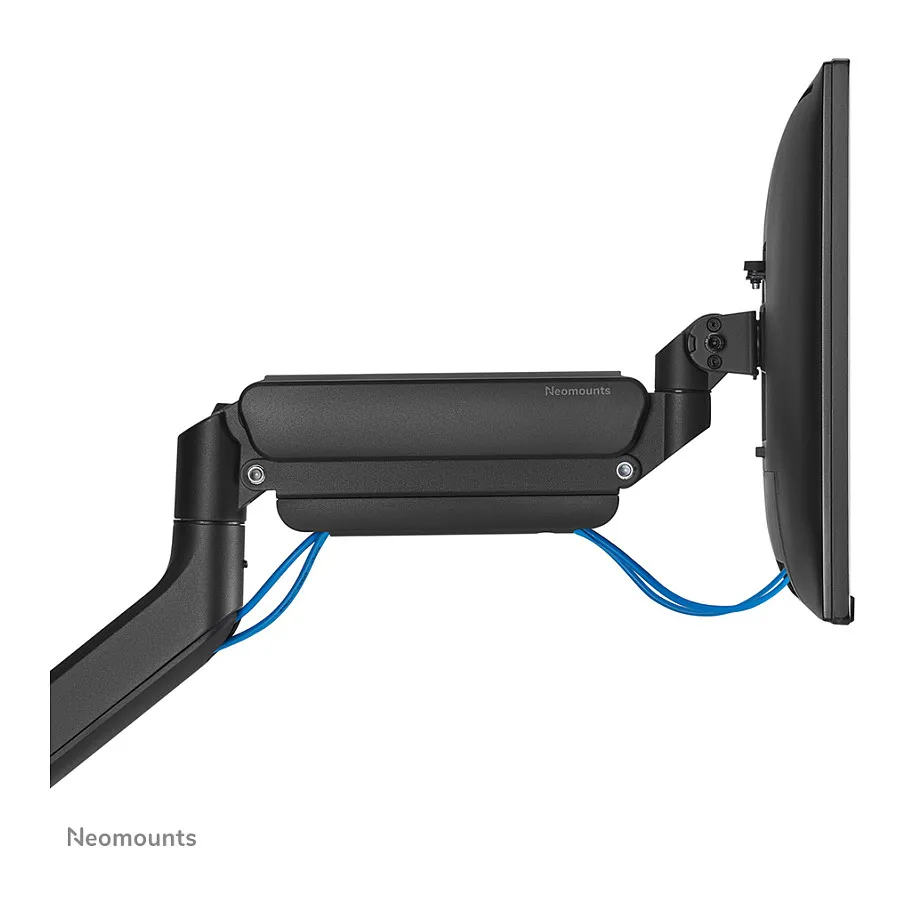

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it’s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

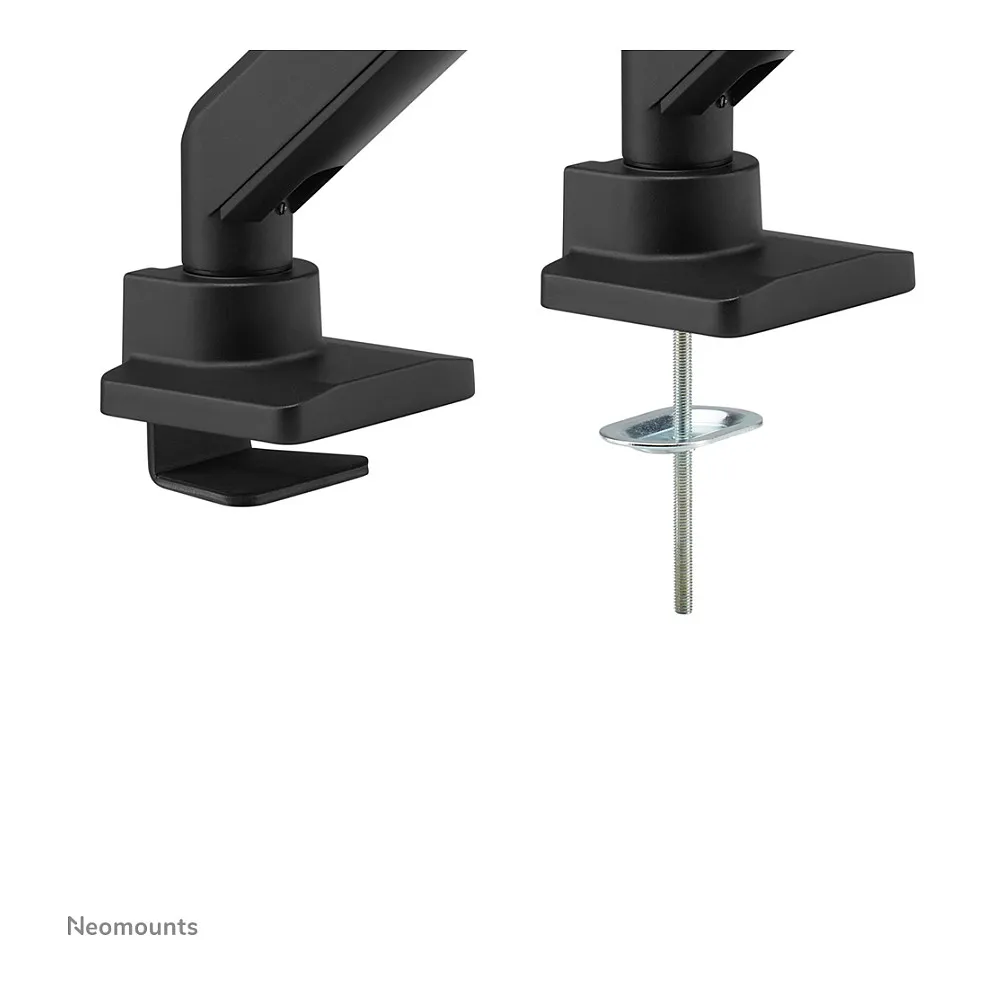

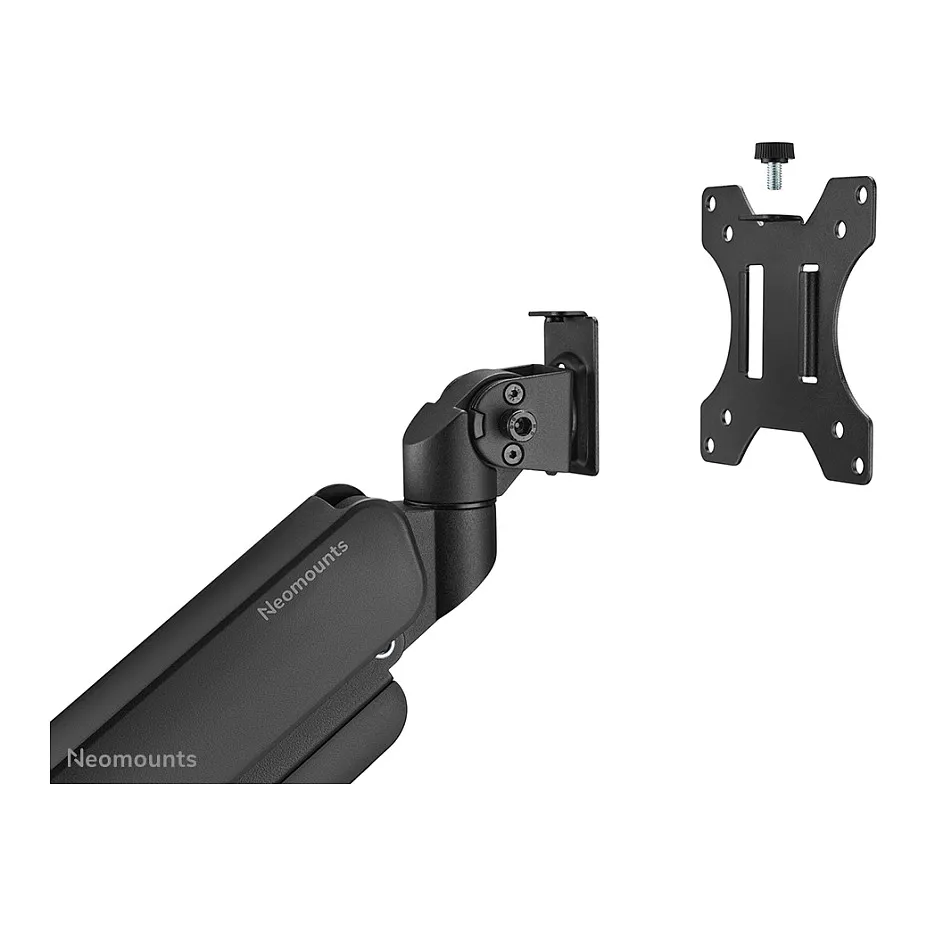

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

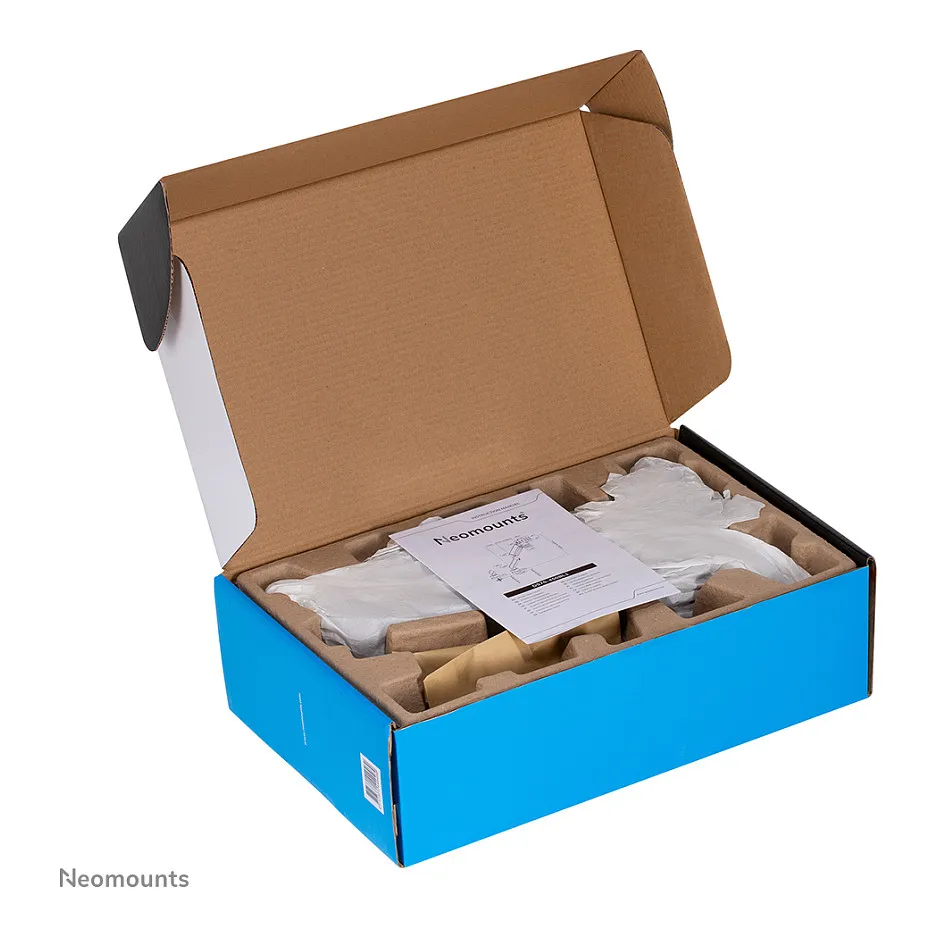

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
Maximum weight capacity: 18 kg
Minimum screen size: 43.2 cm (17″)
Number of displays supported: 1
Maximum weight capacity (per display): 18 kg
Maximum weight capacity (per curved/ultra-wide display): 14 kg
Maximum screen size: 124.5 cm (49″)
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm
Distance to the wall (min): 10.8 cm
Distance to the wall (max): 56.8 cm
Ergonomics
Feature: Height adjustment

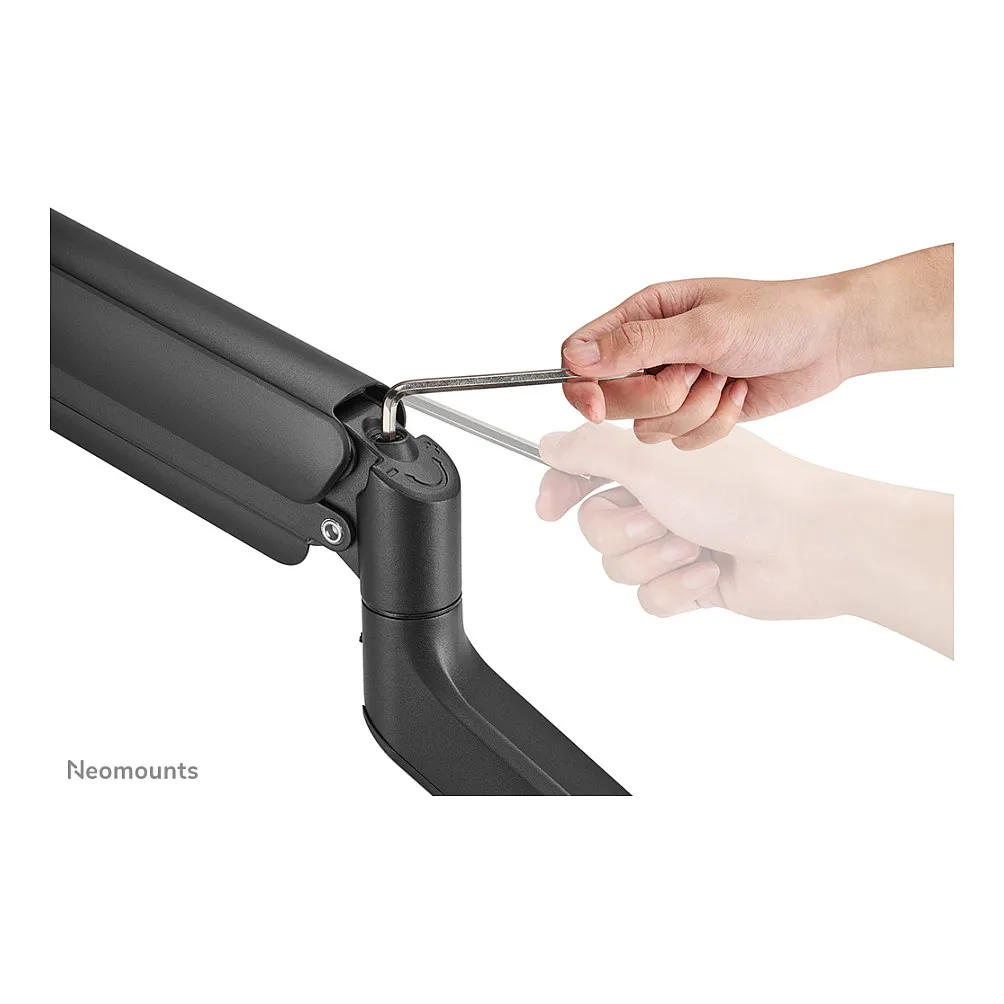

Height adjustment type: Gas spring

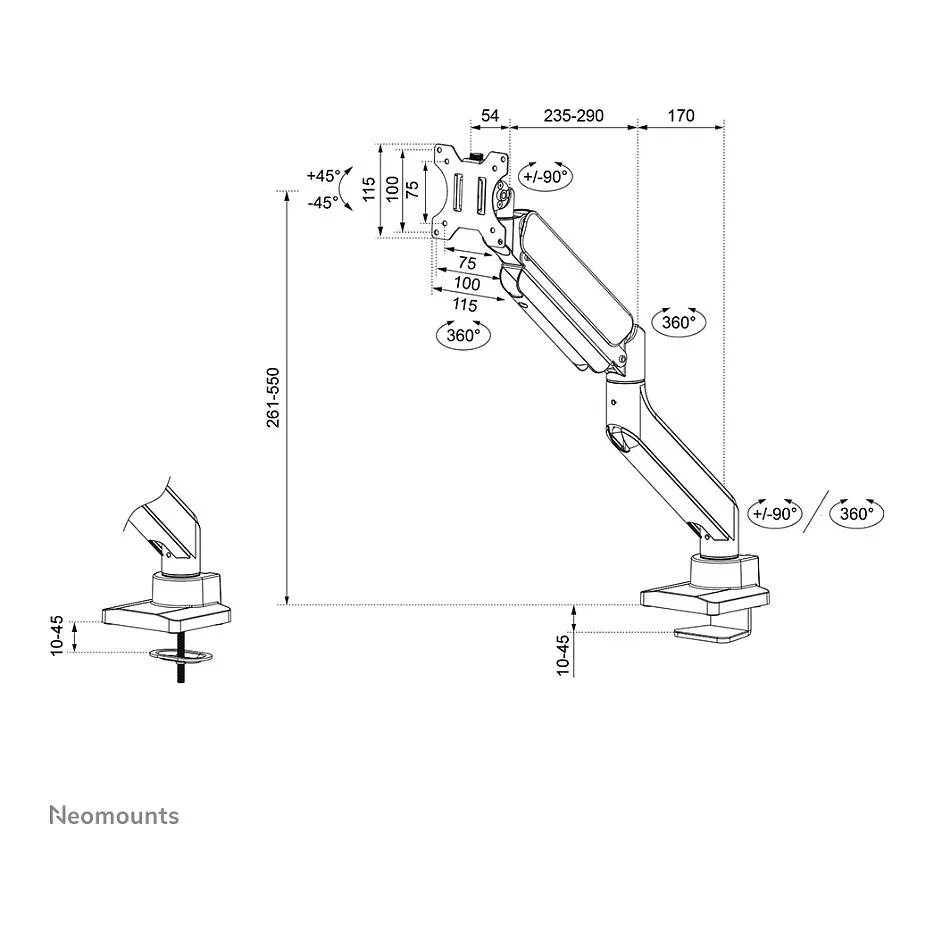

Height adjustment range: 261 – 555 mm
Feature: Adjustable depth
Depth adjustment range: 54 – 511 mm
Width adjustment: 92 cm

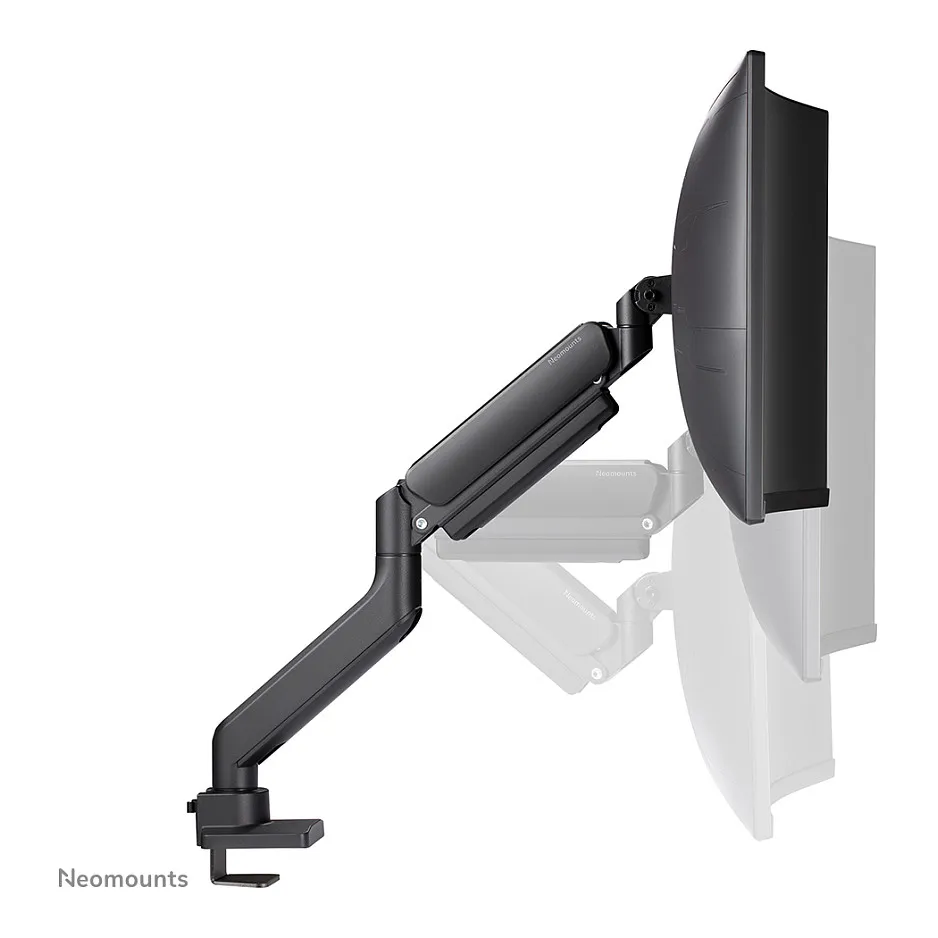

Feature: Tilt adjustment
Tilt angle range: -45 – 45°
Feature: Swivelling
Swivel angle range: -90 – 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 – 180°
Feature: Cable management
Design
Housing material: Steel
Product colour: Black
Weight & dimensions
Width: 120 mm
Depth: 568 mm
Height: 653 mm
Weight: 3.98 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 280 mm
Package depth: 127 mm
Package height: 445 mm
Package net weight: 5.1 kg
Package weight: 5.1 kg
Package type: Box
Other features
Minimum weight: 1 kg
Width adjustment range: 0 – 920 mm
Logistics data
Master (outer) case width: 460 mm
Master (outer) case length: 275 mm
Master (outer) case height: 580 mm
Master (outer) case gross weight: 20.5 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 16 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 64 pc(s)
