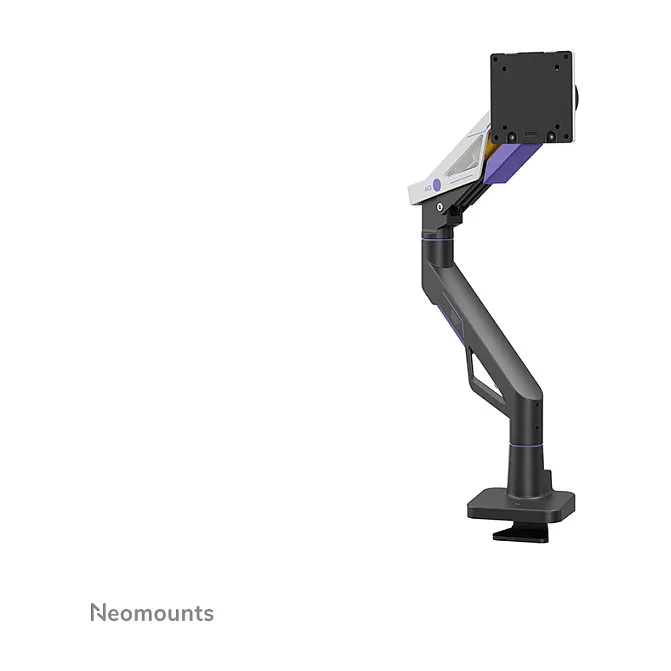

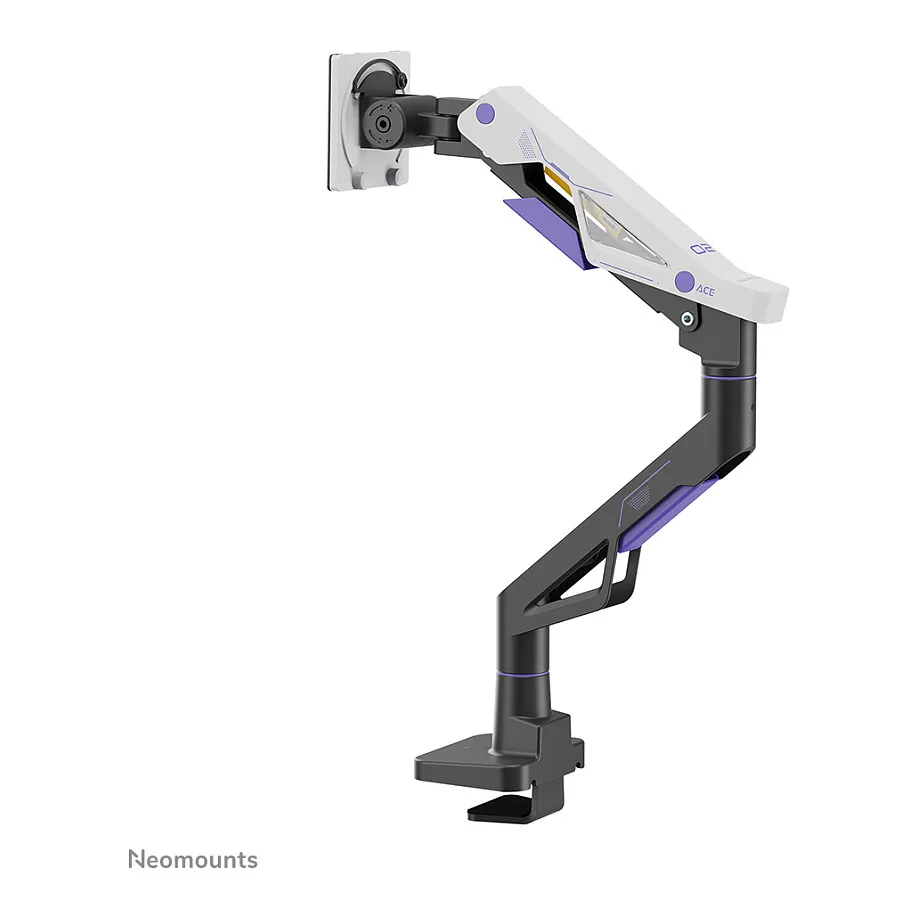

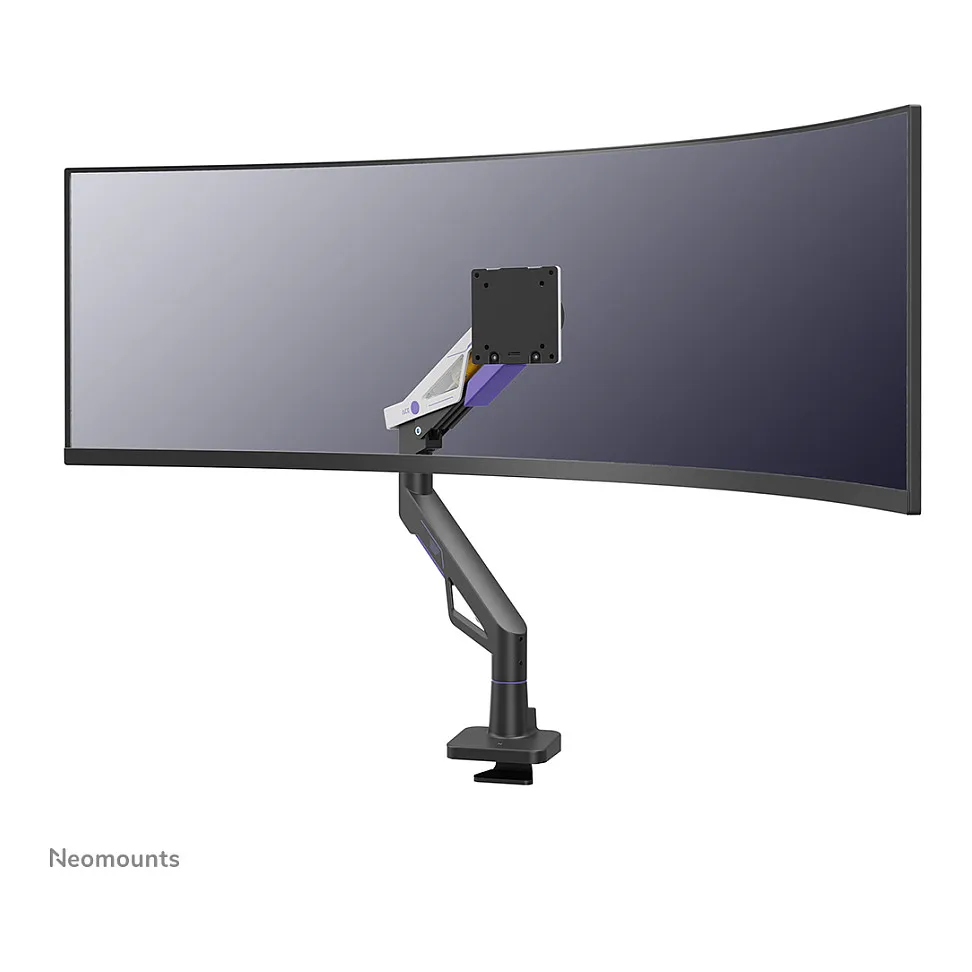

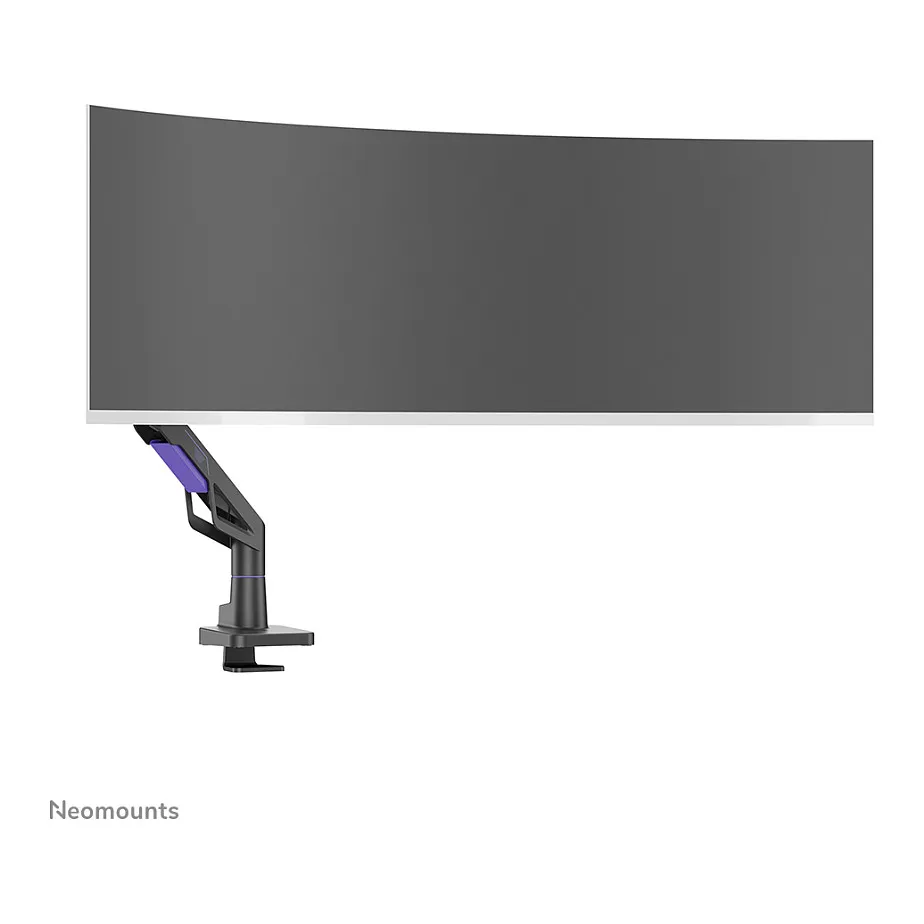

Neomounts DS70-256BL1 Gaming monitor arm 24-57" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 30 kg, Minimum screen size: 61 cm (24"), Maximum screen size: 144.8 cm (57"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -45 – 70°. Product colour: Black

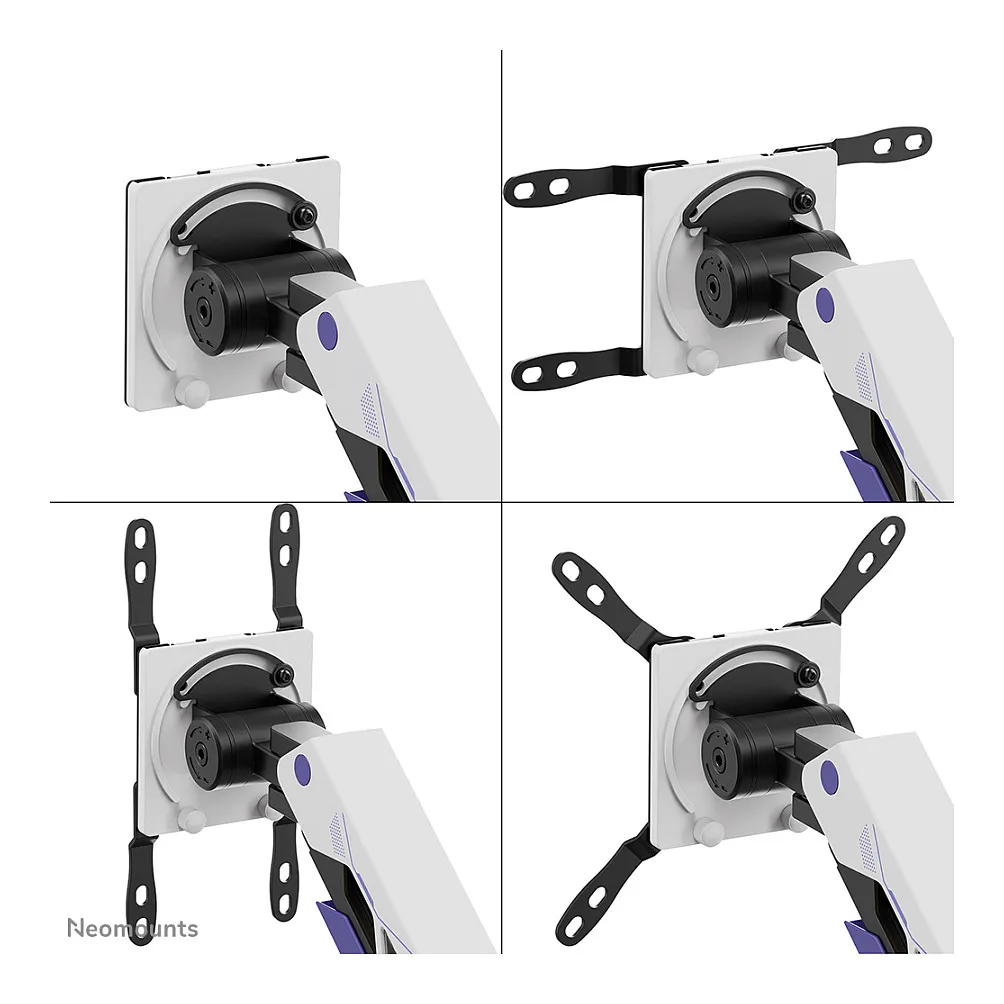

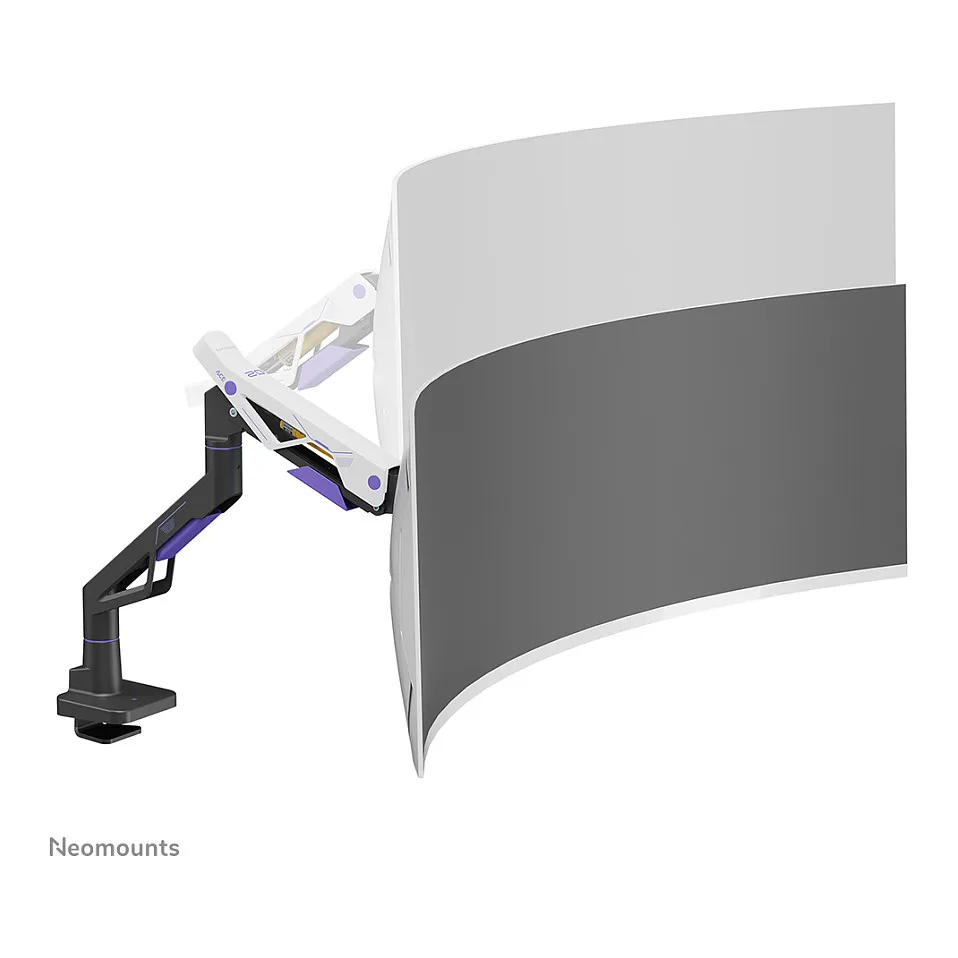

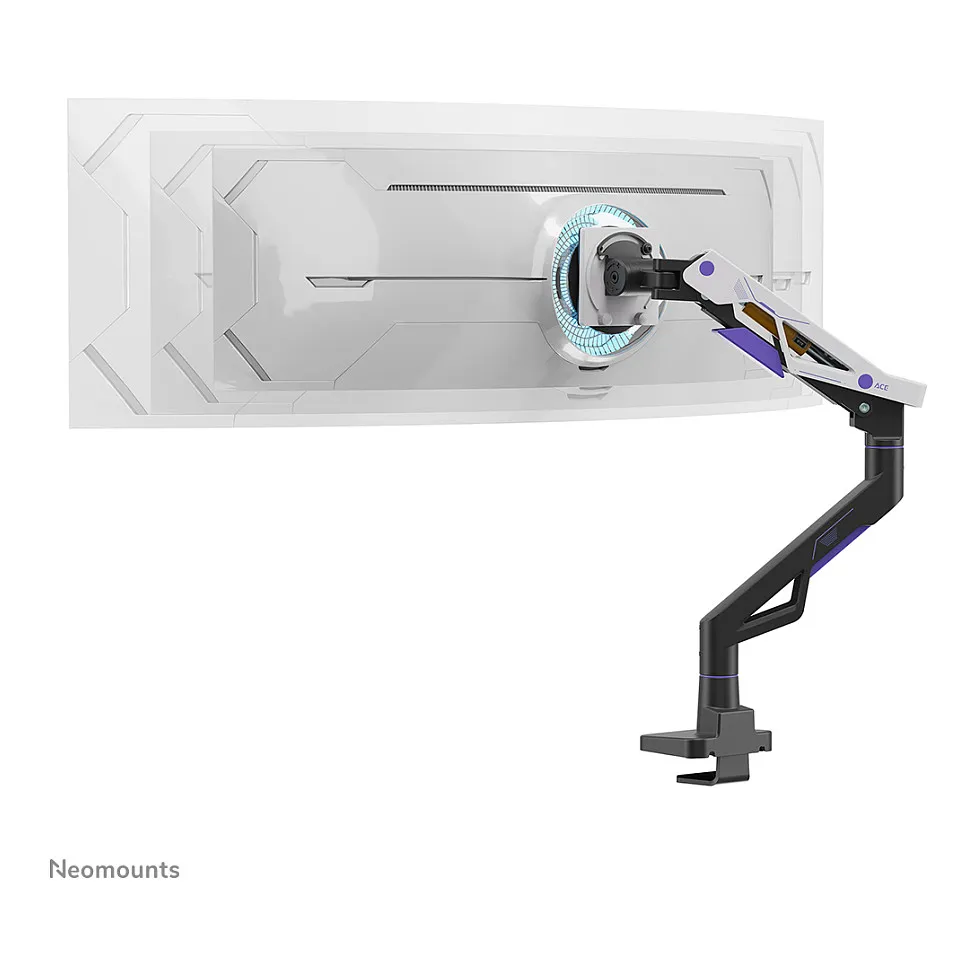

Thanks to its broad VESA compatibility from 75×75 to 200×200, the ACE offers seamless integration with a wide range of monitors. The inclusion of precision tilt functionality allows for finely tuned angle adjustments, reducing screen glare and enhancing viewing comfort no matter your setup. Combined with gas spring height adjustment and depth adjustment, positioning your screen in the ideal position becomes smooth and effortless, supporting better posture and sustained focus during marathon sessions.

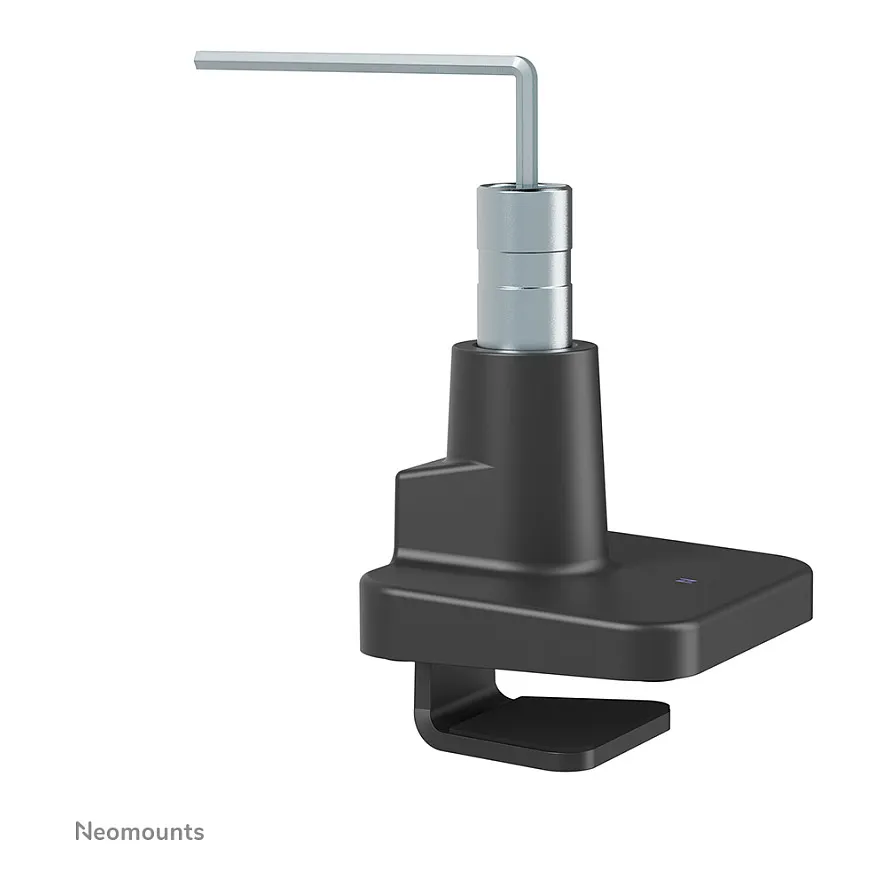

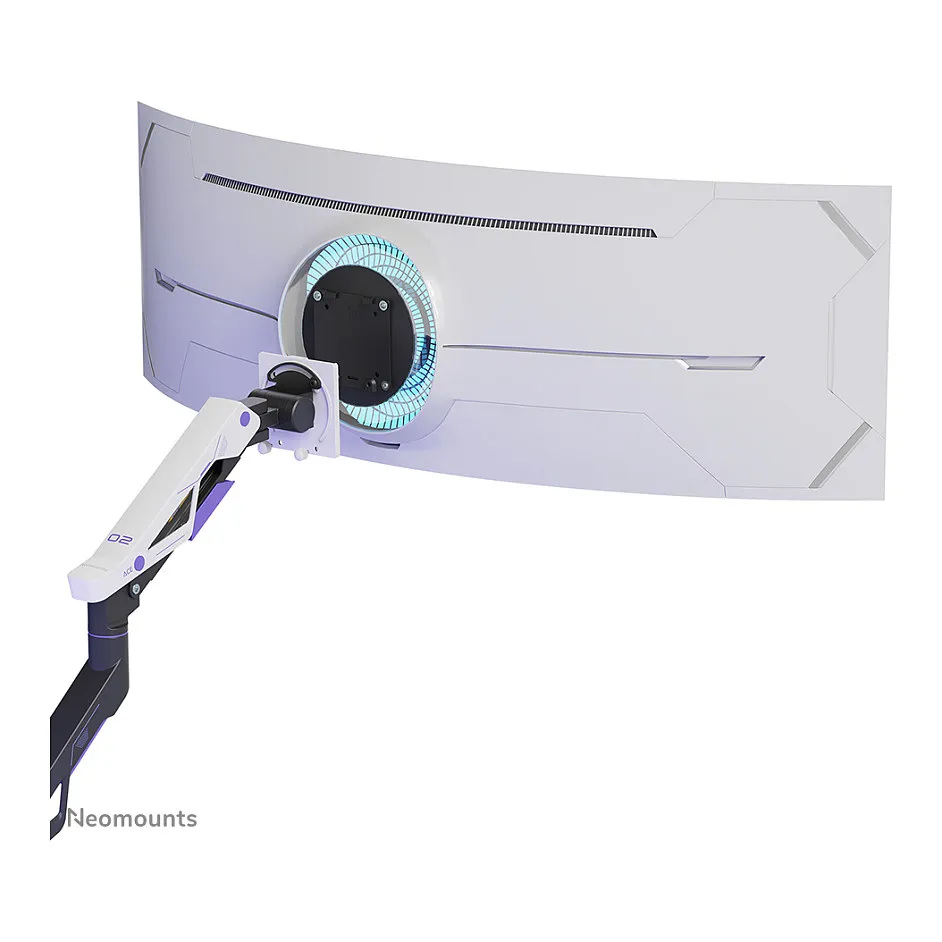

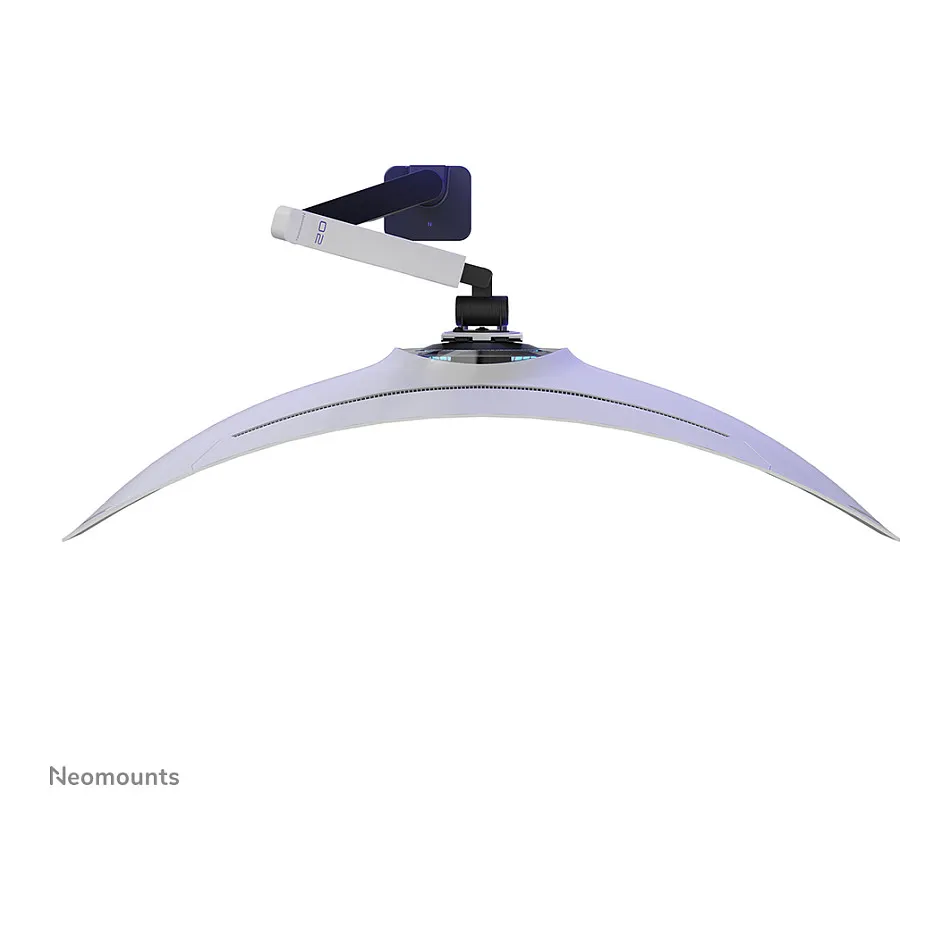

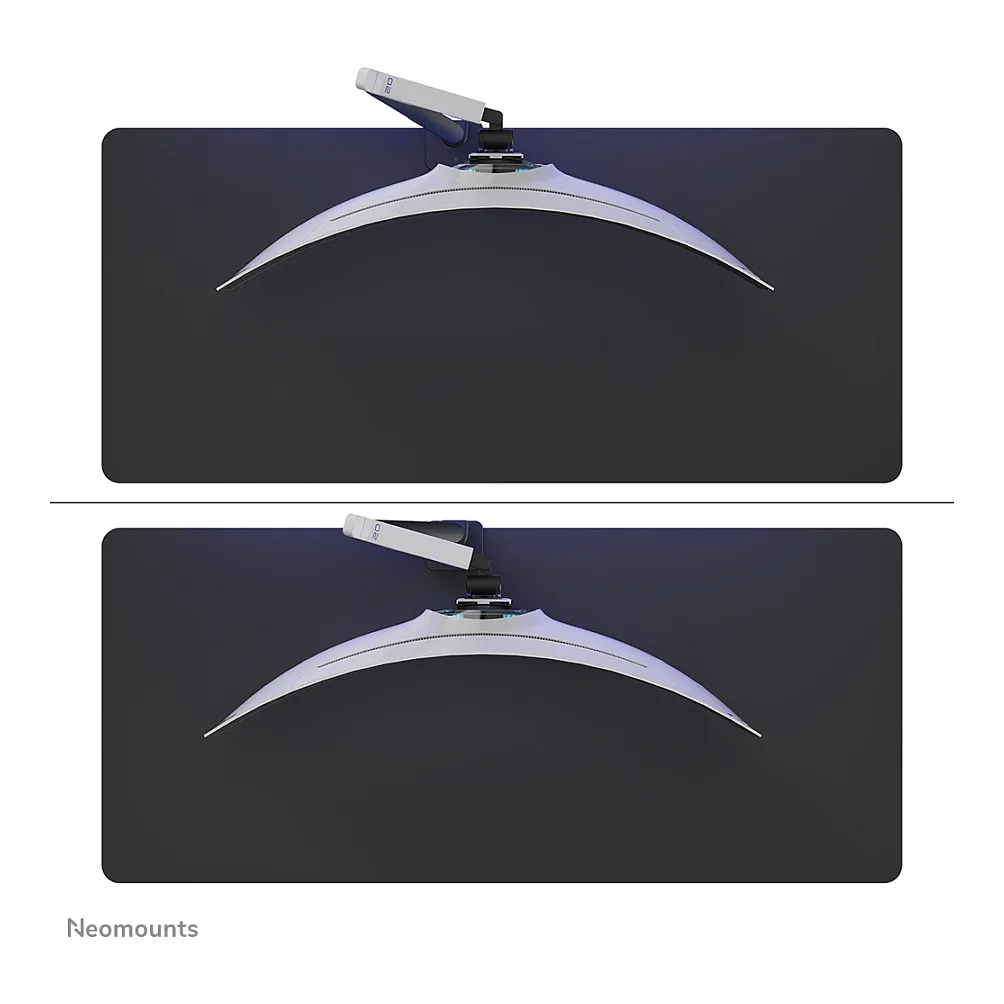

For added practicality, the DS70-256BL1 monitor arm includes a smart 180° stop mechanism to prevent contact with nearby walls, ideal for space-constrained installations. The Quick-release VESA system ensures easy monitor mounting, while the included topfix clamp and grommet offer fast and secure installation.
Whether you’re engaged in high-speed action, managing tactical operations, or streaming for hours, the full motion DS70-256BL1 ACE monitor arm empowers you with precision control, robust support, and optimum comfort so you can stay locked in and ahead of the competition.
Maximum weight capacity: 30 kg
Minimum screen size: 61 cm (24″)
Number of displays supported: 1
Maximum weight capacity (per display): 30 kg
Maximum weight capacity (per curved/ultra-wide display): 24 kg
Maximum screen size: 144.8 cm (57″)

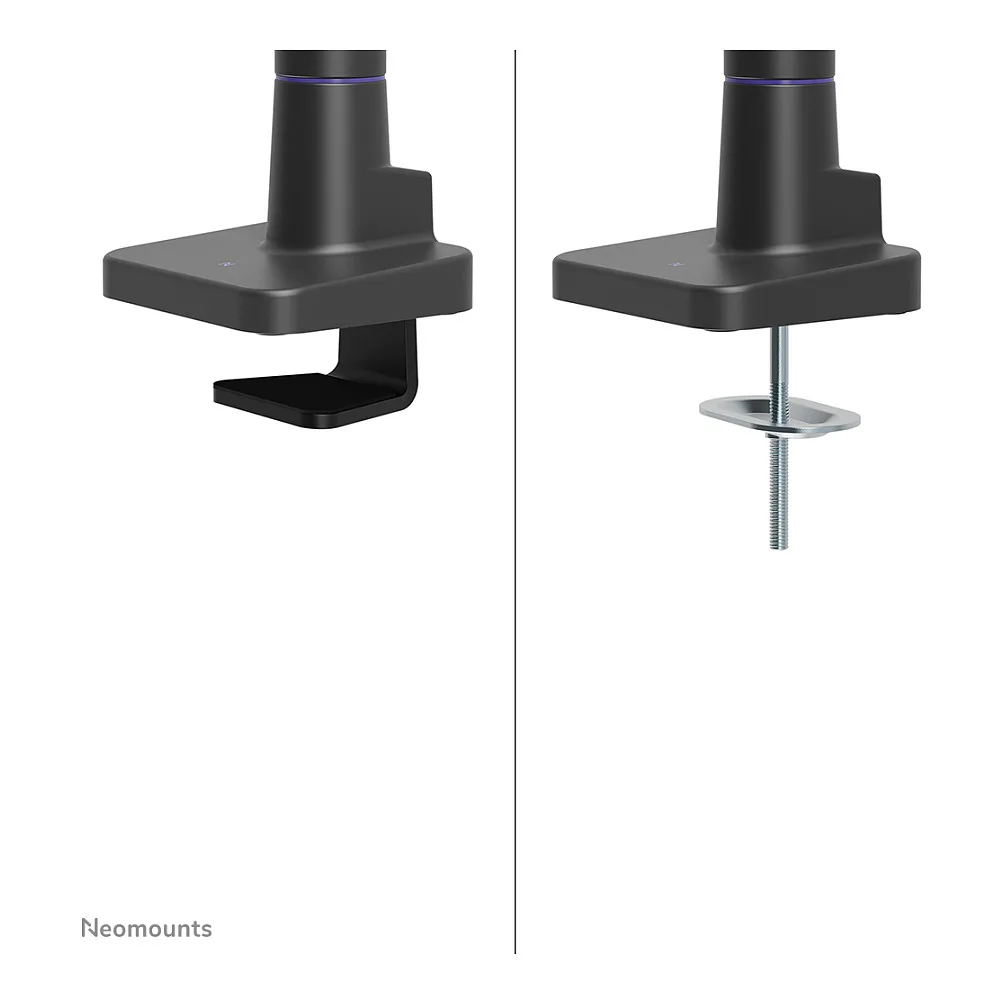

Mounting: Clamp/Grommet
Mounting type: Desk

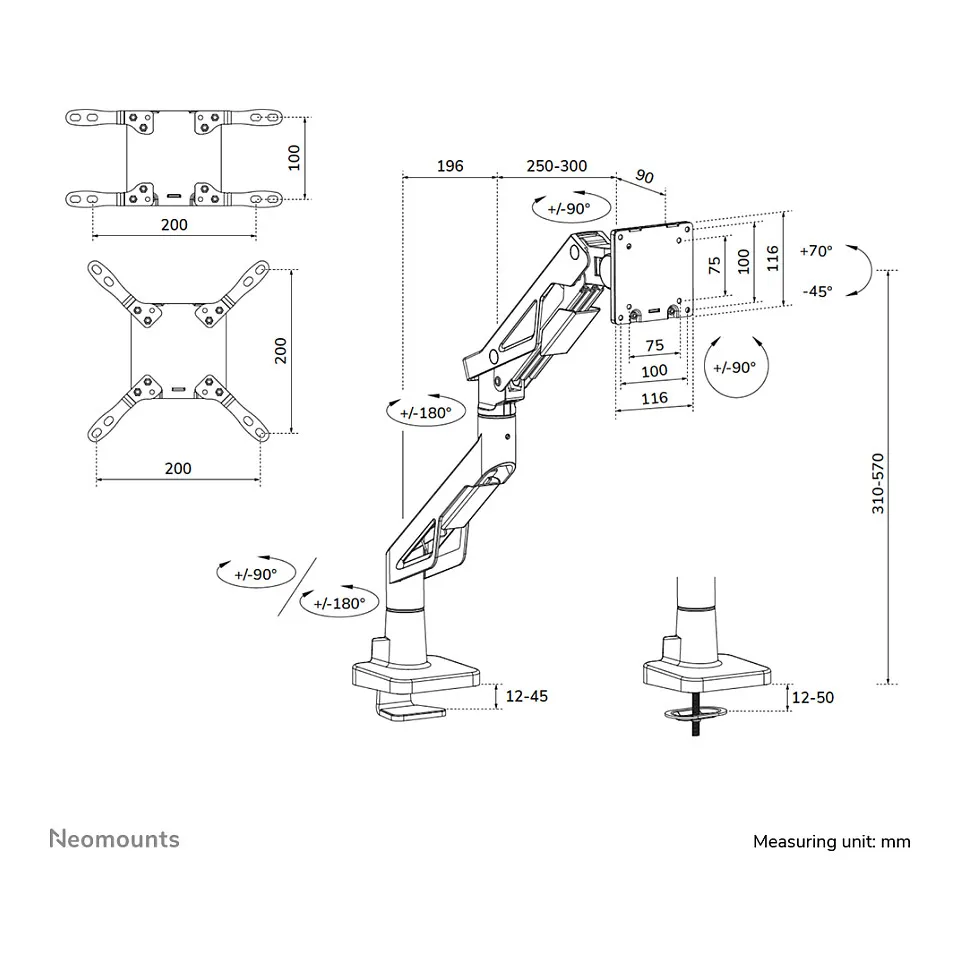

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 200,100 x 100,200 x 100,200 x 200,75 x 75
Desk thickness (min): 1.2 cm
Desk thickness (max): 4.5 cm
Distance to the wall (min): 12.3 cm
Distance to the wall (max): 61.9 cm
Ergonomics
Feature: Height adjustment

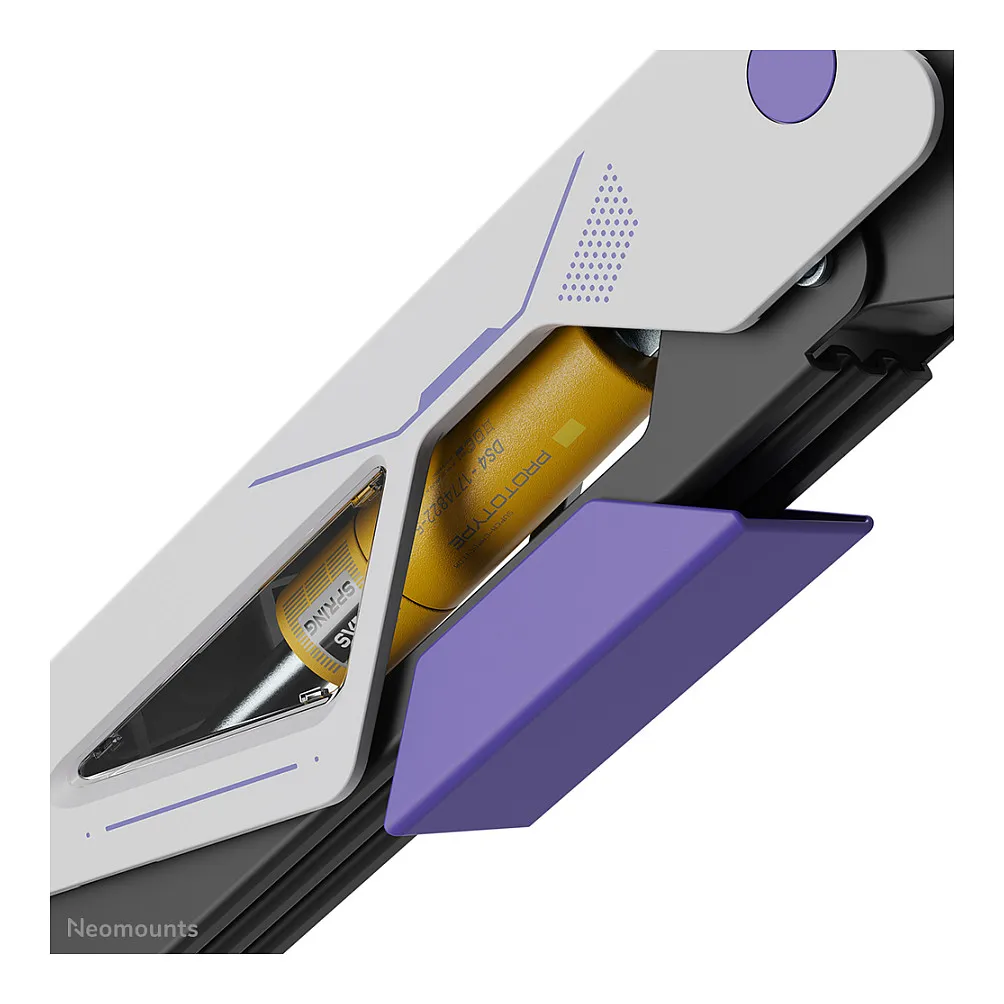

Height adjustment type: Gas spring
Height adjustment range: 310 – 570 mm
Feature: Adjustable depth
Depth adjustment range: 90 – 586 mm
Width adjustment: 99.2 cm
Tilt angle range: -45 – 70°
Feature: Swivelling
Swivel angle range: -90 – 90°
Feature: Rotating
Angle of rotation: 180°

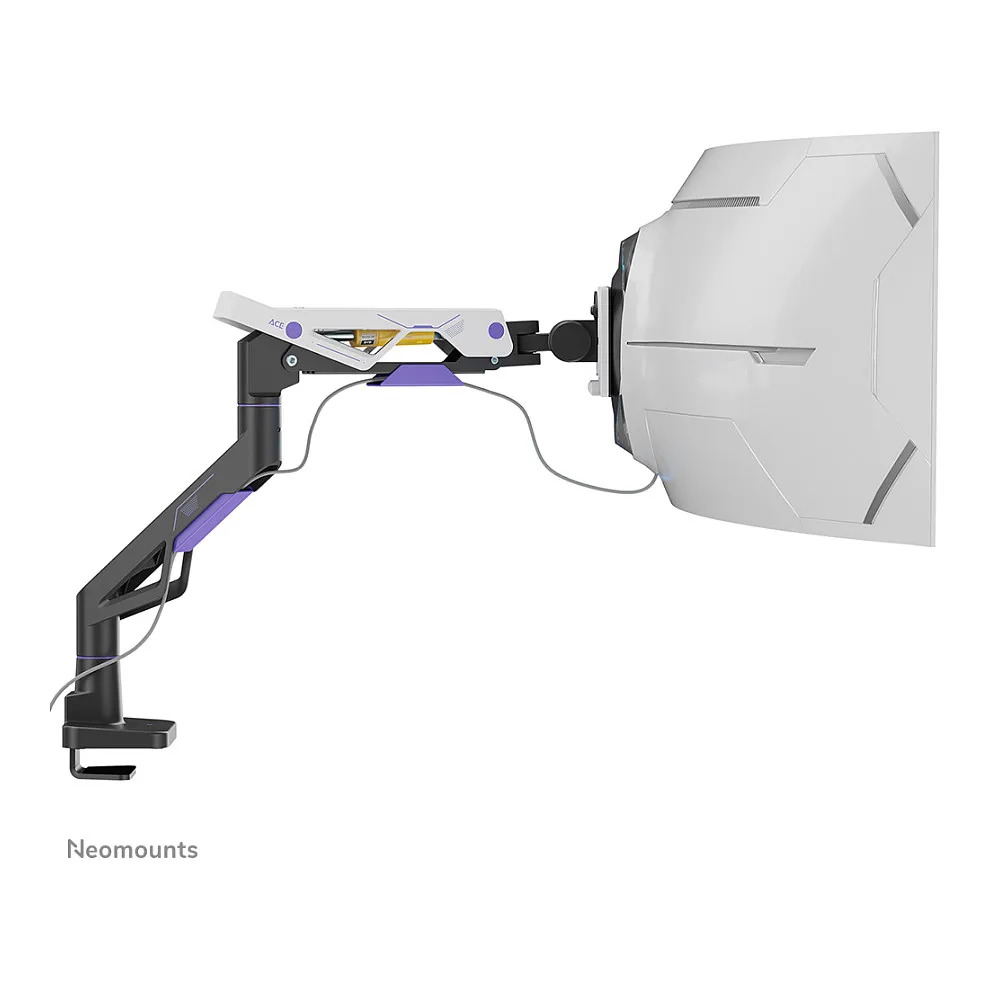

Feature: Cable management
Design
Housing material: Aluminium
Product colour: Black
Weight & dimensions
Width: 130 mm
Depth: 123 mm
Height: 675 mm
Weight: 4.7 kg
Packaging data
Package width: 155 mm
Package depth: 143 mm
Package height: 423 mm
Package weight: 5.2 kg
Other features
Minimum weight: 2 kg
Width adjustment range: 0 – 992 mm
Warranty period: 5 year(s)
Logistics data
Master (outer) case width: 356 mm
Master (outer) case length: 290 mm
Master (outer) case height: 510 mm
Master (outer) case gross weight: 17.6 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 14.2 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 100 pc(s)
