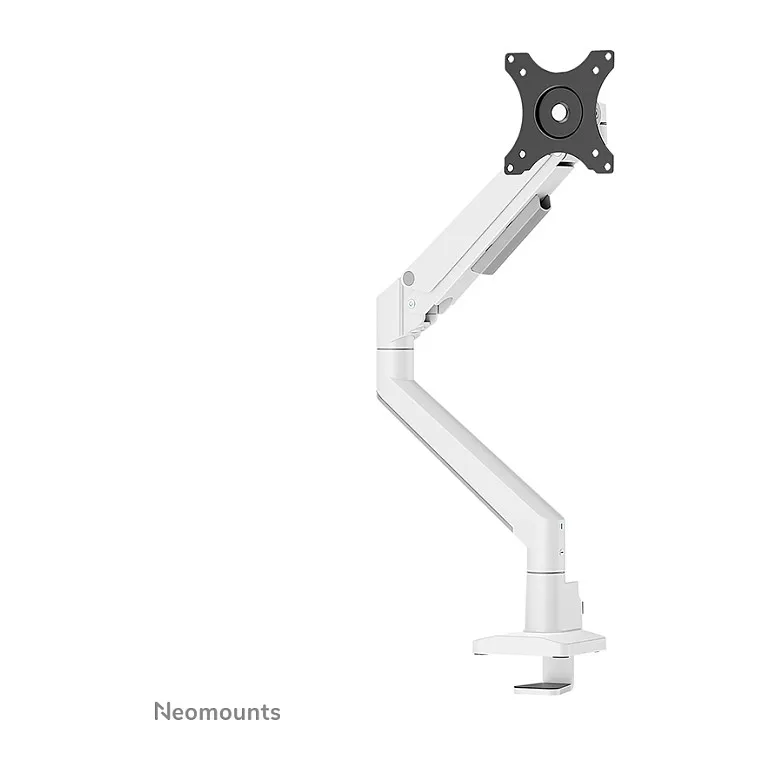

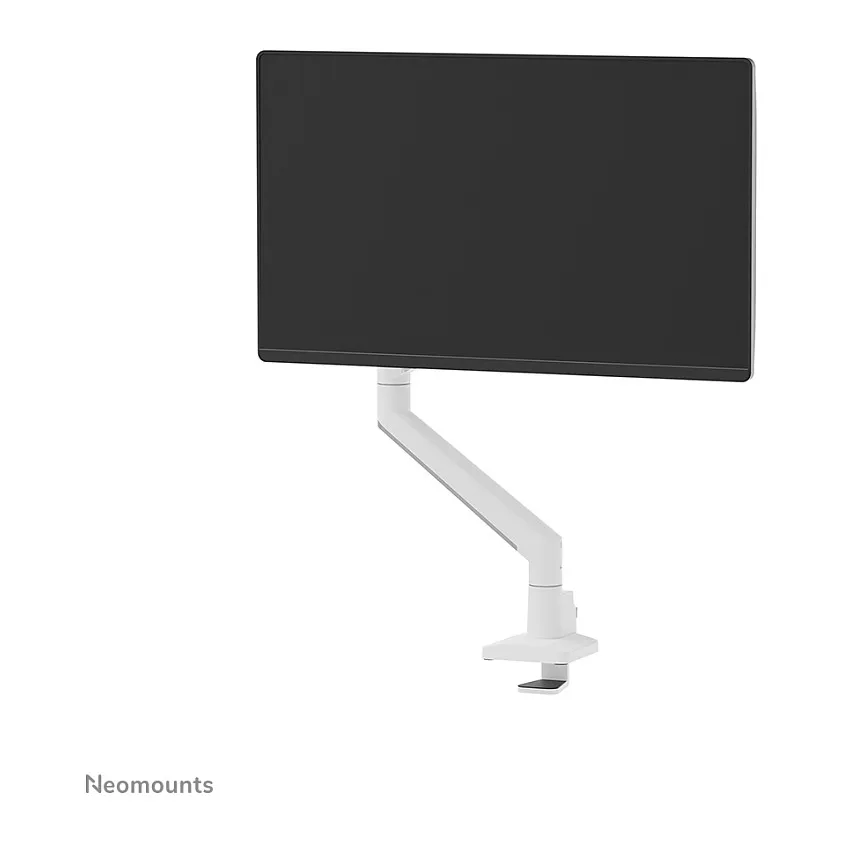

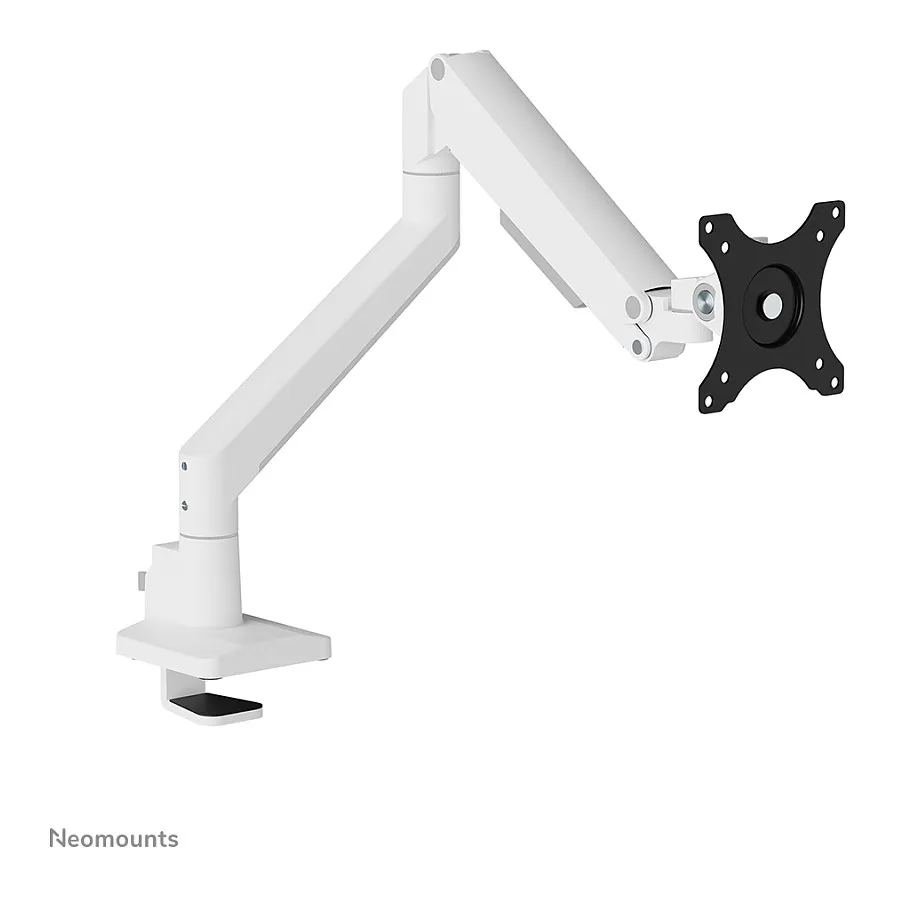

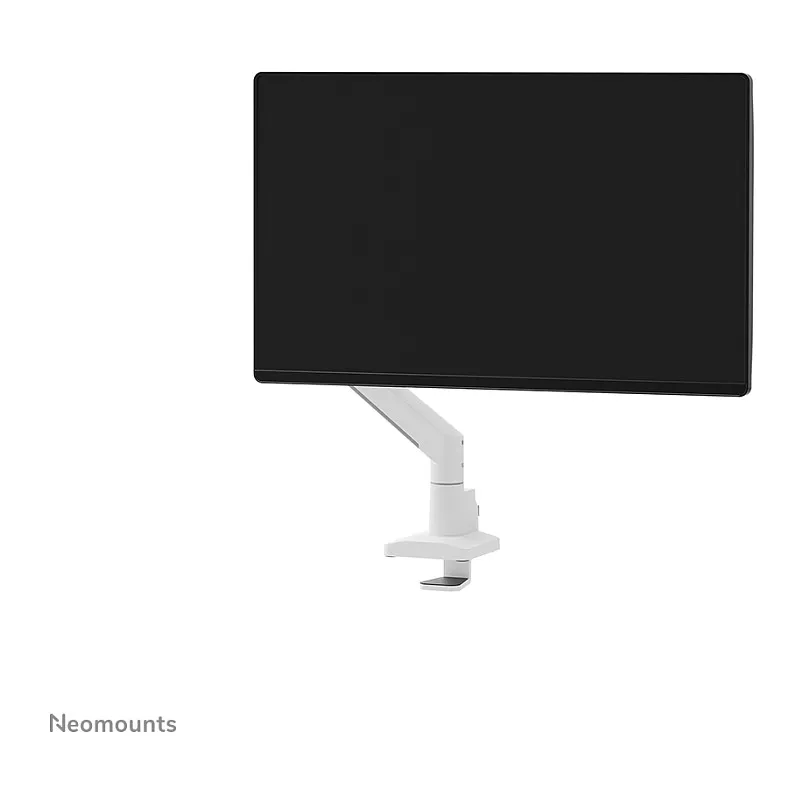

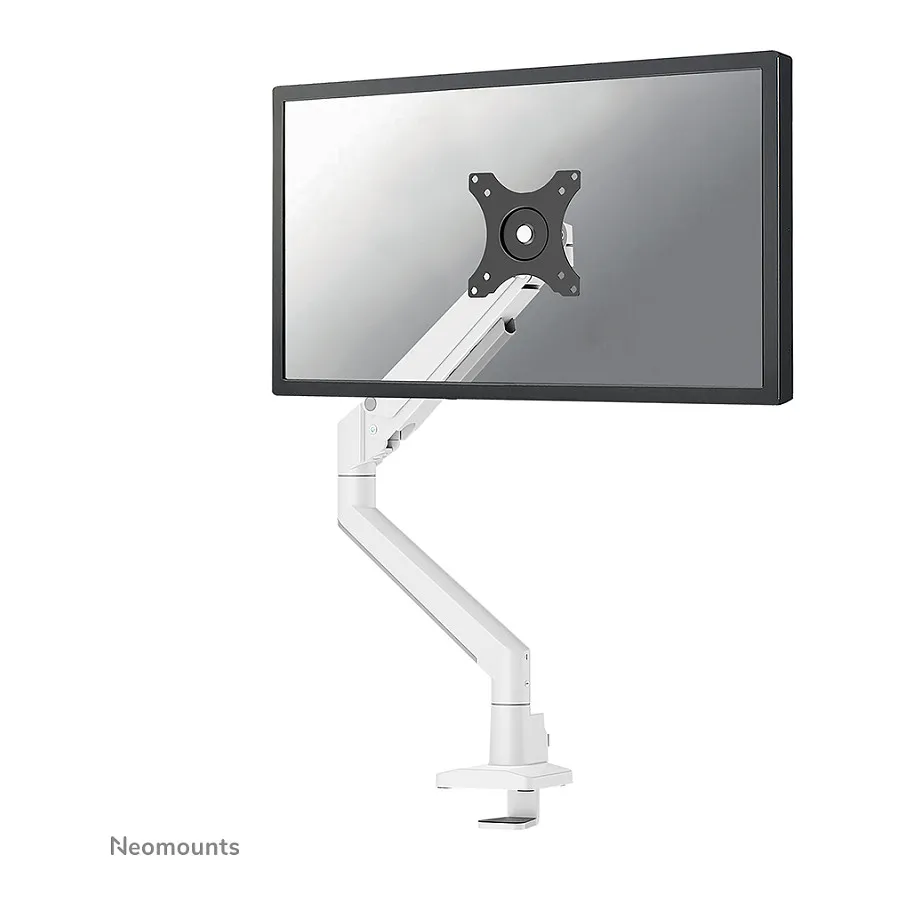

Neomounts DS70-250WH1 Monitor arm 17-35" – gas spring – Topfix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -45 – 45°. Product colour: White

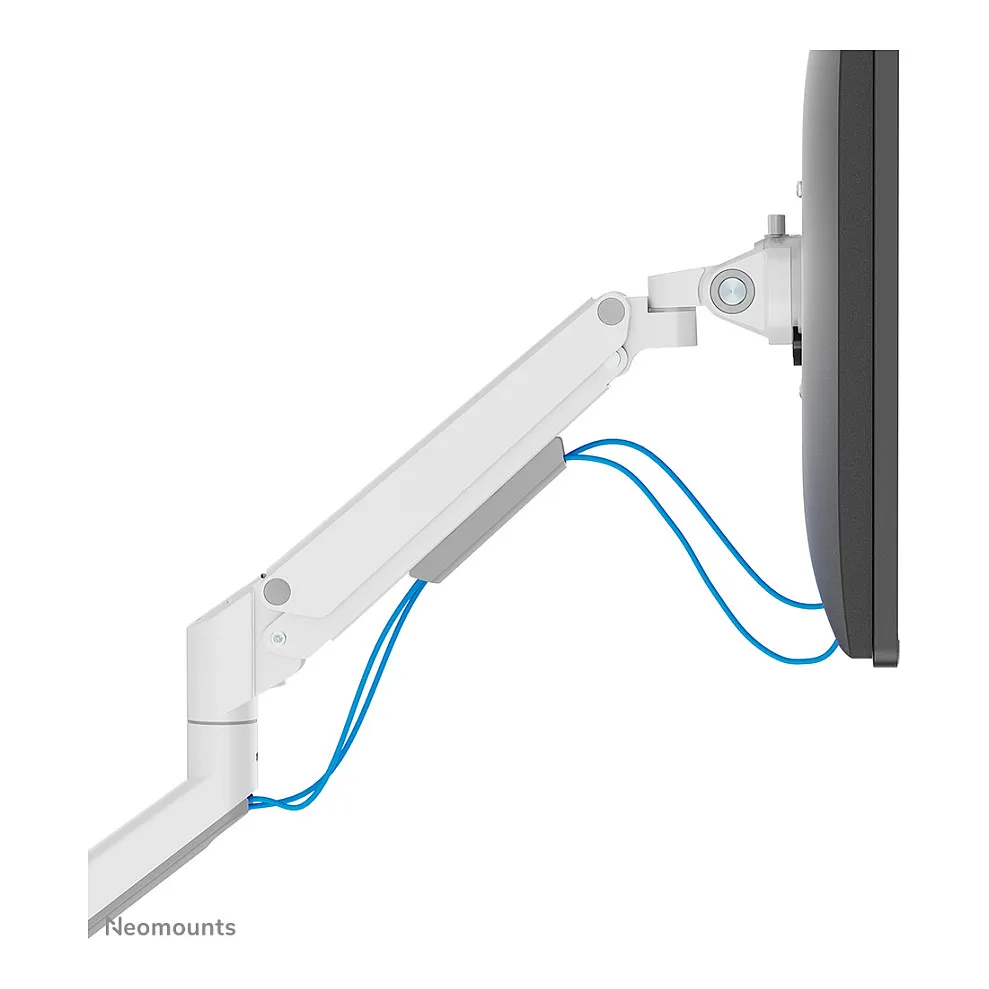

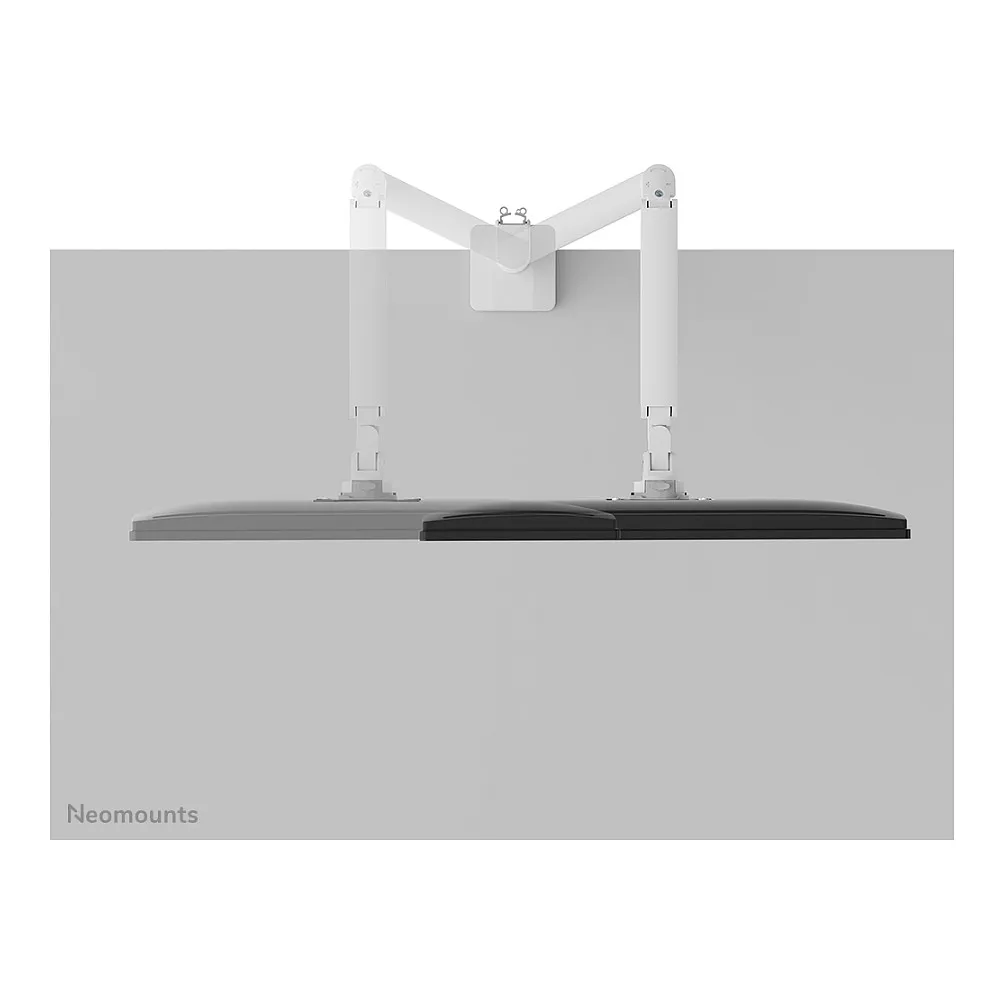

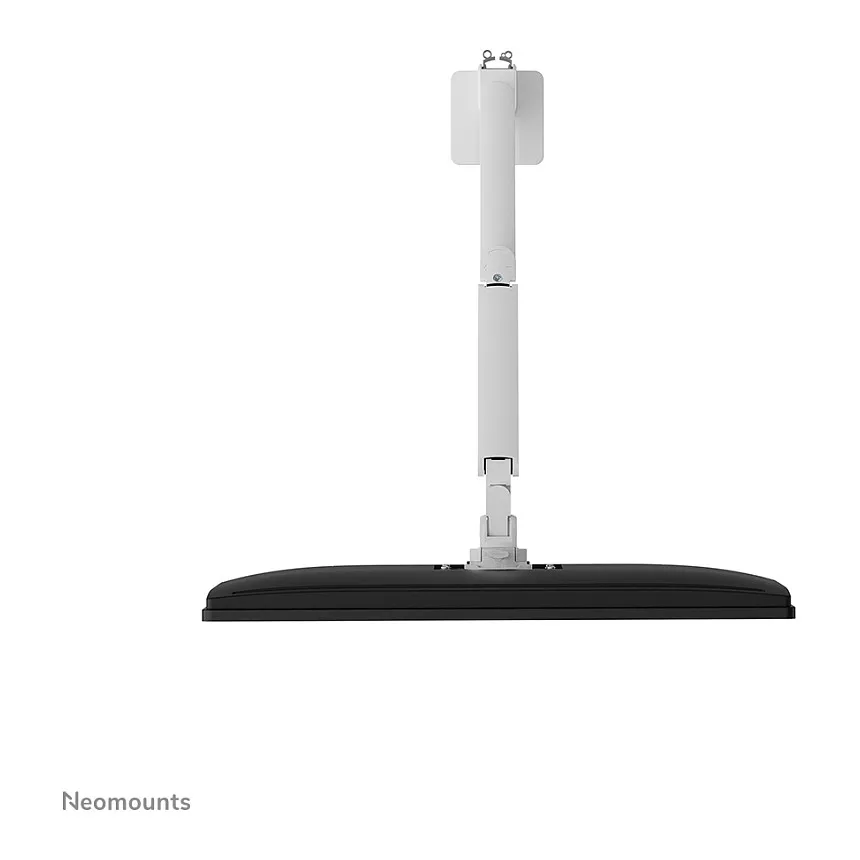

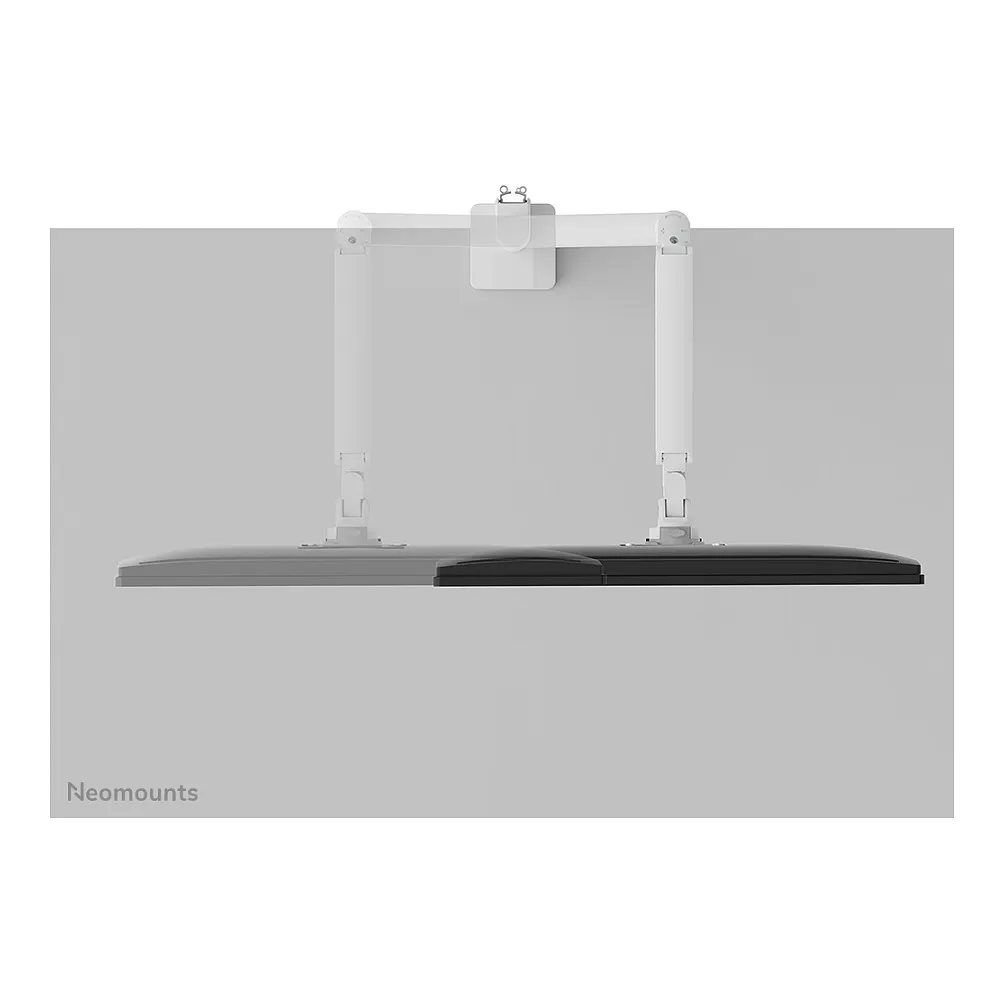

The DS70-250WH1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

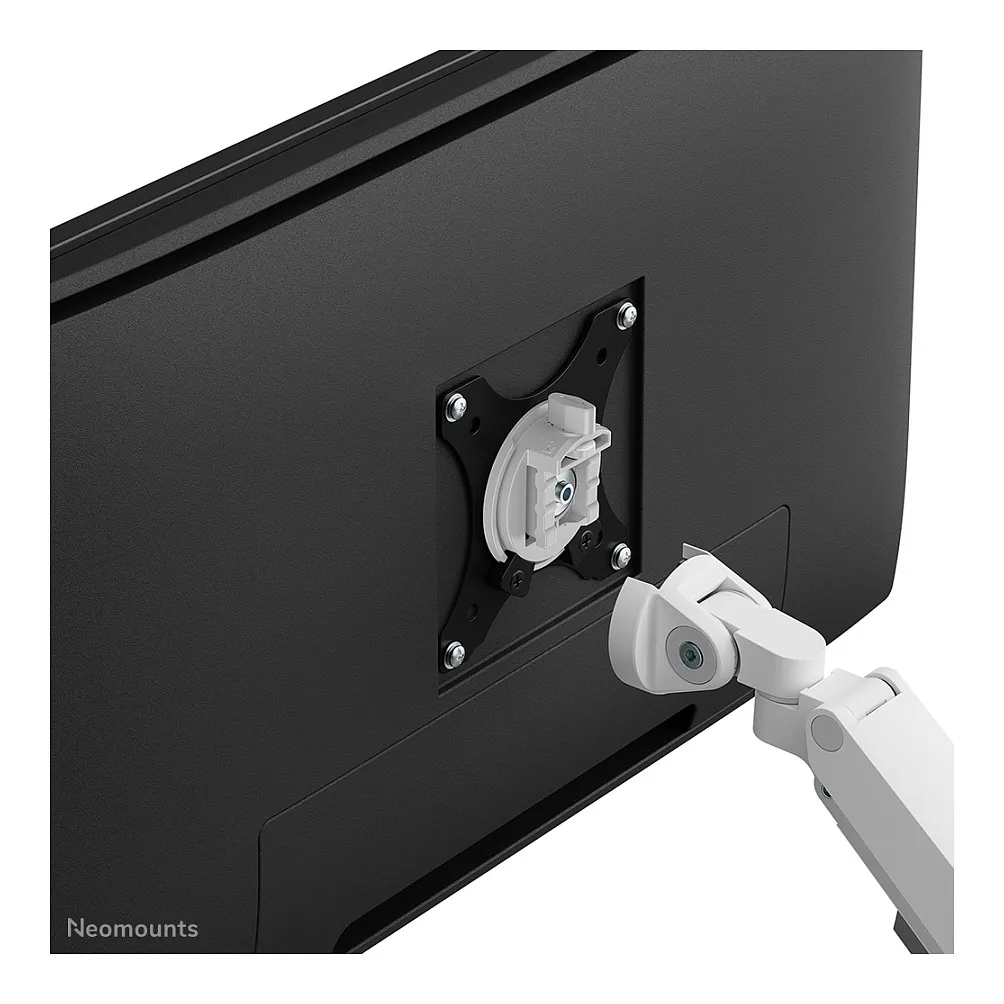

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75×75 or 100×100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.
Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17″)
Number of displays supported: 1
Maximum weight capacity (per display): 9 kg
Maximum weight capacity (per curved/ultra-wide display): 8 kg
Maximum screen size: 88.9 cm (35″)
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5 cm
Distance to the wall (min): 12.5 cm
Distance to the wall (max): 58 cm
Ergonomics

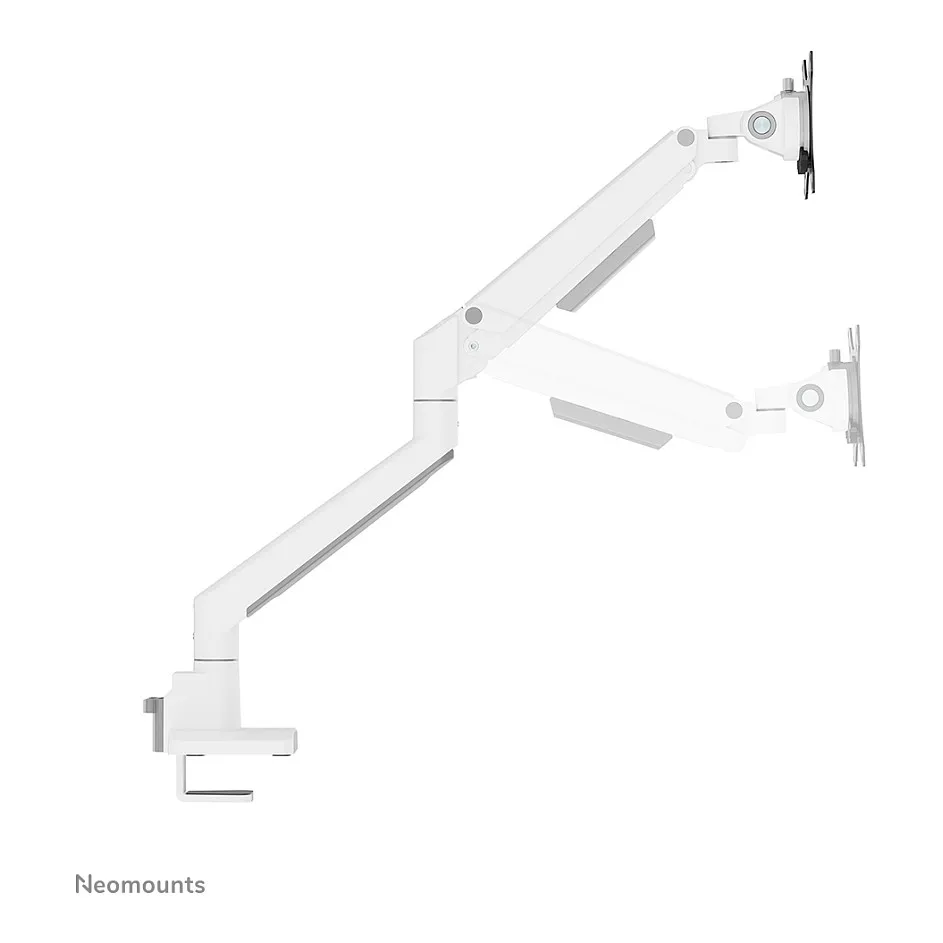

Feature: Height adjustment
Height adjustment type: Gas spring

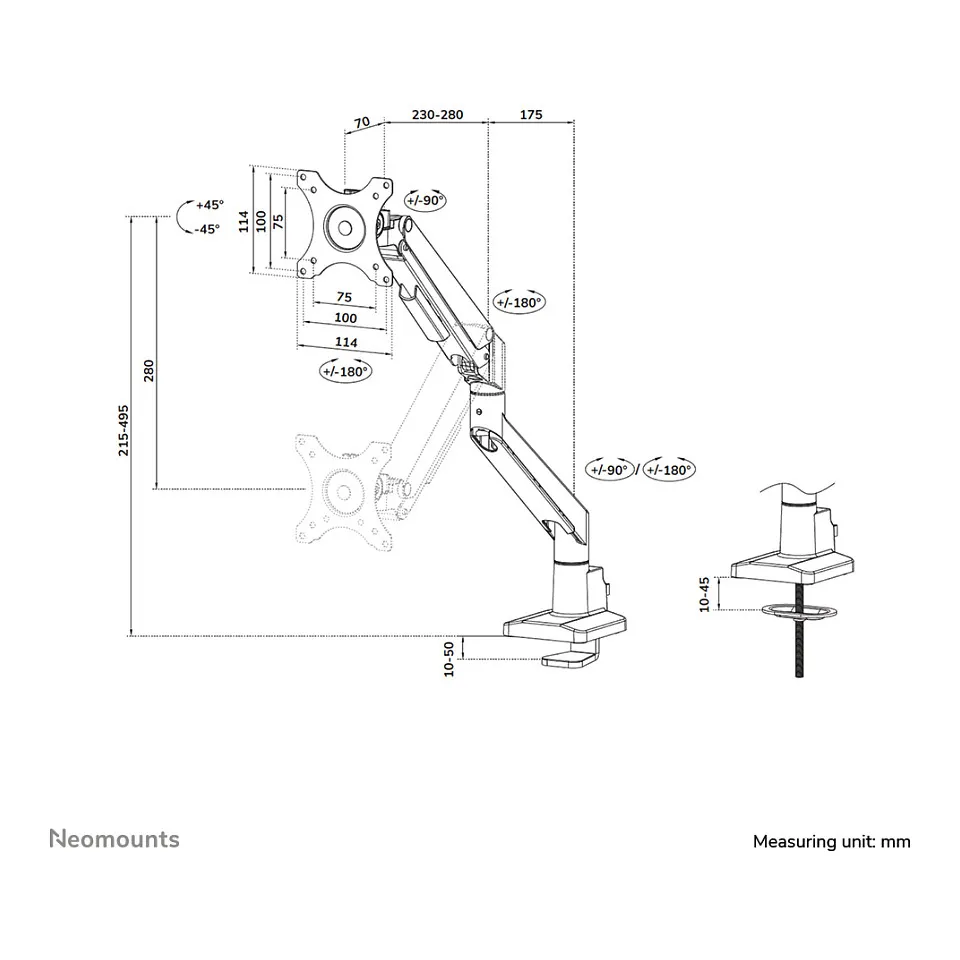

Height adjustment range: 215 – 495 mm
Feature: Adjustable depth
Depth adjustment range: 70 – 525 mm
Width adjustment: 91 cm

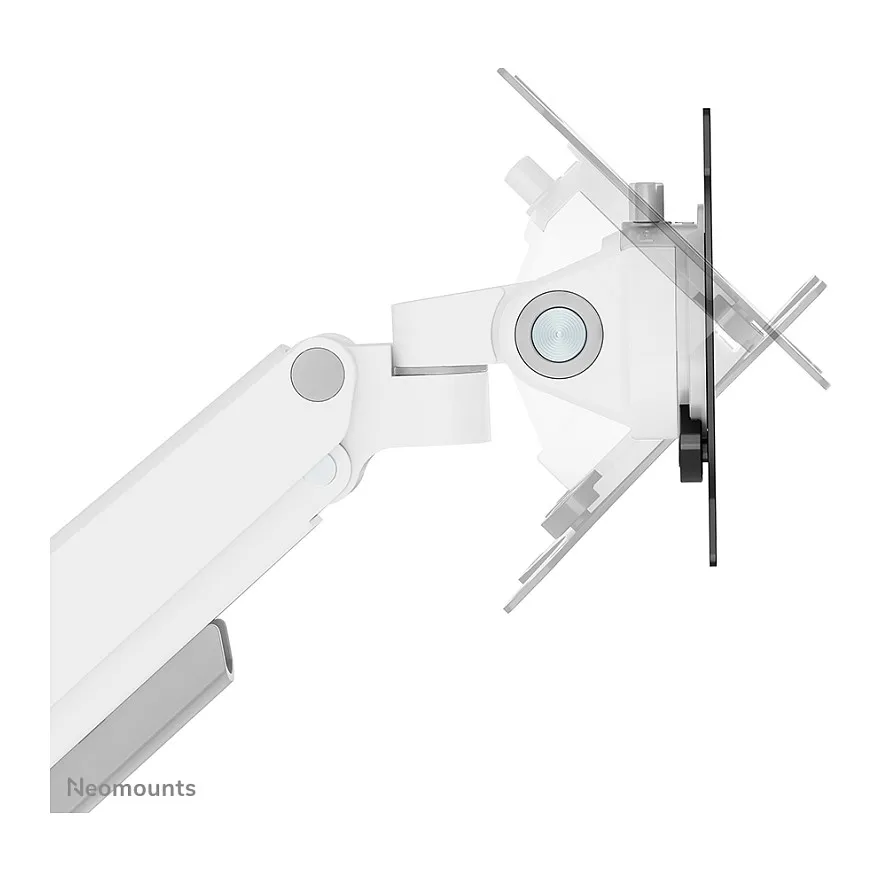

Feature: Tilt adjustment
Tilt angle range: -45 – 45°
Feature: Swivelling
Swivel angle range: -90 – 90°

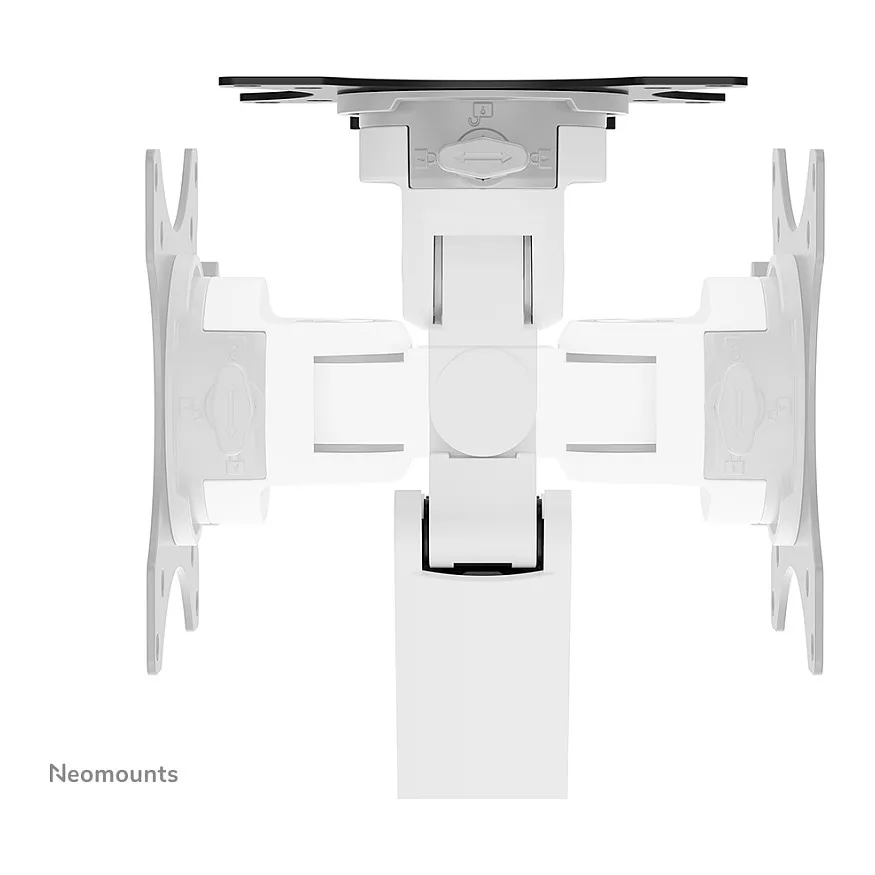

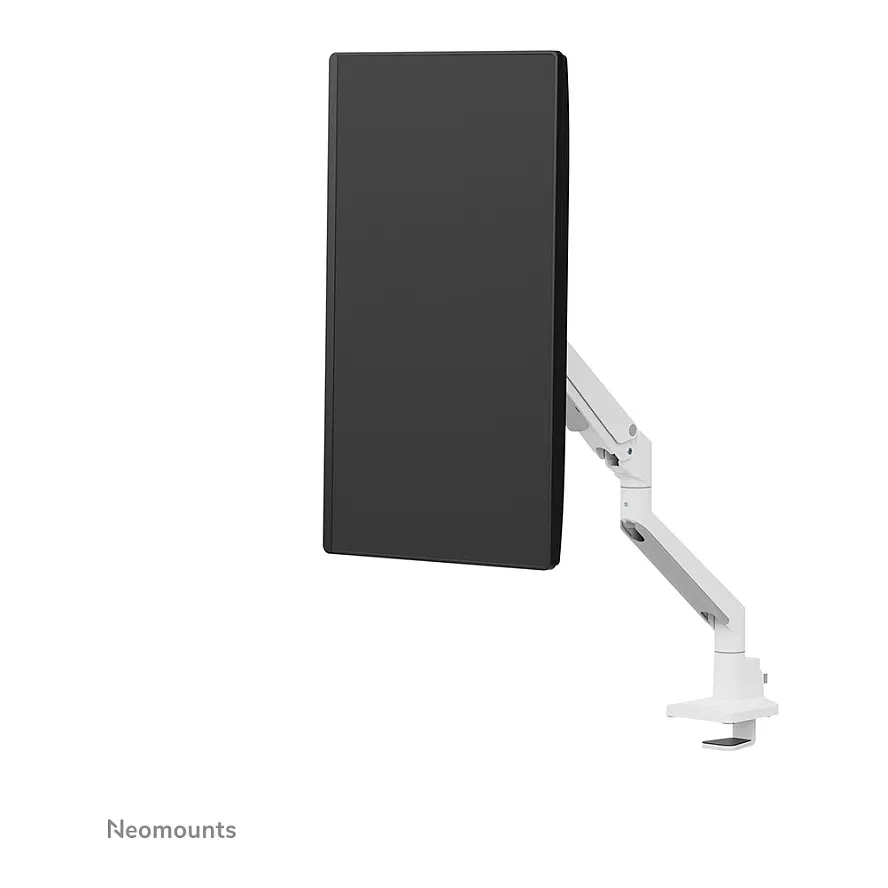

Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 – 180°
Feature: Cable management
Design
Housing material: Aluminium
Product colour: White
Weight & dimensions
Width: 114 mm
Depth: 580 mm
Height: 552 mm
Weight: 2.3 kg
Packaging data
Package width: 198 mm
Package depth: 108 mm
Package height: 428 mm
Package weight: 2.9 kg
Other features
Minimum weight: 1 kg
Width adjustment range: 0 – 910 mm
Warranty period: 5 year(s)
Logistics data
Master (outer) case width: 410 mm
Master (outer) case length: 345 mm
Master (outer) case height: 445 mm
Master (outer) case gross weight: 18.3 kg
Products per master (outer) case: 6 pc(s)
Country of origin: China
Master (outer) case net weight: 13.8 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 84 pc(s)
