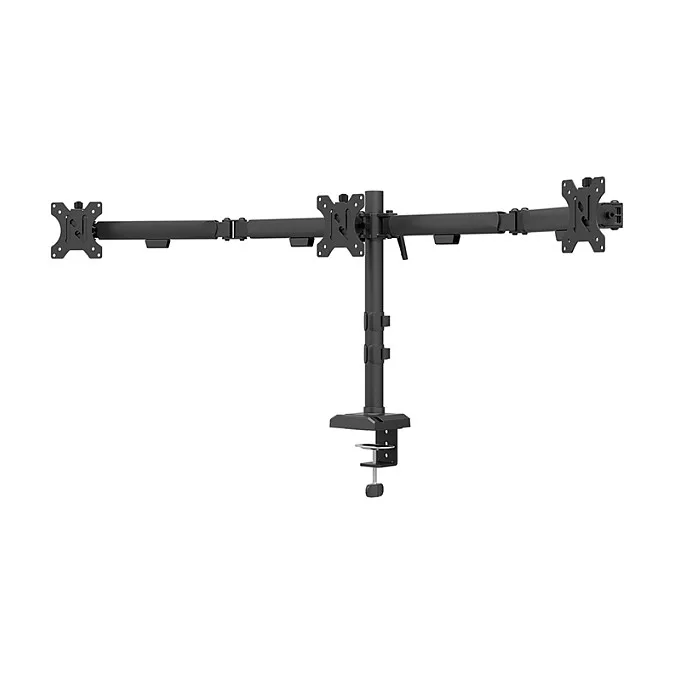

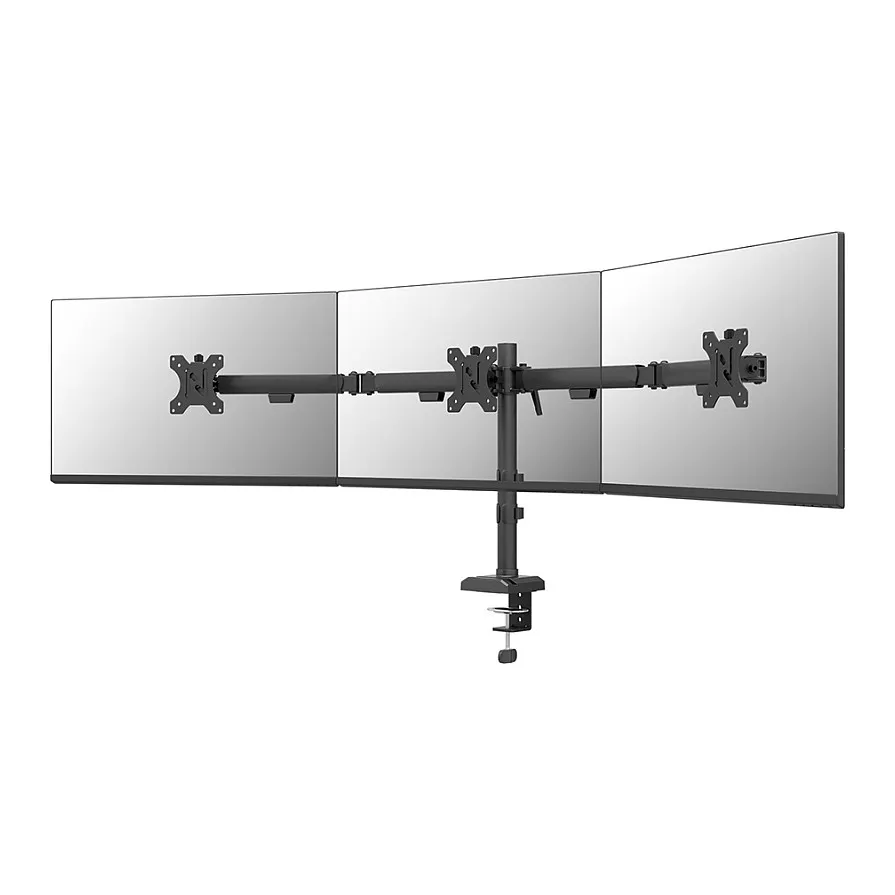

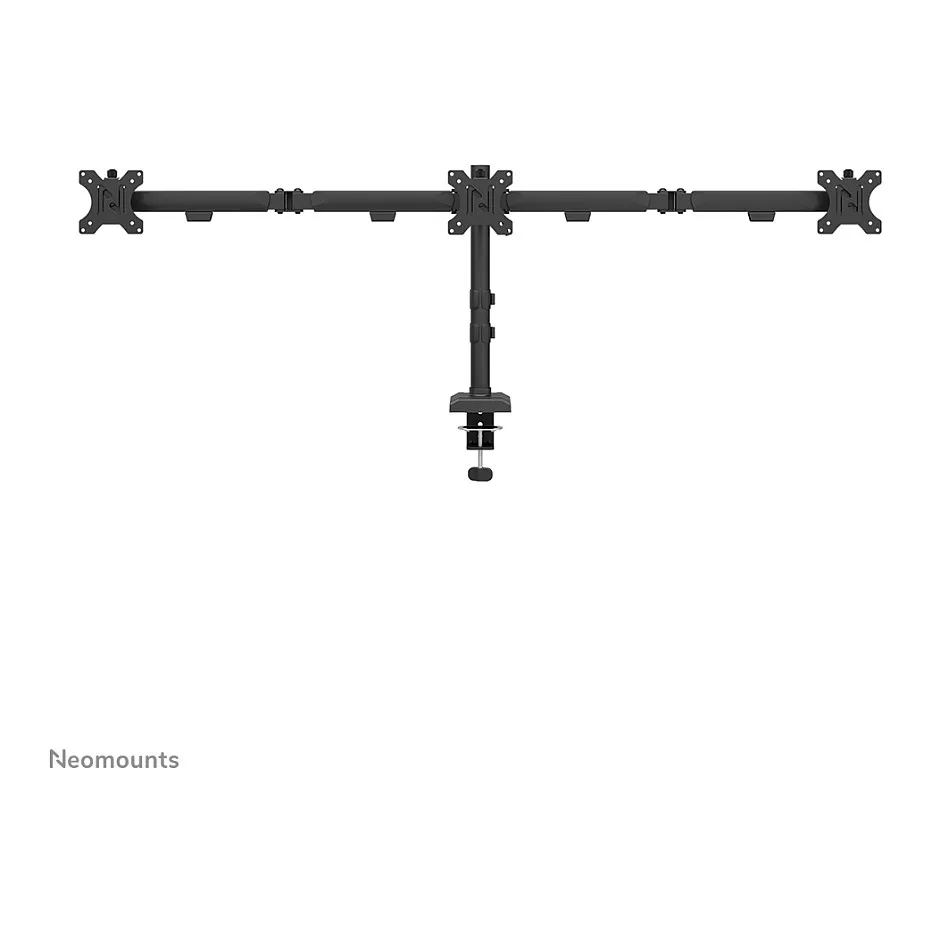

Neomounts DS60-600BL3 Monitor arm 10-27" – Quick-fix – 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 6 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 – 90°, Tilt angle range: -45 – 45°. Product colour: Black

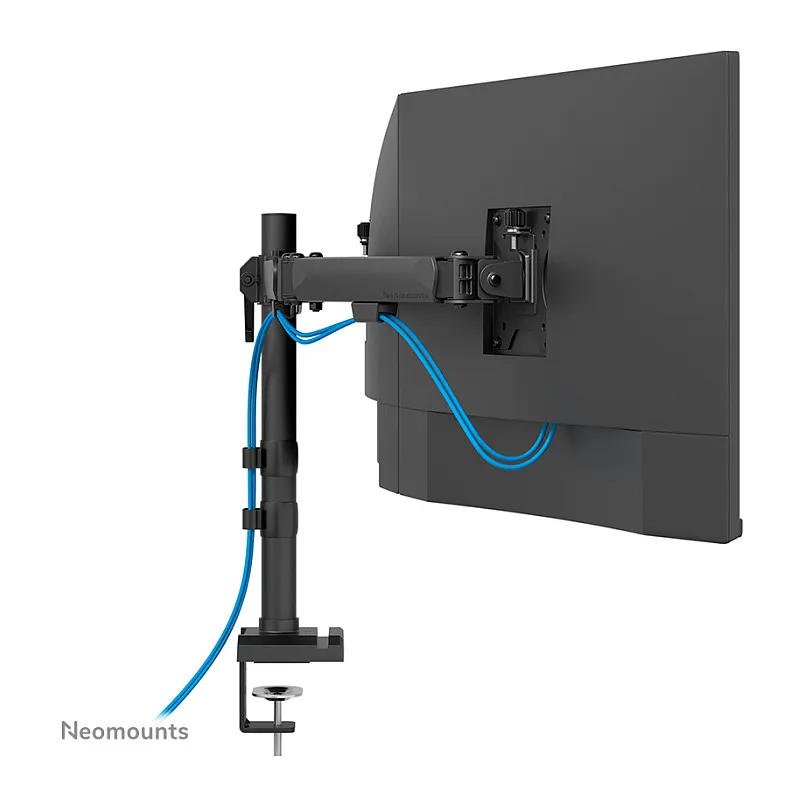

The NERO desk mount features manual height and depth adjustment, allowing you to adjust your workspace completely to your liking. In addition, the clever 180° stop mechanism prevents the mount from making contact with the wall or separation panel when installed near it. The welded base guarantees optimal stability and sturdiness. The practical cable management system ensures neat routing of cables. In addition, the base of the DS60-600BL3 provides a convenient space to place a phone, for a tidy desk.

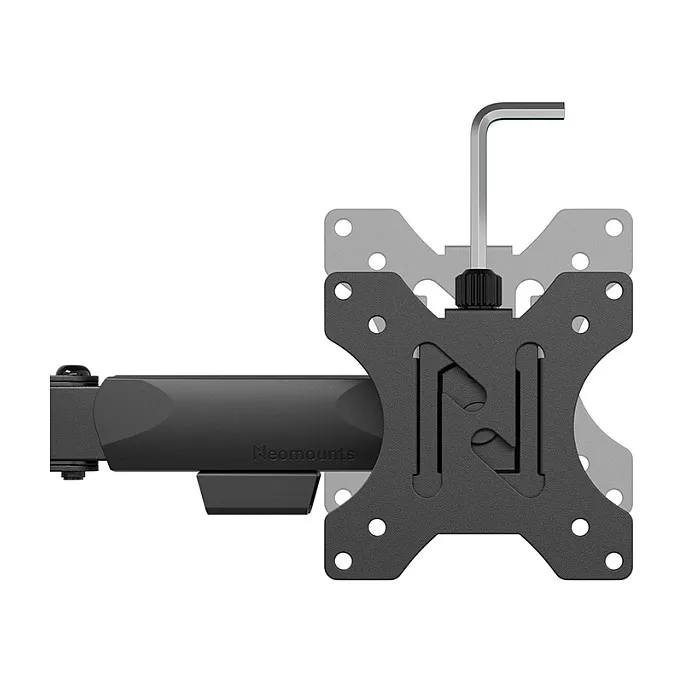

The DS60-600BL3 is suitable for screens that meet pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. For a seamless connection of the screens, the micro-adjustment function can be used.

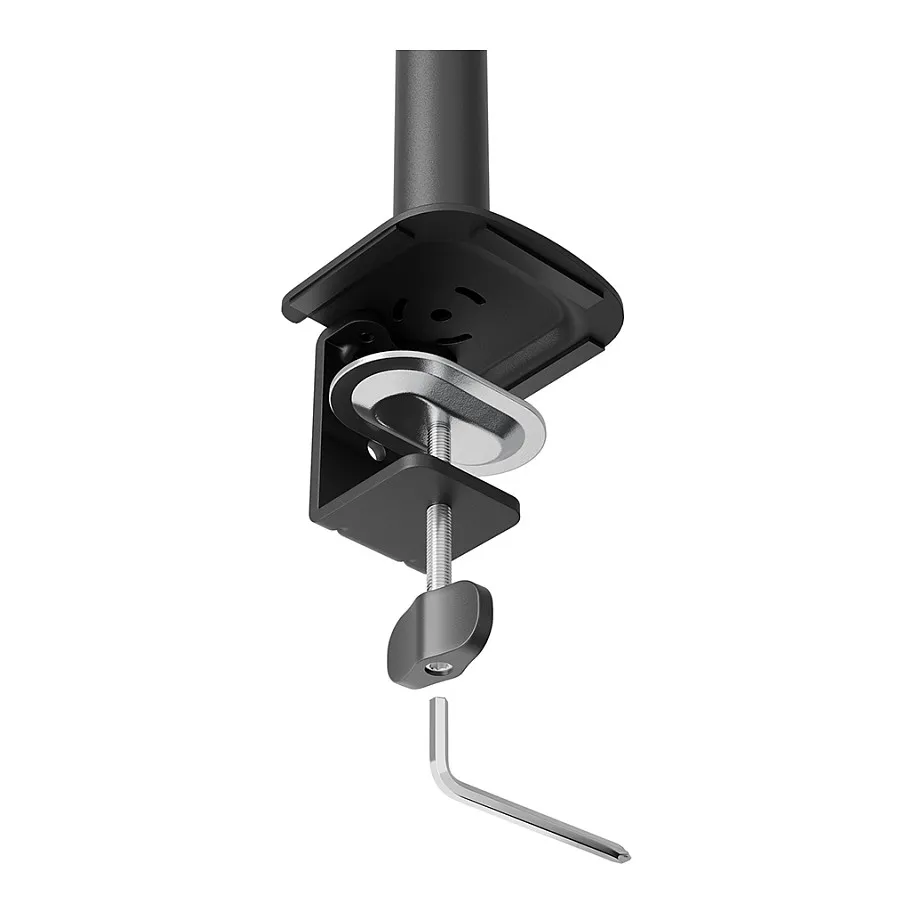

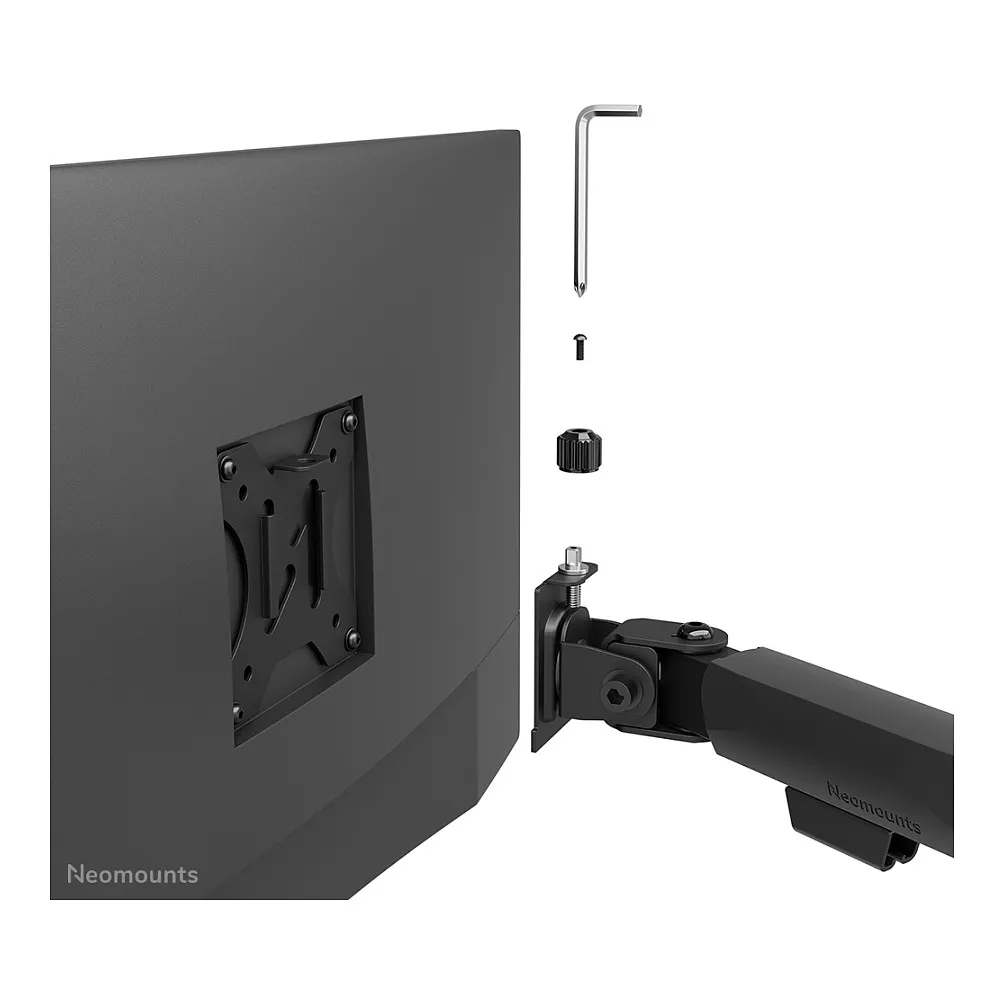

Installation of the NERO is quick and easy. The Easy-release system makes it easy to attach or detach the screen. Additionally, fixing the clamp to the desk only takes a few actions and, in addition to manual installation, can also be installed using an Allen key or drill for even faster installation. The NERO monitor arm’s quick-span lever also allows for easy adjustment of the arm’s height without additional tools.
With sustainability in mind, the packaging of the NERO monitor arms is 100% plastic-free and made entirely of recyclable cardboard and paper.
Maximum weight capacity: 6 kg
Minimum screen size: 25.4 cm (10″)
Number of displays supported: 3
Maximum weight capacity (per display): 6 kg
Maximum screen size: 68.6 cm (27″)

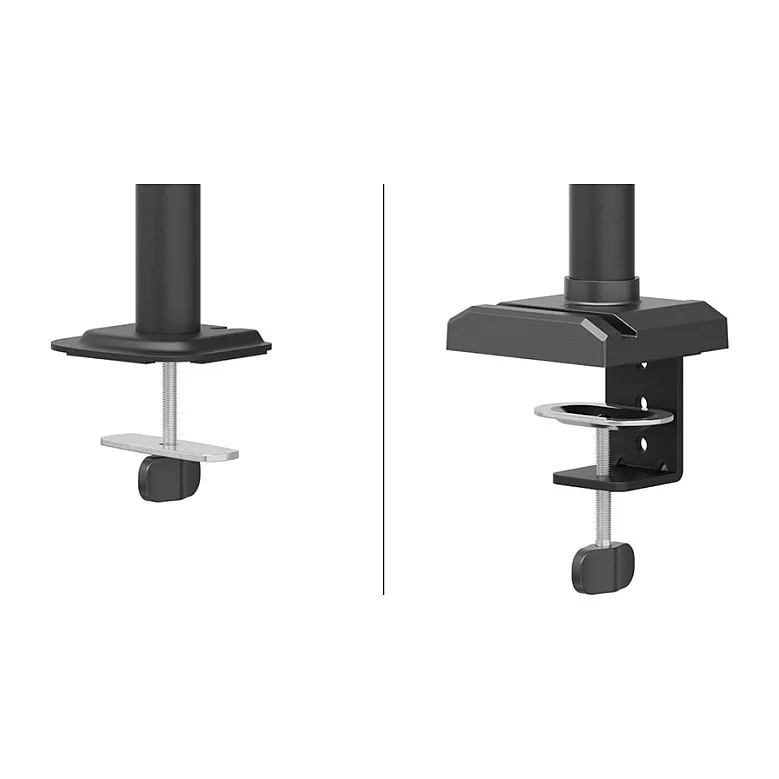

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5 cm
Clamp mount desk thickness (max): 5 cm
Grommet mount desk thickness (max): 5 cm
Distance to the wall (min): 13.7 cm
Distance to the wall (max): 60.1 cm

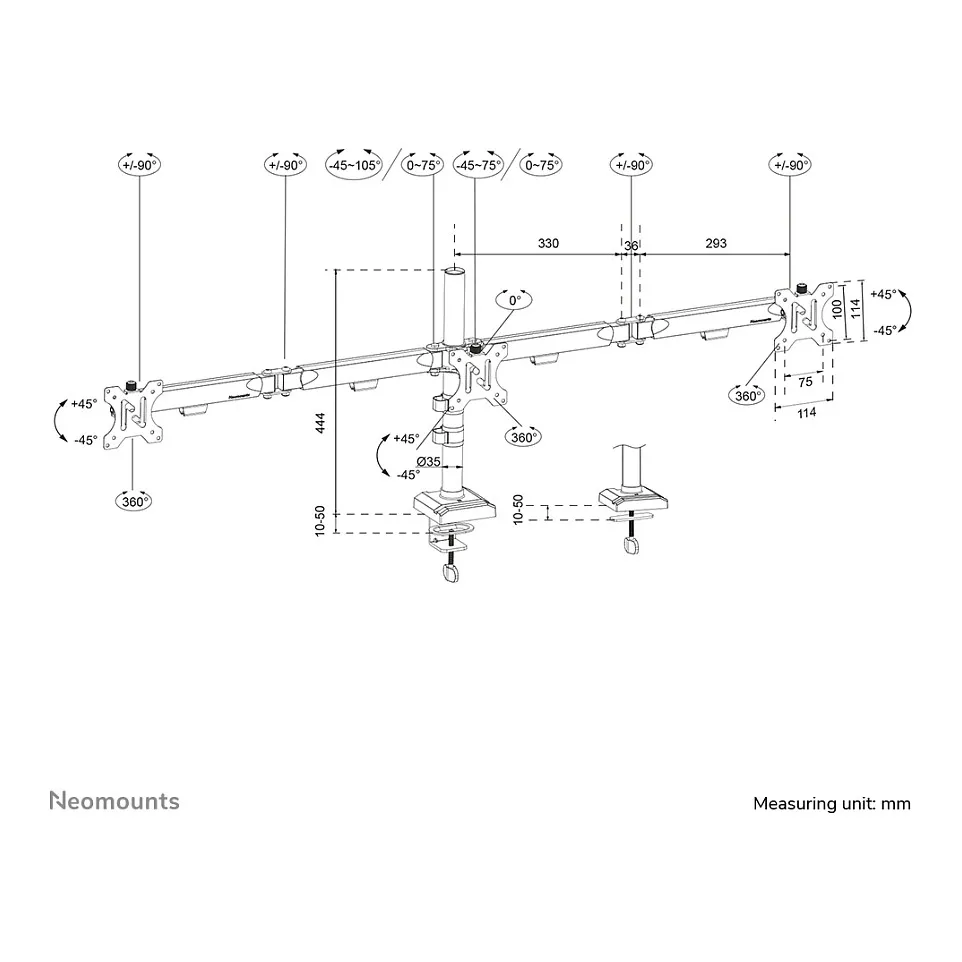

Ergonomics
Feature: Height adjustment

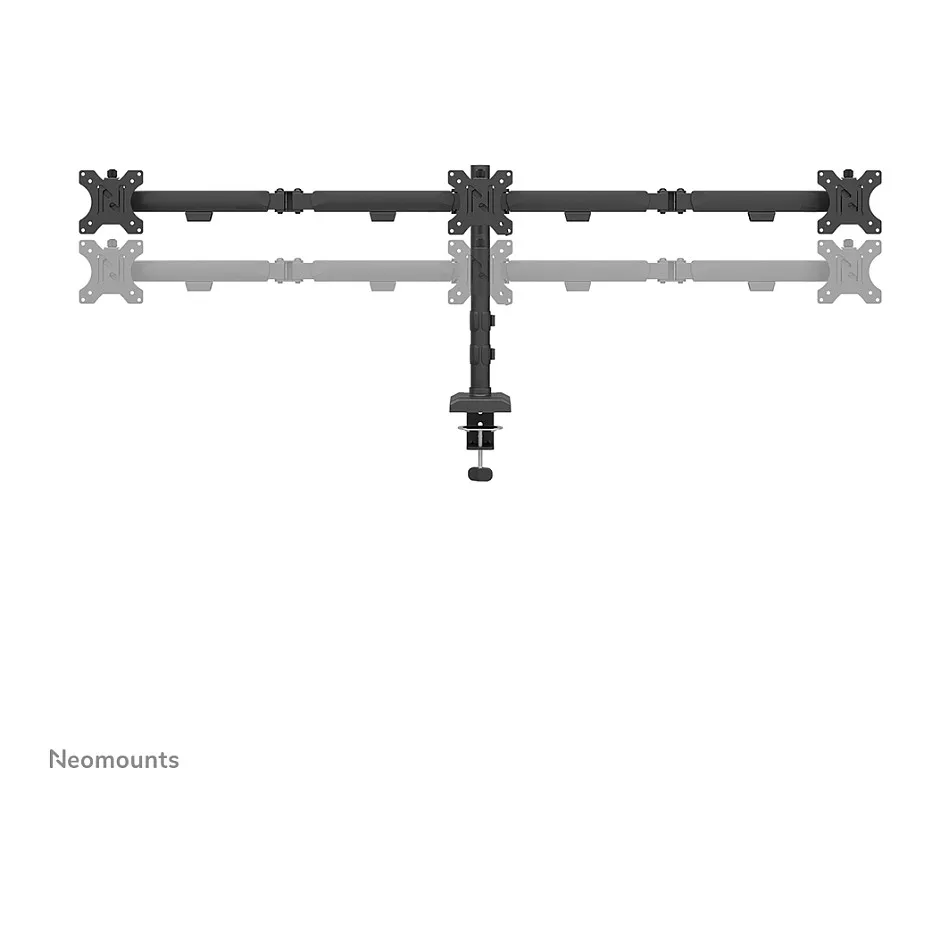

Height adjustment range: 140 – 400 mm
Feature: Adjustable depth
Depth adjustment range: 137 – 601 mm
Width adjustment: 65.5 cm
Feature: Tilt adjustment
Tilt angle range: -45 – 45°
Feature: Swivelling
Swivel angle range: -90 – 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 – 180°
Feature: Cable management
Design
Housing material: Steel
Product colour: Black
Weight & dimensions
Width: 1424 mm
Depth: 137 mm
Height: 450 mm
Weight: 4.81 kg
Packaging data
Package width: 322 mm
Package depth: 124 mm
Package height: 505 mm
Package weight: 5.3 kg
Other features
Width adjustment range: 0 – 655 mm
Warranty period: 5 year(s)
Logistics data
Master (outer) case width: 520 mm
Master (outer) case length: 340 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 11.2 kg
Products per master (outer) case: 2 pc(s)
Country of origin: China
Master (outer) case net weight: 10.6 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 48 pc(s)
