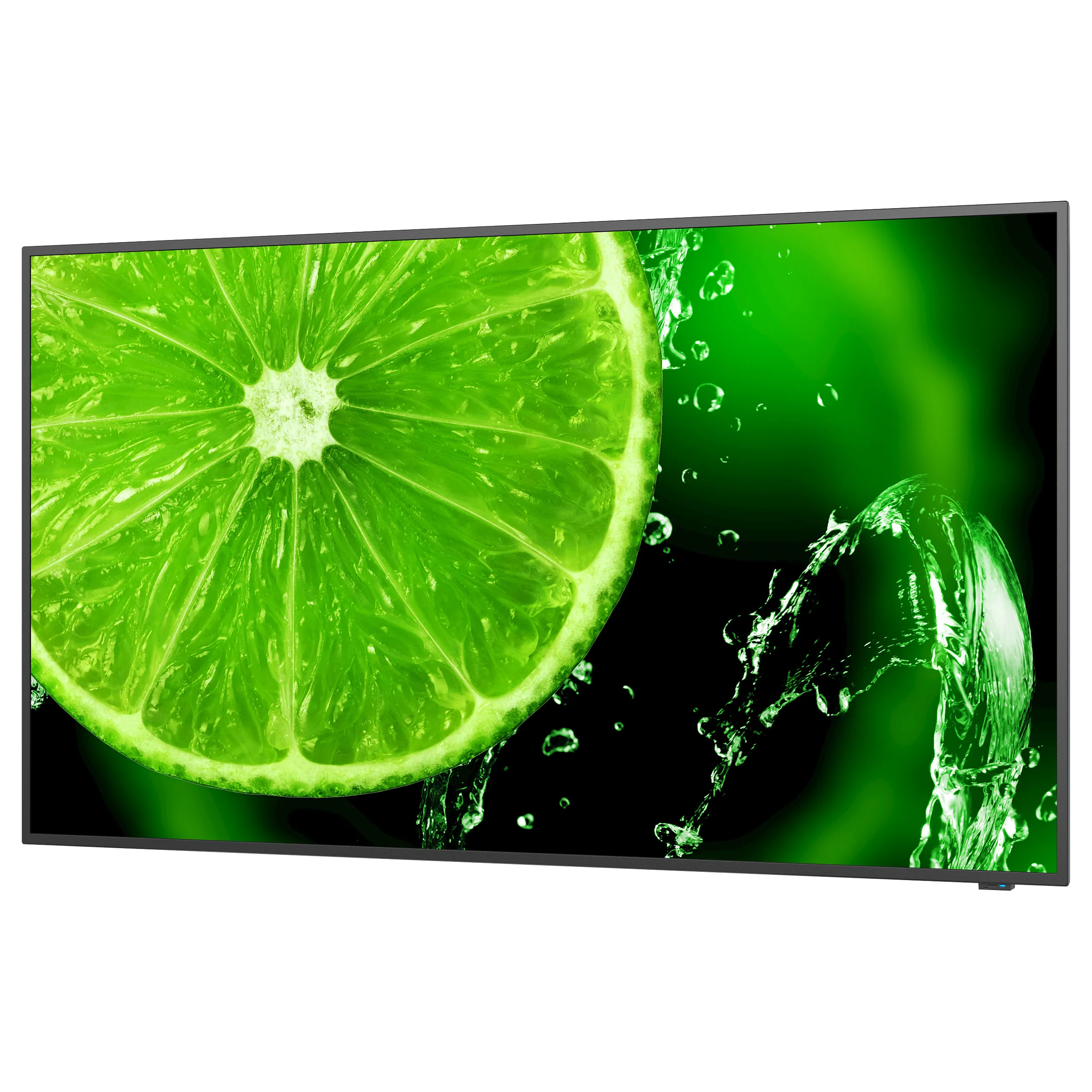

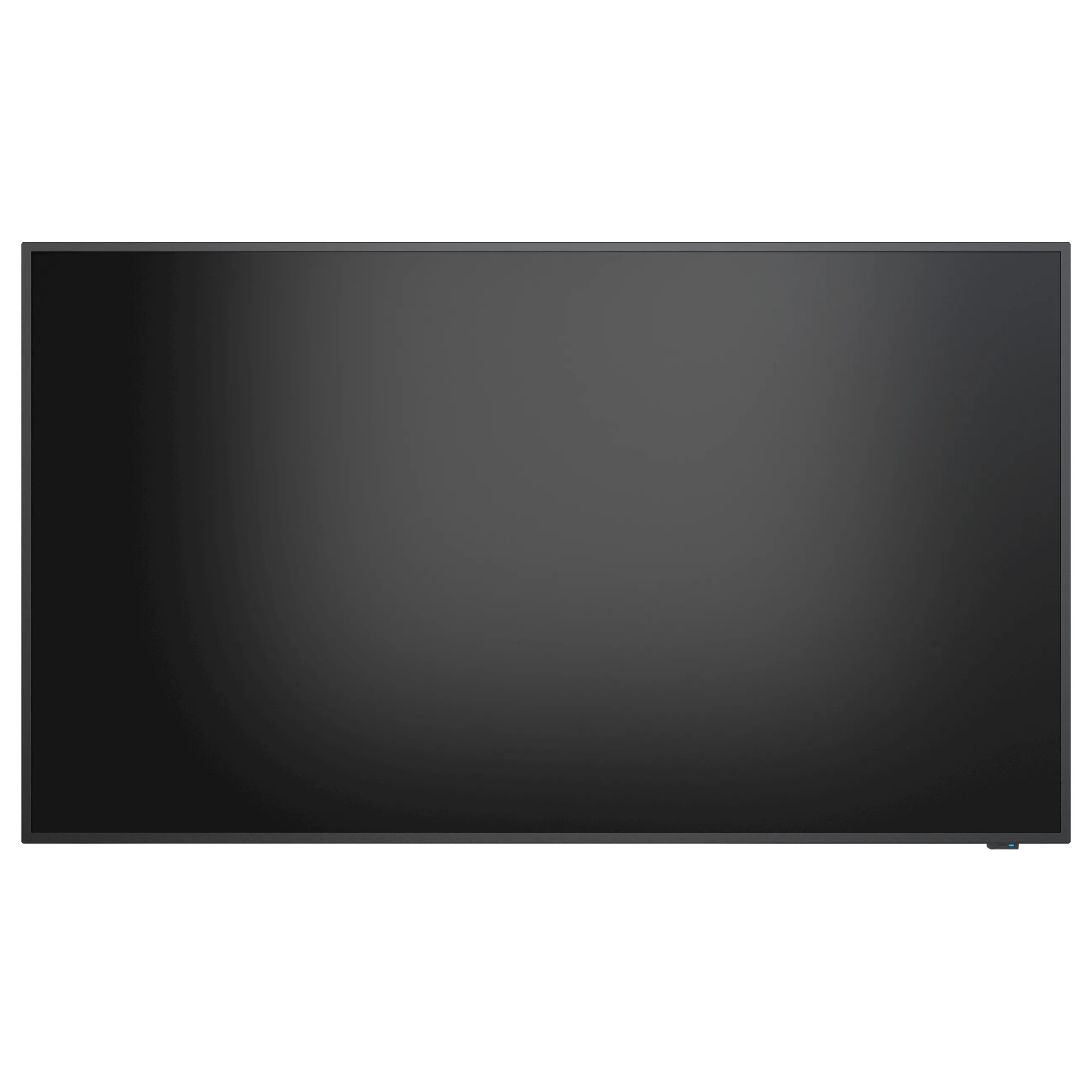

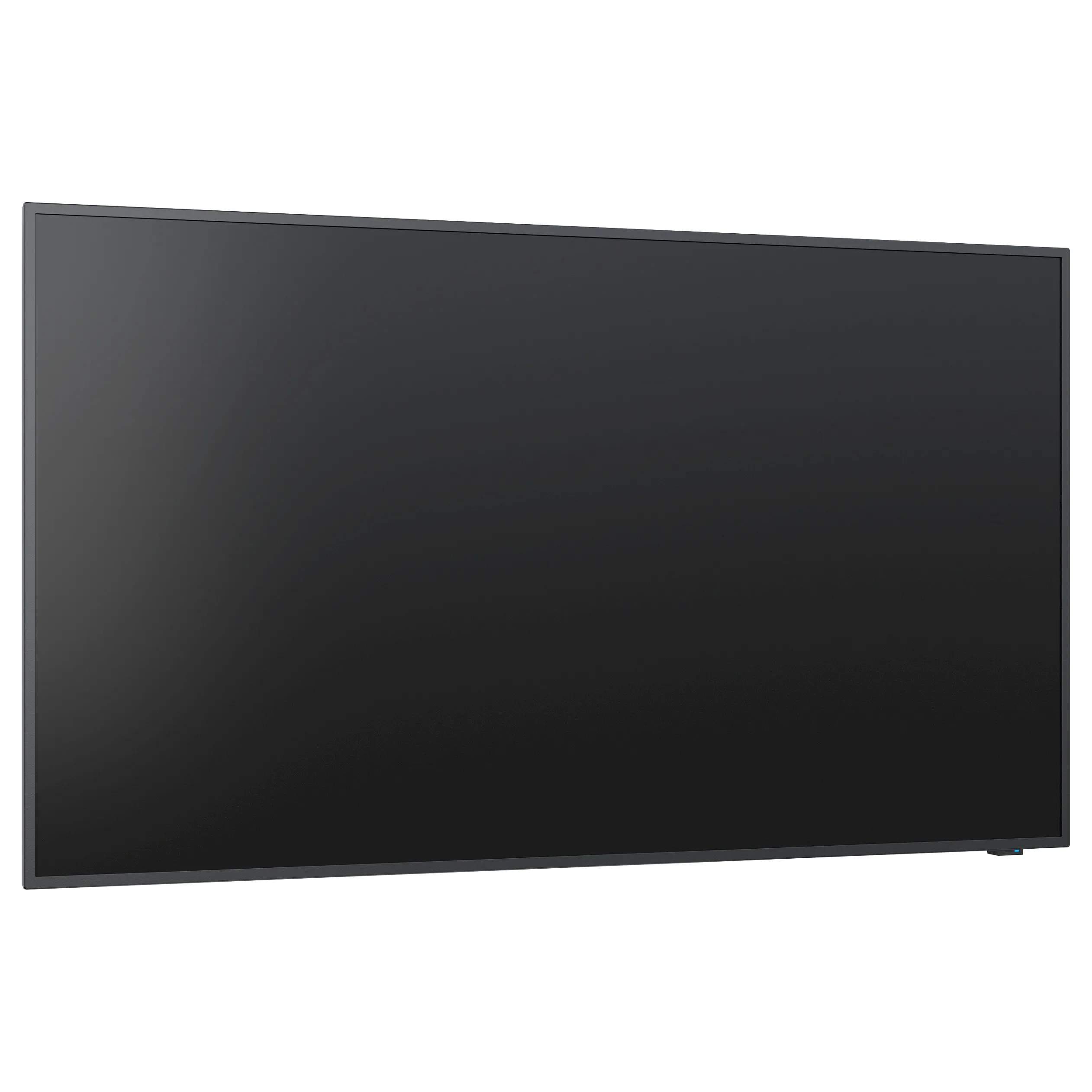

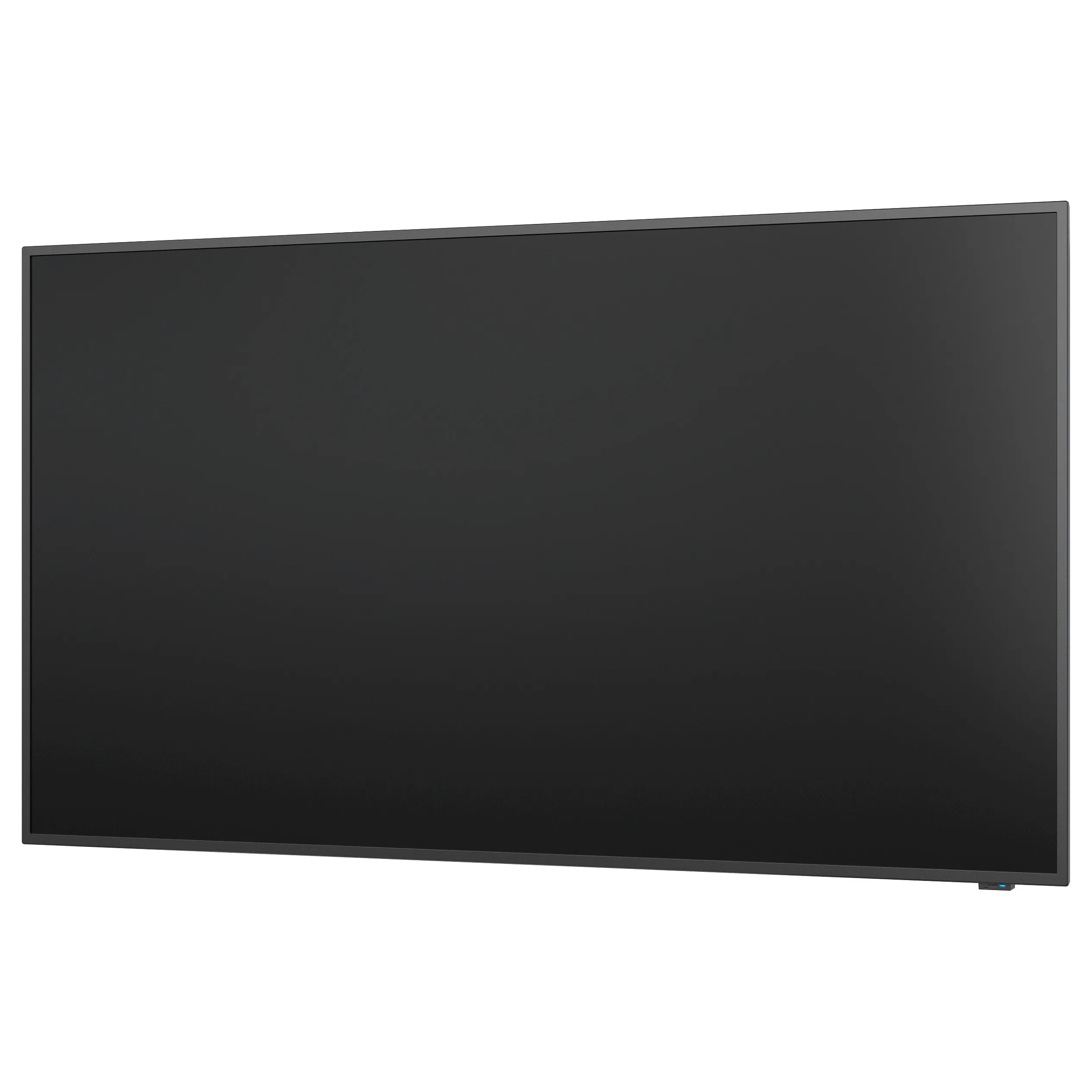

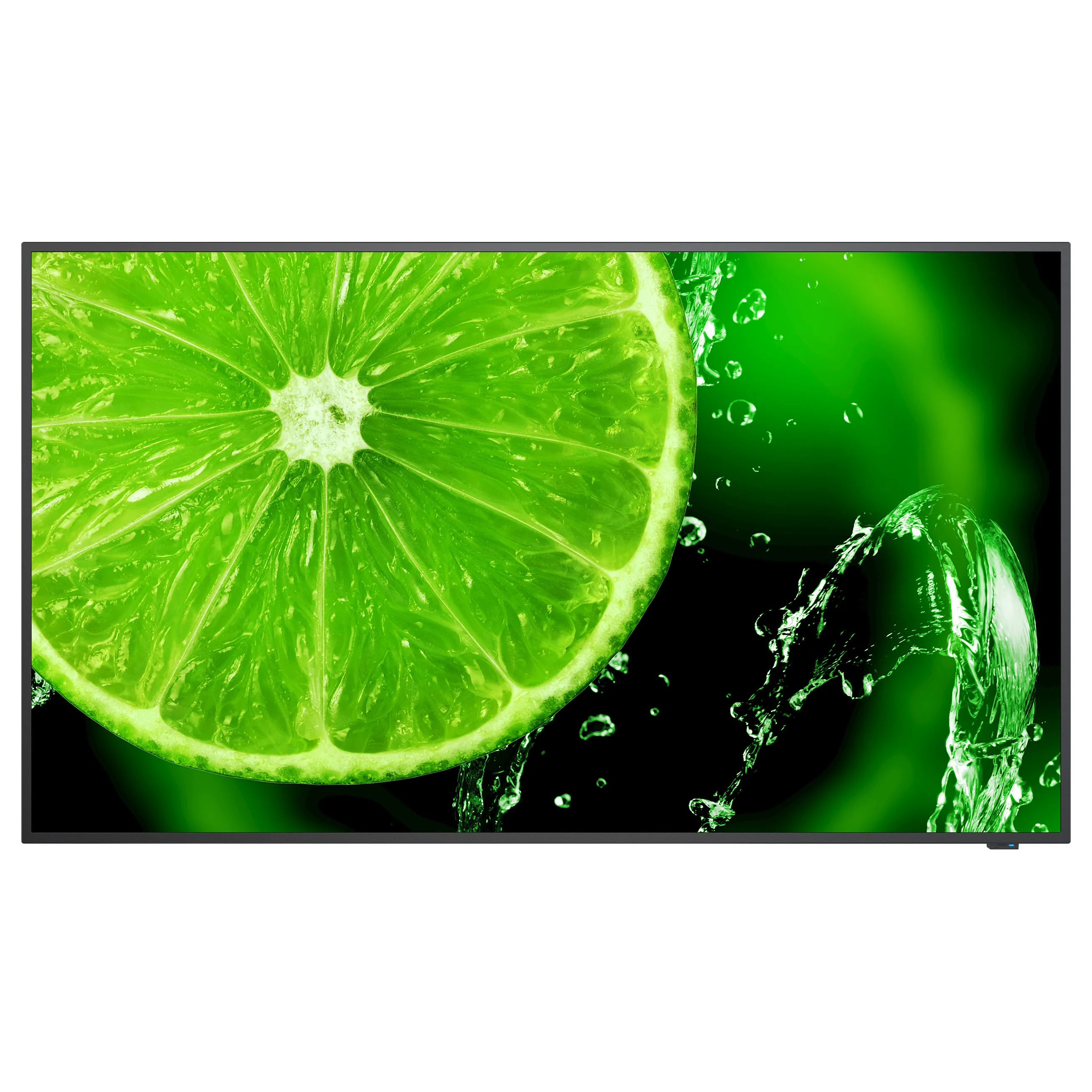

NEC MultiSync E438. Product design: Digital signage flat panel. Display diagonal: 108 cm (42.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 16/7. Product colour: Black
A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.
Panel type: IPS
LED backlighting type: Direct-LED
Display diagonal: 108 cm (42.5″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 350 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.245 x 0.245 mm
Active display area (W x H): 941 x 529 mm
Display diagonal (metric): 108 cm
Number of displays: 1
Horizontal scan range: 15 – 136 kHz
Vertical scan range: 24 – 75 Hz
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
Native refresh rate: 60 Hz
Haze rate: 1%
Ports & interfaces
HDMI ports quantity: 3
HDMI input ports quantity: 3
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Composite video in: 1
Component video (YPbPr/YCbCr) in: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232 interface
Feature: RS-232C
Feature: Infrared data port
Remote (IR) input: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 200 mm
Bezel width (bottom): 1.39 cm
Bezel width (side): 1.25 cm
Bezel width (top): 1.25 cm
Mounting type: Wall
Performance
Purpose: Universal
Feature: Browsing
Feature: Hybrid Log-Gamma (HLG)
Operating hours (hours/days): 16/7
Power
Power consumption (typical): 72 W
Power consumption (standby): 2 W
Power consumption (sleep): 0.5 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 55 kWh
Energy consumption (HDR) per 1000 hours: 66 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Energy efficiency scale: A to G
Computer system
Video formats supported: MP4, MPG, TS, WMV
Audio formats supported: AAC, LPCM, MP3
Image formats supported: JPG
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Weight & dimensions
Width: 970.2 mm
Depth: 71 mm
Height: 559.8 mm
Weight: 8.9 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Storage temperature (T-T): -10 – 60 °C
Storage relative humidity (H-H): 5 – 85%
Logistics data
Harmonized System (HS) code: 85285210
Sensors
Feature: Ambient light sensor
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100 Mbit/s
Features
Base colour: Black
Feature: Suitable for indoor use
Feature: Wall mountable
