| Manufacturer | MSI | |
| Manufacturer Part No | MPG AI1600TS PCIE5 | |
| Marketing Description | |
| MSI MPG AI1600TS PCIE5 is a high-capacity internal power supply designed to support demanding gaming rigs and professional workstations. It delivers reliable 1600 watt power with ATX12V 3.1 and EPS12V compatibility to handle multiple high-power GPUs and CPUs while maintaining stable voltages for system components. The fully modular design with a wide range of detachable cables simplifies installation and cable routing, and the included cable organizer and embossed black cables help create a clean, professional build appearance. Efficiency and thermal management are balanced for uninterrupted operation, with 80 PLUS Titanium efficiency, Cybenetics Titanium certification, active power factor correction, and a 135 mm fluid dynamic bearing fan that supports Zero RPM mode for quieter idling. Built-in protections such as overpower, overcurrent, overvoltage, undervoltage, short-circuit, surge, inrush, overheat, and no-load operation protection help safeguard components, while SiC MOSFETs and GPU Safeguard+ contribute to dependable power delivery for modern systems. |
|
| Product Features | |
|
|
| Product Properties | |
| Product Description |

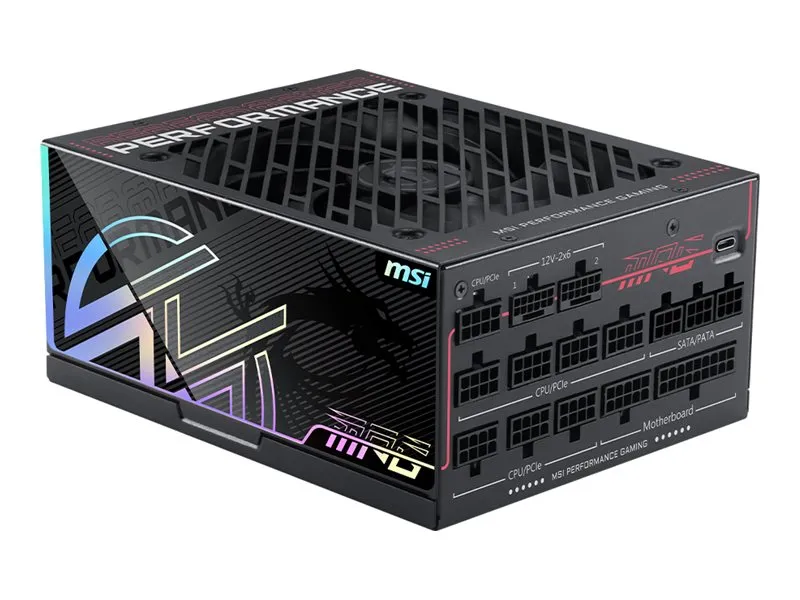

MSI MPG AI1600TS PCIE5 – power supply – 1600 watt |
| Device Type |
Power supply – active Power Factor Correction (PFC) – internal |
| Specification Compliance |
ATX12V 3.1/ EPS12V |
| 80 PLUS Certification |
80 PLUS Titanium |
| Cybenetics Certification |
Cybenetics Titanium |
| Input Voltage |
AC 100-240 V |
| Output Voltage |
+3.3, +5, ±12 V, +5Vsb V |
| Power Capacity |
1600 watt |
| Output Current |
+3.3V – 22 A +5V – 22 A +12V – 133.33 A +5VSB – 3 A |
| Output connectors |
1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 6 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 4 x 4 PIN internal power 2 x 16 pin PCI Express power |
| Modular Cable Management |
Yes |
| Cooling System |
135 mm fan |
| Dimensions (WxDxH) |
15 cm x 19 cm x 8.6 cm |
