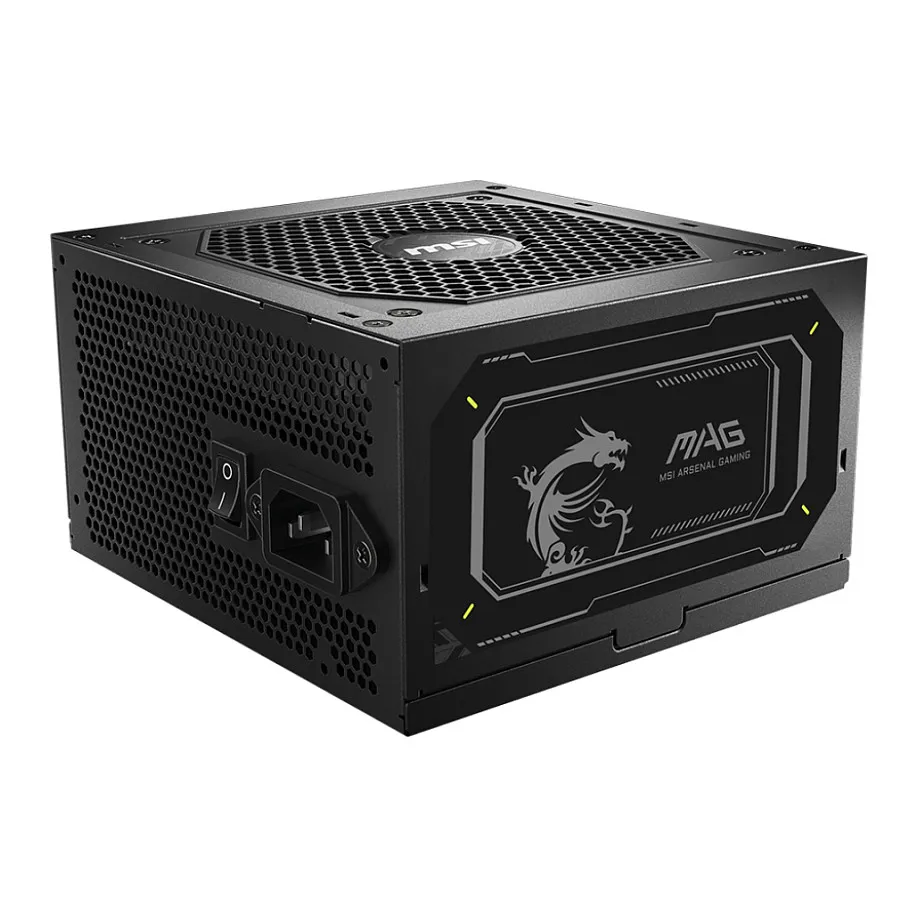

MSI MAG A750GL PCIE5 II. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

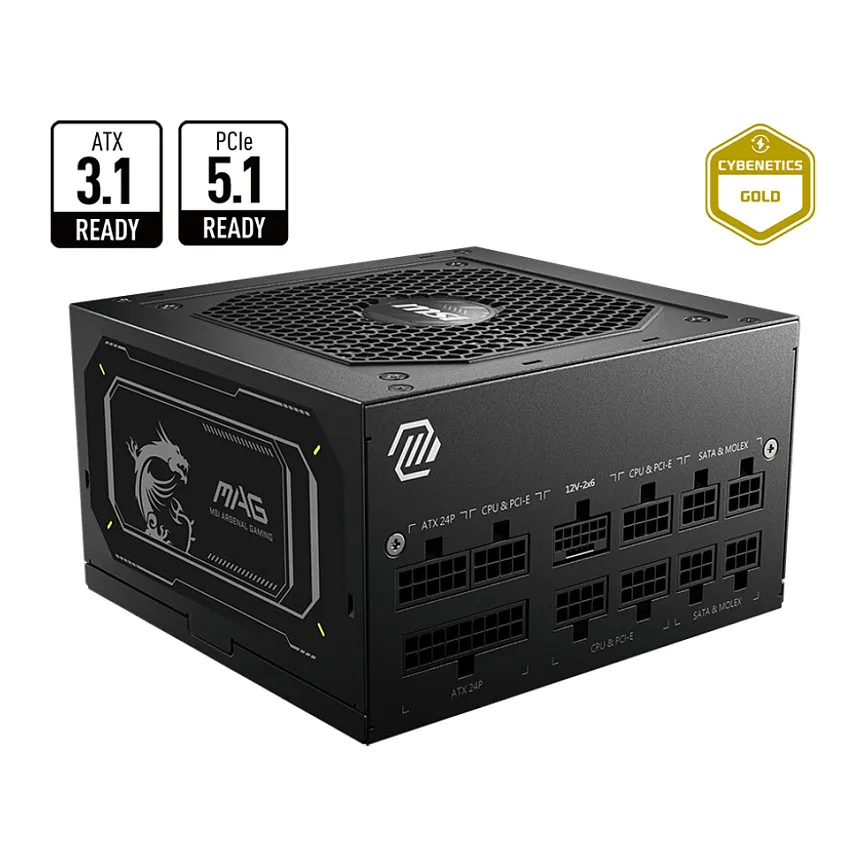

It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED

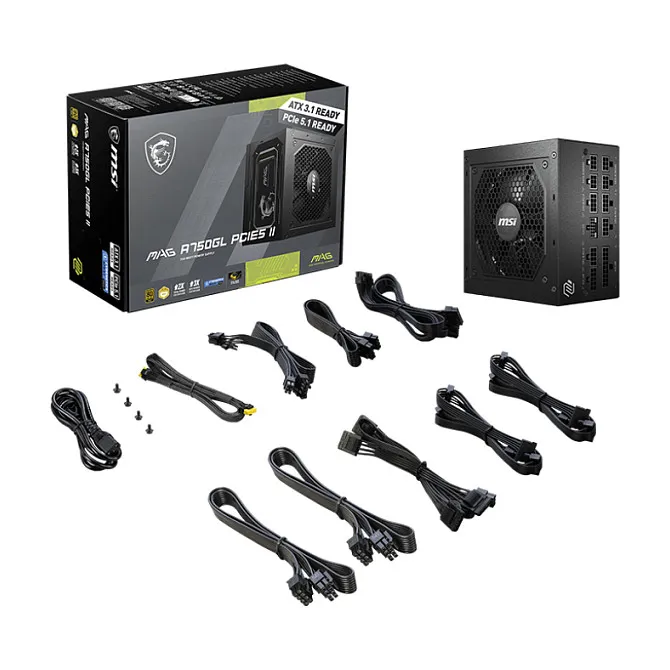

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

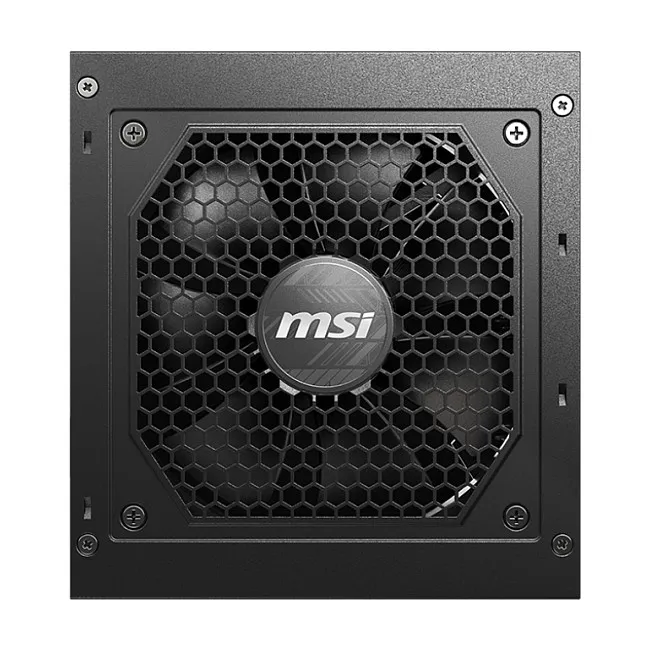

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 47 – 63 Hz
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 110 W
Combined power (+12V): 744 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

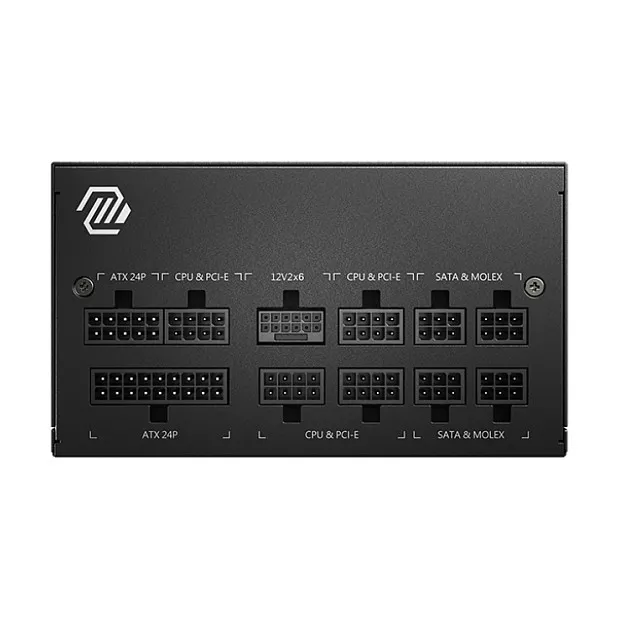

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
Feature: CPU power connector (4+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
