MSI MAG A1000GL PCIE5 II. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.
Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Total power: 1000 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 999.6 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 83.3 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

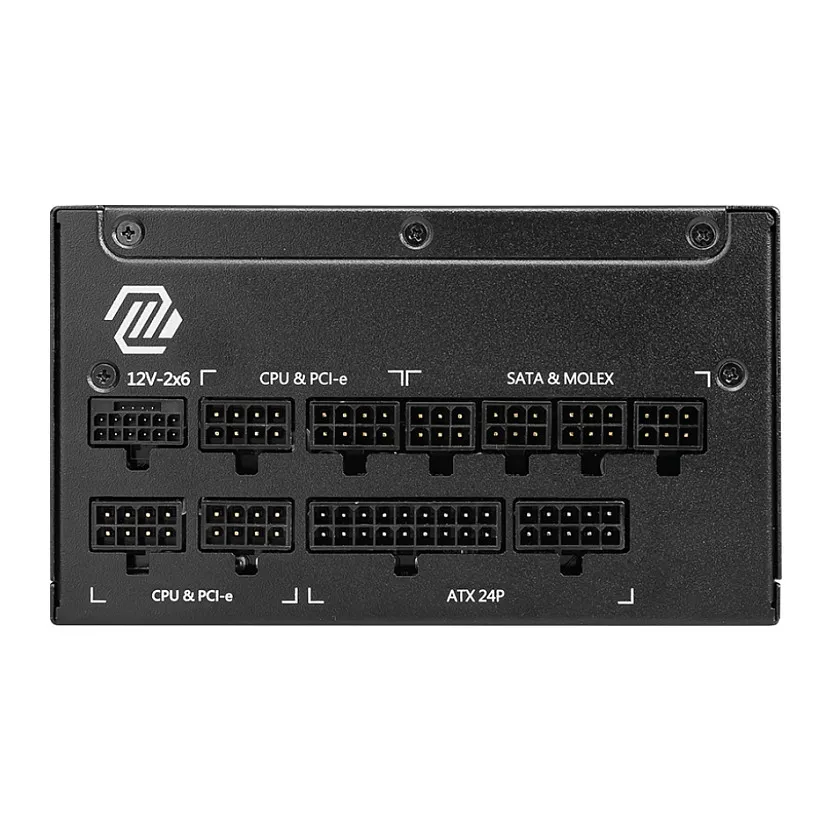

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 450,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1

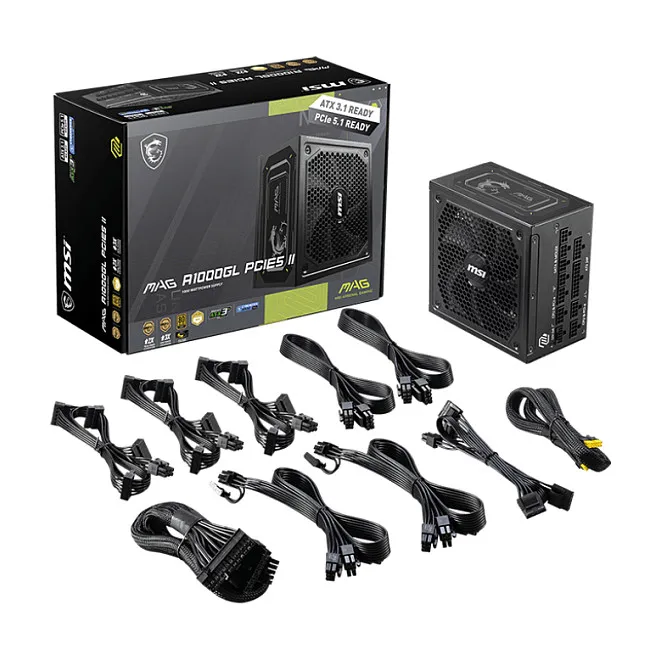

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 500 – 1800 RPM
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 169 g
