MSI Cubi NUC 1M Intel Core 3 100U (14th Gen – Series 1) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA – NUC 1M i3 100U BB. Chassis type: Mini PC, Product type: Mini PC. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, Serial ATA, Serial ATA II, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W

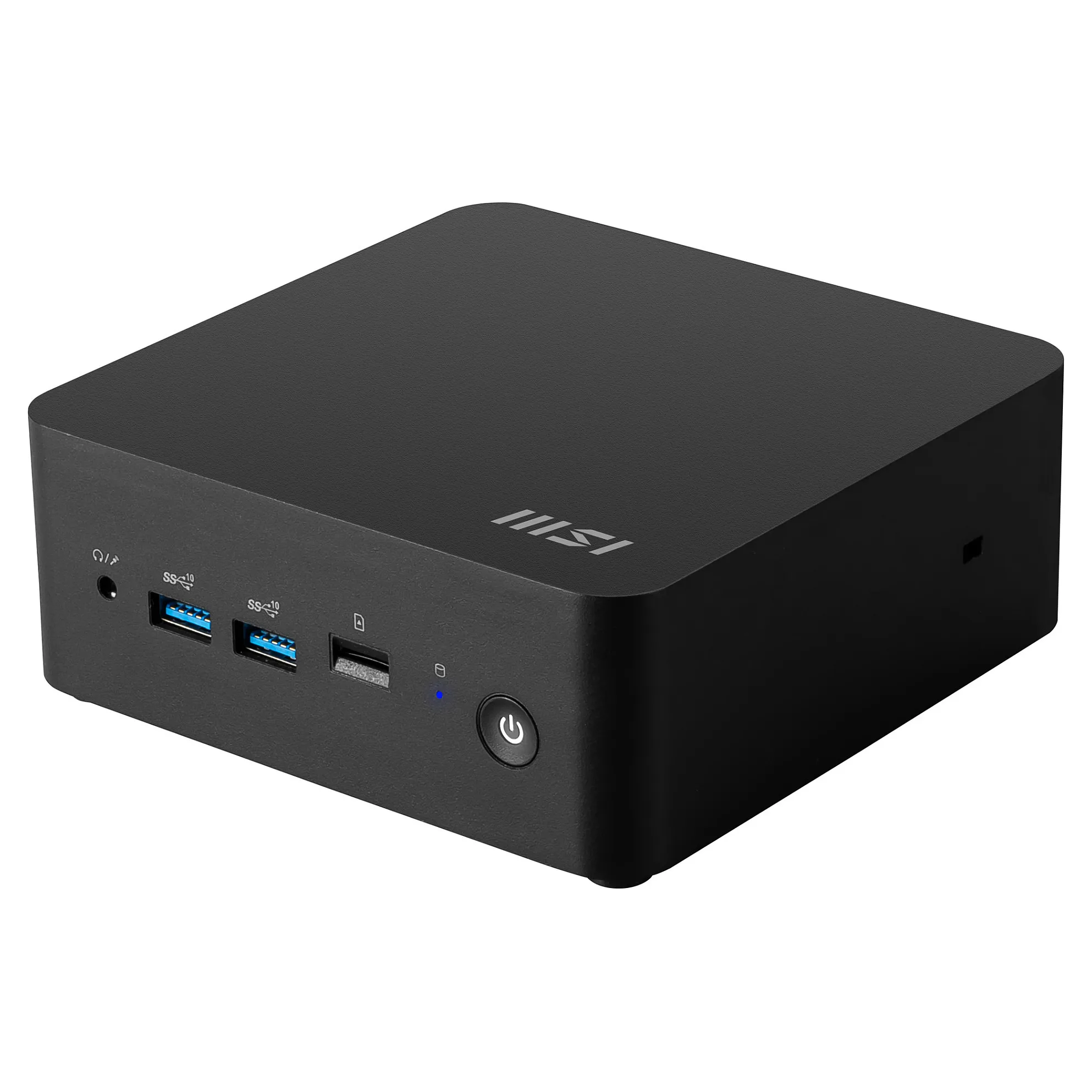

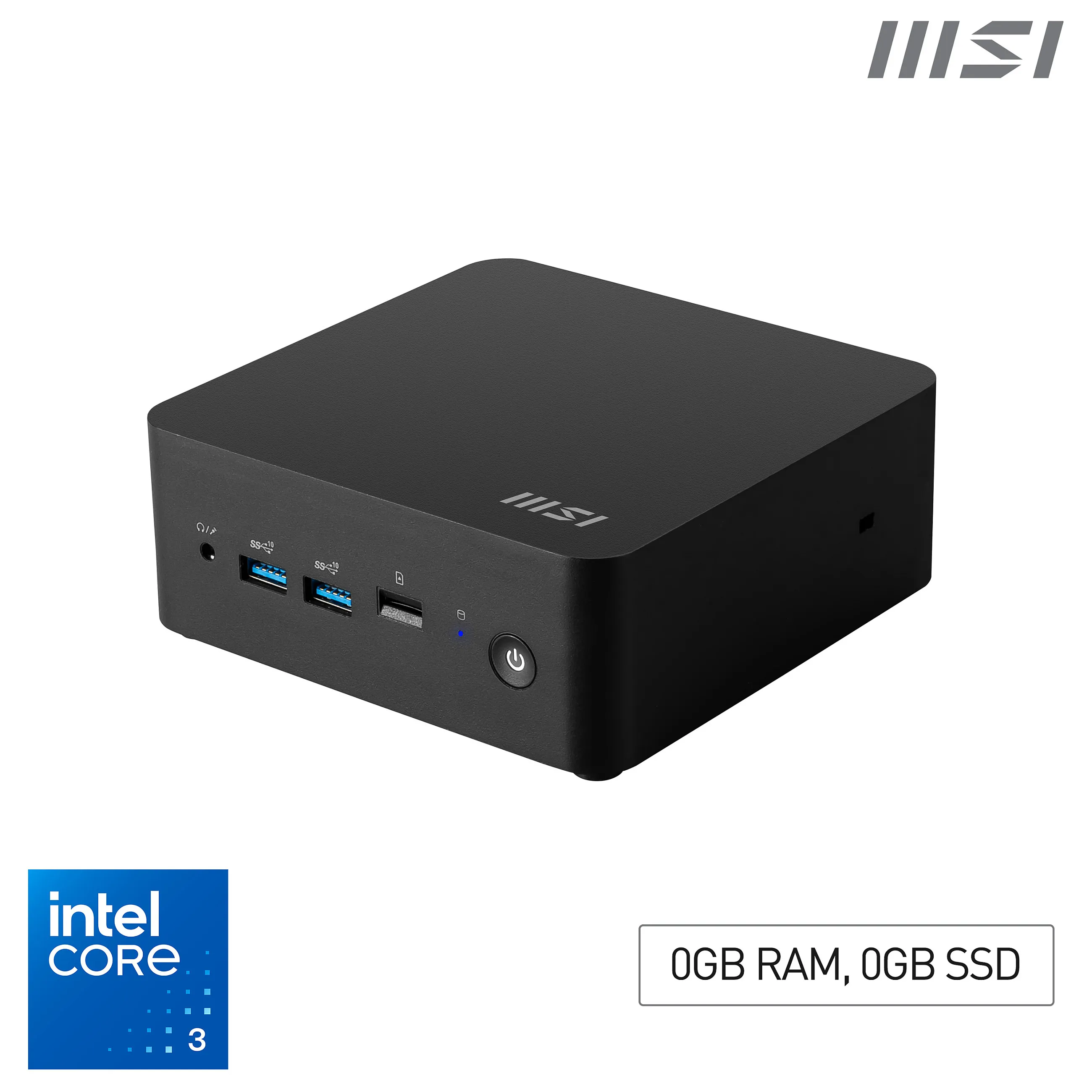

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i3 100U BB configuration is a barebone system equipped with an Intel® Core 3 processor 100U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.

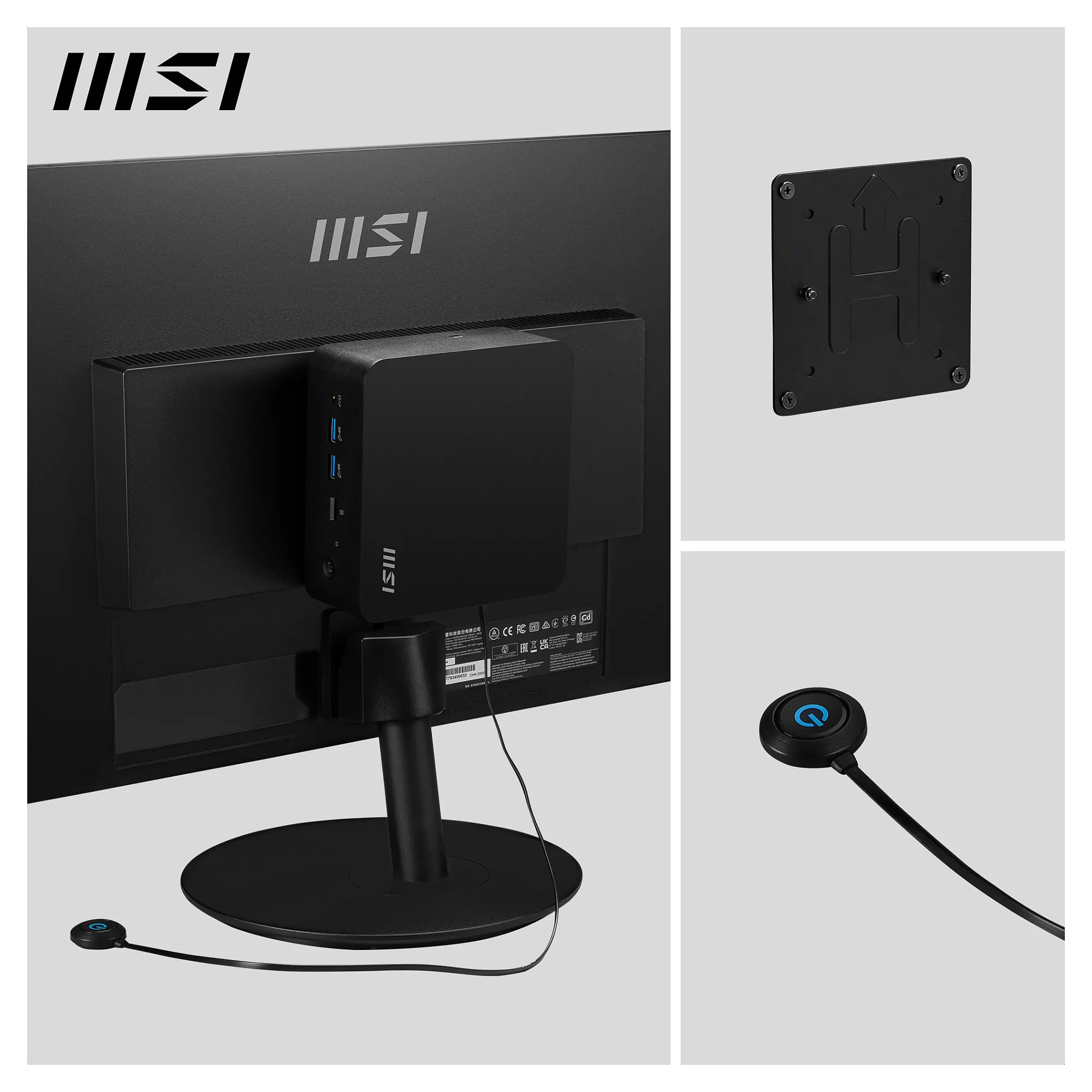

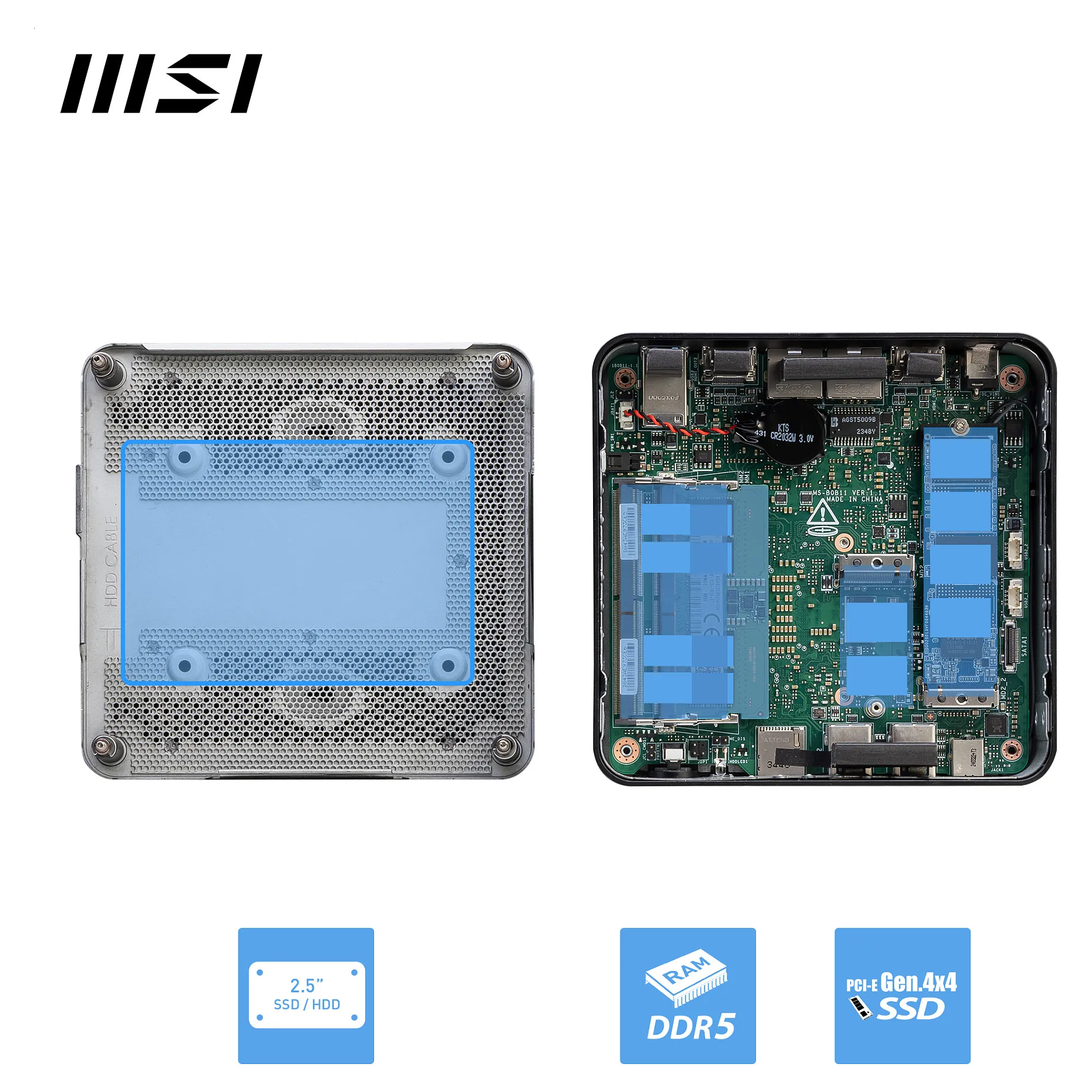

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

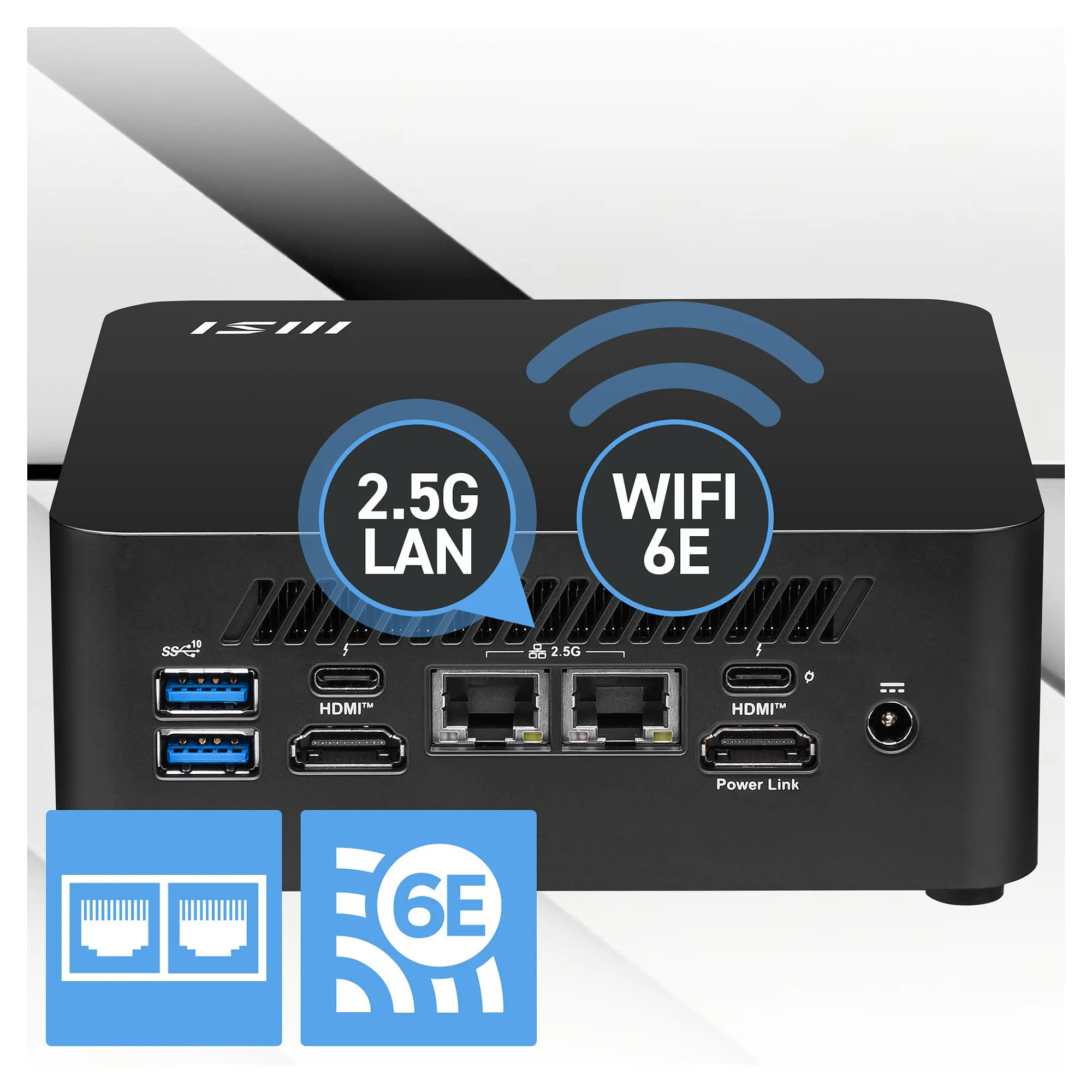

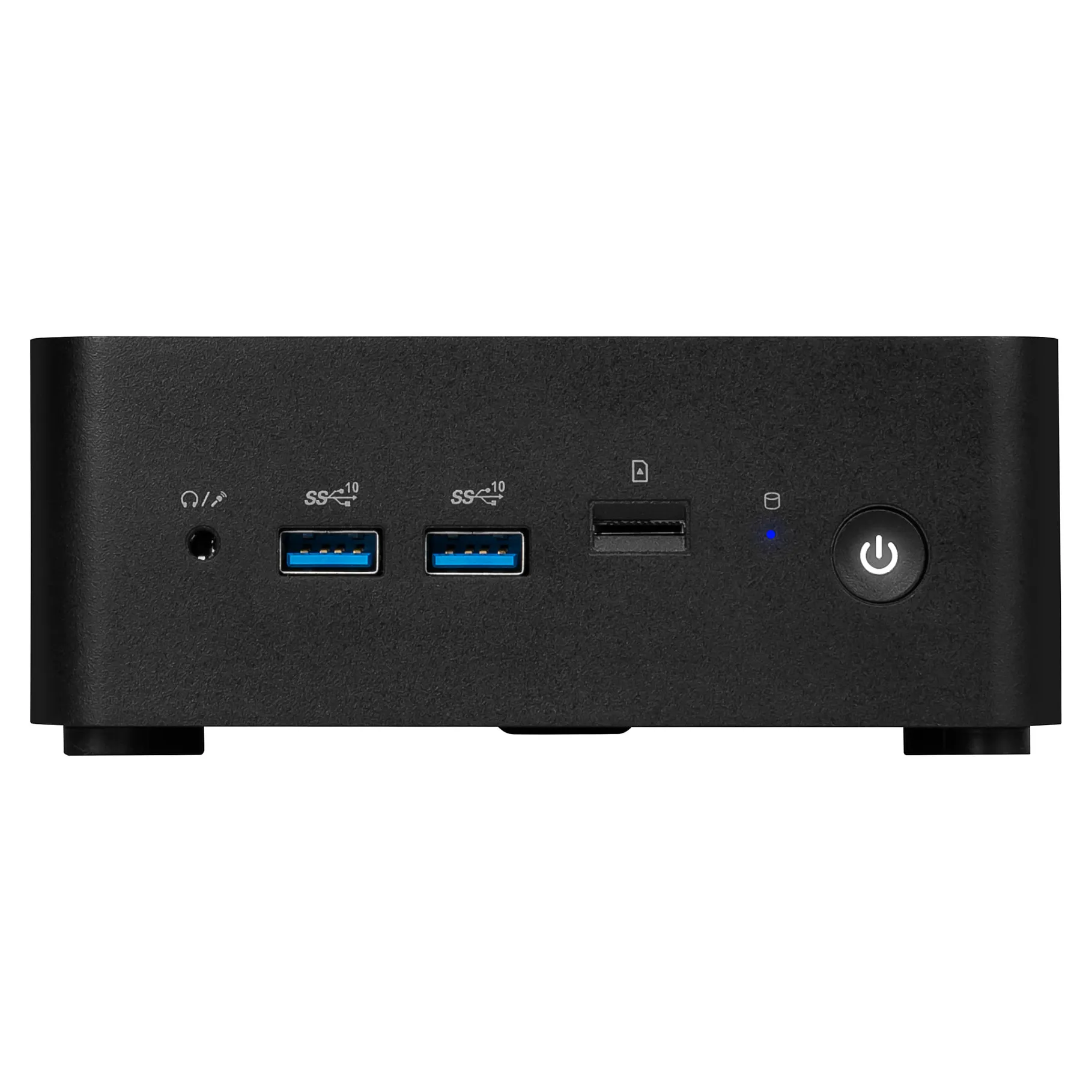

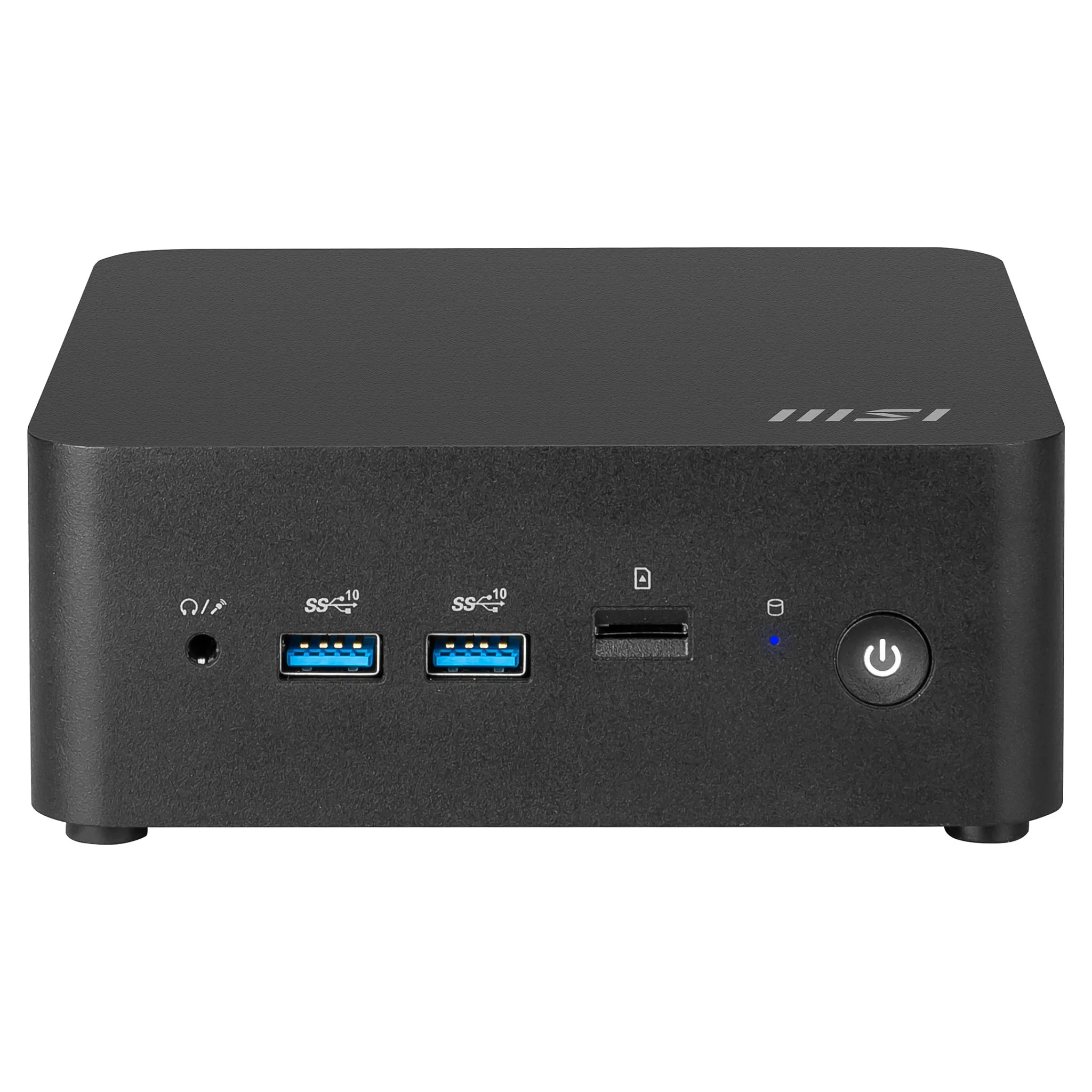

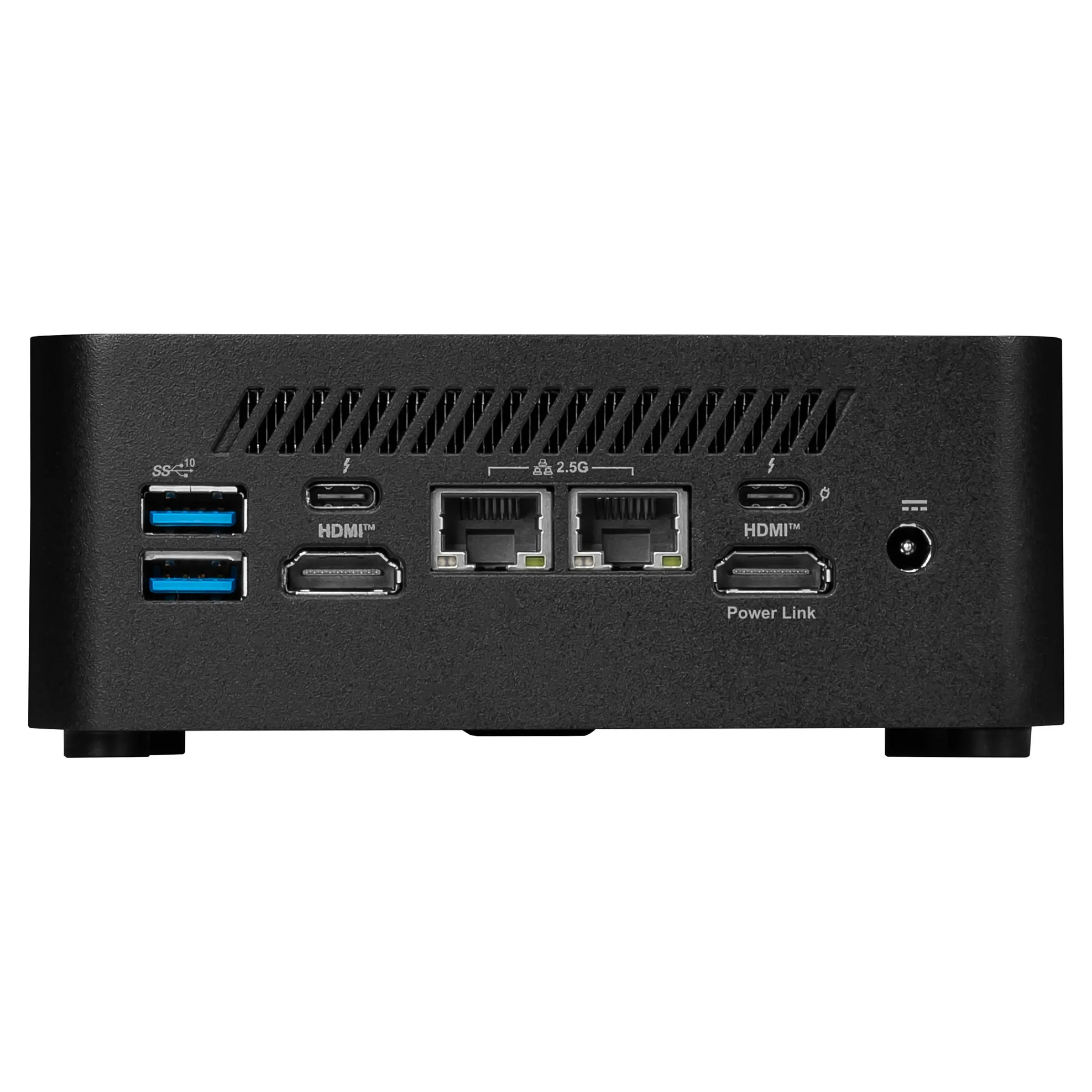

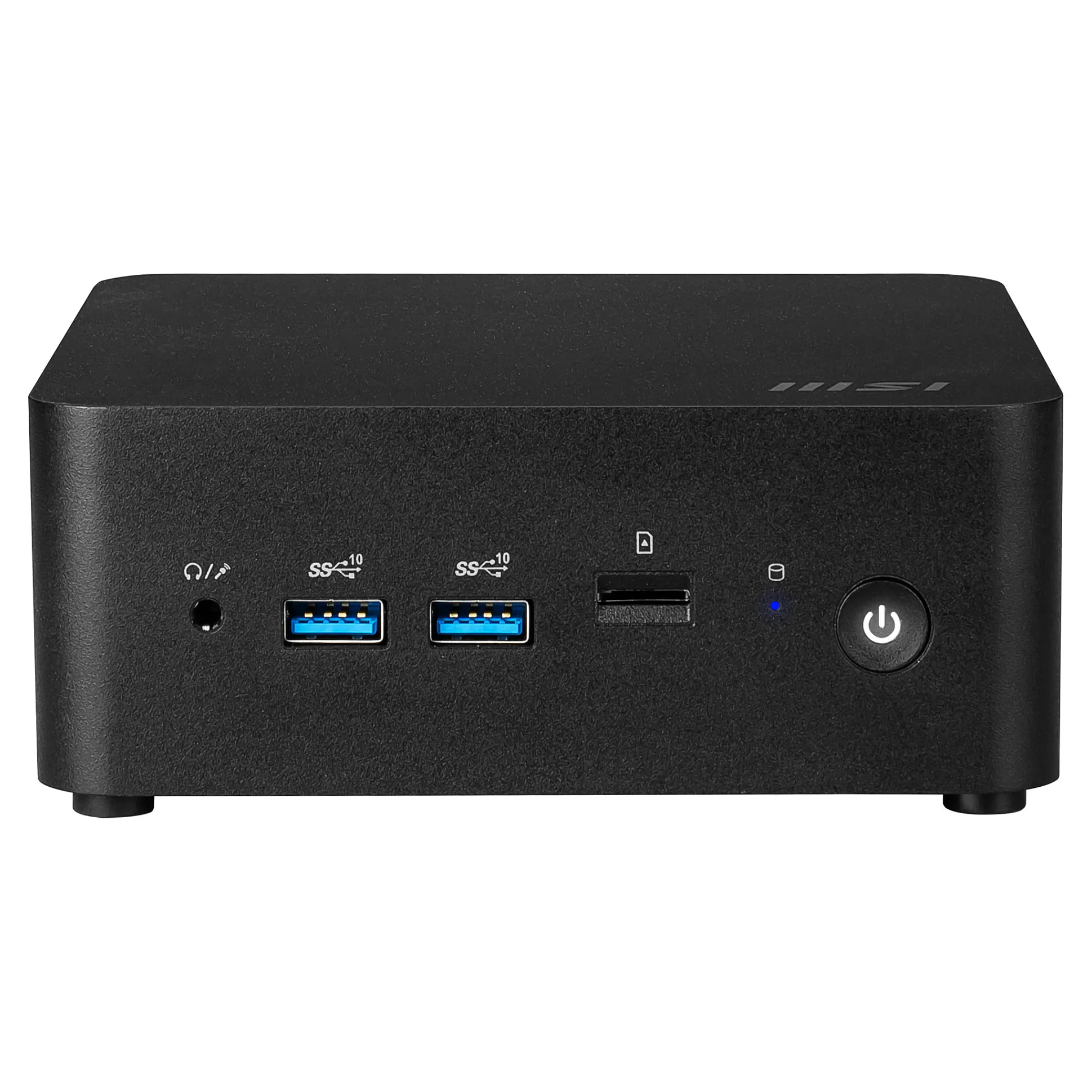

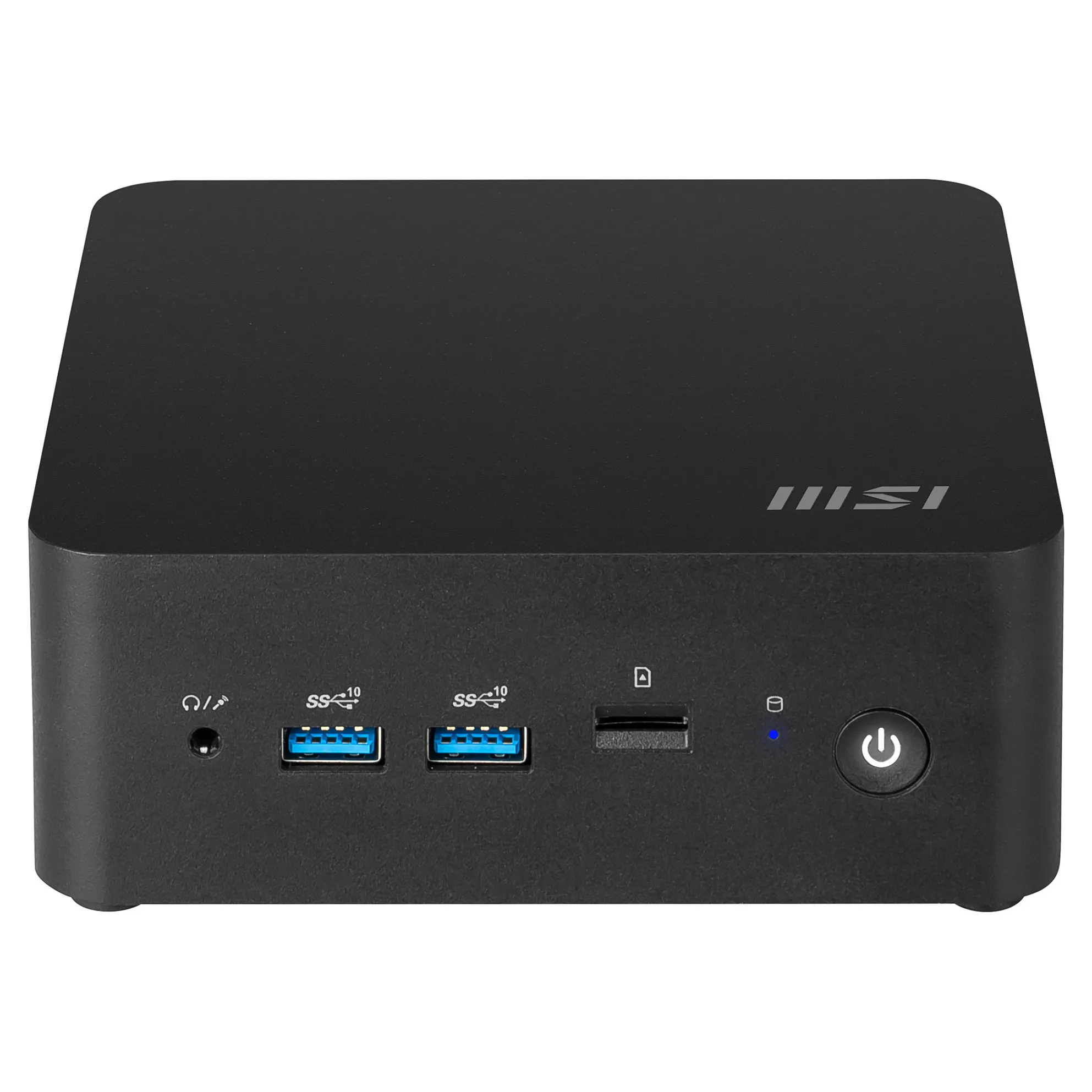

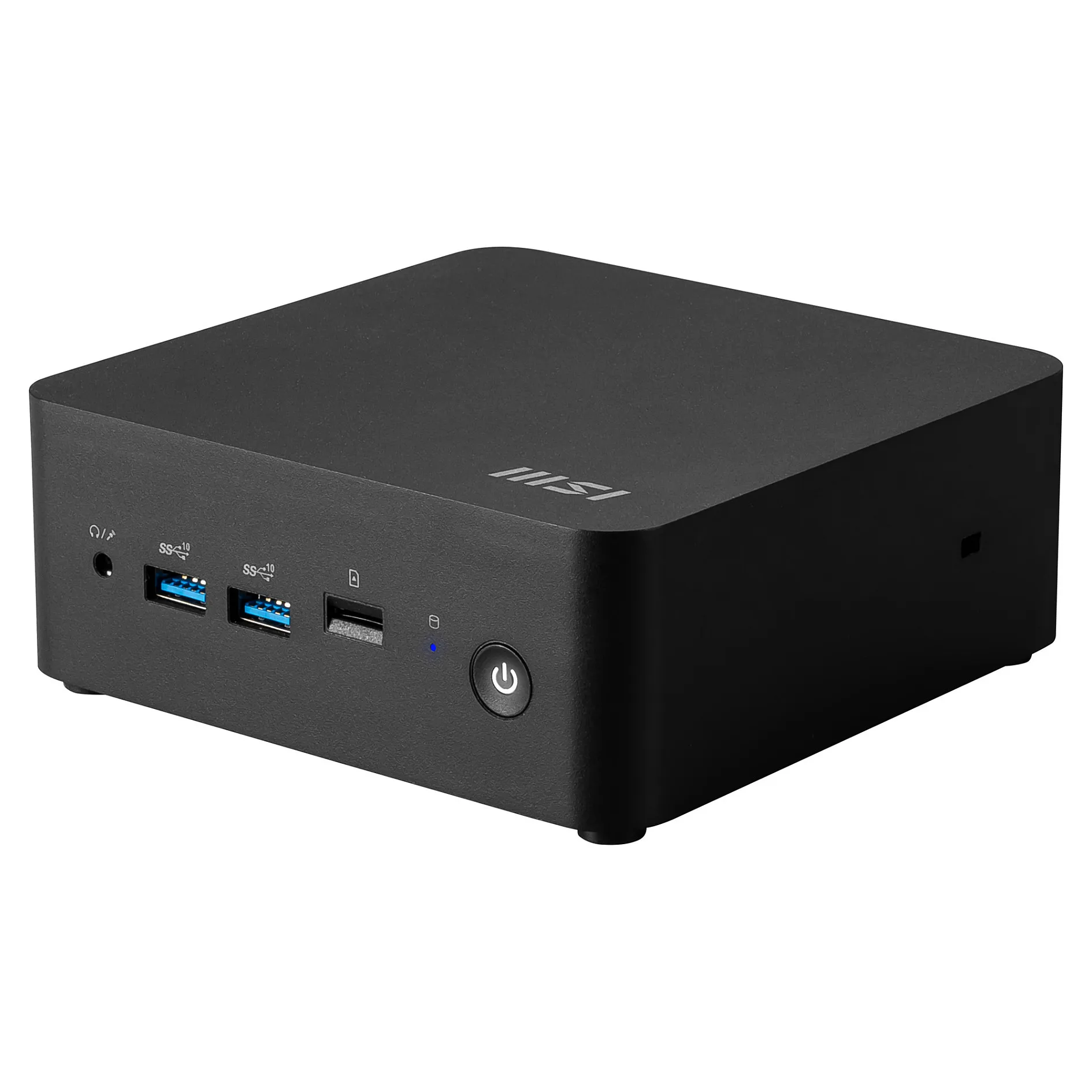

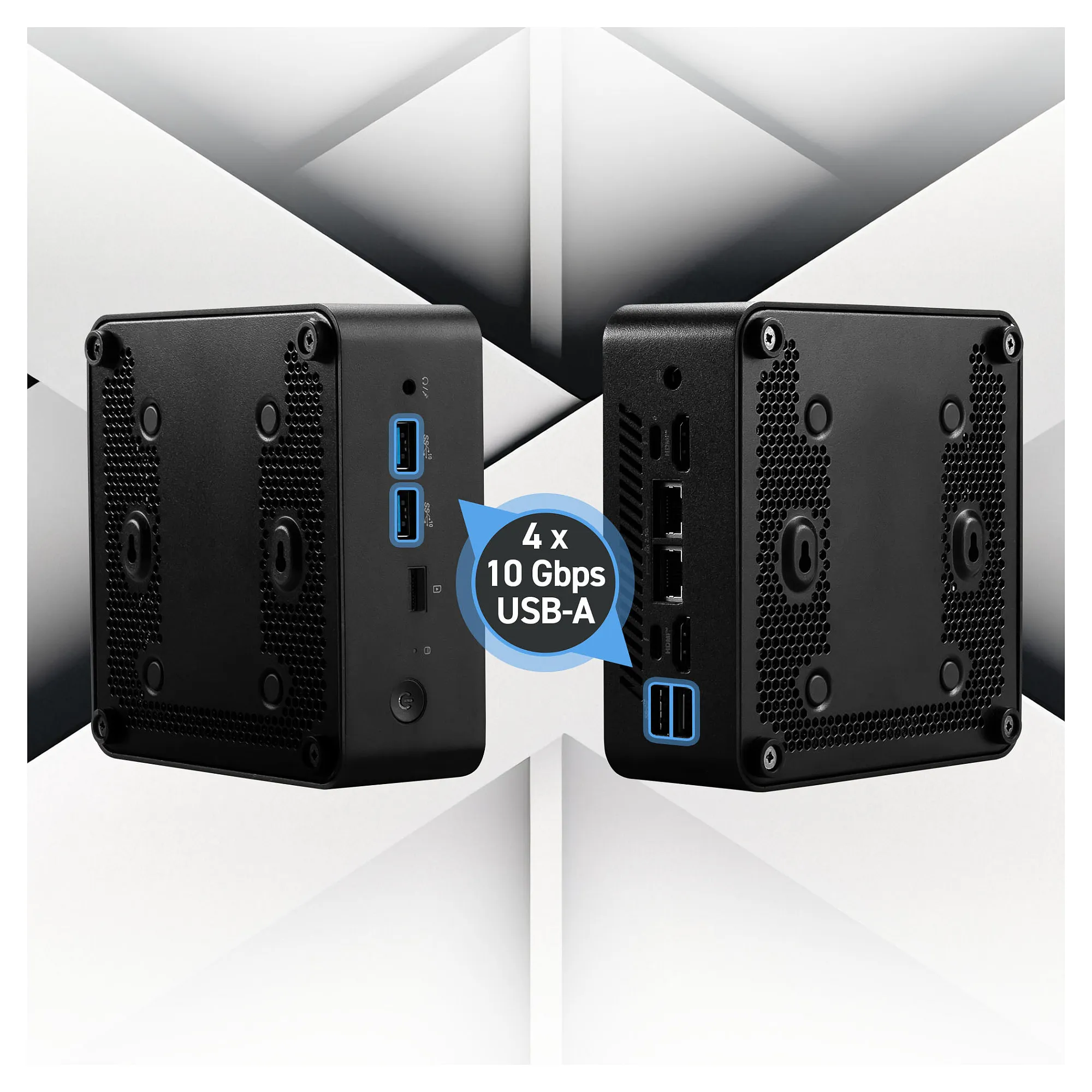

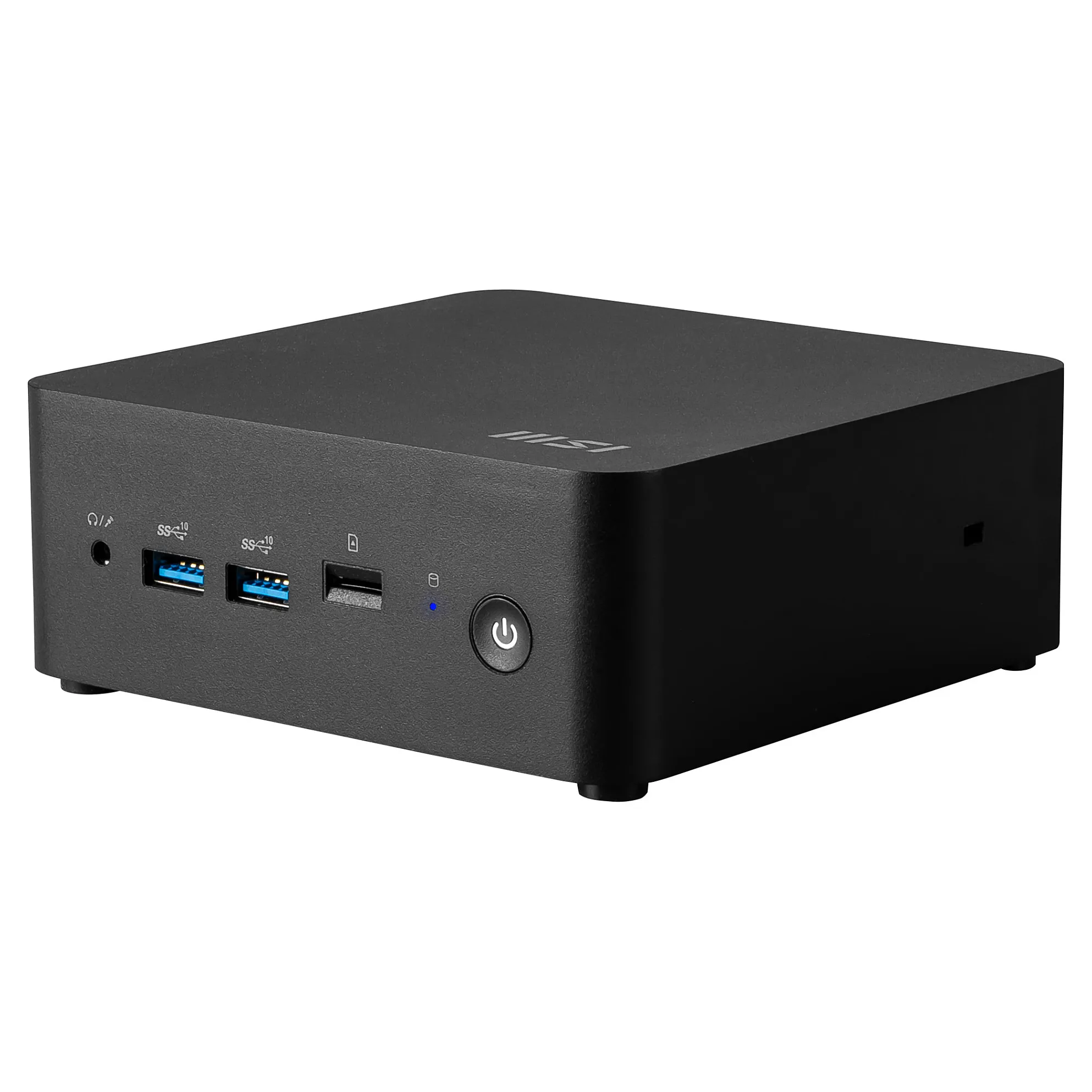

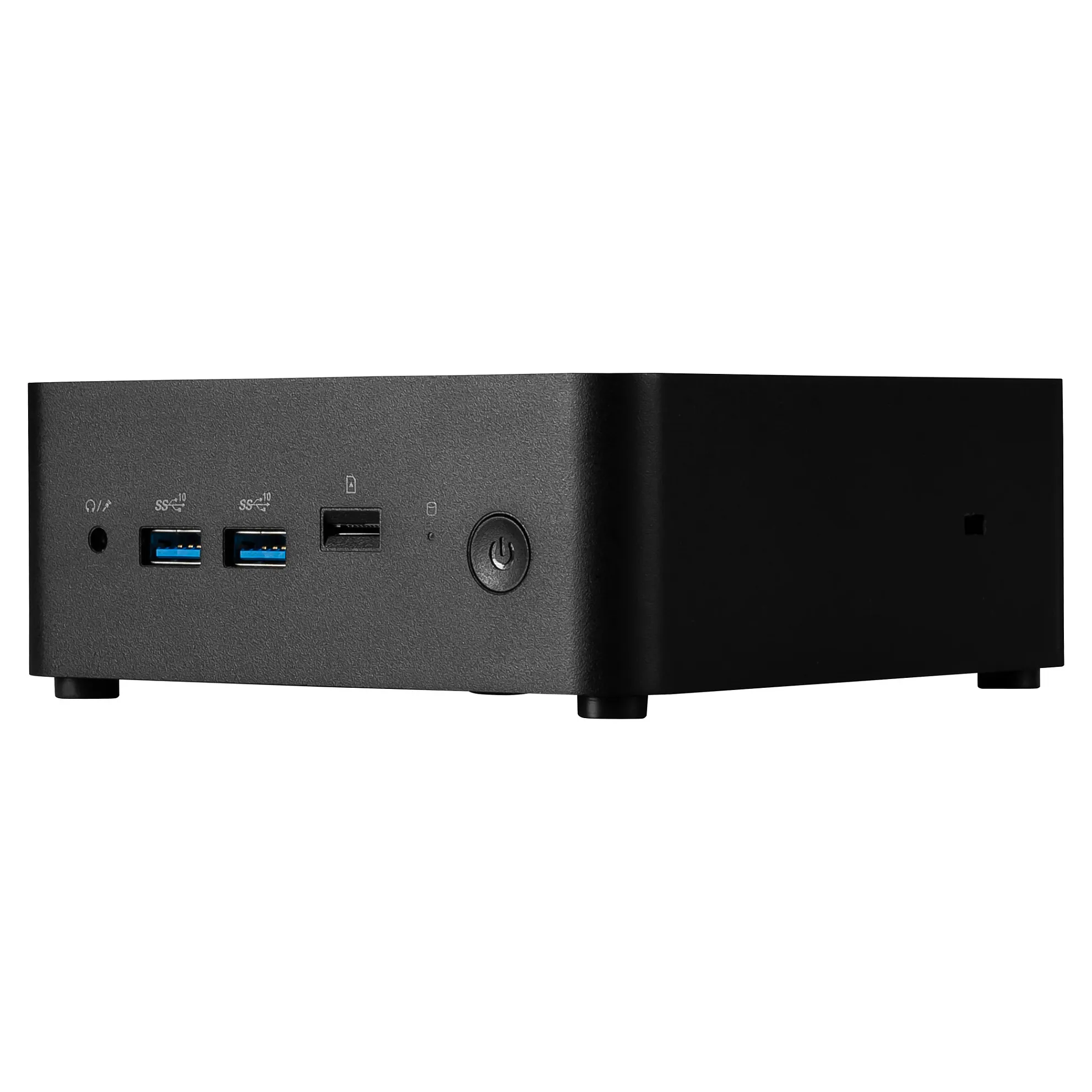

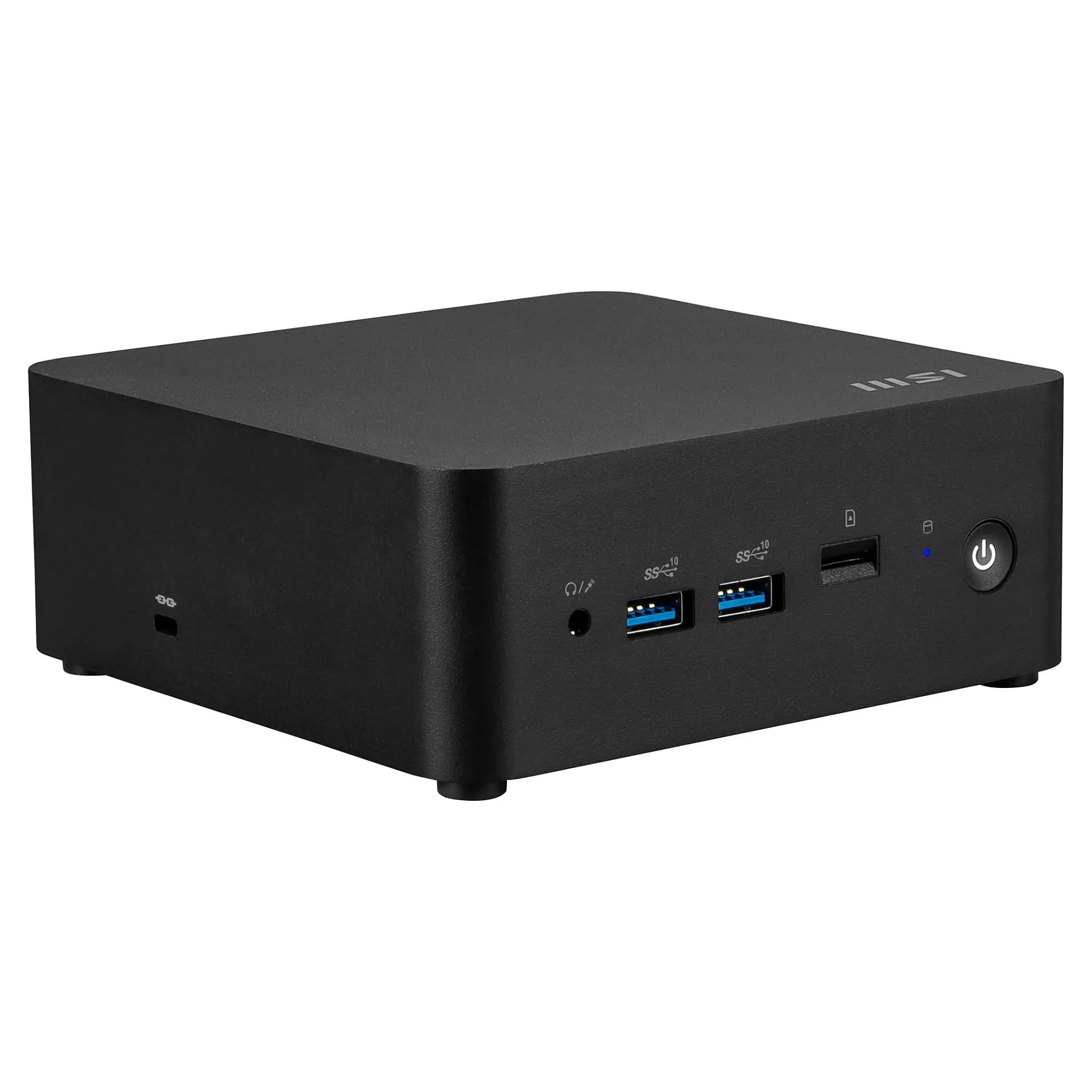

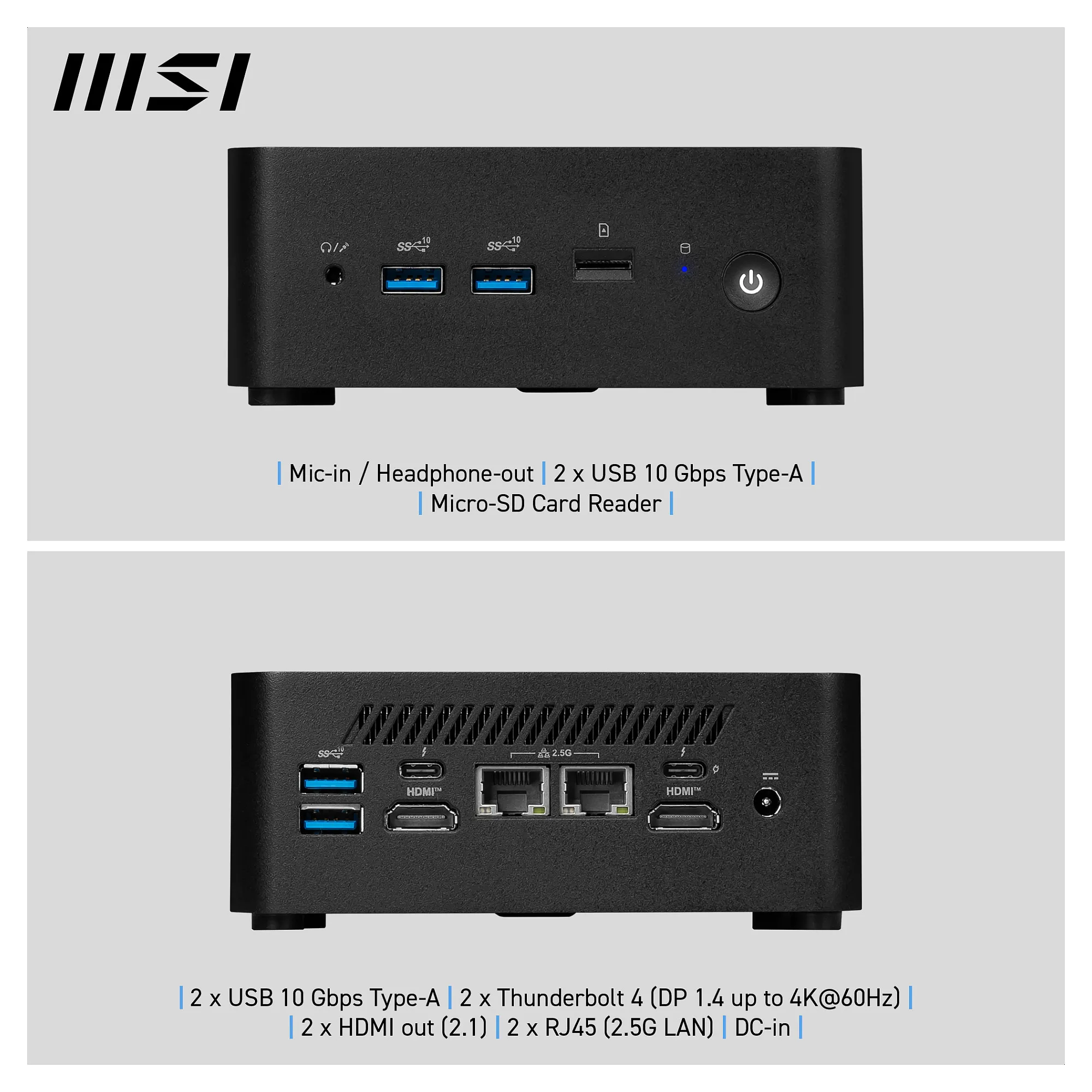

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A”
Processor manufacturer: Intel
Processor family: Intel Core 3
Processor generation: Intel Core (Series 1)
Processor model: 100U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.7 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Performance-core base frequency: 1.2 GHz
Efficient-core base frequency: 0.9 GHz
Feature: Built-in processor
Processor cache: 10 MB
Processor cache type: Smart Cache
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5200 MHz
Supported memory types: DDR5-SDRAM
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
SSD form factor: M.2
Storage drive interface: M.2, Serial ATA, Serial ATA II, Serial ATA III
Feature: NVMe
Number of storage drives supported: 3
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Graphics
Graphics card family: Intel
On-board graphics card model: Intel® Graphics
Number of displays supported: 4
Performance
Motherboard form factor: NUC
Motherboard chipset: Intel SoC
Number of processors supported: 1
Optical drive type: No
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Ethernet LAN
Copper ethernet cabling technology: 2.5GBASE-T
Feature: Wi-Fi
LAN controller: Intel I226-V
Feature: Bluetooth
Bluetooth version: 5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 2
HDMI version: 1.4b/2.1
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
CardBus PCMCIA slot type: No
Feature: USB charging
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack
Expansion slots
Number of M.2 (M) slots: 2
Design
Chassis type: Mini PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
LED indicators: System
Housing material: Plastic

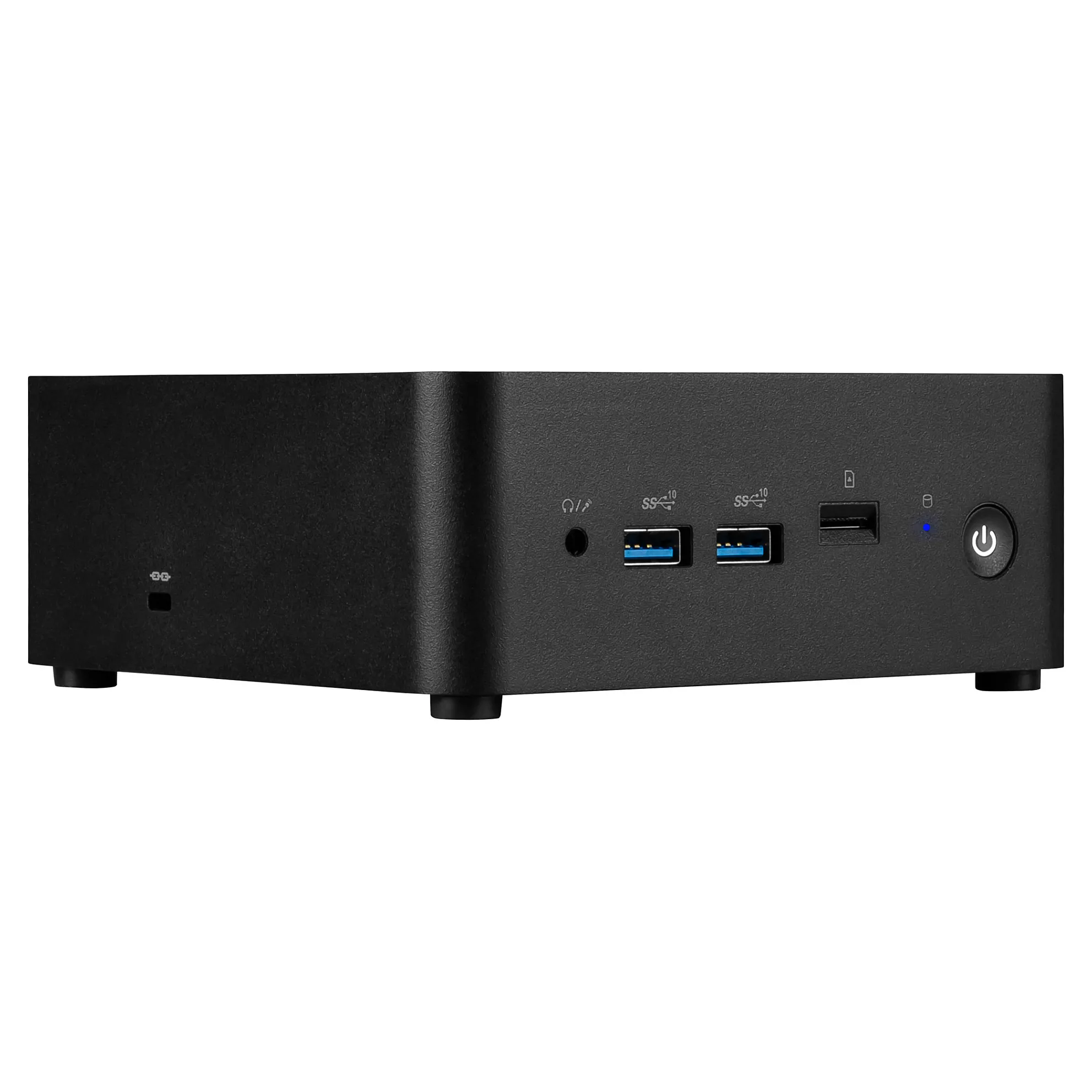

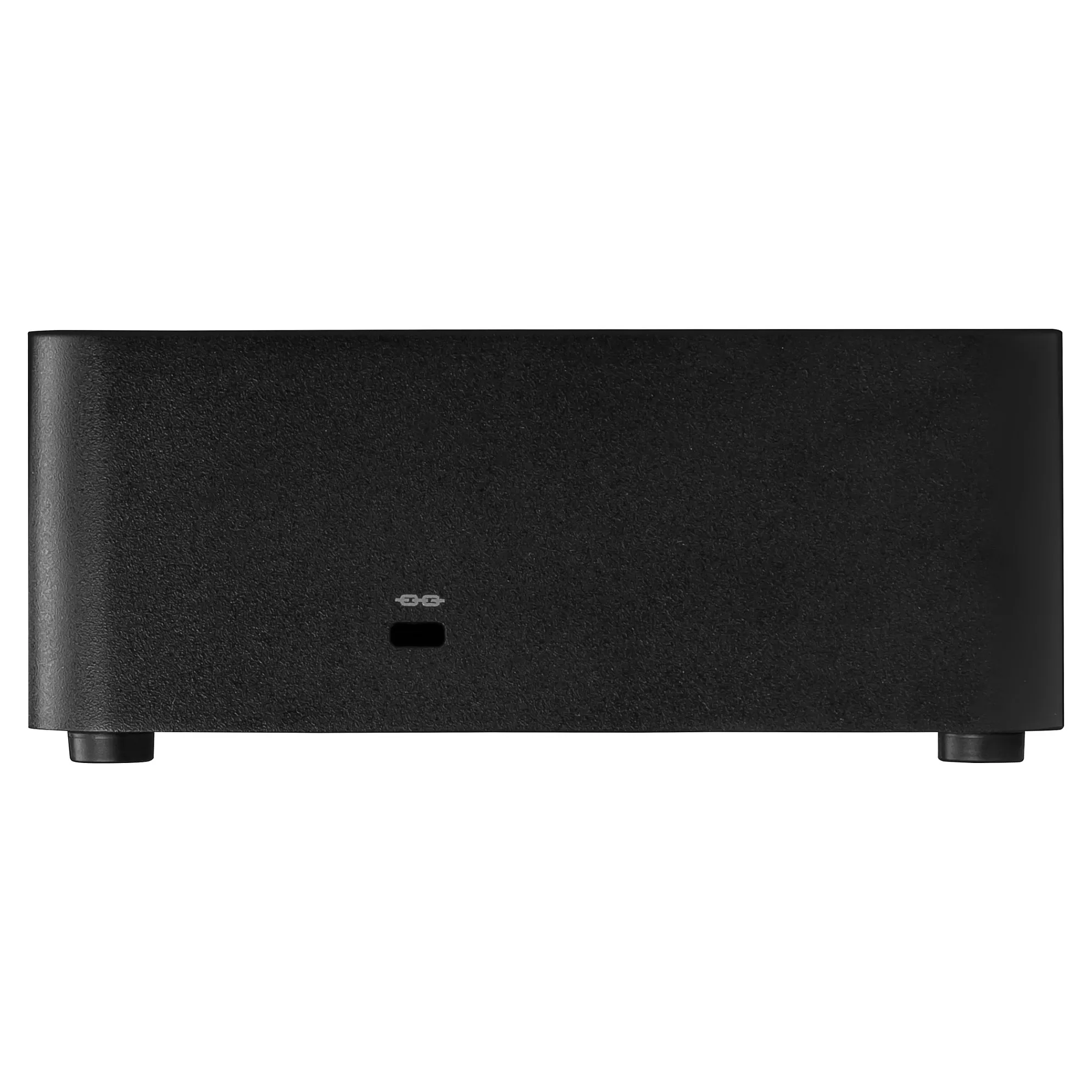

Feature: Cable lock slot
Cable lock slot type: Kensington

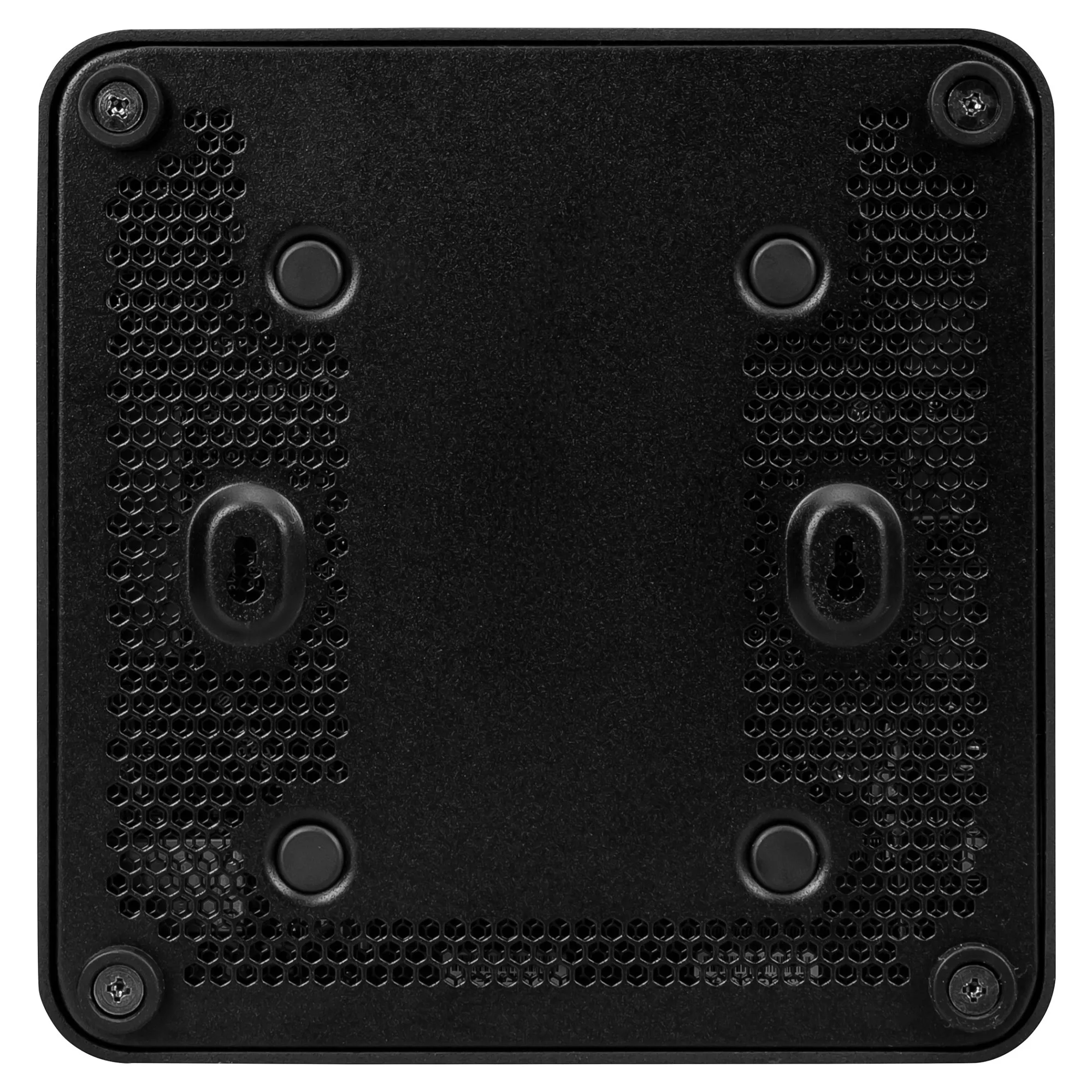

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Product type: Mini PC
Certificates
Certification: FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Software
Windows operating systems supported: Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
Operating system installed: No
Sustainability
Sustainability certificates: ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 85%
Storage relative humidity (H-H): 0 – 90%
Weight & dimensions

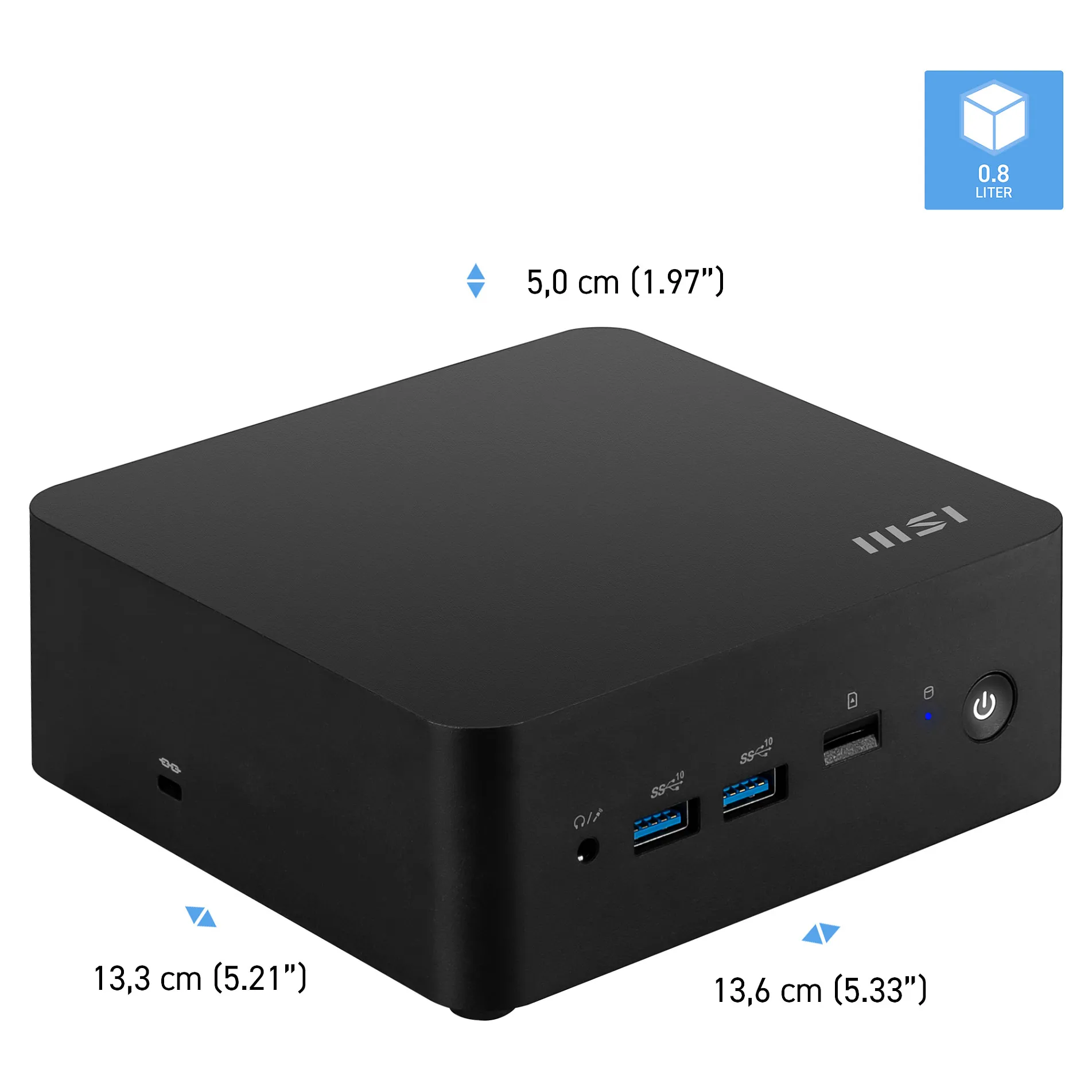

Width: 132.5 mm
Depth: 135.6 mm
Height: 50.1 mm
Weight: 630 g
Package width: 205 mm
Package depth: 220 mm
Package height: 94 mm
Package weight: 1.38 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
Other features
Country of origin: China
Introduction month: July
Introduction year: 2024
Warranty period: 2 year(s)
