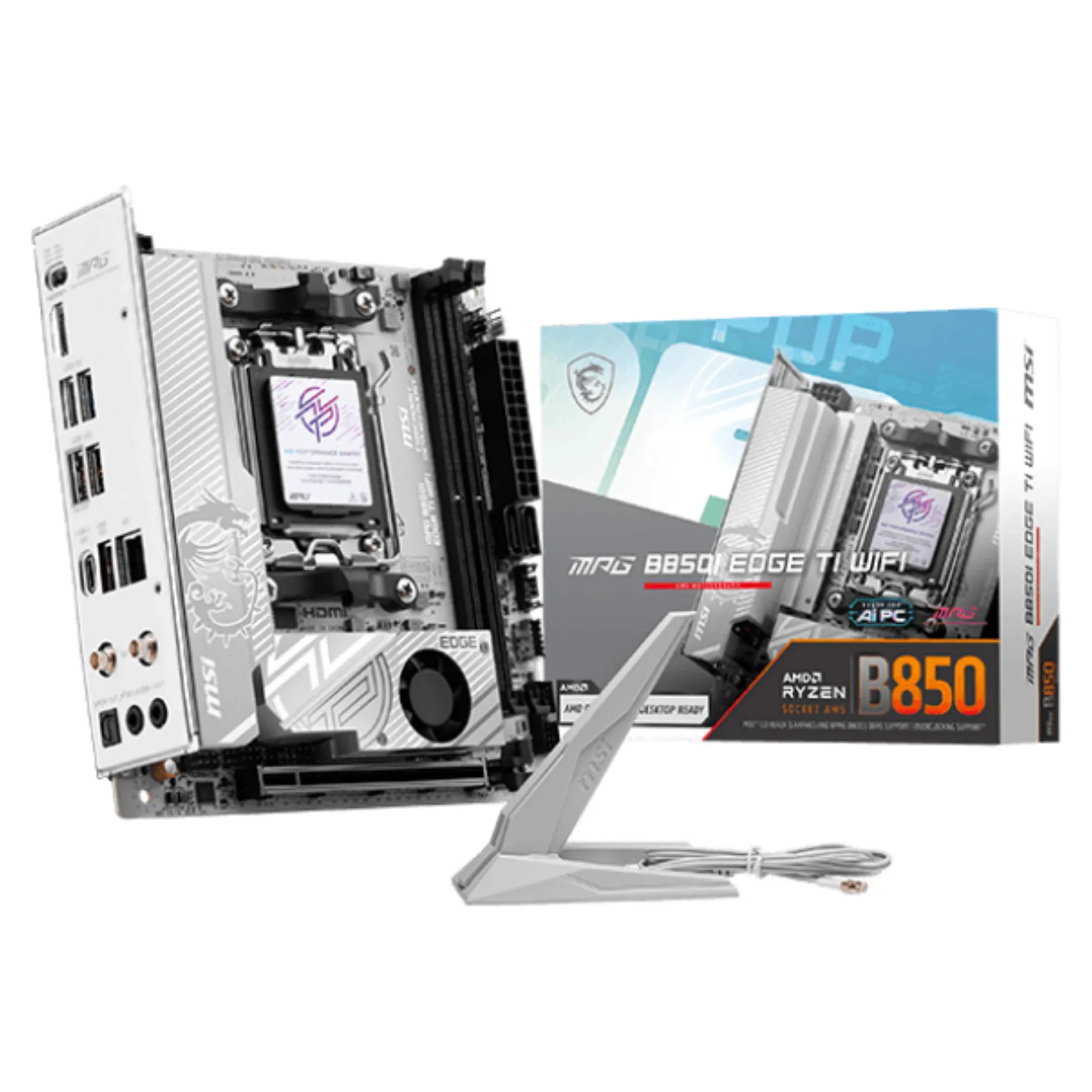

MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, RAID levels: 0, 1. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive interfaces: M.2, NVMe, SATA III
Number of storage drives supported: 4
Feature: RAID support
RAID levels: 0, 1
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 2
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 6
Feature: Chassis intrusion connector
Feature: TPM connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Feature: S/PDIF out port
USB connector type: USB Type-A, USB Type-C
Network
Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
LAN controller: Realtek RTL8126
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Product colour: Grey
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
Weight & dimensions
Width: 170 mm
Depth: 170 mm

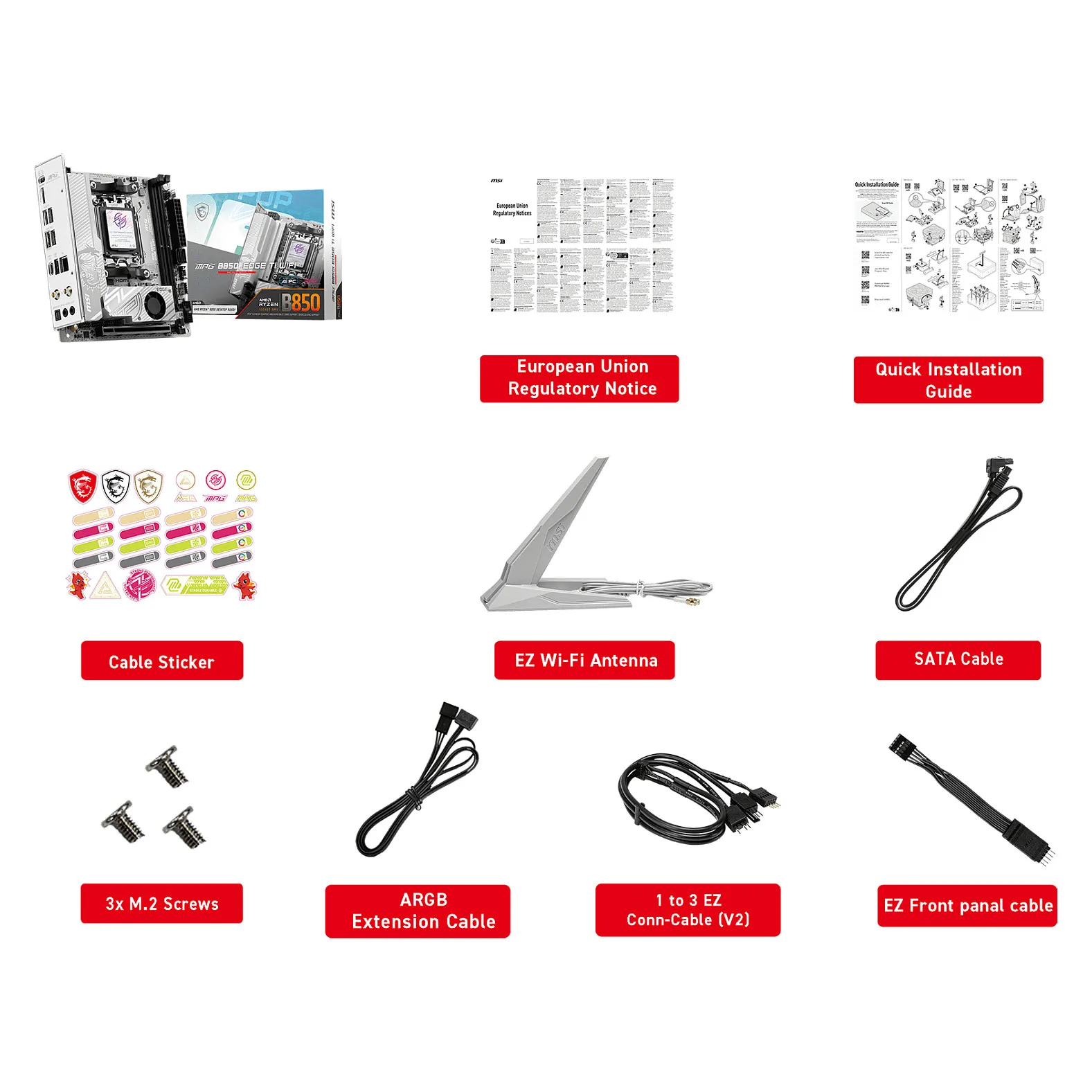

Packaging content
Cables included: SATA
Feature: Antenna included
Feature: Screws included
Other features
Feature: Quick installation guide
