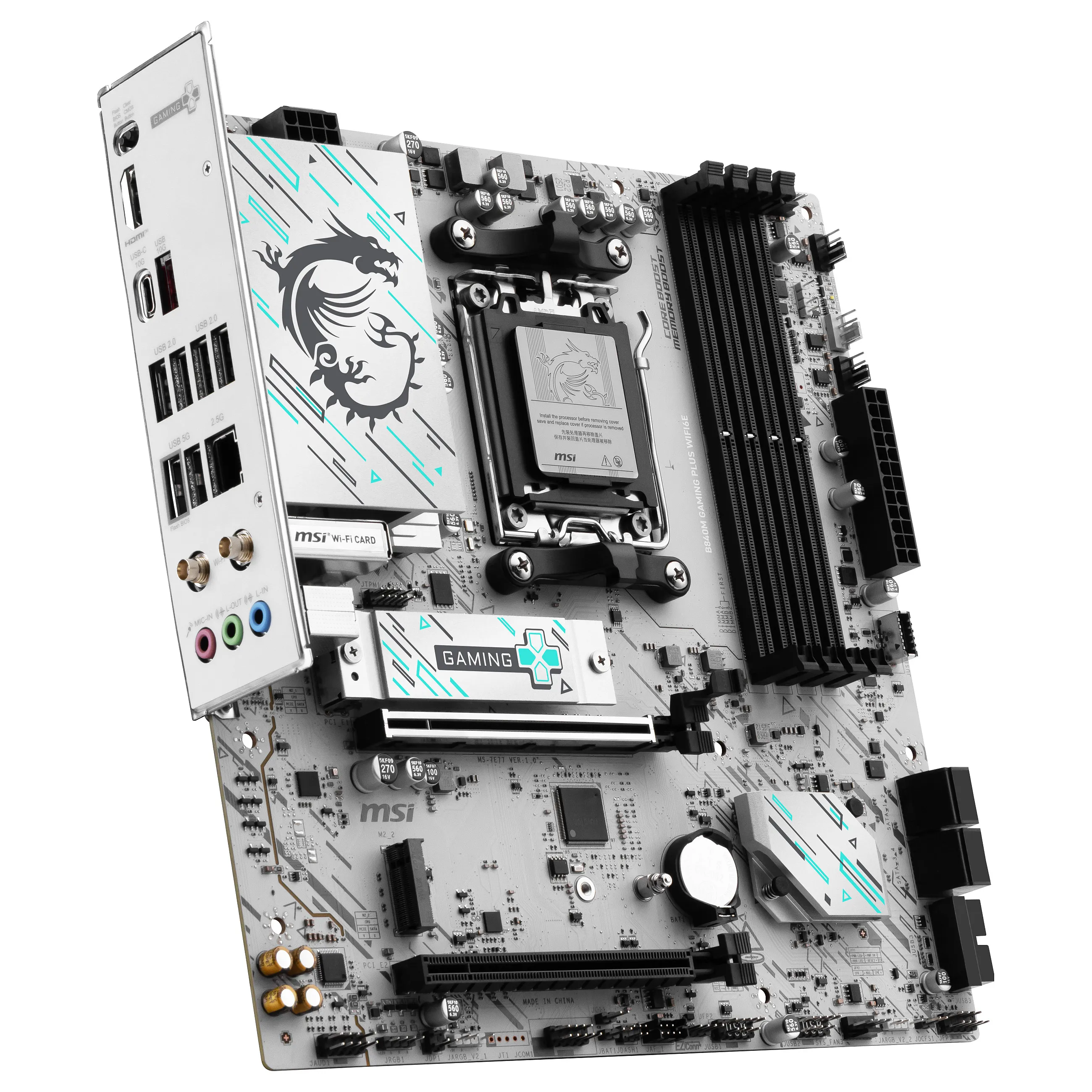

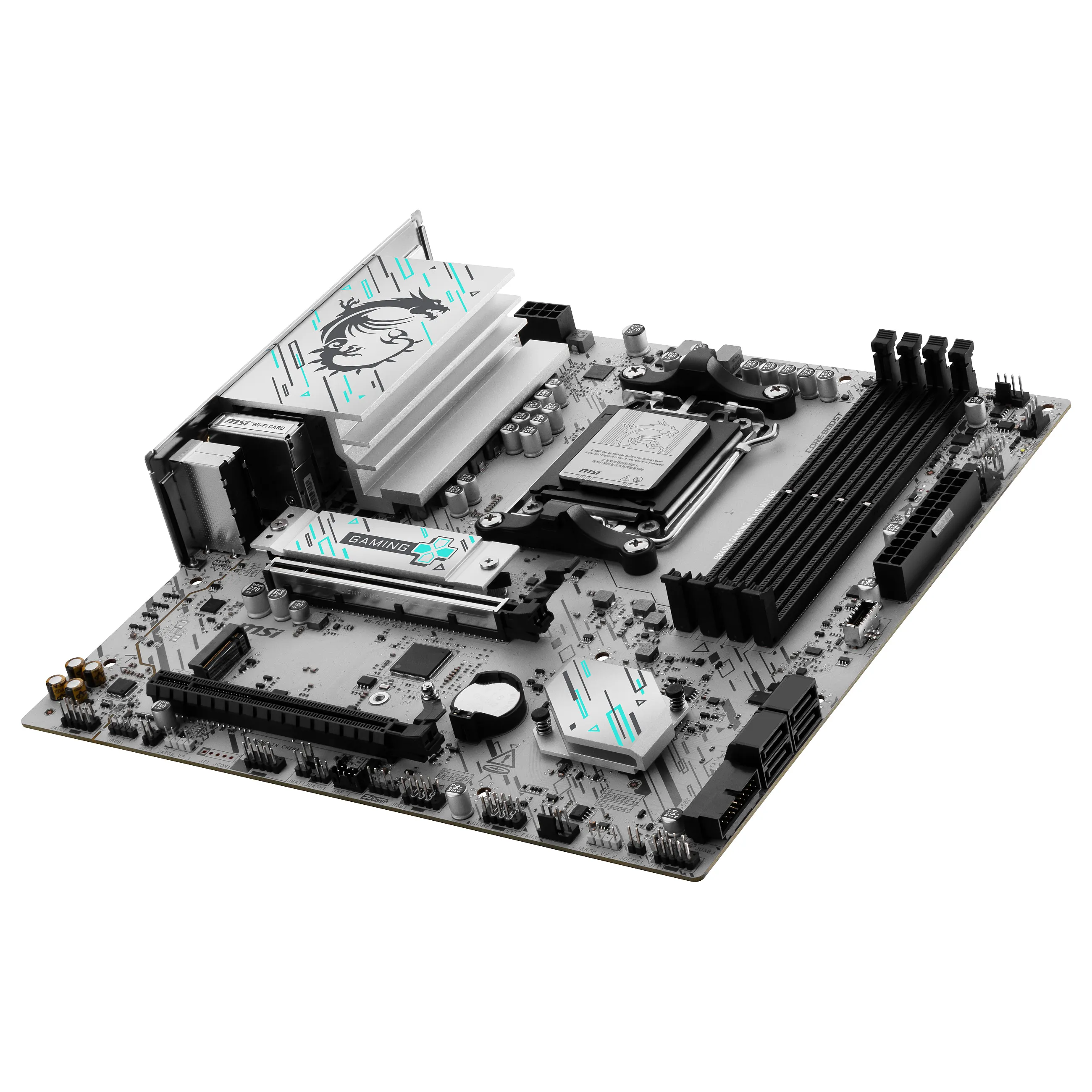

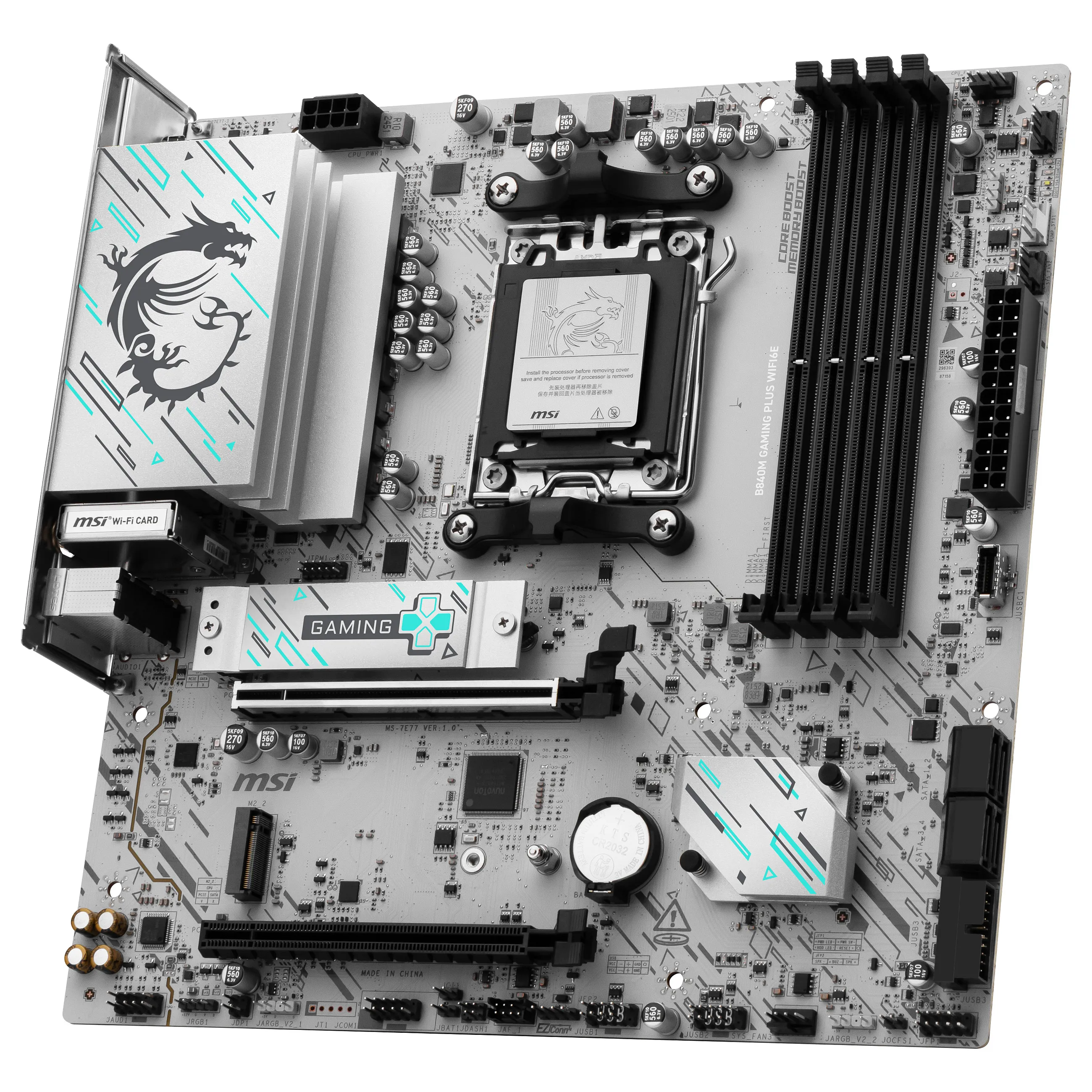

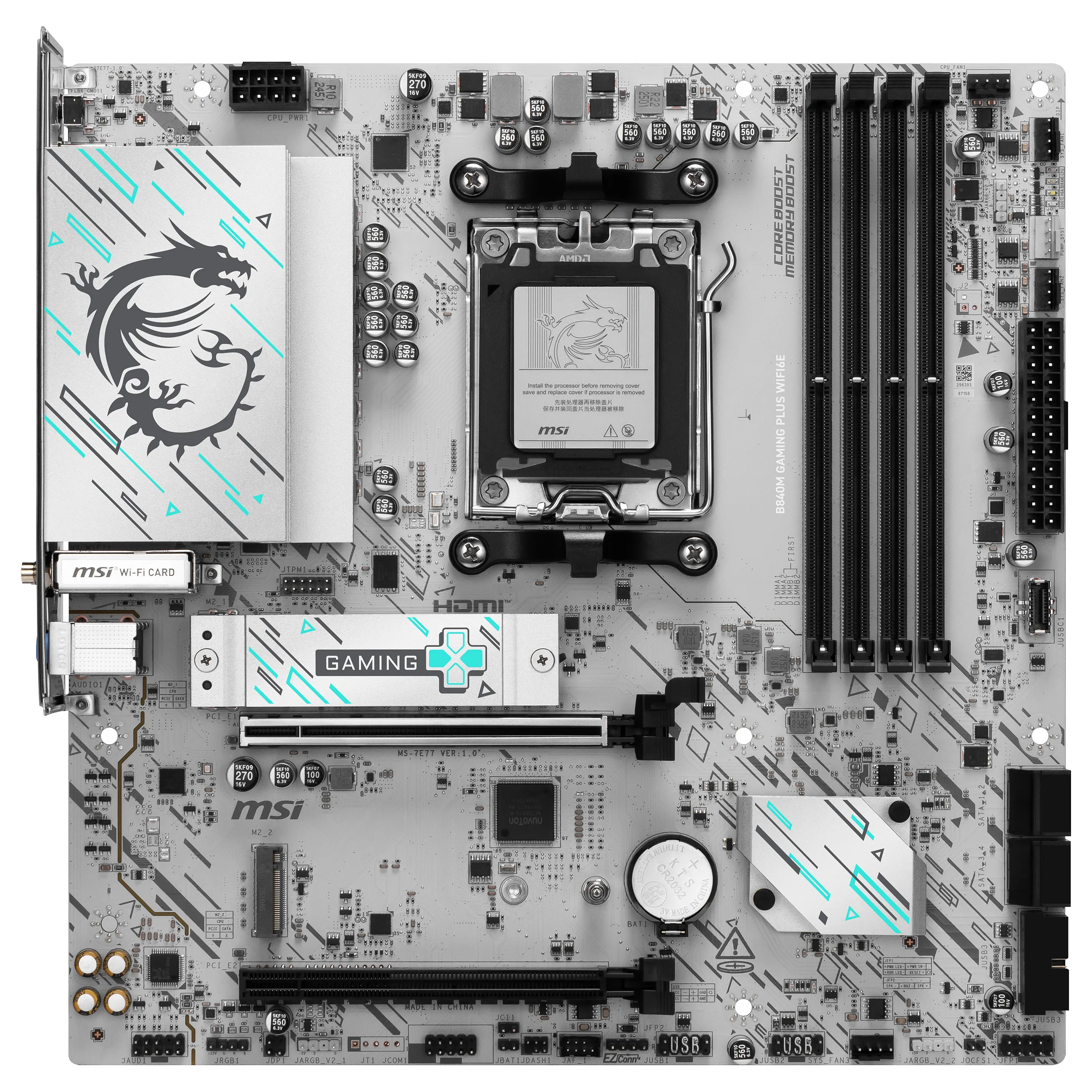

MSI B840M GAMING PLUS WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
The B840M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
7+2+1 P-PAK Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 7 + 2 + 1 digital power phases. With a 8-pin power connector, B840M GAMING PLUS WIFI6E is ready for the challenge of heavy-loading tasks.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5600,8000 MHz
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, Micro SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 10
Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Number of CPU fan connectors: 1
Number of chassis fan connectors: 5
Number of water pump connectors: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3

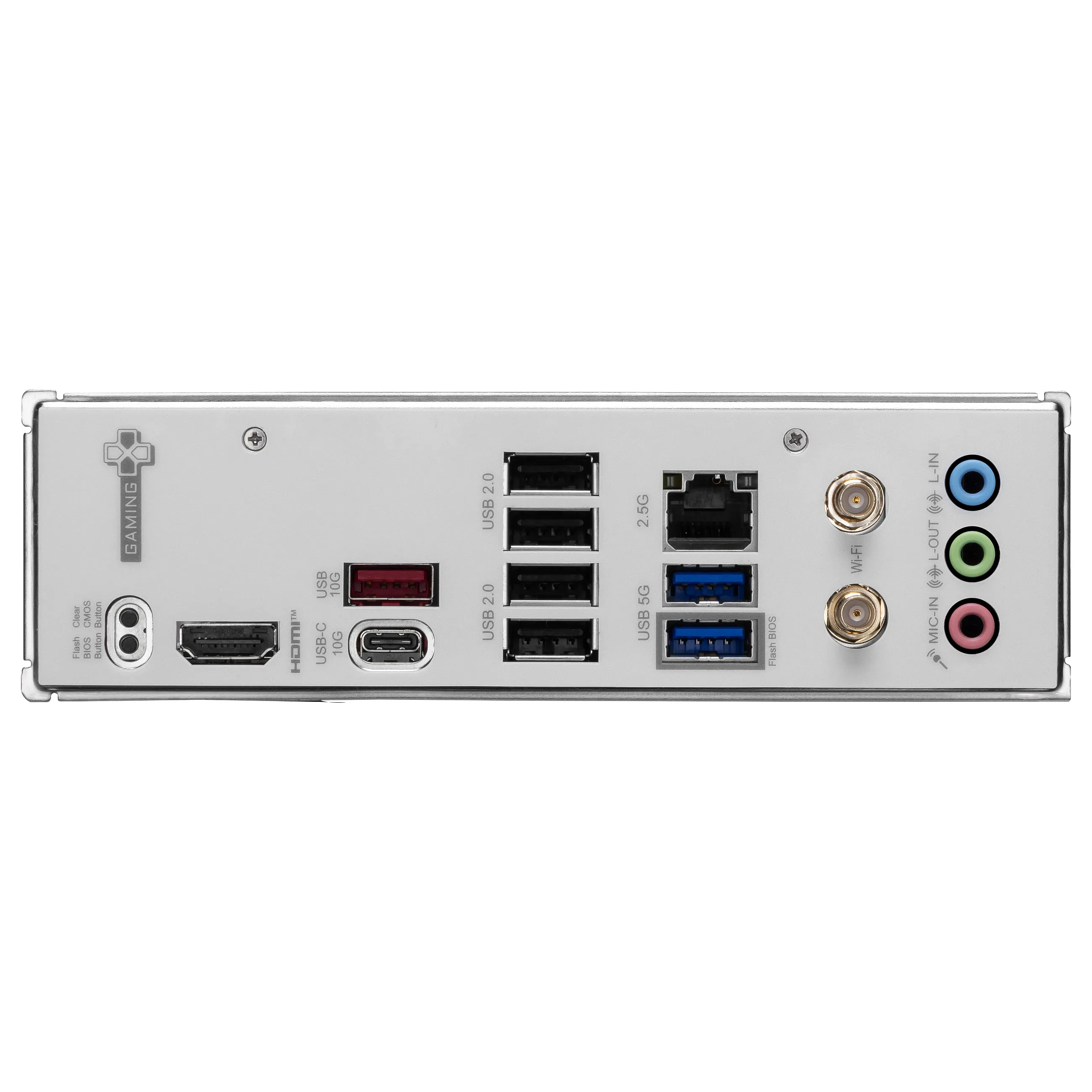

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125D
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: AMD B840
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: White
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x16 slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7
Weight & dimensions
Width: 243.8 mm
Depth: 243.8 mm
