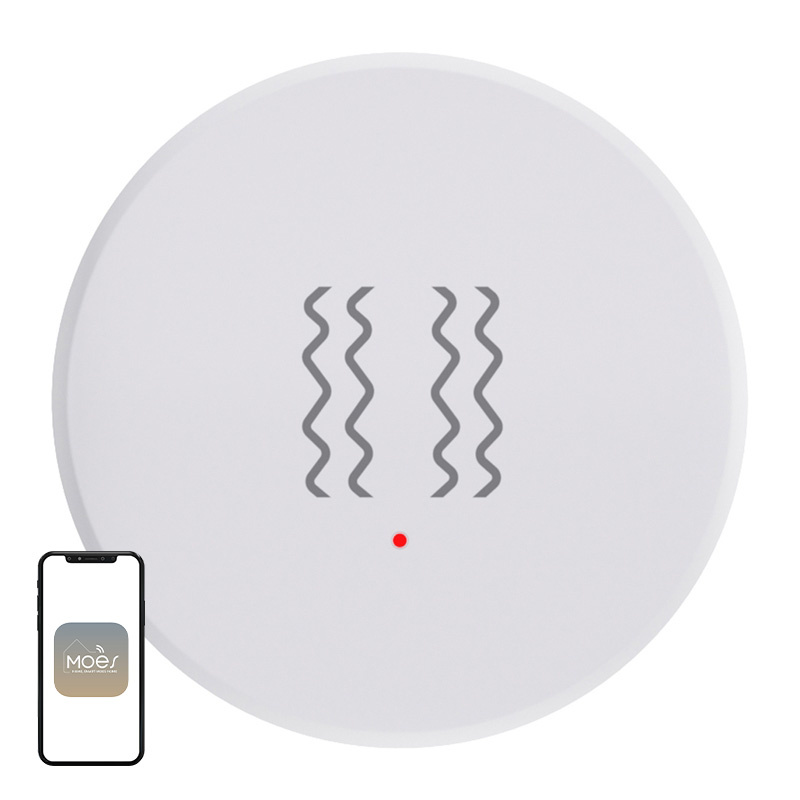

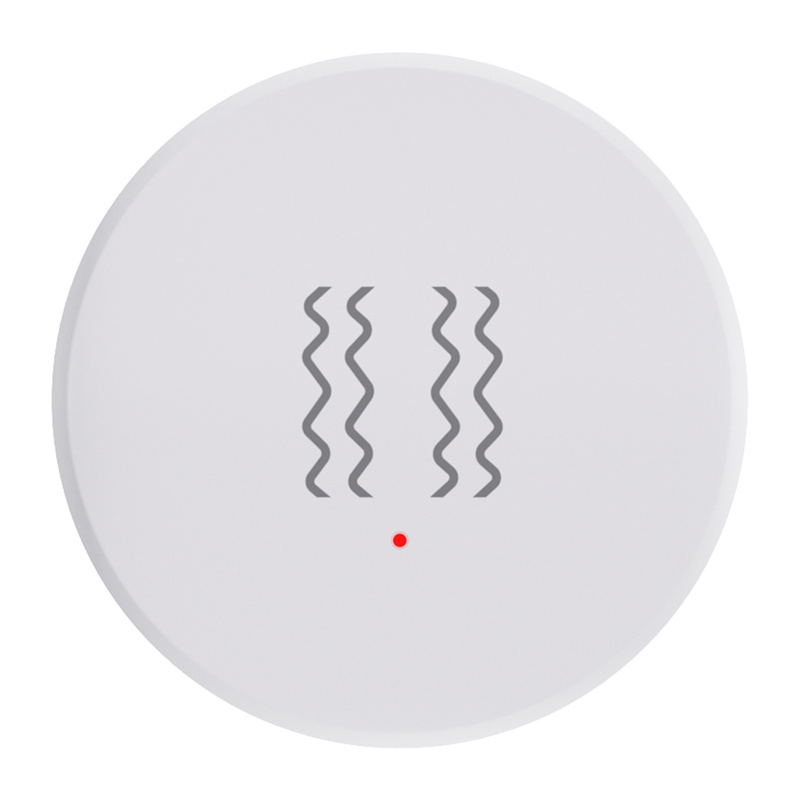

MOES ZSS-S02-VBR-C ZigBee Vibration Sensor
The MOES ZSS-S02-VBR-C is a smart vibration sensor that monitors movement in real time across three axes, ensuring effective protection and safety for household members. Thanks to ZigBee 3.0 communication (gateway required), the device integrates with a smart home system and enables automation. Adjustable sensitivity in three levels (low, medium, high) allows you to tailor the sensor’s operation to a specific application, and its compact dimensions (Φ40 × 13 mm) make installation easy anywhere.
Precise motion and tilt detection
The sensor uses a sensitive sensor to detect vibrations and changes in tilt angle (±10°), allowing it to quickly respond to the movement of objects, the opening of a drawer, etc. The ±2g gravitational detection range ensures accurate monitoring of even slight movements, which increases the effectiveness of security measures.
Instant notifications and event history
Upon detecting activity, the device sends notifications to your smartphone via the MOES, Tuya Smart, or Smart Life apps. You have access to an event history with date and time stamps, allowing you to track all detected vibrations. You can also independently enable or disable notifications for different types of events.
Smart home integration
The sensor works with other ZigBee devices, enabling the creation of automation scenarios. For example, it can trigger an alarm, turn on the lights, or cut off power to a device if it is knocked over. Thanks to local communication via the ZigBee gateway, the system operates stably and independently of the Wi-Fi network.
Long battery life and convenient operation
The device is powered by a CR2450 (3 V) battery, which provides over 12 months of standby time. Low power consumption (≤10 µA) and a low-battery notification feature help prevent sudden shutdowns. Settings are synchronized by moving the sensor once after changing the parameters.
Included in the set
- vibration sensor
- double-sided tape
- sensor reset pin
- user manual
| Manufacturer | Moes |
|---|---|
| Model | ZSS-S02-VBR-C |
| Wireless protocol | ZigBee 3.0 |
| Acceleration range | ±2g |
| Tilt angle detection | ±10° |
| Operating voltage | 3 V |
| Battery type | CR2450 |
| Standby current | ≤10 µA |
| Standby time | ≥15 months |
| Operating temperature | -10°C ~ 55°C |
| Operating humidity | 0% ~ 99% RH |
| Dimensions | Ø 40 × 13 mm |
| Frequency band | 2405–2480 GHz |
| Maximum RF transmission power | < +10 dBm |
