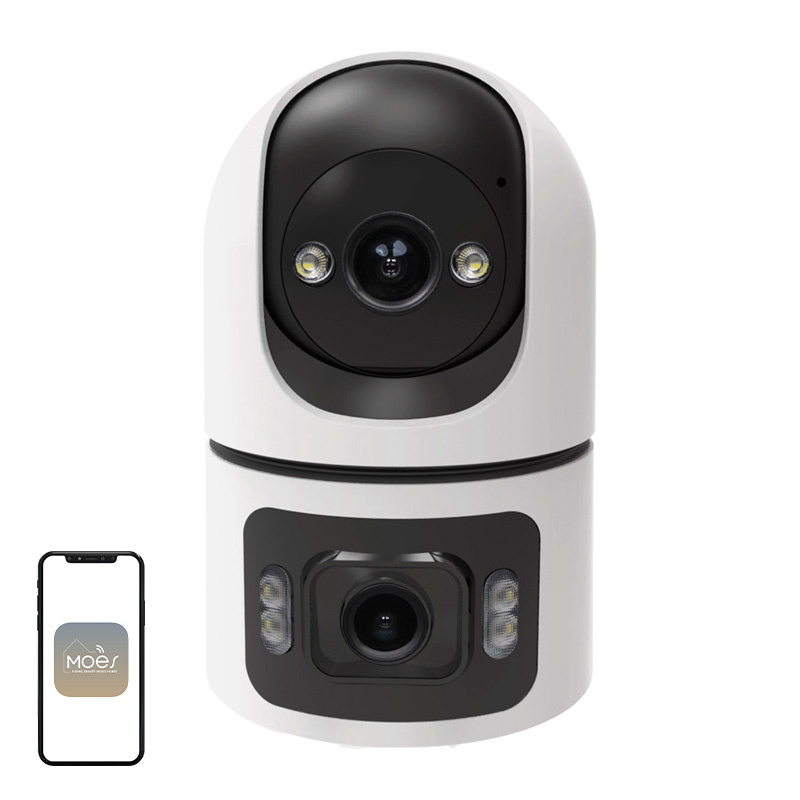

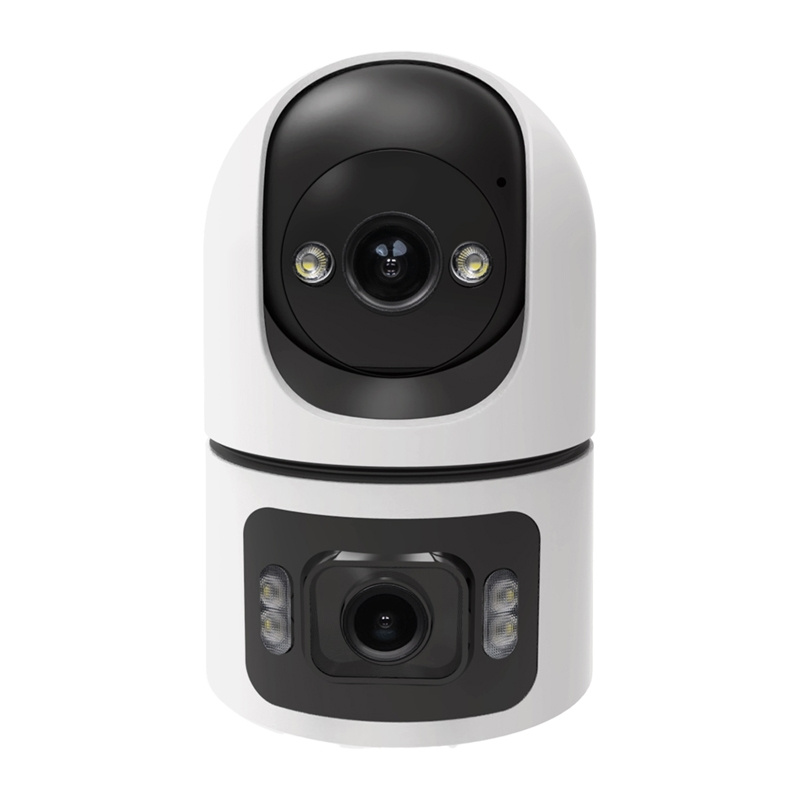

MOES WCM-Q09 8MP Wi-Fi 6 IP Camera

MOES WCM-Q09 8MP Wi-Fi 6 IP Camera

The MOES WCM-Q09 is an advanced IP camera equipped with a dual-lens system, offering a total resolution of 8 MP (2 × 4 MP), which allows you to monitor two different areas simultaneously. Support for Wi-Fi 6 and dual-band 2.4 GHz and 5 GHz connectivity ensures a stable and fast connection, while the ability to switch between HD and SD modes allows you to adjust the image quality to the available bandwidth. The camera works with the MOES, Tuya Smart, and Smart Life apps, offering full control over monitoring from your smartphone.

Dual View and Wide Field of View

With two lenses, the camera captures two different views simultaneously, which increases monitoring effectiveness and reduces blind spots. The PTZ pan-tilt-zoom function allows for horizontal movement up to 300° and vertical movement up to 60°, enabling a wider area to be monitored. The app features a split-screen view that allows you to simultaneously monitor the footage from both cameras.

Clear Night Vision – Color and Infrared

The camera offers two night vision modes—full color and infrared. Color mode uses lighting to produce a clear image even in low light, while IR mode enables monitoring in complete darkness. A sensitivity of 0.1 lux allows for capturing details even in challenging lighting conditions.

Smart features and automation

The WCM-Q09 model uses intelligent motion detection algorithms that identify moving objects and send immediate notifications. The motion tracking feature enhances monitoring effectiveness, and the ability to create scenarios allows you to integrate the camera with other devices, such as automatically turning on lights when motion is detected. A privacy mode is also available, allowing you to disable recording.

Two-way communication and convenient operation

The built-in microphone and speaker enable real-time conversations via the app. The camera also offers quick access to saved monitoring points and features such as playback, a gallery, night mode, and volume control. The app interface also allows you to control connection quality, transmission speed, and image settings.

Efficient storage and compatibility

The camera supports H.264 and H.265 compression, with H.265 reducing memory and bandwidth usage by up to 50%. Recordings can be saved to a 32 GB, 64 GB, or 128 GB TF card or to the cloud (service available in the app). Support for TCP/IP, IPv4, DHCP, P2P, and the ONVIF standard enables integration with various monitoring systems.

Stable operation in various conditions

The device operates at temperatures ranging from -10°C to 45°C and at humidity levels below 95%, allowing it to be used in various environments. The 5 V / 1 A power supply ensures stable operation, and the maximum transmission power of less than +17 dBm guarantees a secure and effective network connection.

Included in the package

• camera
• USB cable
• mounting bracket
• screws
• user manual
