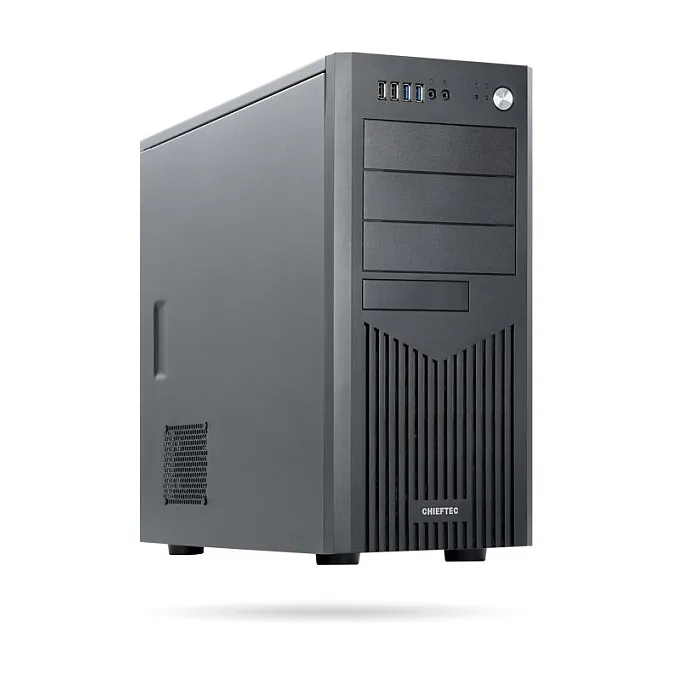

Chieftec BM-25B-OP. Type: PC, Product colour: Black, Supported motherboard form factors: ATX, Mini-ATX, Mini-ITX. Supported power supply form factors: ATX. Front fans diameters supported: 90,120 mm, Rear fans diameters supported: 80,90,120 mm. Supported HDD sizes: 2.5,3.5,5.25". Width: 198 mm, Depth: 465 mm, Height: 425 mm
BM-25B-OP
The Chieftec CLASSIC Series brings new life to the proven quality and the decade-old success of the UNI Series with a refreshed front panel design on the outside, while upgrading the quality and features on the inside. Built from 0.7 mm sturdy SECC and including toolless drive installation kits, the CLASSIC series is perfect for system builders who value true quality and timeless design.
Design
Material: SECC
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, Mini-ATX, Mini-ITX
Number of 3.5″ bays: 4
Number of 5.25″ bays: 3
Number of 2.5″ bays: 1
Number of internal 3.5″ bays: 3
Number of external 5.25″ bays: 3
Number of expansion slots: 7
Side window: No
On/off button: Yes
Maximum CPU cooler height: 14 cm
Maximum graphics card length: 25 cm
Power supply
Supported power supply form factors: ATX
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Number of front fans supported (max): 1
Front fans diameters supported: 90,120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 80,90,120 mm
Storage
Supported HDD sizes: 2.5,3.5,5.25″
Weight & dimensions
Width: 198 mm
Depth: 465 mm
Height: 425 mm
Weight: 8.2 kg
Material thickness: 0.7 mm
Packaging data
Package weight: 9.4 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Screws included: Yes
Material: SECC
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, Mini-ATX, Mini-ITX
Number of 3.5″ bays: 4
Number of 5.25″ bays: 3
Number of 2.5″ bays: 1
Number of internal 3.5″ bays: 3
Number of external 5.25″ bays: 3
Number of expansion slots: 7
Side window: No
On/off button: Yes
Maximum CPU cooler height: 14 cm
Maximum graphics card length: 25 cm
Power supply
Supported power supply form factors: ATX
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Number of front fans supported (max): 1
Front fans diameters supported: 90,120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 80,90,120 mm
Storage
Supported HDD sizes: 2.5,3.5,5.25″
Weight & dimensions
Width: 198 mm
Depth: 465 mm
Height: 425 mm
Weight: 8.2 kg
Material thickness: 0.7 mm
Packaging data
Package weight: 9.4 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Screws included: Yes
