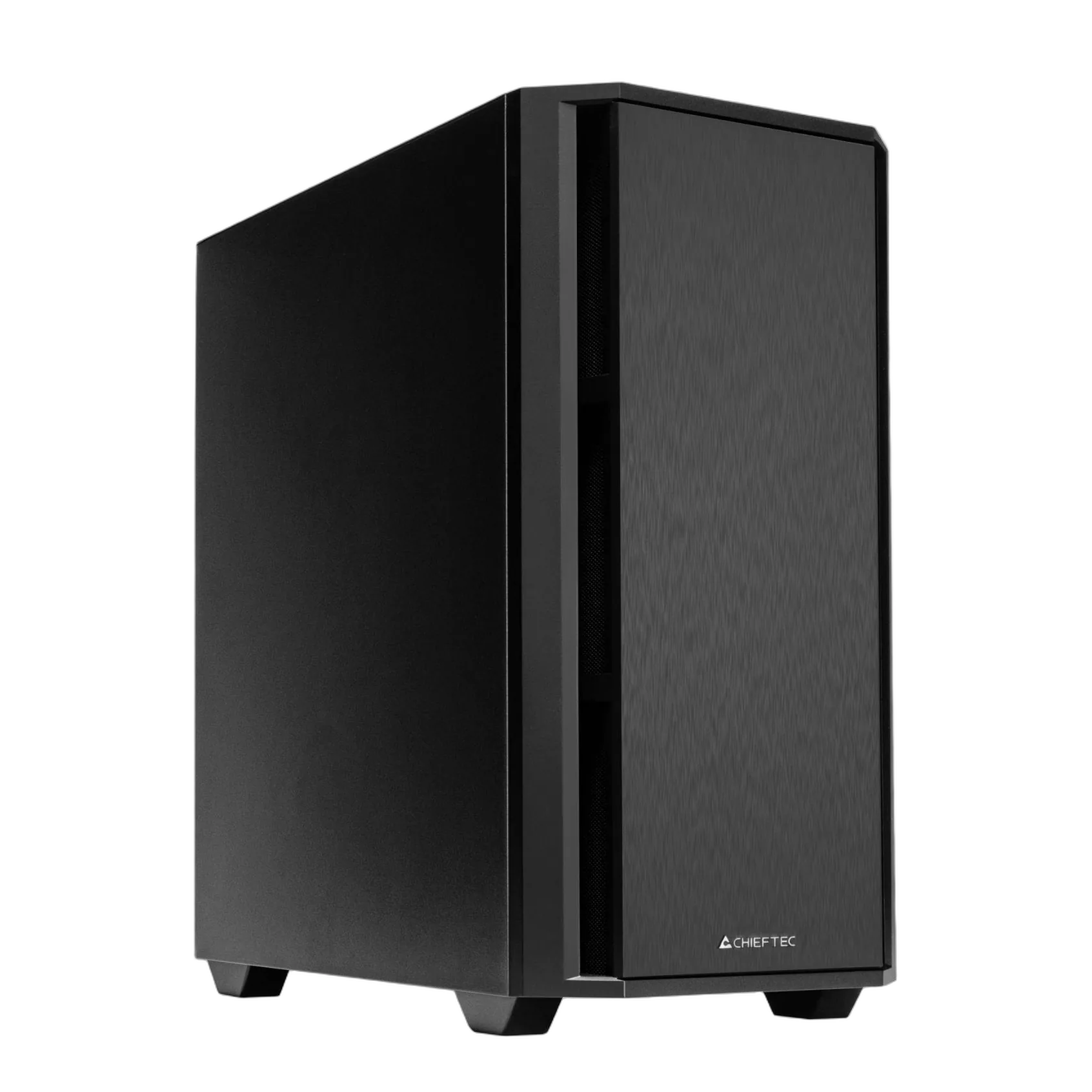

Chieftec AZ-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 360 mm, Height: 420 mm. Package weight: 6 kg
The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides flexible cooling configurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.
Design
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX, Mini-ITX, uATX
Number of 3.5″ bays: 1
Number of 2.5″ bays: 2
Number of internal 3.5″ bays: 1
Number of storage drives supported: 3
Number of expansion slots: 4
Full-Height expansion slots: 4
Side window: No
Illumination: No
Tempered glass panel(s): No
Anti-dust filter: Yes
Reset button: Yes
On/off button: Yes
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 33 cm
Maximum PSU length: 18 cm
Power supply
Power supply included: No
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Cooling
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Liquid cooling capability: Yes
Front radiator sizes supported: 240,280,360 mm
Top radiator sizes supported: 240,280 mm
Storage
Supported HDD sizes: 2.5,3.5″
Weight & dimensions
Width: 212 mm
Depth: 360 mm
Height: 420 mm
Weight: 5.15 kg
Material thickness: 0.6 mm
Packaging data
Package weight: 6 kg
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX, Mini-ITX, uATX
Number of 3.5″ bays: 1
Number of 2.5″ bays: 2
Number of internal 3.5″ bays: 1
Number of storage drives supported: 3
Number of expansion slots: 4
Full-Height expansion slots: 4
Side window: No
Illumination: No
Tempered glass panel(s): No
Anti-dust filter: Yes
Reset button: Yes
On/off button: Yes
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 33 cm
Maximum PSU length: 18 cm
Power supply
Power supply included: No
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Cooling
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Liquid cooling capability: Yes
Front radiator sizes supported: 240,280,360 mm
Top radiator sizes supported: 240,280 mm
Storage
Supported HDD sizes: 2.5,3.5″
Weight & dimensions
Width: 212 mm
Depth: 360 mm
Height: 420 mm
Weight: 5.15 kg
Material thickness: 0.6 mm
Packaging data
Package weight: 6 kg
