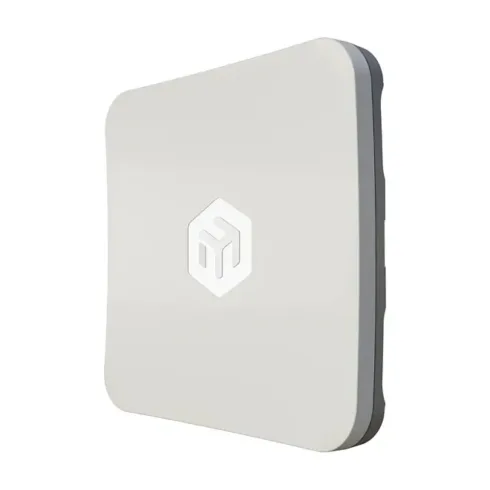

Mikrotik SXTSQ-5AXD. 5 GHz, 6 GHz, Maximum data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 6 W
ARM dual-core + Wi-Fi 6
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.
Weatherproof

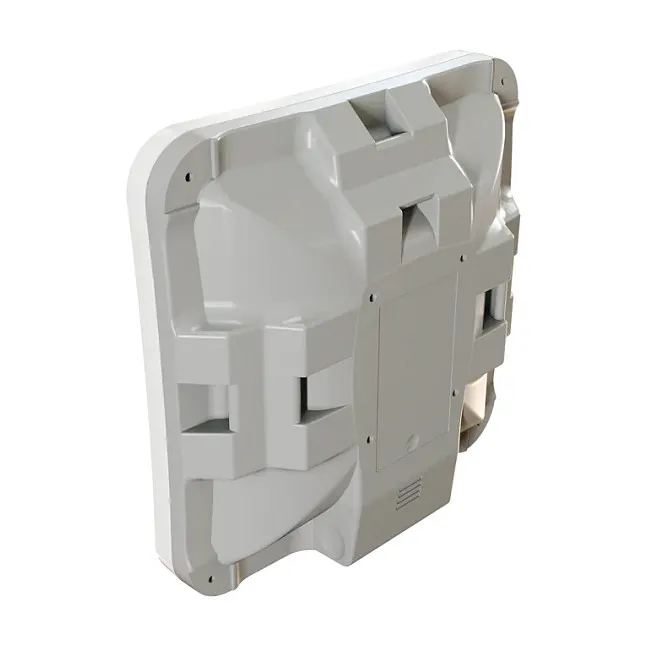

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.
3 to 10+ km
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.
Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units – and you’ve got everything you need to become the village ISP! No need to wait for large ISPs to reach you.
With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 1200 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 12 – 28 V
Power consumption (max): 6 W
Design
Product colour: White
International Protection (IP) code: IP55
Antenna
Antenna type: Internal
Antenna gain level (max): 16 dBi
Performance
Feature: Built-in processor
Processor frequency: 800 MHz
Flash memory: 128 MB
Internal memory: 256 MB
Operating system installed: RouterOS
Certificates
Certification: CE, FCC, IC, EAC, ROHS
Operational conditions
Operating relative humidity (H-H): -40 – 70%
