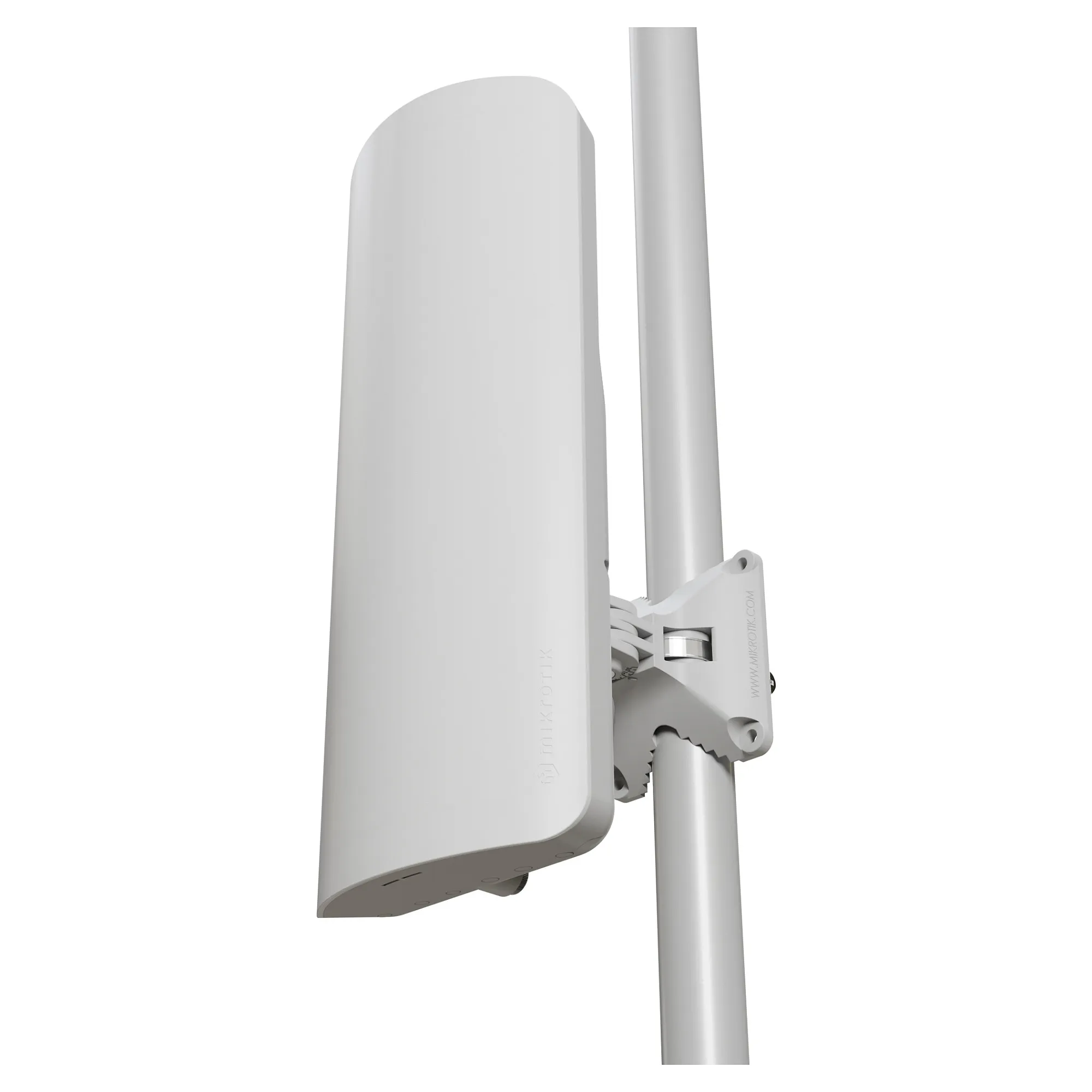

Mikrotik mANTBox ax 15s. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 21 W

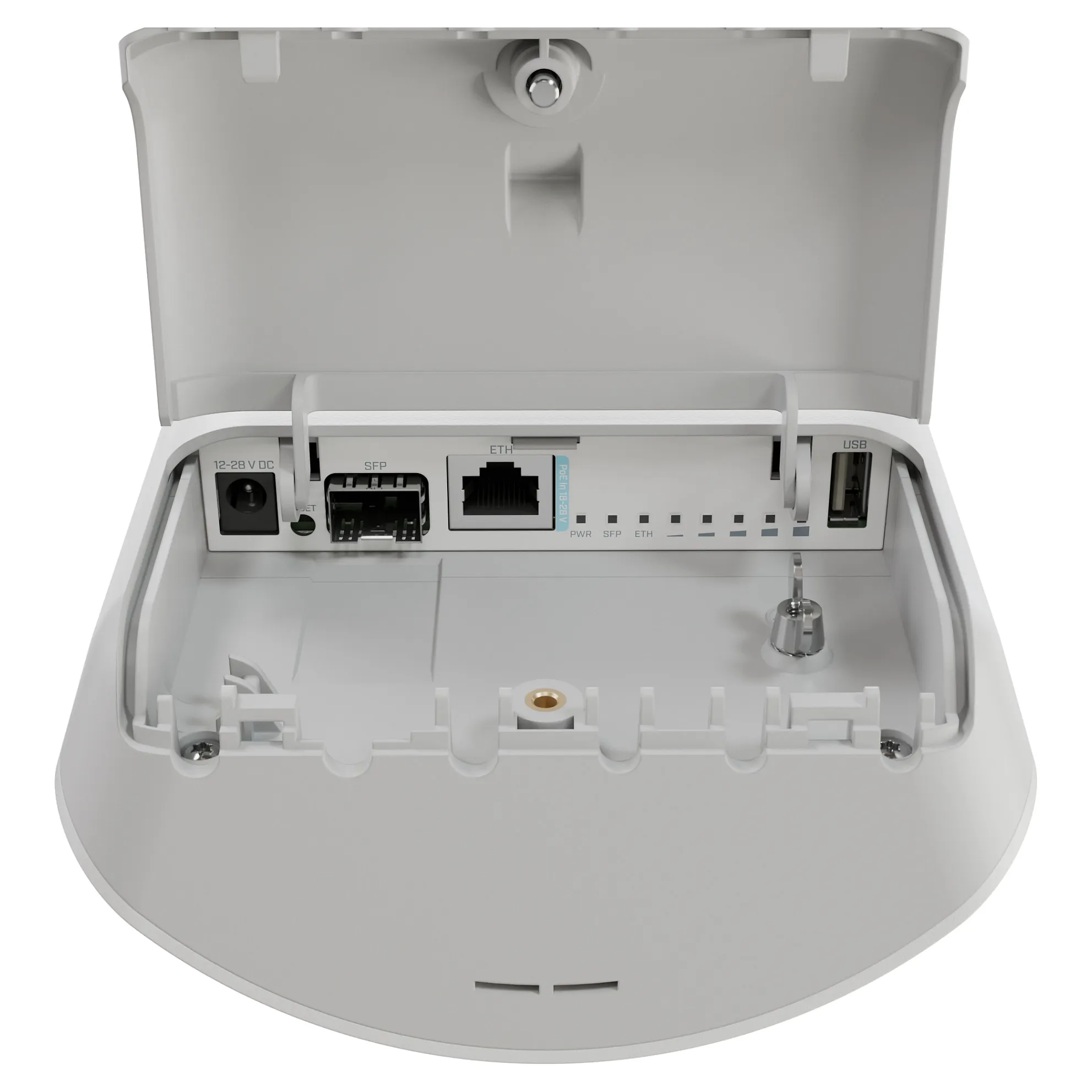

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

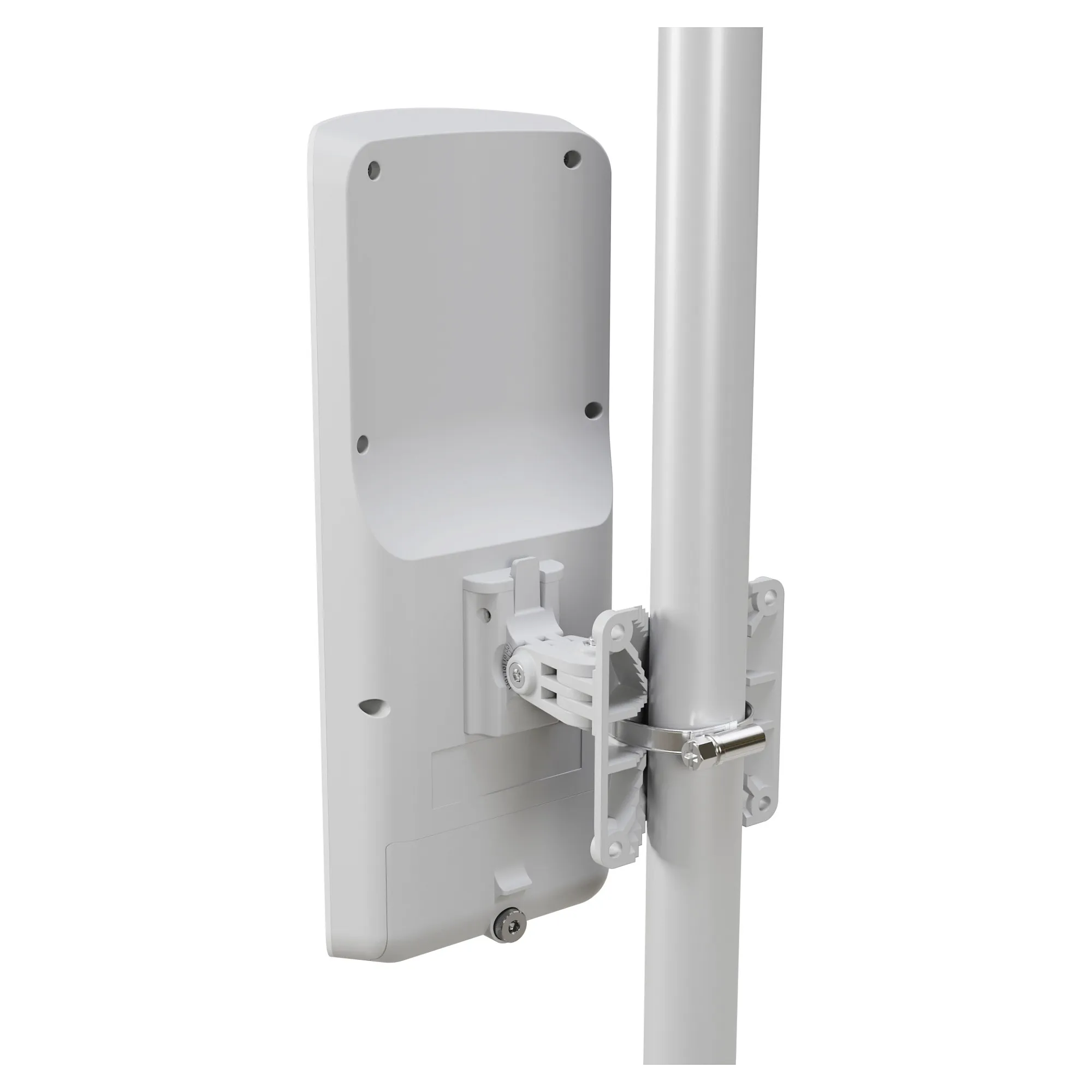

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
*It’s important to note that while longer links are feasible, their reliability may vary.
Feature: 2.4 GHz
Feature: 5 GHz
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 21 W
Design
Placement: Pole, Wall
Product colour: White
Antenna
Antenna type: Sector antenna
Antenna gain level (max): 15 dBi
Polarization: Dual polarization
Performance
Chipset: QCN-6102, IPQ-5010
Feature: Built-in processor
Processor frequency: 800 MHz
Flash memory: 256 MB
Internal memory: 126 MB
Operating system installed: RouterOS
Compatible operating systems: RouterOS v7
Certificates
Certification: CE, FCC, IC, EAC, ROHS
Packaging content
Feature: AC adapter included
Feature: PoE adapter included
Feature: Mounting kit
Packaging content: 24V 1.2A power adapterGigabit PoE injectorHose clamp 1QMPK-41 fastening set
Operational conditions
Operating temperature (T-T): -40 – 70 °C
