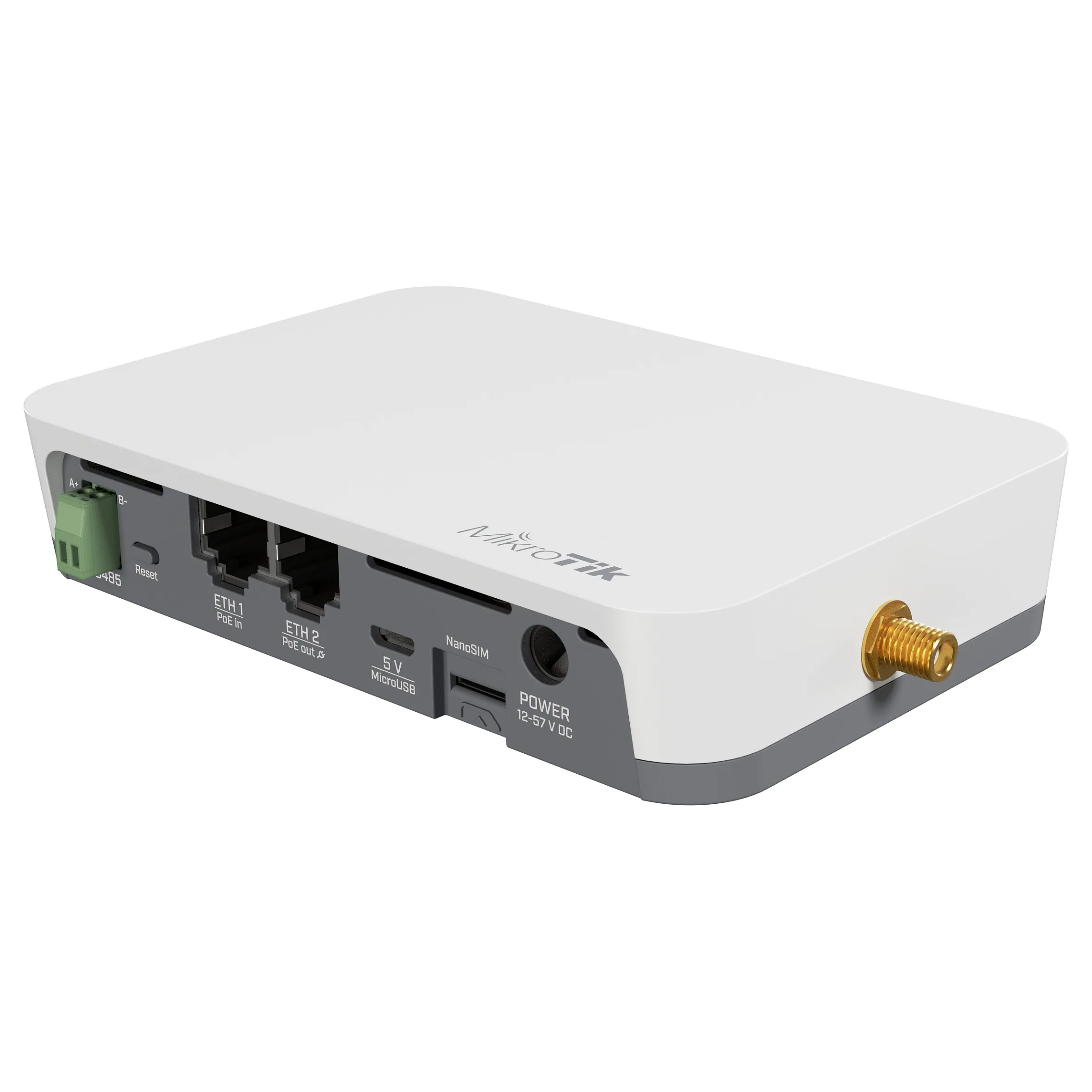

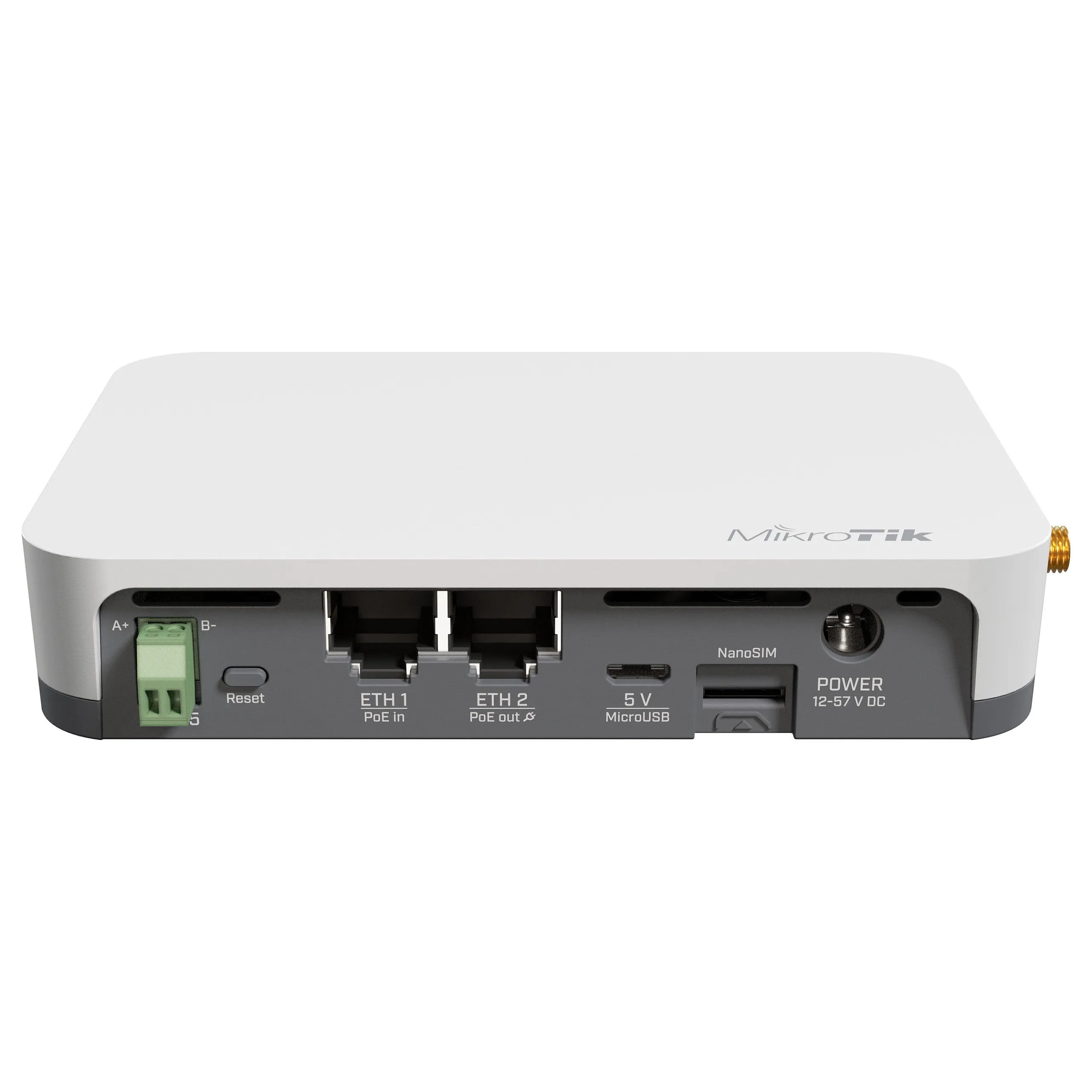

Mikrotik KNOT LR8G. Product colour: White, International Protection (IP) code: IP20. Antenna gain level (max): 1.5 dBi, Mean time between failures (MTBF): 200000 h. Processor model: QCA9531, Processor frequency: 650 MHz, Internal memory: 64 MB. Ethernet LAN data rates: 100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi band: Single-band (2.4 GHz). SIM card type: NanoSIM, Serial interface type: RS-485
Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR8G ties everything together and keeps everything connected.
Key Features & Upgrades
– Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.
– Versatile Powering
Choose from PoE-in, DC jack, or MicroUSB – including PoE-out on Ether2 for powering other devices.
– SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.
– Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.
– Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.
– Powered by RouterOS v7
– for full control, custom scripting, and advanced routing features.
At just 6W consumption and small footprint (122 × 87 × 26 mm), the KNOT LR8G is perfect for deployments where space, power, and budget are limited – but performance can’t be.
Product colour: White
International Protection (IP) code: IP20
Features
Antenna gain level (max): 1.5 dBi
Feature: GPS (satellite)
Mean time between failures (MTBF): 200000 h
Performance
Feature: Built-in processor
Processor model: QCA9531
Processor frequency: 650 MHz
Number of processors installed: 1
Internal memory: 64 MB
Flash memory: 128 MB
Network
Ethernet LAN data rates: 100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300 Mbit/s
WLAN data transfer rate (max): 300 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2
Frequency band: 2.4 GHz
Ports & interfaces
Feature: SIM card slot
SIM card type: NanoSIM
Ethernet LAN (RJ-45) ports: 2
Serial interface type: RS-485
Power
Power consumption (max): 23 W
Feature: Power over Ethernet (PoE)
DC input voltage: 12 – 57 V
Software
Compatible operating systems: RouterOS
Weight & dimensions
Width: 122 mm
Depth: 87 mm
Height: 26 mm
Packaging content

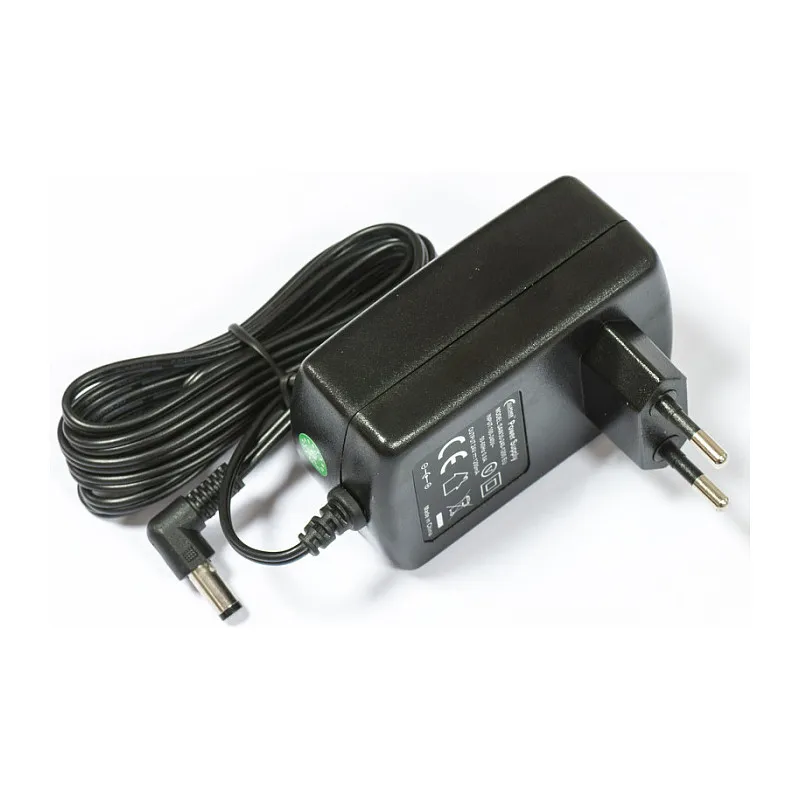

Feature: AC adapter included
Feature: Quick start guide

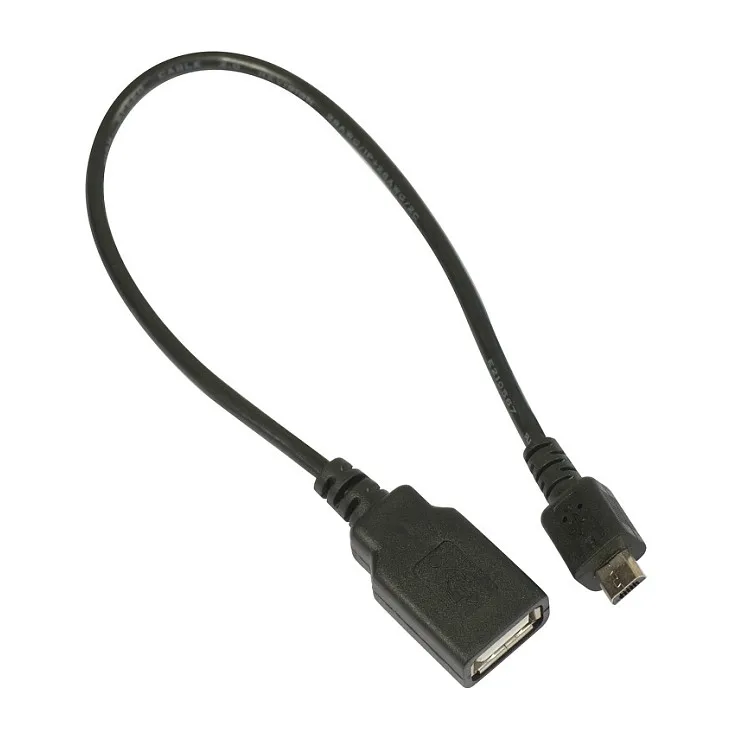

Cables included: OTG
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Sustainability
Feature: Sustainability compliance
Technical details
Feature: BeiDou
Feature: Galileo
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: IC
