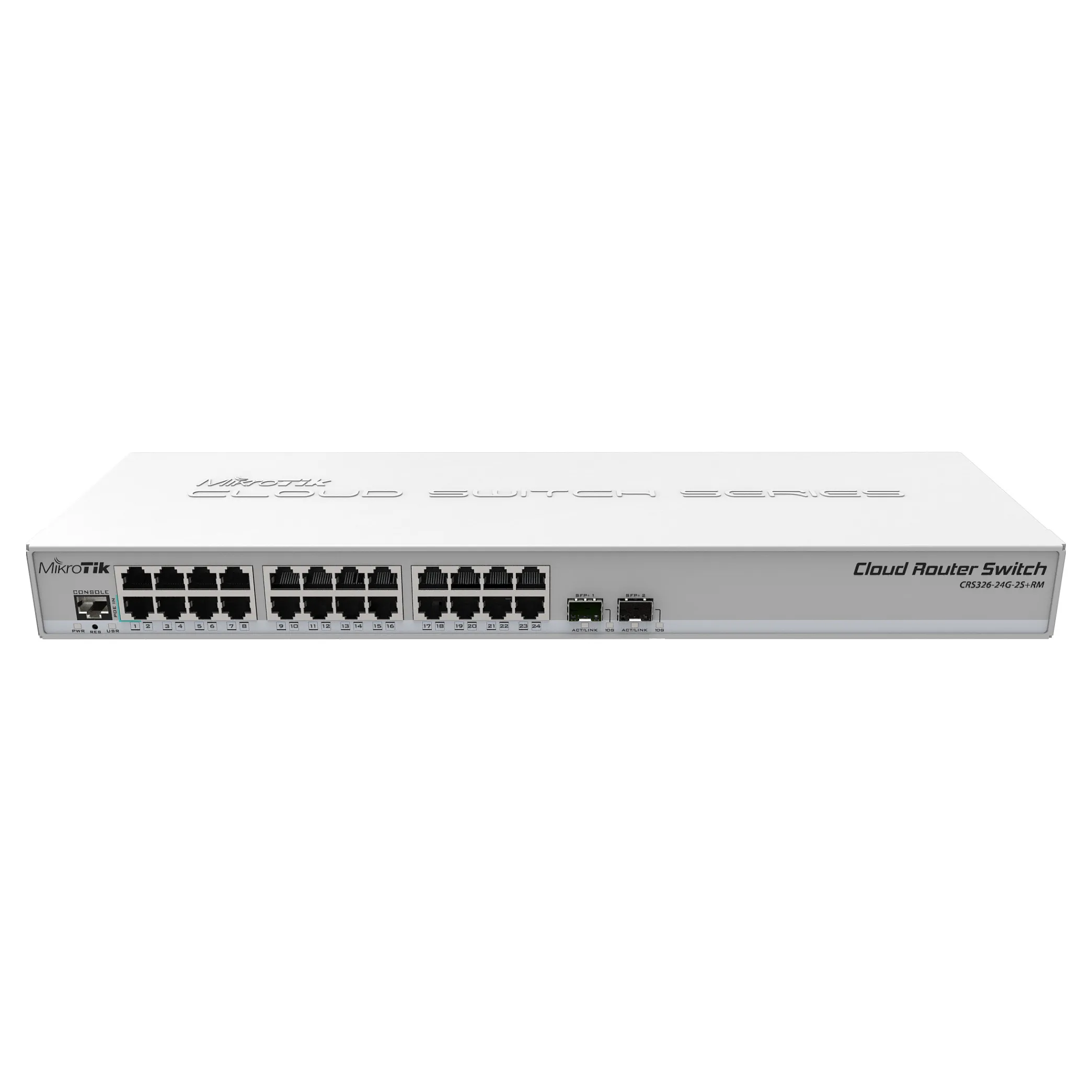

Mikrotik CRS326-24G-2S+RM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Networking standards: IEEE 802.1Q
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Switch type: Managed
Switch layer: L2
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2
Console port: RJ-45
Network
Networking standards: IEEE 802.1Q
Feature: 10G support
Feature: Port mirroring
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4000
Security
Feature: Access Control List (ACL)
Security algorithms: SNMP
Design
Product colour: Grey
Performance
Feature: Built-in processor
Processor frequency: 800 MHz
Internal memory: 512 MB
Flash memory: 16 MB
Compatible operating systems: RouterOS, SwitchOS
Power
Feature: Power supply included
Power consumption (max): 24 W
Operational conditions
Operating temperature (T-T): -40 – 60 °C
Weight & dimensions
Width: 440 mm
Depth: 144 mm
Height: 44 mm
Packaging content

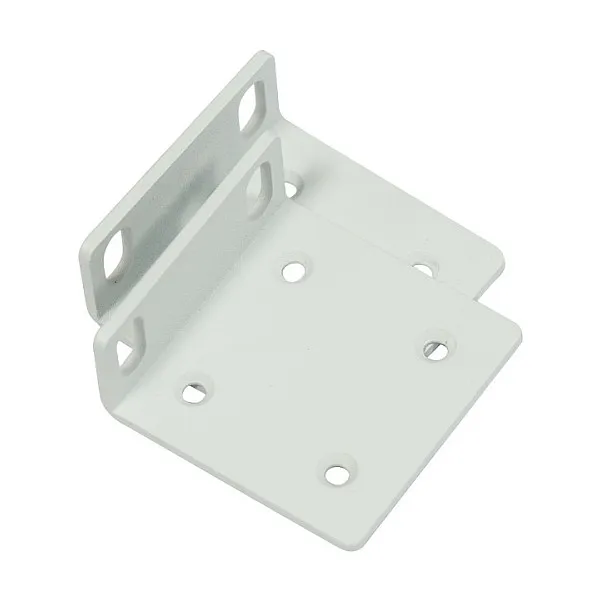

Feature: Rack mount kit
Packaging data

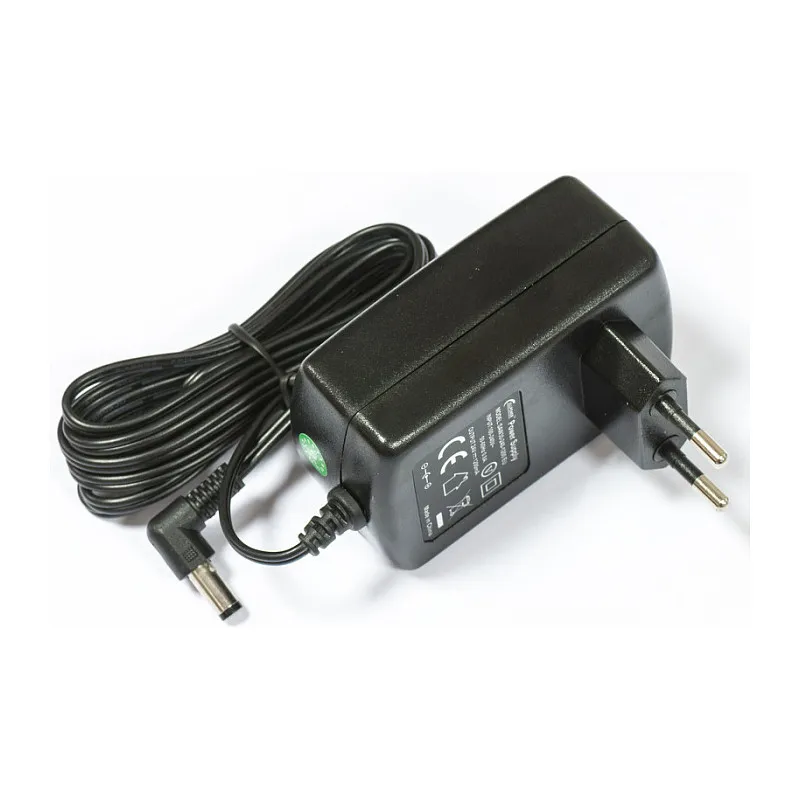

Feature: AC adapter included
Logistics data
Harmonized System (HS) code: 85176990
