Mikrotik CRS317-1G-16S+RM. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.1Q. Power connector: DC-in jack. Rack mounting, Form factor: 1U

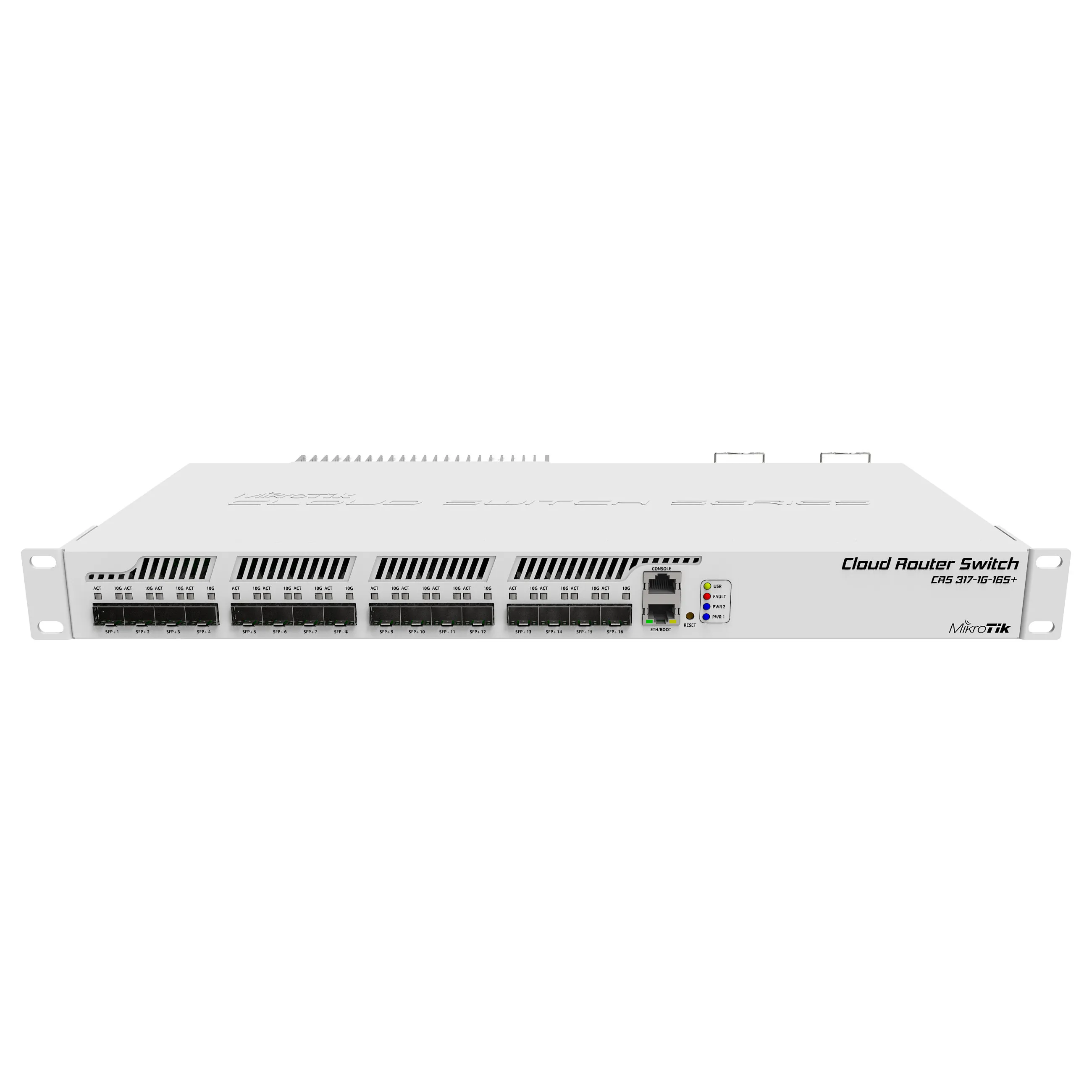

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

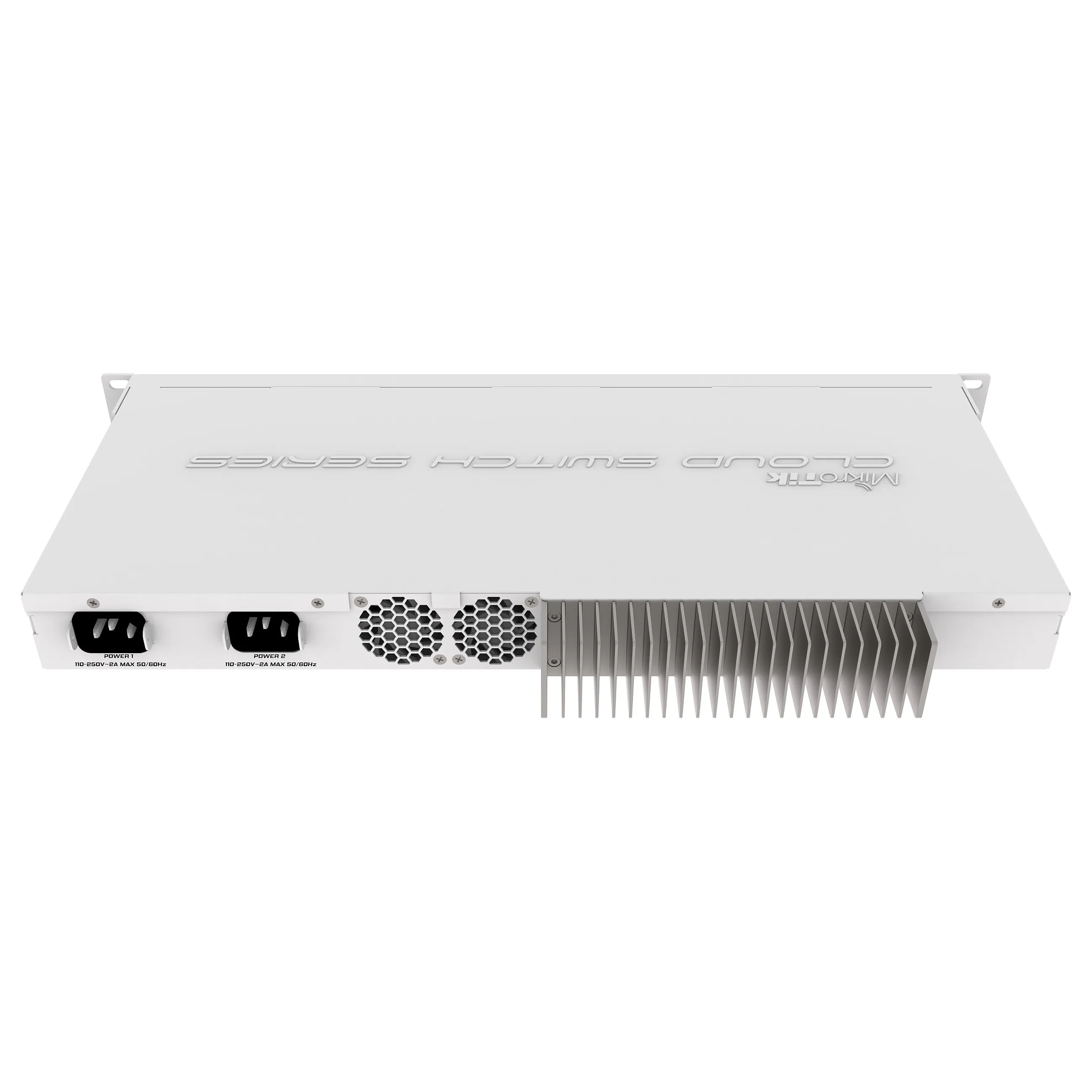

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent – for hot environments two redundant fans will automatically keep the system cool if needed.
Management features
Switch type: Managed
Switch layer: L3
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports type: No
Gigabit Ethernet (copper) ports quantity: 1
SFP+ module slots quantity: 16
Console port: RJ-45
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1Q
Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4000
Security
Security algorithms: SNMPv2, SNMPv3
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Feature: Reset button
LED indicators: Yes
Number of fans: 2 fan(s)
Performance
Feature: Built-in processor
Processor frequency: 800 MHz
Memory type: Flash
Internal memory: 16 MB
Flash memory: 1000 MB
Power
Number of power supply units: 2
AC input voltage: 110 – 240 V
Power consumption (max): 42 W
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Weight & dimensions
Width: 443 mm
Depth: 224 mm
Height: 44 mm
Packaging content

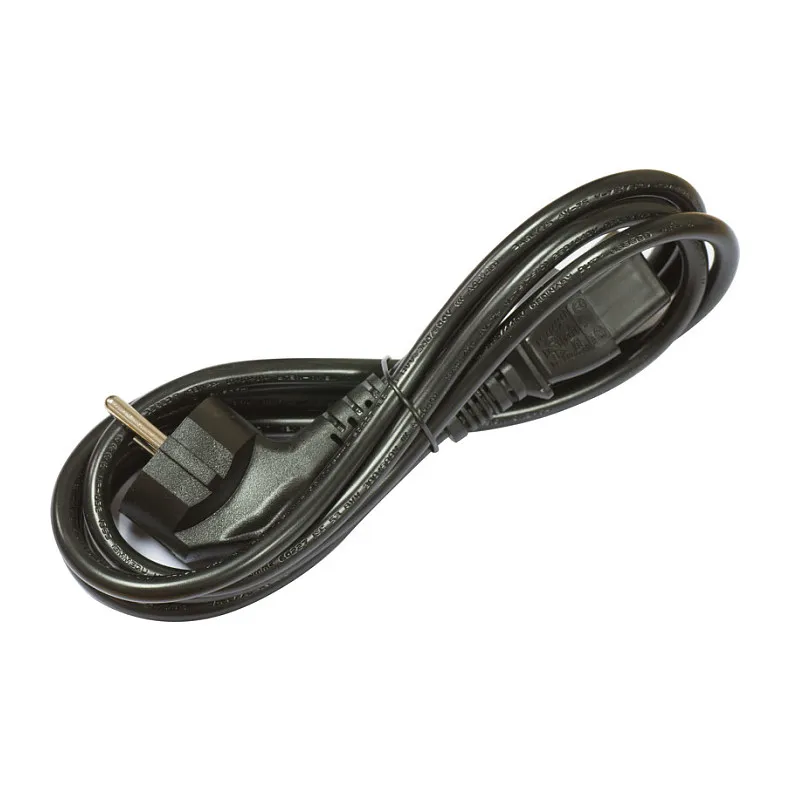

Cables included: AC
Feature: User guide
Packaging data

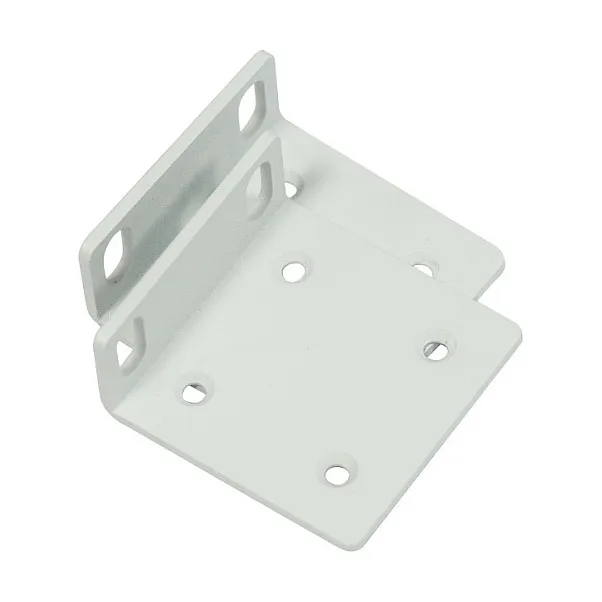

Feature: Mounting brackets included
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Managed
Switch layer: L3
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports type: No
Gigabit Ethernet (copper) ports quantity: 1
SFP+ module slots quantity: 16
Console port: RJ-45
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1Q
Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4000
Security
Security algorithms: SNMPv2, SNMPv3
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Feature: Reset button
LED indicators: Yes
Number of fans: 2 fan(s)
Performance
Feature: Built-in processor
Processor frequency: 800 MHz
Memory type: Flash
Internal memory: 16 MB
Flash memory: 1000 MB
Power
Number of power supply units: 2
AC input voltage: 110 – 240 V
Power consumption (max): 42 W
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Weight & dimensions
Width: 443 mm
Depth: 224 mm
Height: 44 mm
Packaging content
Cables included: AC
Feature: User guide
Packaging data
Feature: Mounting brackets included
Logistics data
Harmonized System (HS) code: 85176990
