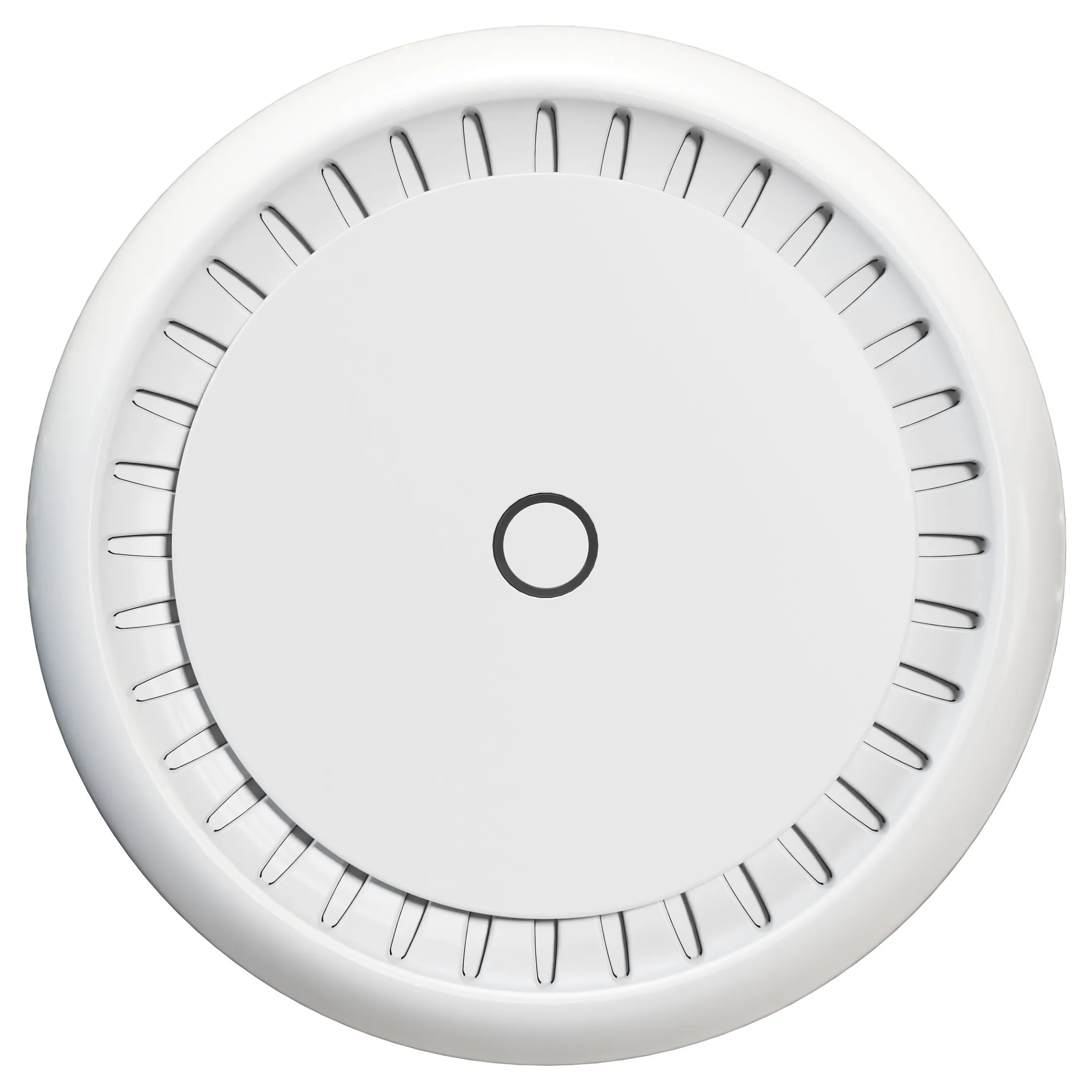

Mikrotik cAP XL ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 24 W
Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek – the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 867 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Wi-Fi data rate (max): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2 – 5.5 GHz
Networking standards: IEEE 802.3af, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Transmitting power (CE): 26 dBm
Mean time between failures (MTBF): 100000 h
Security
Security features: IPsec hardware acceleration
Ports & interfaces

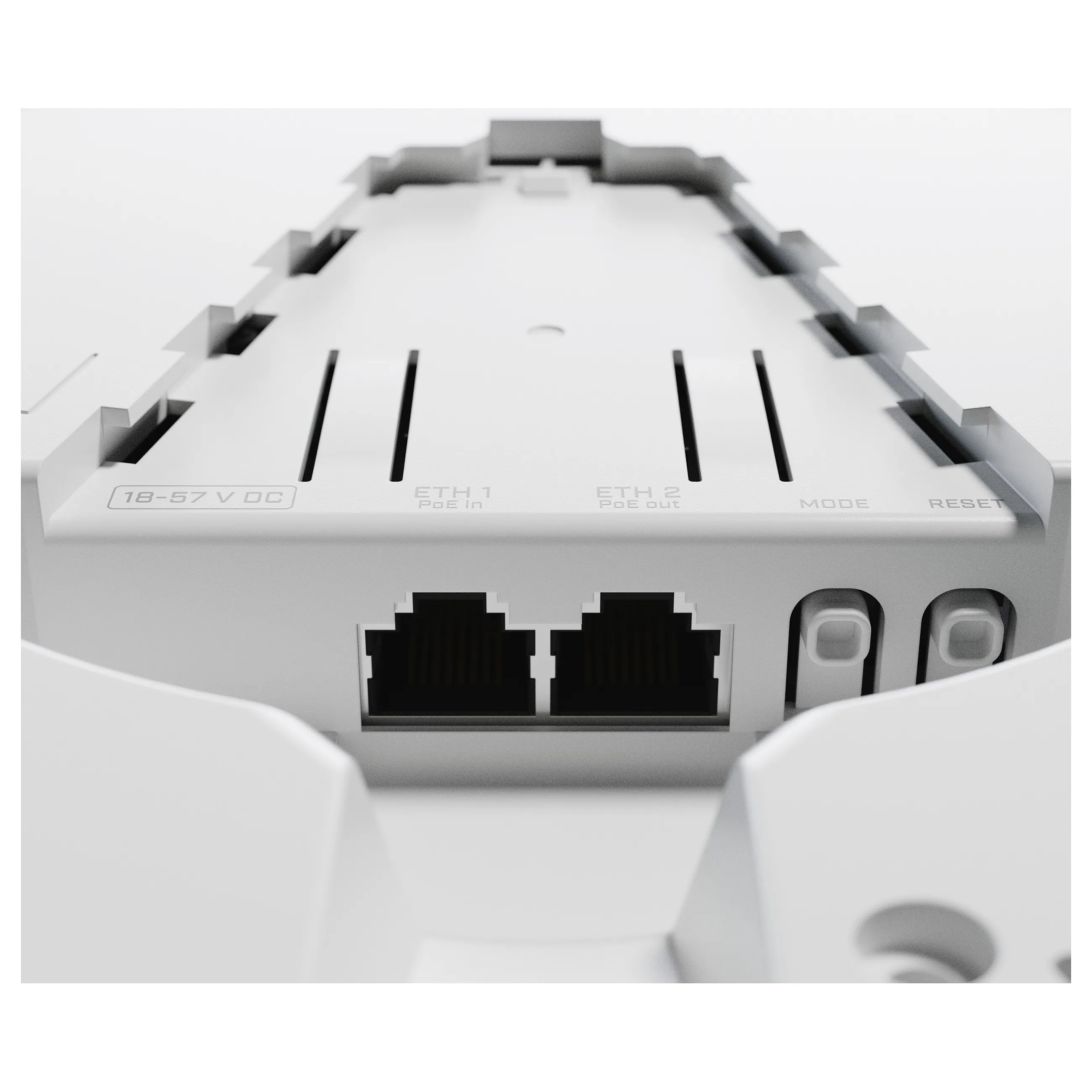

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
AC input voltage: 17 – 57 V
DC voltage range: 24 V
Input current: 1.2 A
Power consumption (typical): 11 W
Power consumption (max): 24 W
Design
Placement: Ceiling, Wall
Product colour: White
Feature: WPS push button
Antenna
Antenna type: Internal
Performance
Chipset: IPQ-4018
Feature: Built-in processor
Processor model: IPQ4018
Processor frequency: 716 MHz
Flash memory: 128 MB
Internal memory: 16 MB
Operating system installed: RouterOS
Security update term: IPsec hardware acceleration
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width: 191 mm
Height: 42 mm
Other features
Wireless technology: Wi-Fi 5
Logistics data
Warranty period: 5 year(s)
