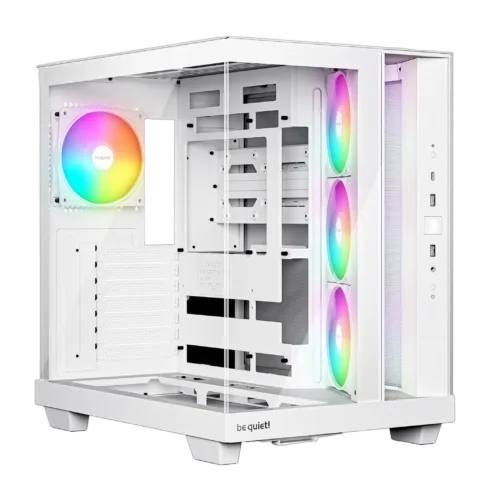

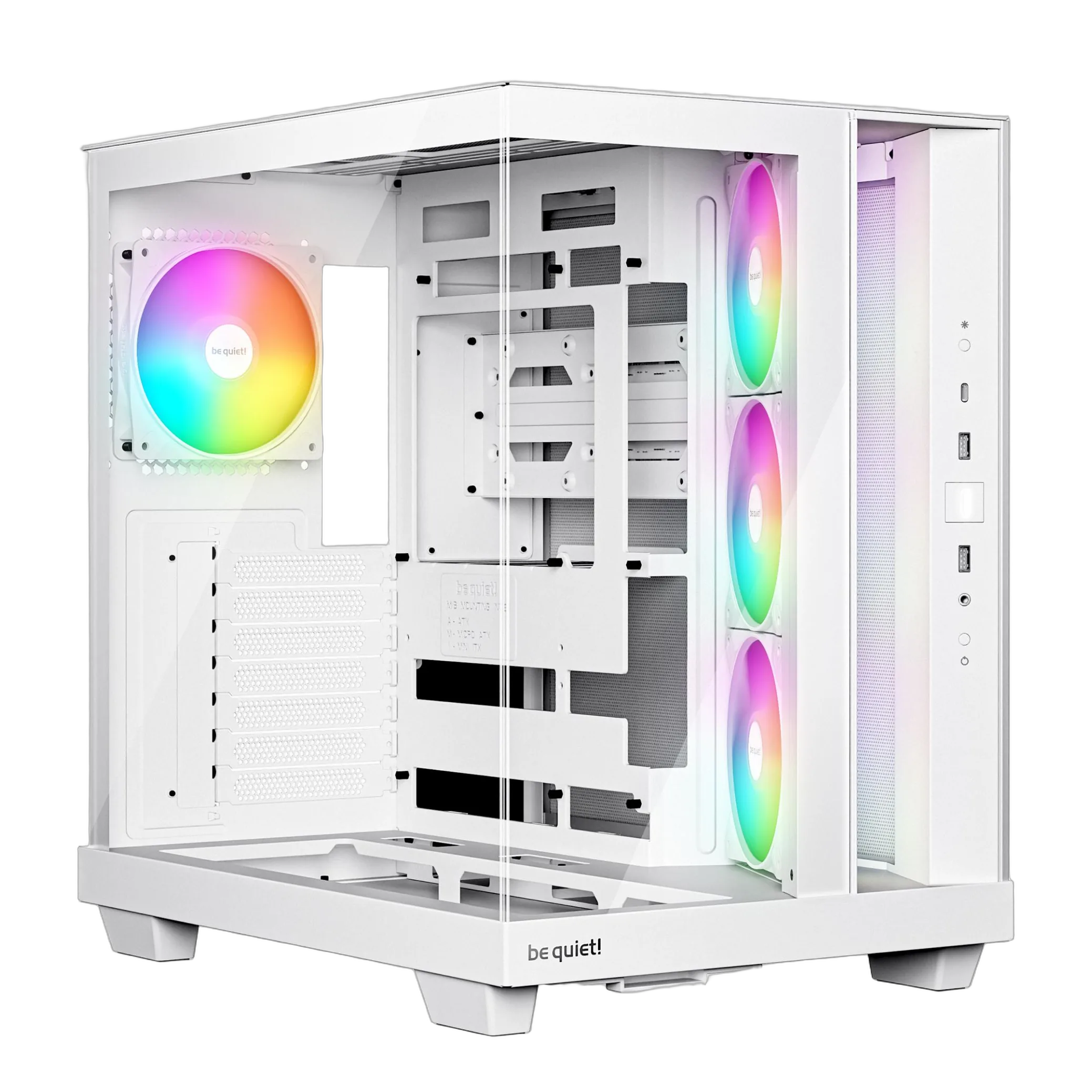

be quiet! Light Base 500 LX White. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX, PS2. Side fans installed: 3x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 305 mm, Depth: 432 mm, Height: 436 mm
Core performance and aesthetics
Light Base 500 LX White stands for a clean design and the core values of gaming: performance, accessibility and functionality.
ELEVATED ELEGANCE
Cool design, cooler GPU
The angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.
4 PREINSTALLED LIGHT WINGS LX
Wait, how many fans?!
Light Base 500 LX White features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm White, the fans on the side are Light Wings LX 120mm PWM White fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.
SPACIOUS DESIGN
Size matters after all
Light Base 500 LX White might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.
BUSINESS IN THE FRONT…
… Party in the back!
The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!
YES TO ARGB
Join the light side
For those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX White adds a touch of sophistication to the core design thanks to the included Light Wings LX White fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.
Material: Acrylonitrile butadiene styrene (ABS), Glass, Steel
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5″ bays: 1
Number of 2.5″ bays: 2
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Feature: RGB control button
LED indicators: Yes
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 40 cm
Maximum PSU length: 20 cm
Power supply
Supported power supply form factors: ATX, PS2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port
Cooling
Side fans installed: 3x 120 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120 mm
Fan speed: 1500 – 1600 RPM
Maximum airflow: 51.5 cfm
Maximum air pressure: 1.34 mmH2O
Feature: Liquid cooling capability
Side radiator sizes supported: 120,240 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,240,280,360 mm
Feature: Pulse-width modulation (PWM) support
Storage
Supported HDD sizes: 2.5,3.5″
Technical details
Sustainability certificates: Triman
Compliance certificates: CE, Electronic Industries Alliance (EIA), RoHS, UKCA, WEEE
Weight & dimensions
Width: 305 mm
Depth: 432 mm
Height: 436 mm
Weight: 10.9 kg
Packaging data
Package width: 388 mm
Package depth: 515 mm
Package height: 493 mm
Package weight: 14.6 kg
Other features
Volume: 49.6 L
