METZ CONNECT MMF881A315-0001. Product colour: Metallic, Cable standard: Cat6a, Connector contacts plating: Nickel/Gold. Compliance certificates: RoHS. Width: 16.8 mm, Depth: 49 mm, Height: 16.8 mm. Package weight: 36 g, Package type: Polybag

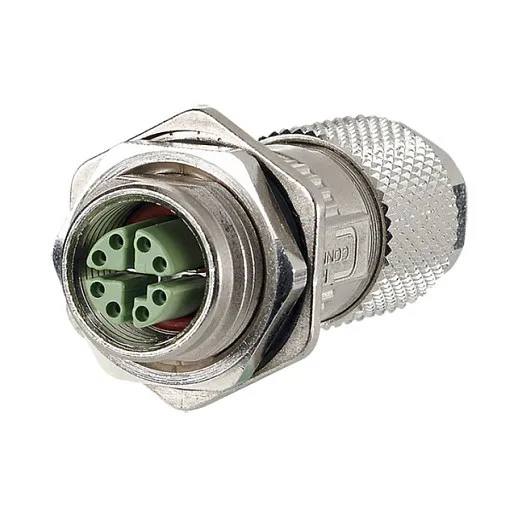

– 8-pole M12 jack for field assembly Cat.6A
– per IEC/PAS 61076-2-109 with flange
– suitable for 10 GBit as per IEEE 802.3an
– AWG 26/1 to 22/1, AWG 26/7 to 22/7 can be connected
– solid copper wire diameter 0.4 to 0.64 mm
– stranded copper wire diameter 0.48 to 0.76 mm
– wire diameter with isolation up to 1.6 mm
– overall cable diameter from 5.0 to 9.7 mm
– jack consists of only two parts
– easy assembly without special tools
– industry-compatible zinc die-cast housing
– suitable for applications in the railway industry
Connector(s): 12
Product colour: Metallic
Cable standard: Cat6a
Connector contacts plating: Nickel/Gold
Feature: Connector shielding
International Protection (IP) code: IP67
Voltage: 50/60 V
Current: 0.5 A
Certification: DIN EN 61076-2-109:2010-08, DIN EN 50155, DIN EN 45545-2
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Storage temperature (T-T): -40 – 85 °C
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 16.8 mm
Depth: 49 mm
Height: 16.8 mm
Packaging data
Package weight: 36 g
Package type: Polybag
Technical details
Insulation resistance: 100 MΩ
Housing material: Zinc
Wire diameter: 1.6 mm
