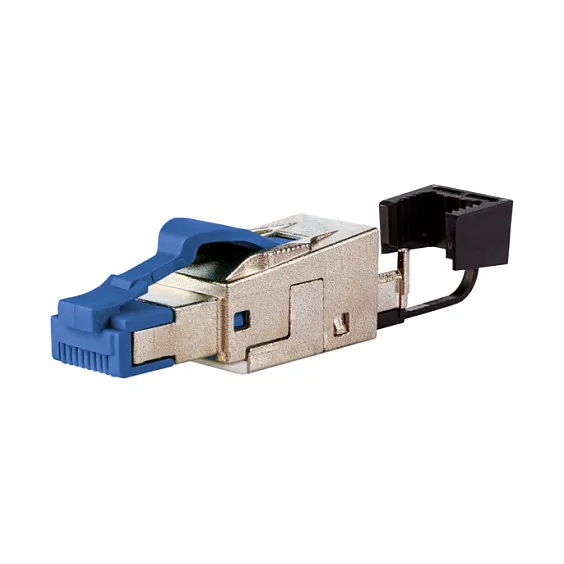

METZ CONNECT 40G RJ45 field plug pro. Connector(s): RJ45, Product colour: Blue, Connector gender: Male. Doesn't contain: Halogen. Compliance certificates: REACH, RoHS. Width: 13.8 mm, Depth: 49.8 mm, Height: 16.5 mm. Quantity per pack: 10 pc(s), Package type: Box
Features
Connector(s): RJ45
Connector gender: Male
Connector form factor: Straight
Product colour: Blue
Material: Plastic, Zinc
Feature: Cable protector
Cable standard: Cat8.1
Connector contacts plating: Nickel/Gold
International Protection (IP) code: IP20
Dielectric strength: 1000 V
Contact resistance: 20 mΩ
Lifetime (cycles): 750
Voltage: 50 V
Current: 1 A
Shell plating: Nickel
Insertion force: 20 N
Withdrawal force: 20 N
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Storage temperature (T-T): -40 – 85 °C
Sustainability
Doesn’t contain: Halogen
Certificates
Compliance certificates: REACH, RoHS
Weight & dimensions
Width: 13.8 mm
Depth: 49.8 mm
Height: 16.5 mm
Packaging data
Quantity per pack: 10 pc(s)
Package type: Box
Technical details
Insulation resistance: 500 MΩ
Cable diameter: 1.05 cm
Logistics data
Country of origin: Germany
Connector(s): RJ45
Connector gender: Male
Connector form factor: Straight
Product colour: Blue
Material: Plastic, Zinc
Feature: Cable protector
Cable standard: Cat8.1
Connector contacts plating: Nickel/Gold
International Protection (IP) code: IP20
Dielectric strength: 1000 V
Contact resistance: 20 mΩ
Lifetime (cycles): 750
Voltage: 50 V
Current: 1 A
Shell plating: Nickel
Insertion force: 20 N
Withdrawal force: 20 N
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Storage temperature (T-T): -40 – 85 °C
Sustainability
Doesn’t contain: Halogen
Certificates
Compliance certificates: REACH, RoHS
Weight & dimensions
Width: 13.8 mm
Depth: 49.8 mm
Height: 16.5 mm
Packaging data
Quantity per pack: 10 pc(s)
Package type: Box
Technical details
Insulation resistance: 500 MΩ
Cable diameter: 1.05 cm
Logistics data
Country of origin: Germany
